Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

16 part groups · 14 illustrations

Illustrations

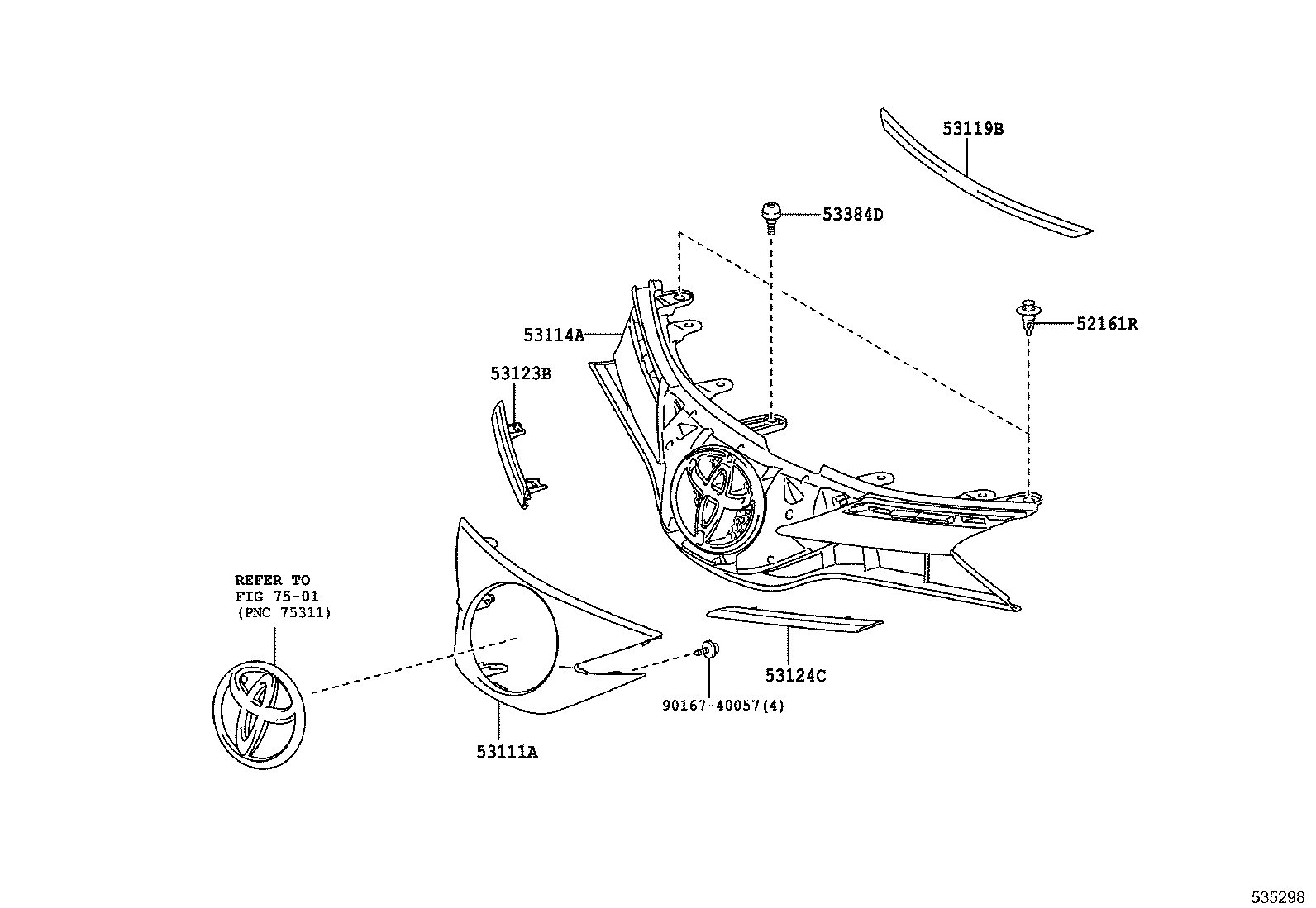

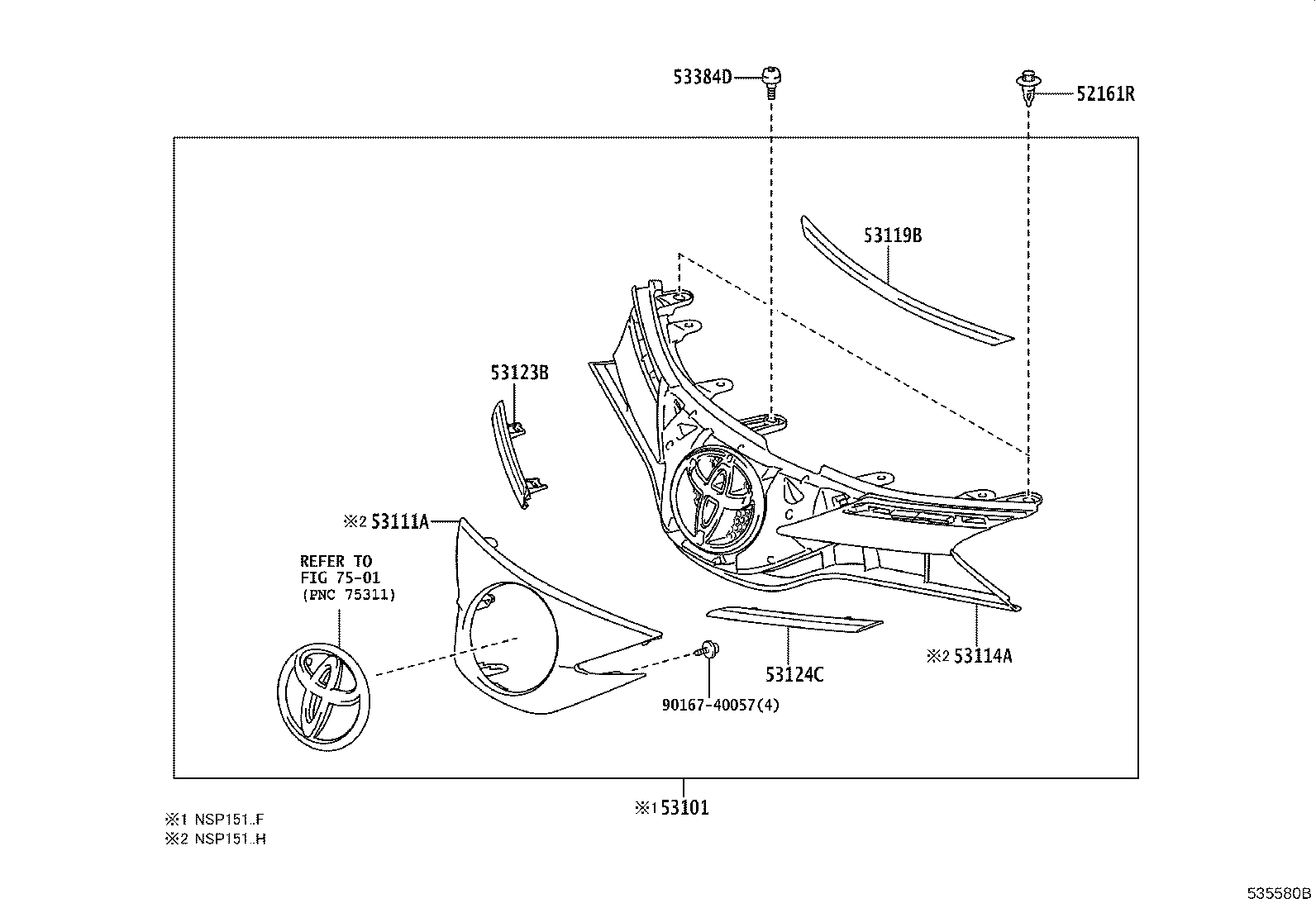

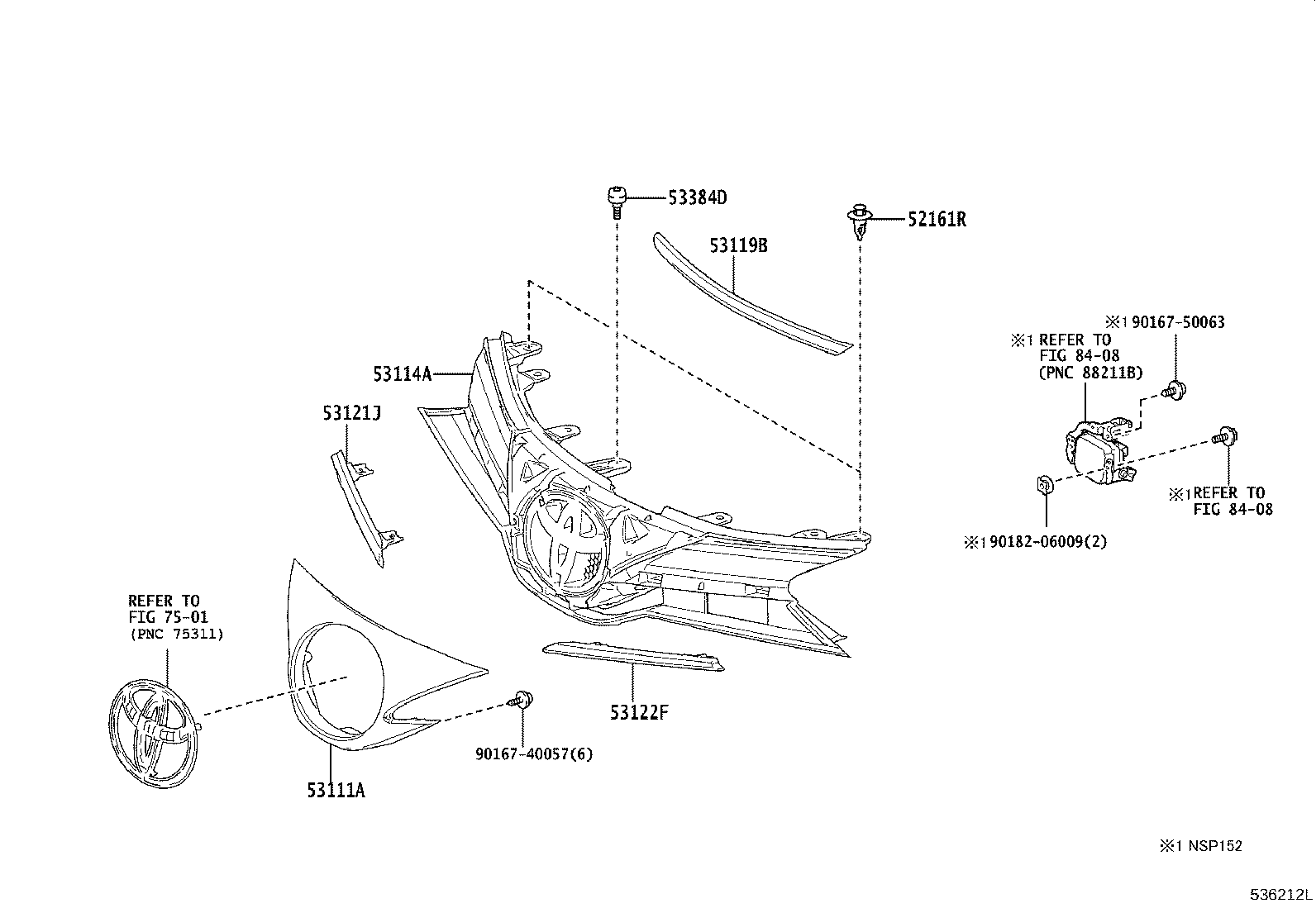

Figure 533969E 533969E 2013-04 → 2018-12 Figure 533969E 533969E 2013-04 → — Figure 533969E 533969E 2016-10 → 2018-01 Figure 533969E 533969E 2018-12 → — Figure 533969E 533969E 2019-12 → — Figure 534968 534968 2017-01 → — Figure 535298 535298 2017-08 → — Figure 535298 535298 2018-01 → — Figure 535298 535298 2018-07 → — Figure 535298 535298 2019-01 → — Figure 535298 535298 2019-11 → — Figure 535298 535298 2019-12 → — Figure 535580B 535580B 2018-03 → — Figure 536212L 536212L 2020-09 → —

Part groups

PNCDescription
52161R Piece, Front Bumper
53101 Grille Sub-assy, Radiator
53111A Grille, Radiator, Outside
53111D Moulding, Radiator Grille, RH
53111E Moulding, Radiator Grille, LH
53114A Grille, Radiator, Inner
53119B Protector, Radiator Grille
53121B Moulding, Radiator Grille, Upper
53121F Moulding, Radiator Grille, Upper RH
53121J Moulding, Radiator Grille, NO.1
53122F Moulding, Radiator Grille, NO.2
53123B Moulding, Radiator Grille Side, RH
53123E Moulding, Radiator Grille, Lower RH
53124C Moulding, Radiator Grille, Upper LH
53124E Moulding, Radiator Grille, Lower LH
53384D Cushion, Hood, Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
