Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

77 part groups · 59 illustrations

Illustrations

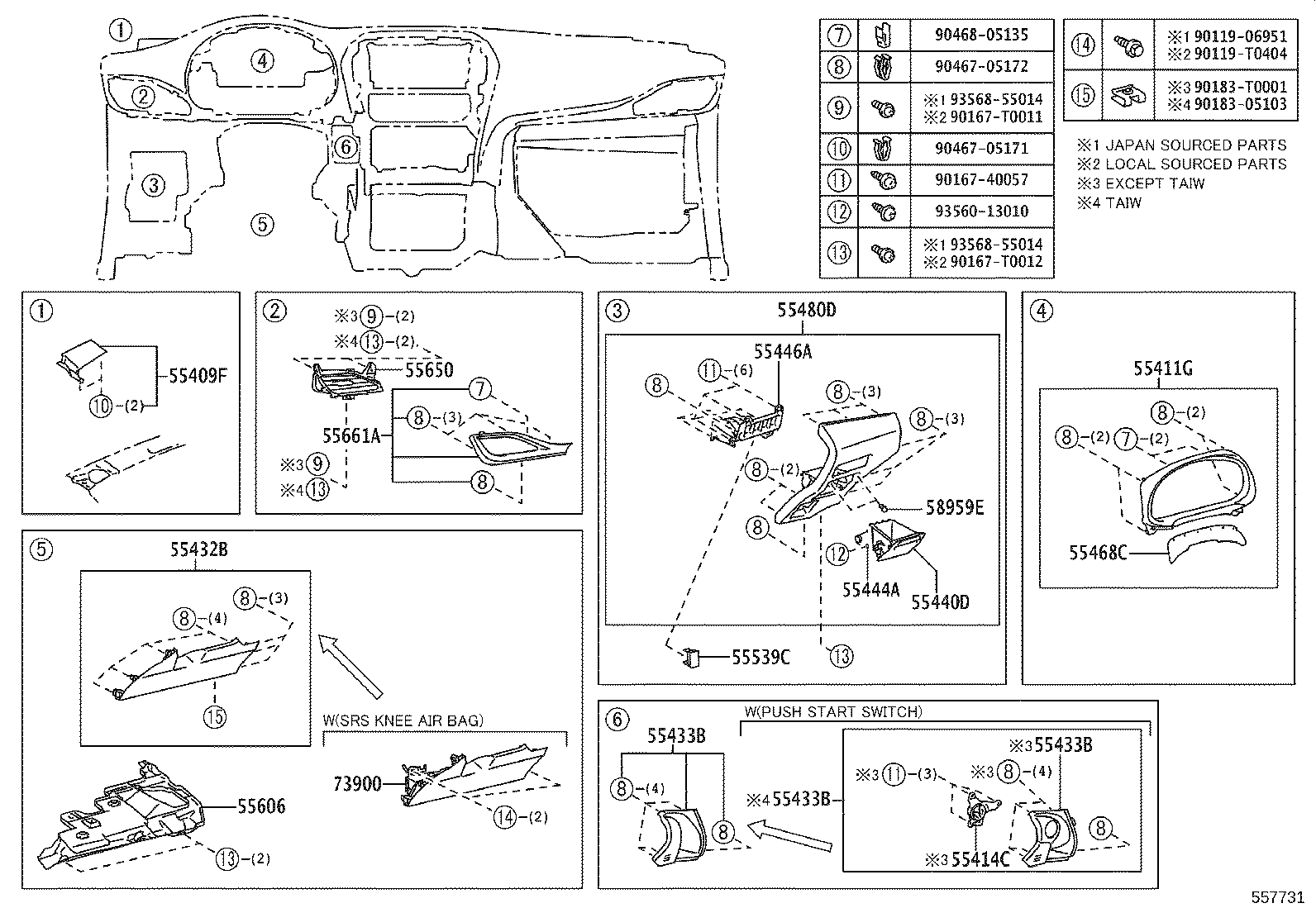

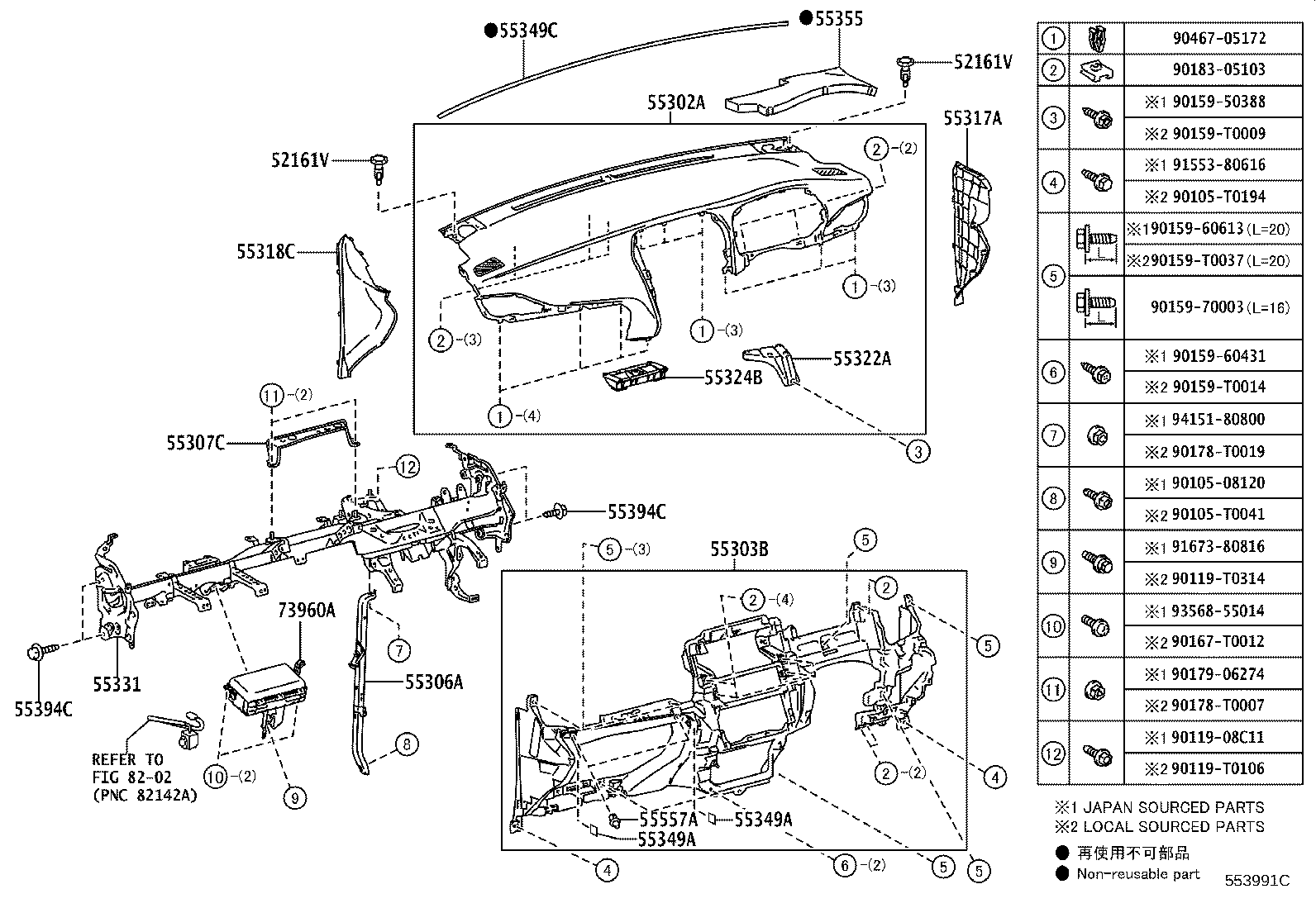

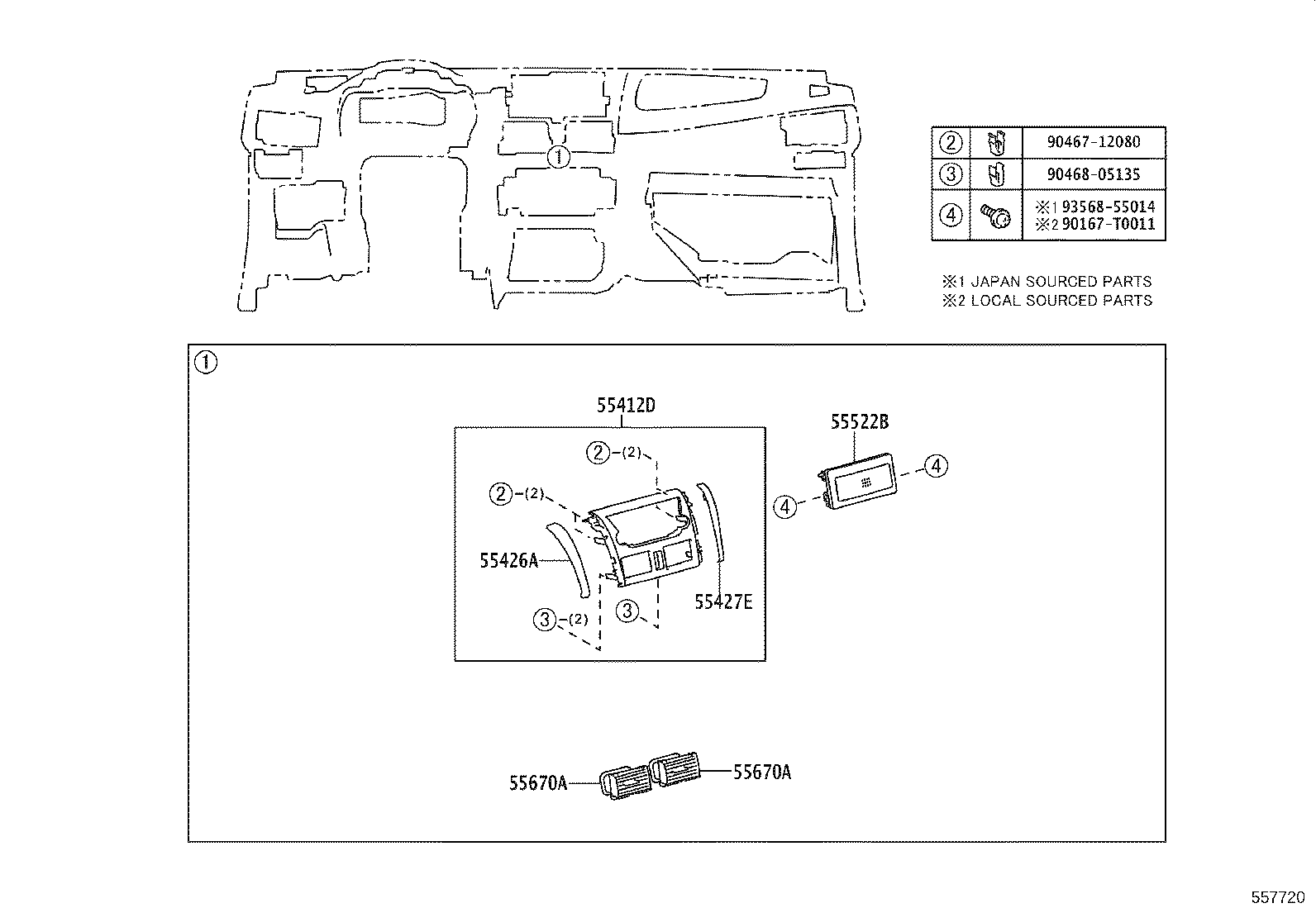

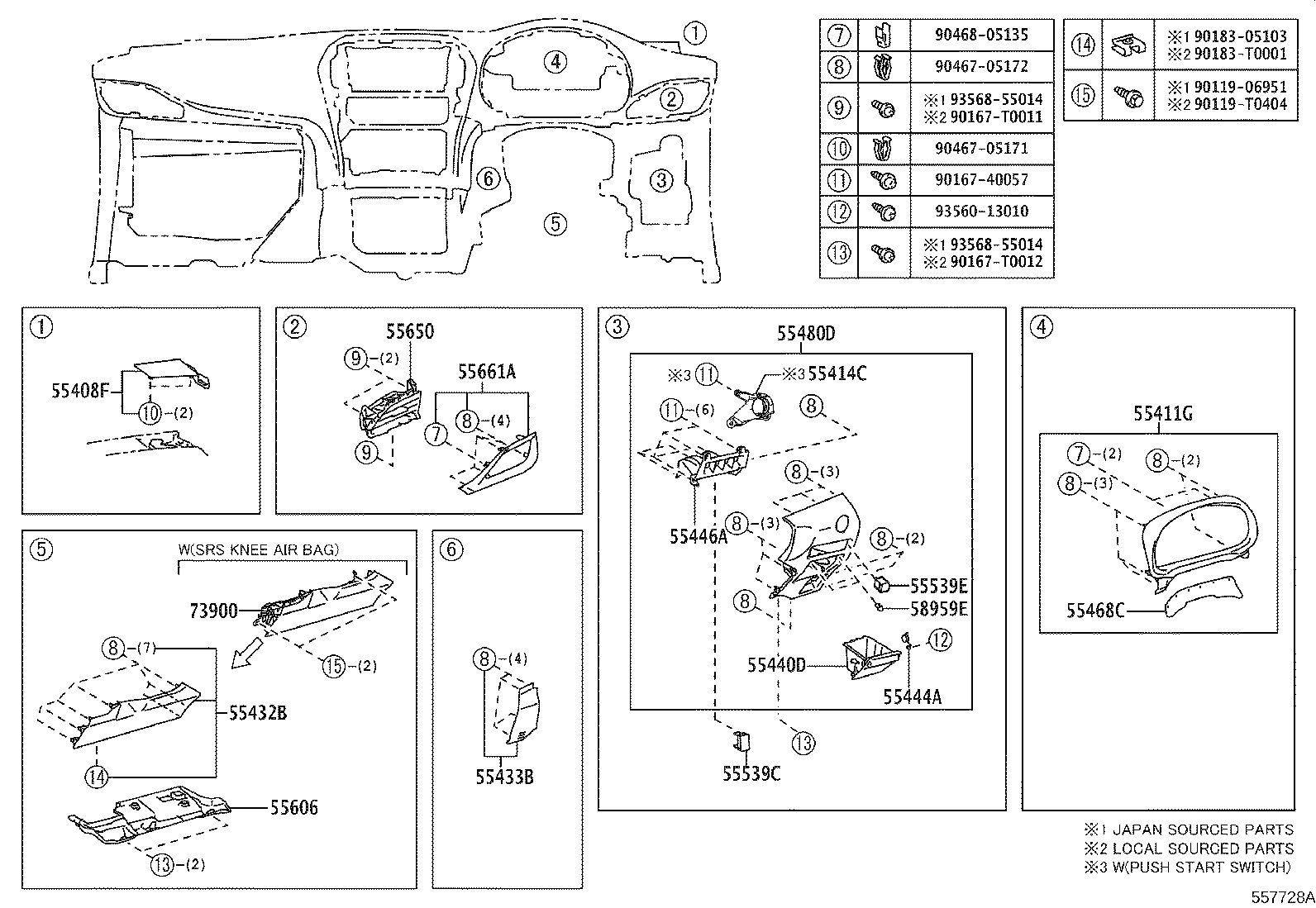

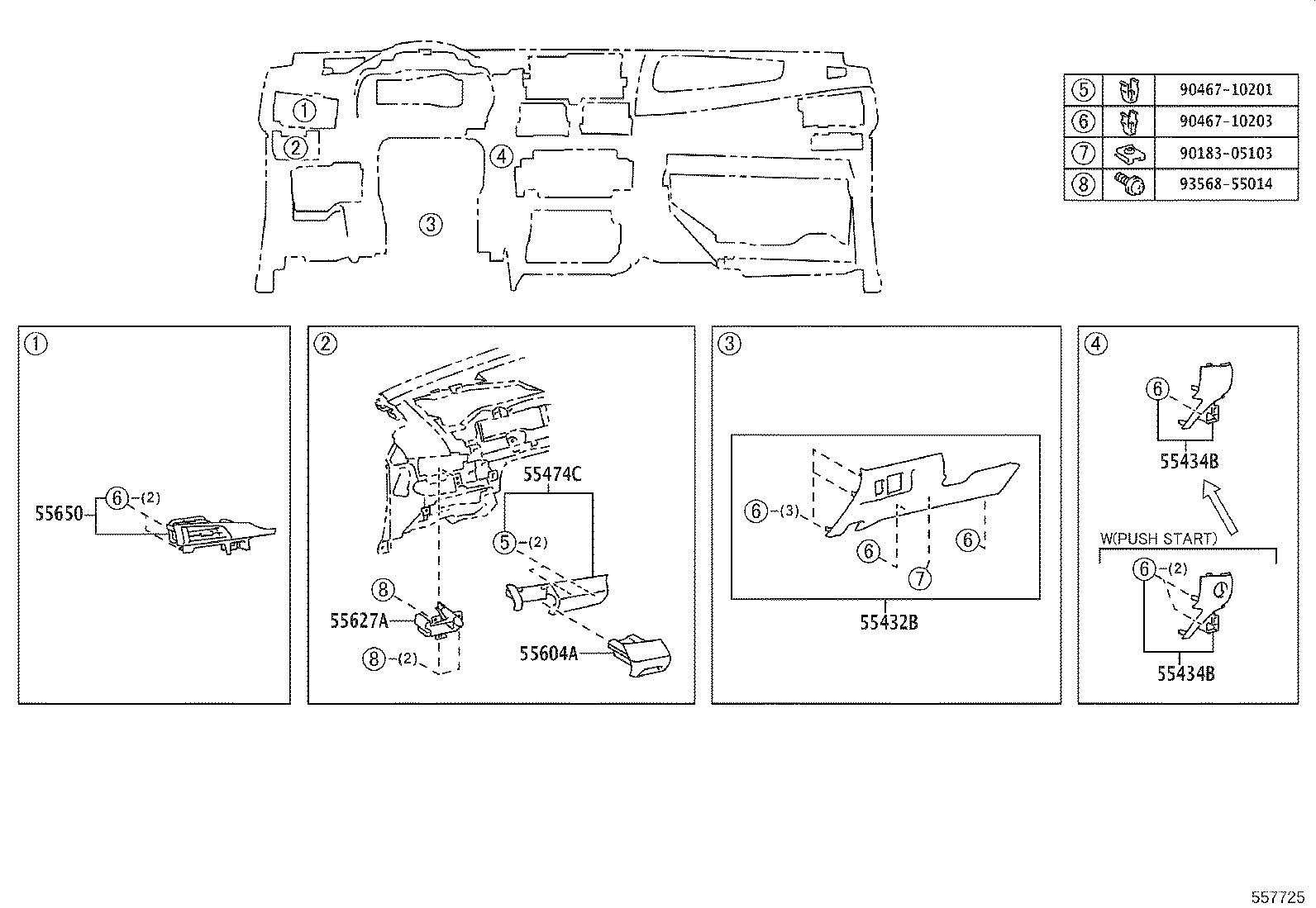

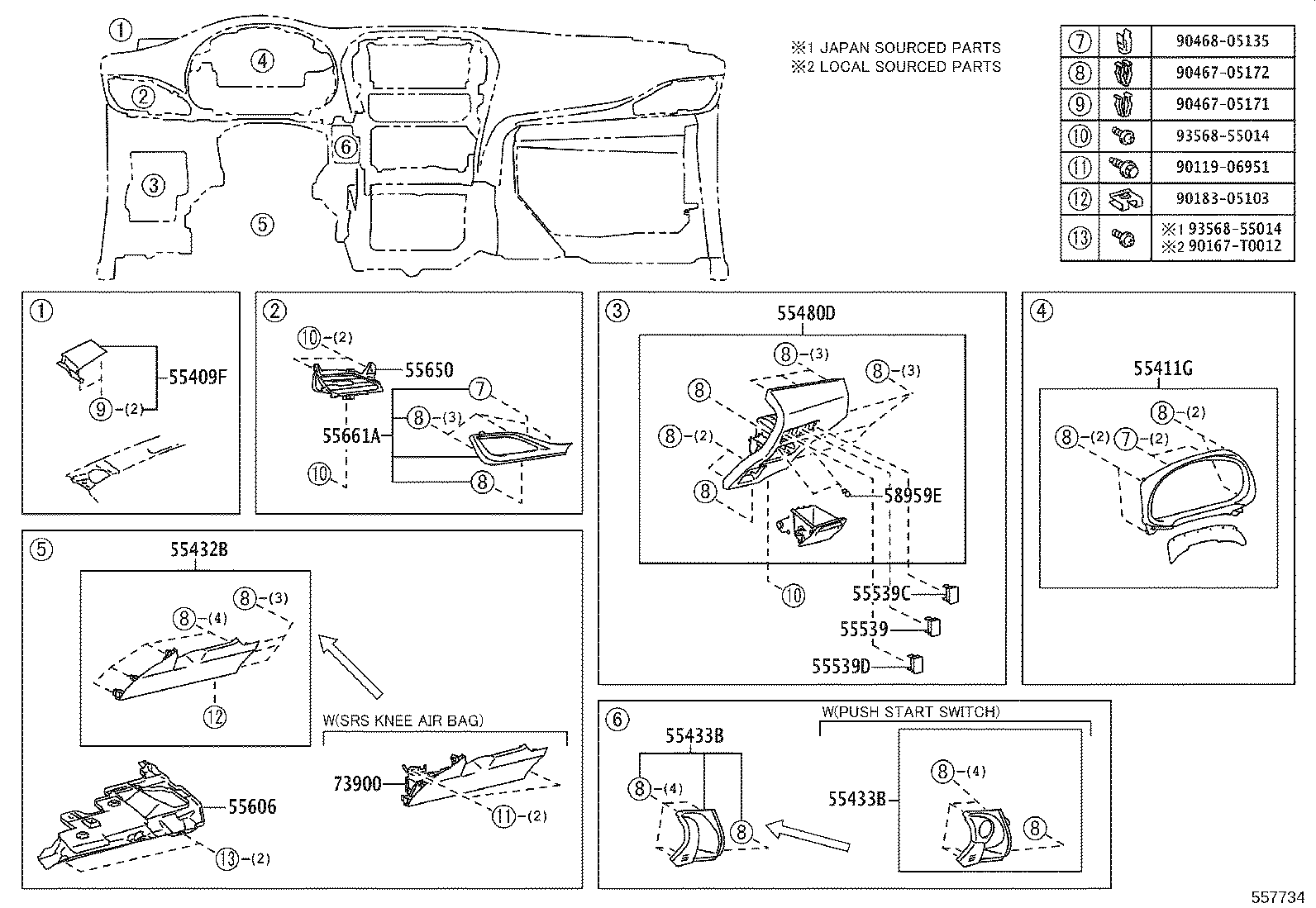

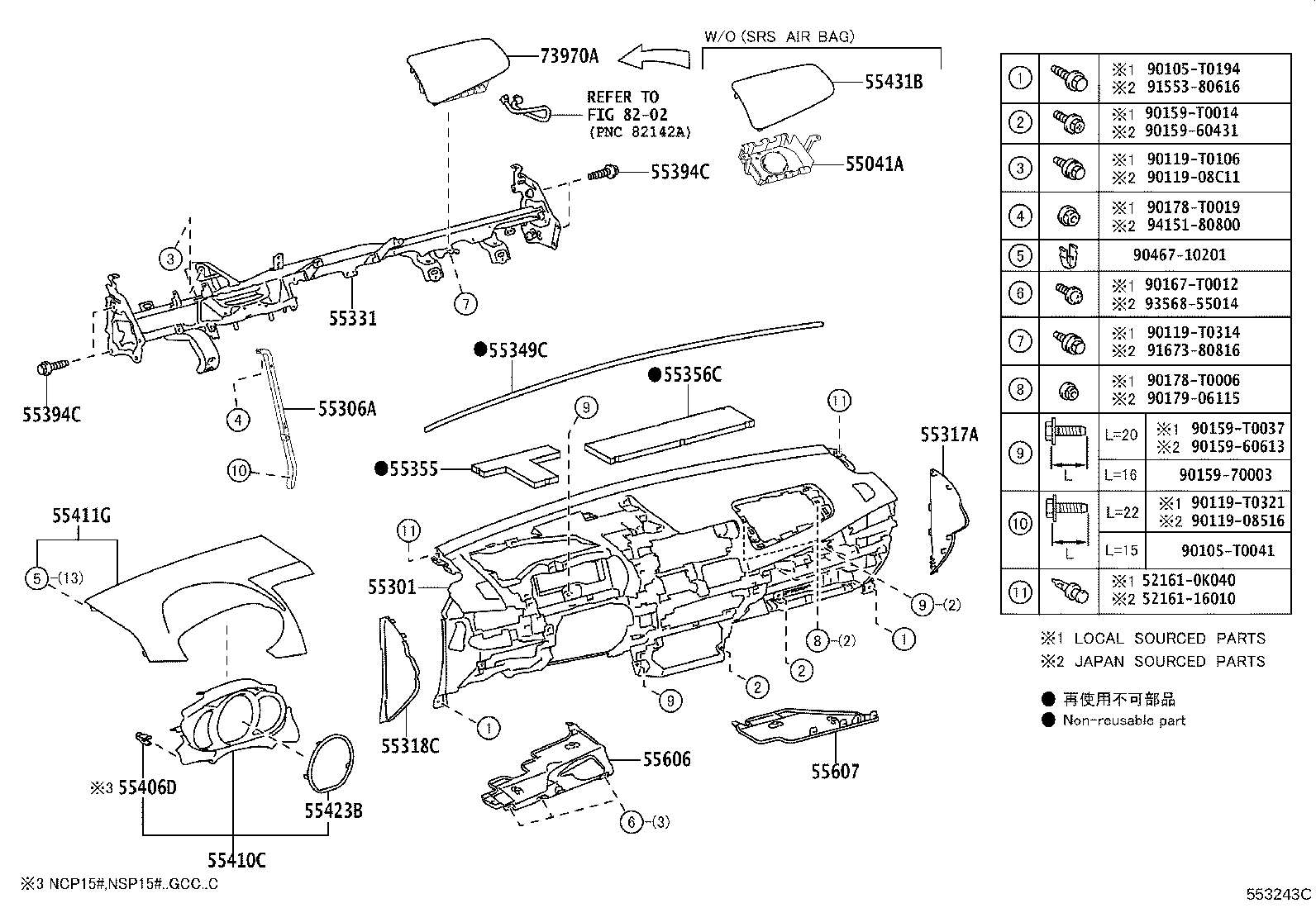

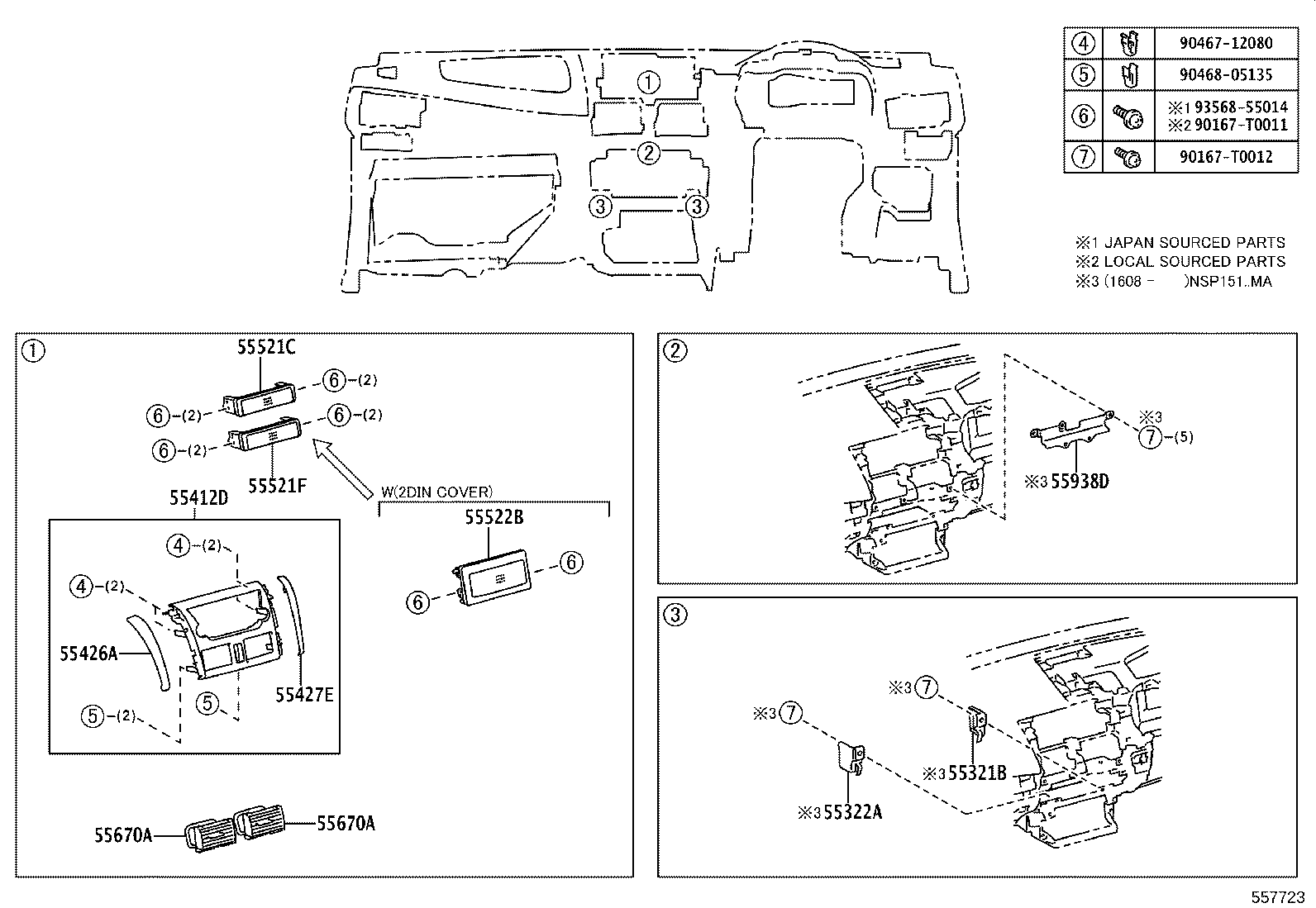

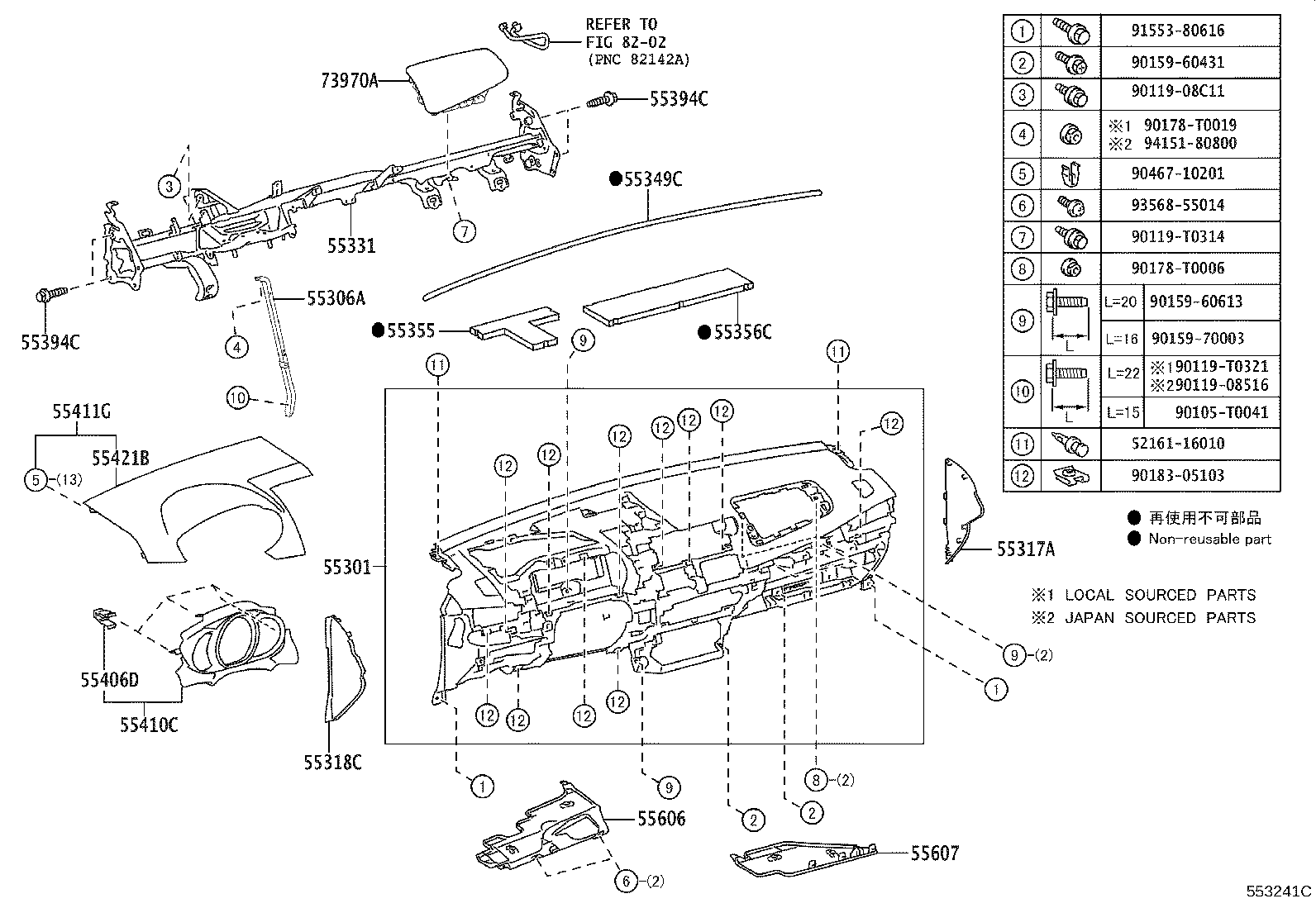

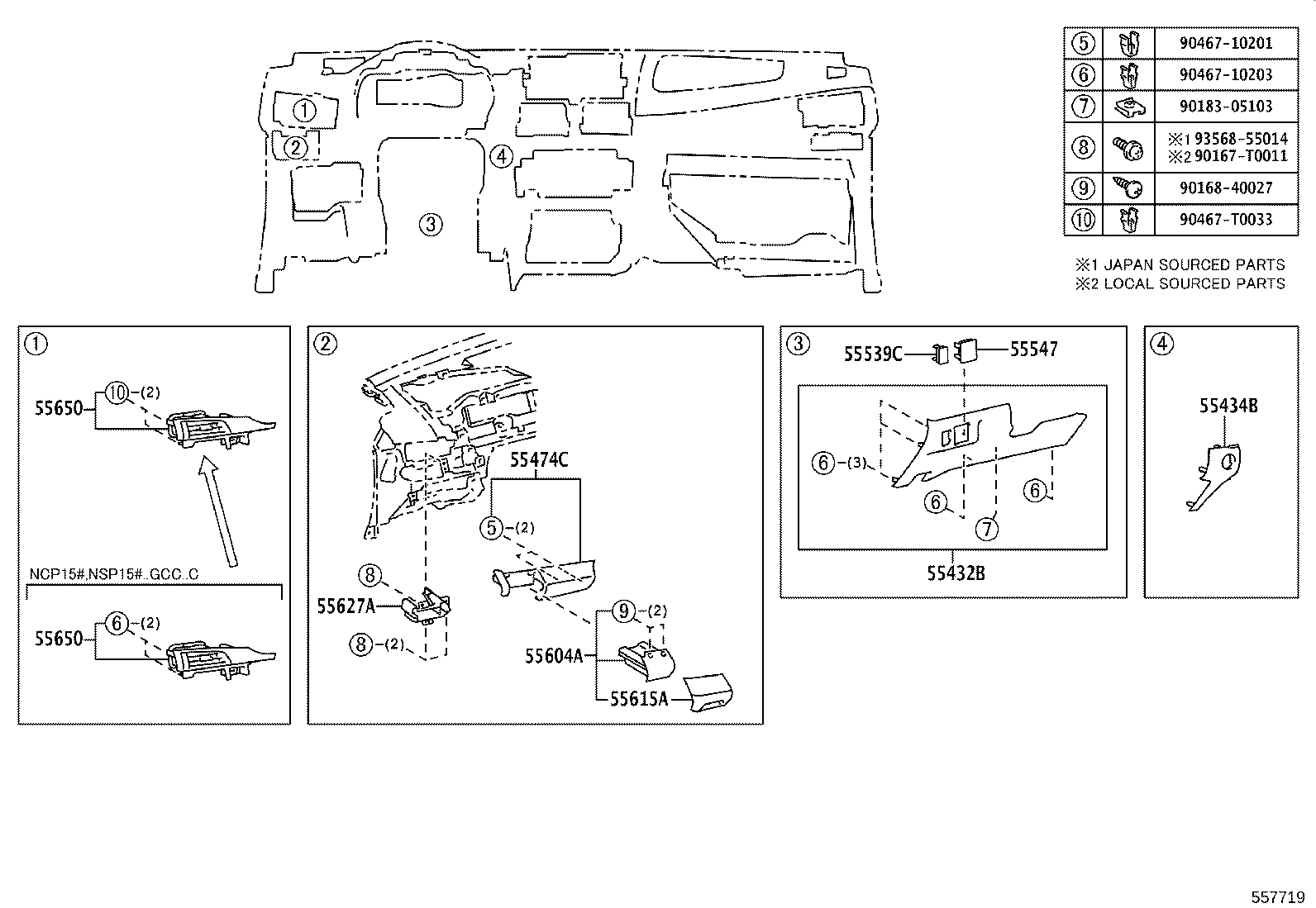

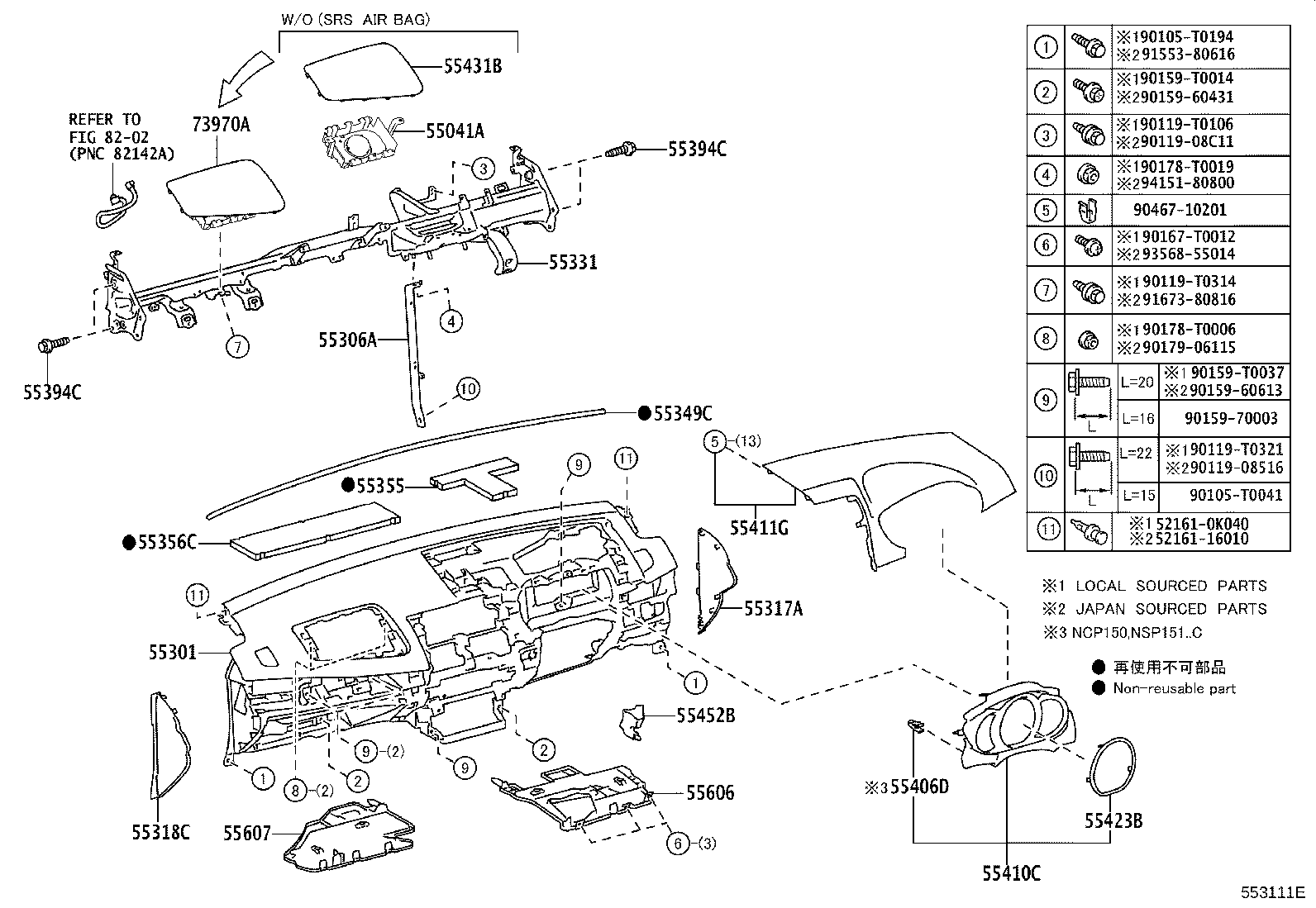

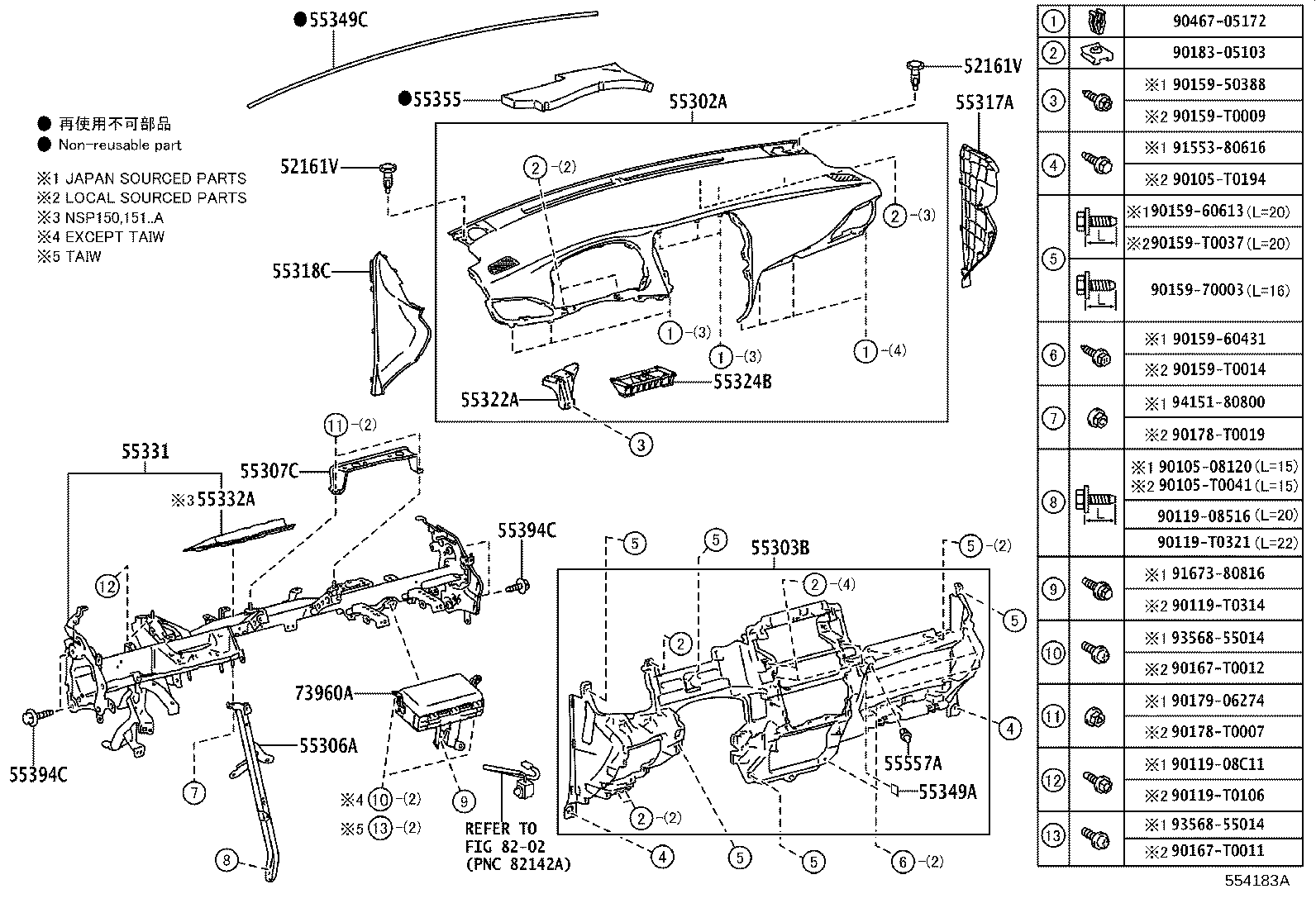

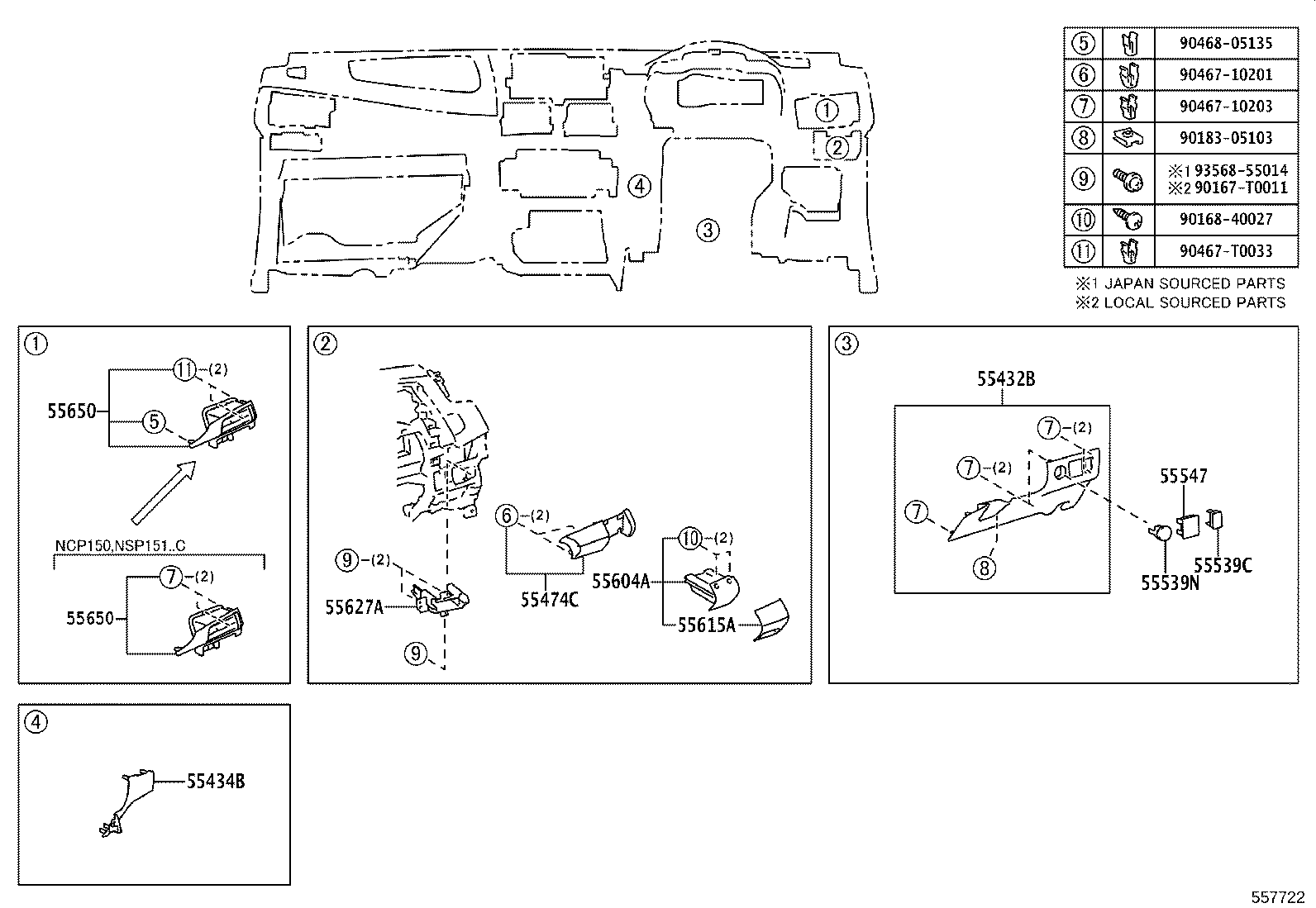

Figure 553243C 553243C 2013-07 → 2018-01 Figure 553243C 553243C 2018-01 → — Figure 553111E 553111E 2013-04 → 2018-01 Figure 553111E 553111E 2018-01 → 2019-01 Figure 553111E 553111E 2019-01 → — Figure 553241C 553241C 2014-04 → — Figure 553991C 553991C 2017-08 → — Figure 553991C 553991C 2018-01 → — Figure 553991C 553991C 2019-01 → — Figure 553991C 553991C 2019-11 → — Figure 553991C 553991C 2020-03 → — Figure 554183A 554183A 2017-10 → — Figure 554183A 554183A 2018-01 → — Figure 554183A 554183A 2018-07 → — Figure 557719 557719 2013-07 → 2018-01 Figure 557719 557719 2018-01 → — Figure 557722 557722 2013-04 → 2018-01 Figure 557722 557722 2018-01 → 2019-01 Figure 557722 557722 2019-01 → — Figure 557725 557725 2014-04 → — Figure 557728A 557728A 2017-08 → — Figure 557728A 557728A 2018-01 → — Figure 557728A 557728A 2019-01 → — Figure 557728A 557728A 2019-11 → — Figure 557728A 557728A 2020-03 → — Figure 557731 557731 2017-10 → — Figure 557731 557731 2018-01 → — Figure 557731 557731 2018-07 → — Figure 557734 557734 2018-07 → — Figure 557720 557720 2013-07 → 2018-01 Figure 557720 557720 2018-01 → — Figure 557723 557723 2013-04 → 2018-01 Figure 557723 557723 2018-01 → 2019-01 Figure 557723 557723 2019-01 → — Figure 557726 557726 2014-04 → — Figure 557729 557729 2017-08 → — Figure 557729 557729 2018-01 → — Figure 557729 557729 2019-01 → — Figure 557729 557729 2019-11 → — Figure 557729 557729 2020-03 → — Figure 557732 557732 2017-10 → — Figure 557732 557732 2018-01 → — Figure 557732 557732 2018-07 → — Figure 557735A 557735A 2018-07 → — Figure 557721 557721 2013-07 → 2018-01 Figure 557721 557721 2018-01 → — Figure 557724 557724 2013-04 → 2018-01 Figure 557724 557724 2018-01 → 2019-01 Figure 557724 557724 2019-01 → — Figure 557727 557727 2014-04 → — Figure 557730 557730 2017-08 → — Figure 557730 557730 2018-01 → — Figure 557730 557730 2019-01 → — Figure 557730 557730 2019-11 → — Figure 557730 557730 2020-03 → — Figure 557733 557733 2017-10 → — Figure 557733 557733 2018-01 → — Figure 557733 557733 2018-07 → — Figure 557736 557736 2018-07 → —

Part groups

PNCDescription
52161V Piece, Instrument Panel
55041A Bracket Sub-assy, Airbag Passenger Mounting
55045A Panel Sub-assy, Instrument Panel Finish, Lower RH
55046A Panel Sub-assy, Instrument Panel Finish, Lower LH
55054 Stopper Sub-assy, Glove Compartment Door
55301 Panel Sub-assy, Instrument
55302A Panel Sub-assy, Instrument, Upper
55303B Panel Sub-assy, Instrument, Lower
55306A Brace Sub-assy, Instrument Panel, NO.1
55307C Brace Sub-assy, Instrument Panel, NO.2
55317A Panel, Instrument Side, RH
55318C Panel, Instrument Side, LH
55321B Bracket, Instrument Panel, NO.1
55322A Bracket, Instrument Panel, NO.2
55324B Bracket, Instrument Panel, NO.4
55331 Reinforcement, Instrument Panel
55332A Reinforcement, Instrument Panel, NO.2
55349A Cushion, Instrument Panel
55349C Cushion, Instrument Panel
55355 Cushion, Instrument Panel, NO.1
55356C Cushion, Instrument Panel, NO.2
55394C Bolt, Instrument Panel
55406D Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH)
55408F Panel Sub-assy, Instrument Panel Speaker, NO.1
55409F Panel Sub-assy, Instrument Panel Speaker, NO.2
55410C Panel Assy, Instrument Cluster Finish
55411G Panel, Instrument Cluster Finish, NO.1
55412D Panel, Instrument Cluster Finish, Center
55414C Bezel, Starter Switch
55416C Retainer, Instrument Cluster Finish Panel
55421B Panel, Instrument Cluster Finish, Upper
55423B Cover, Instrument Cluster Finish Panel
55426A Bracket, Cluster Finish Panel, NO.1
55427E Bracket, Cluster Finish Panel, NO.2
55431B Panel, Instrument Panel Finish, Upper
55432B Panel, Instrument Panel Finish, Lower
55433B Panel, Instrument Panel Finish, Lower NO.2
55434B Panel, Instrument Panel Finish, Lower Center
55434F Panel, Instrument Panel Finish, Lower Center
55440D Box Assy, Instrument Panel
55444A Spring, Instrument Panel Box
55446A Base, Switch Hole, NO.1
55452B Filler, Instrument Panel Safety Pad
55468C Seal, Instrument Cluster Finish Panel, NO.1
55474C Garnish, Instrument Cluster Finish Panel, NO.1
55475A Garnish, Instrument Cluster Finish Panel, NO.2
55479D Garnish, Instrument Cluster Finish Panel, Lower
55480D Panel Assy, Instrument Panel Finish, Lwr
55509C Panel Sub-assy, Glove Compartment
55521C Cover, Stereo Opening
55521F Cover, Stereo Opening, NO.2
55522B Cover, Radio Tuner Opening
55539 Cover, Spare Switch Hole
55539C Cover, Spare Switch Hole
55539D Cover, Spare Switch Hole
55539E Cover, Spare Switch Hole
55539N Cover, Spare Switch Hole
55547 Cover, Remote Control Mirror Hole
55550 Door Assy, Glove Compartment
55557A Cushion, Glove Compartment Door Check
55604A Holder Sub-assy, Instrument Panel Cup
55604B Holder Sub-assy, Instrument Panel Cup
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55615A Case, Instrument Panel Cup Holder, Outer
55627A Rail, Instrument Panel Cup Holder
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55661A Bezel, Instrument Panel Register
55662A Bezel, Instrument Panel Resister, NO.2
55670 Register Assy, Instrument Panel, NO.3
55670A Register Assy, Instrument Panel, Center
55938D Bracket, Heater Control
58959E Cushion, Console Compartment Door
73900 Airbag Assy, Instrument Panel, Lower NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
73970A Airbag Assy, Instrument Panel Passenger
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
