Toyota Yaris/Vios/Limo
2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States
Supported model
Data version 2019-11

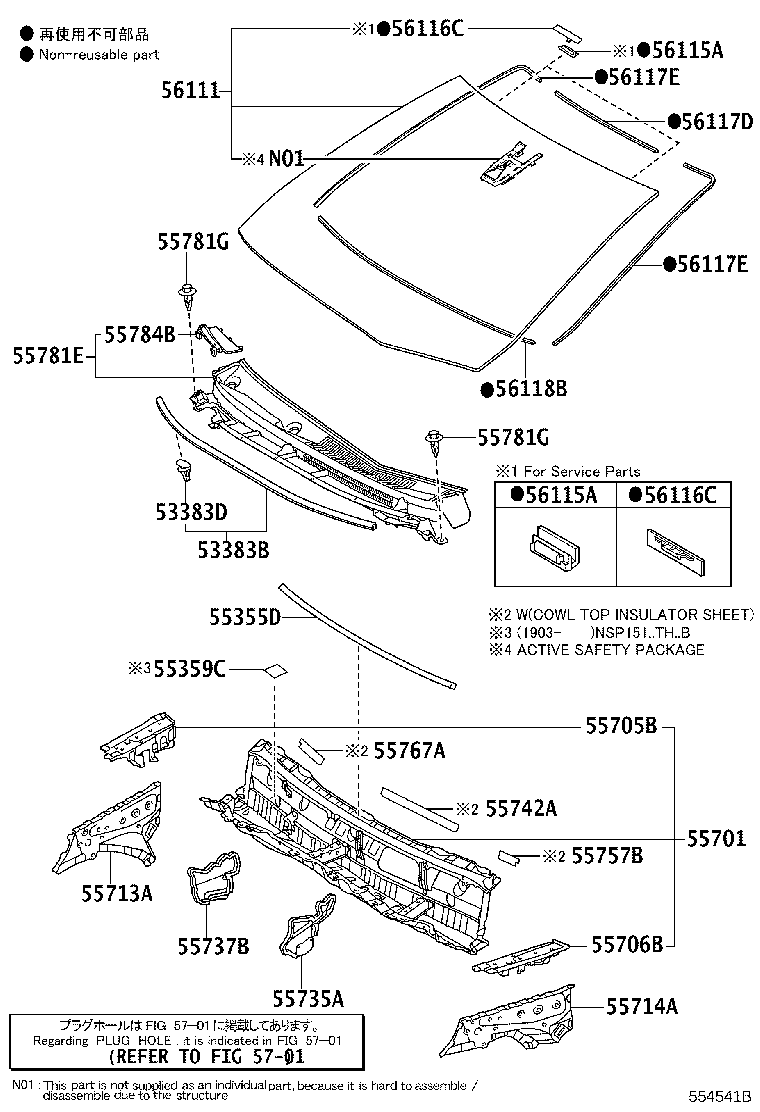

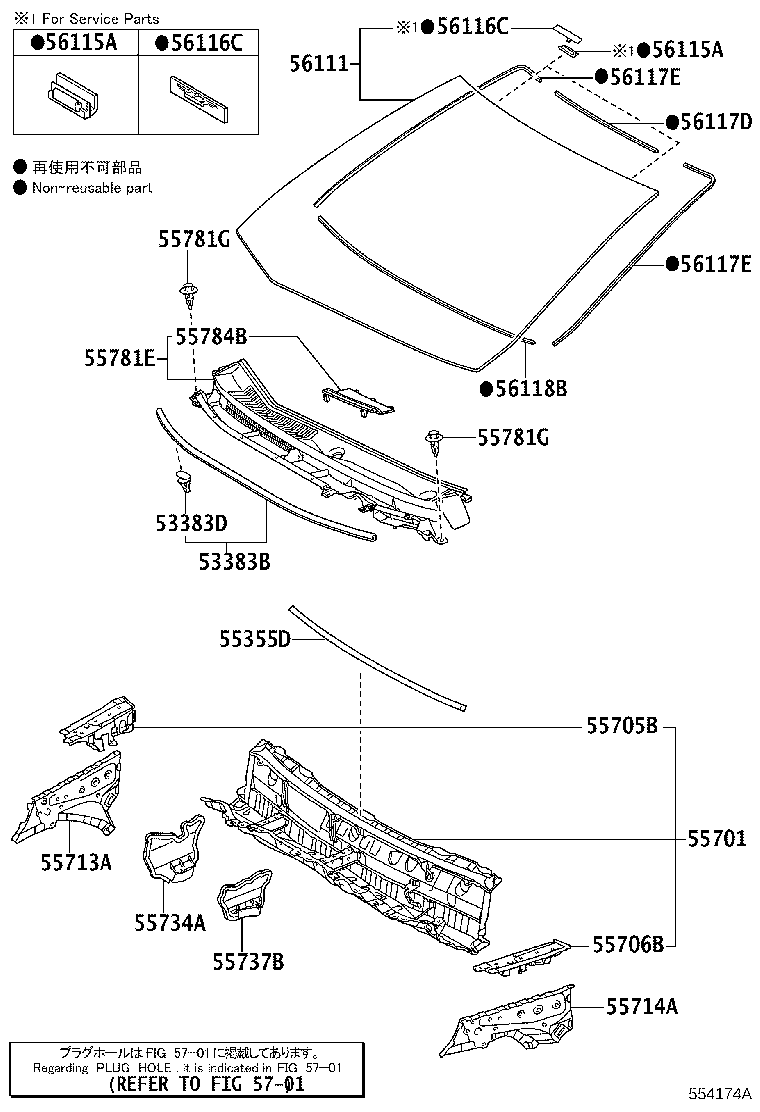

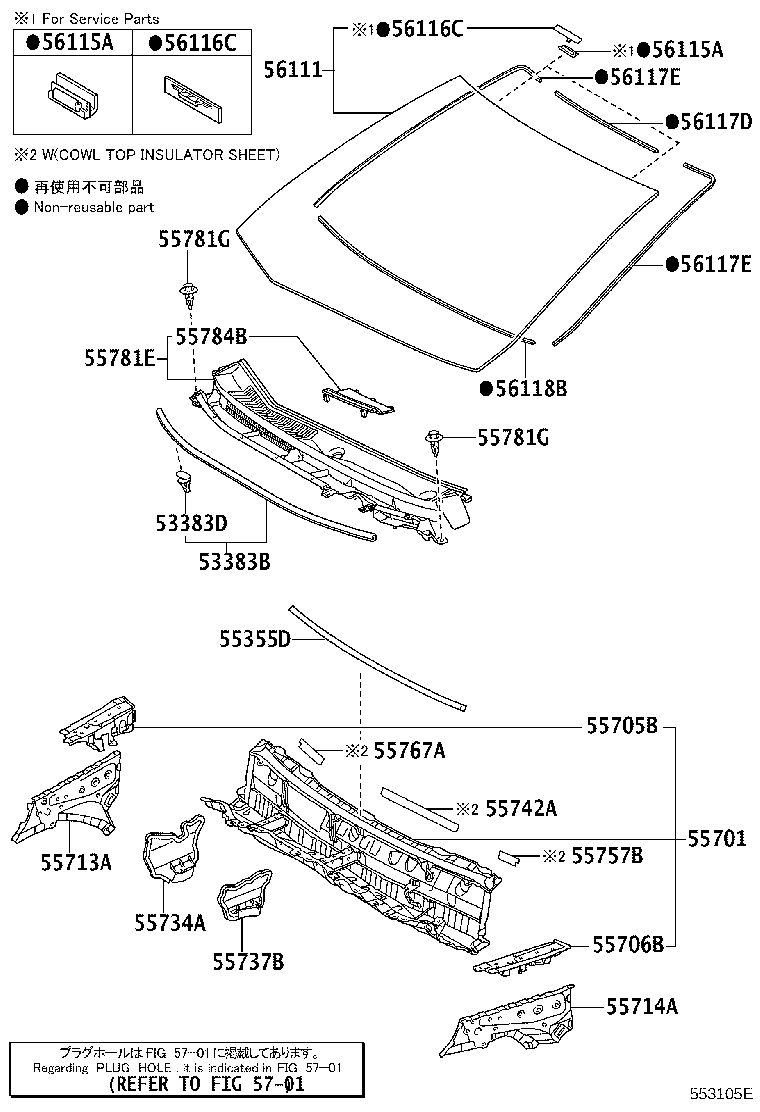

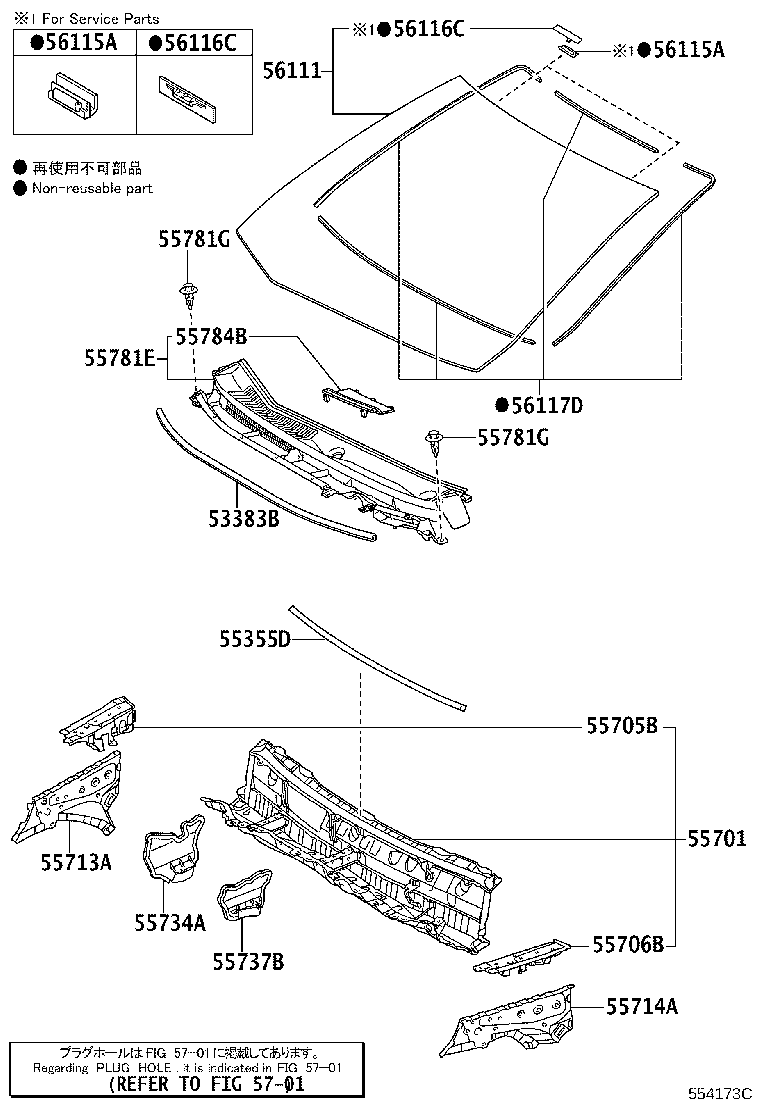

Cowl Panel & Windshield Glass
24 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 53383B | Seal, Hood TO Cowl Top |
| 53383D | Clip(FOR HOOD TO COWL TOP SEAL) |
| 55355D | Cushion, Instrument Panel, NO.1 |
| 55359C | Coshion, Instrument Panel, NO.5 |
| 55701 | Panel Sub-assy, Cowl |
| 55705B | Panel Sub-assy, Cowl Top Side, RH |
| 55706B | Panel Sub-assy, Cowl Top Side, LH |
| 55713A | Panel, Cowl Top Side, RH |
| 55714A | Panel, Cowl Top Side, LH |
| 55734A | Plate, Water Guard, RH |
| 55735A | Plate, Water Guard, LH |
| 55737B | Seal, Heater Air Duct Splash Shield, NO.1 |
| 55742A | Sheet, Cowl Top Insulator |
| 55757B | Sheet Cowl Top Insulator |
| 55767A | Sheet, Cowl Top Insulator, NO.5 |
| 55781E | Louver Sub-assy, Cowl Top Ventilator |
| 55781G | Clip, Cowl Top Ventilator Louver |
| 55784B | Louver, Cowl Top Ventilator, Center NO.2 |
| 56111 | Glass, Windshield |
| 56115A | Stopper, Windshield Glass, NO.1 |
| 56116C | Stopper, Windshield Glass, NO.2 |
| 56117D | Dam, Windshield Glass Adhesive |
| 56117E | Dam, Window Glass Adhesive |
| 56118B | Dam, Window Glass Adhesive, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
