Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

18 part groups · 11 illustrations

Illustrations

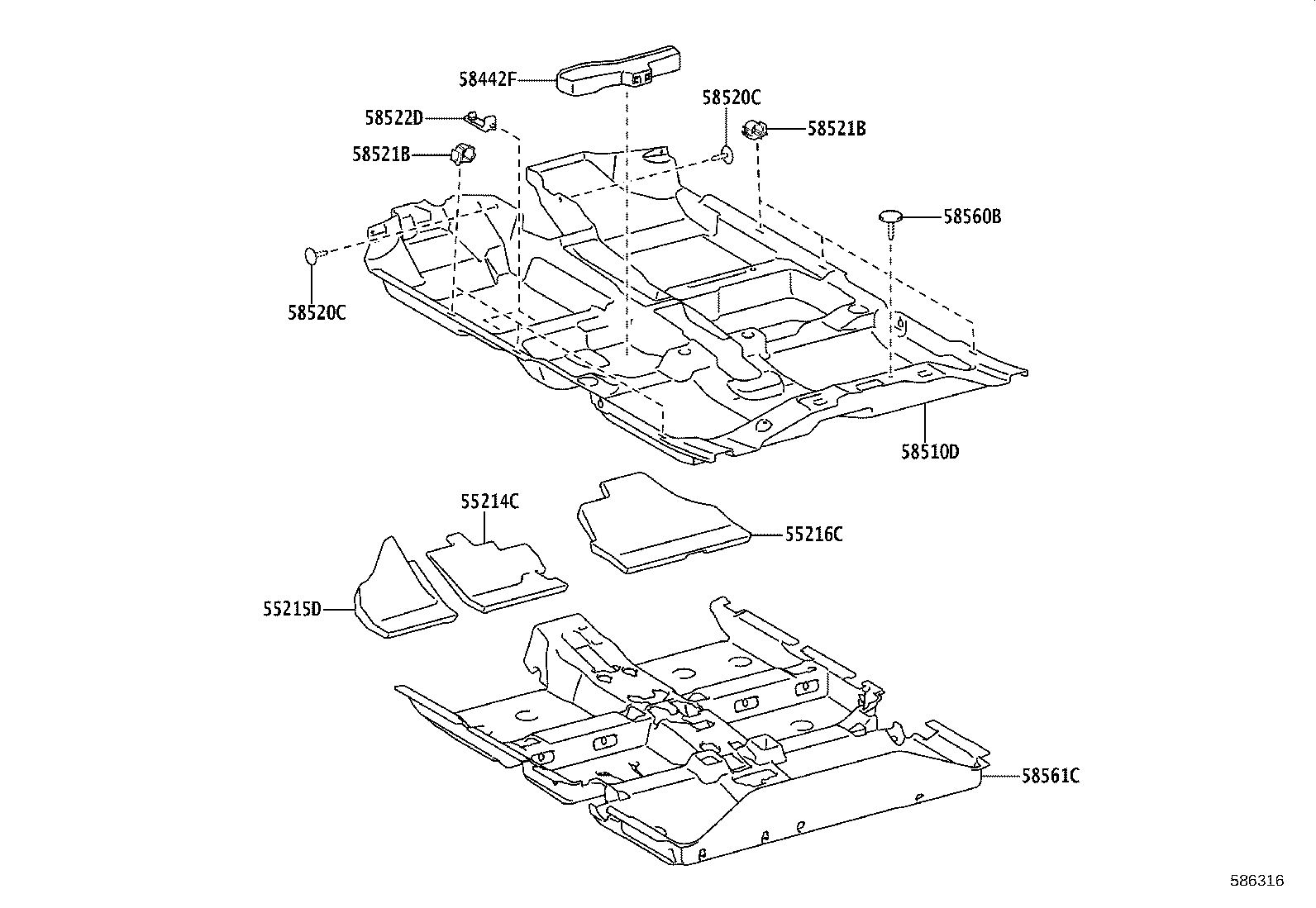

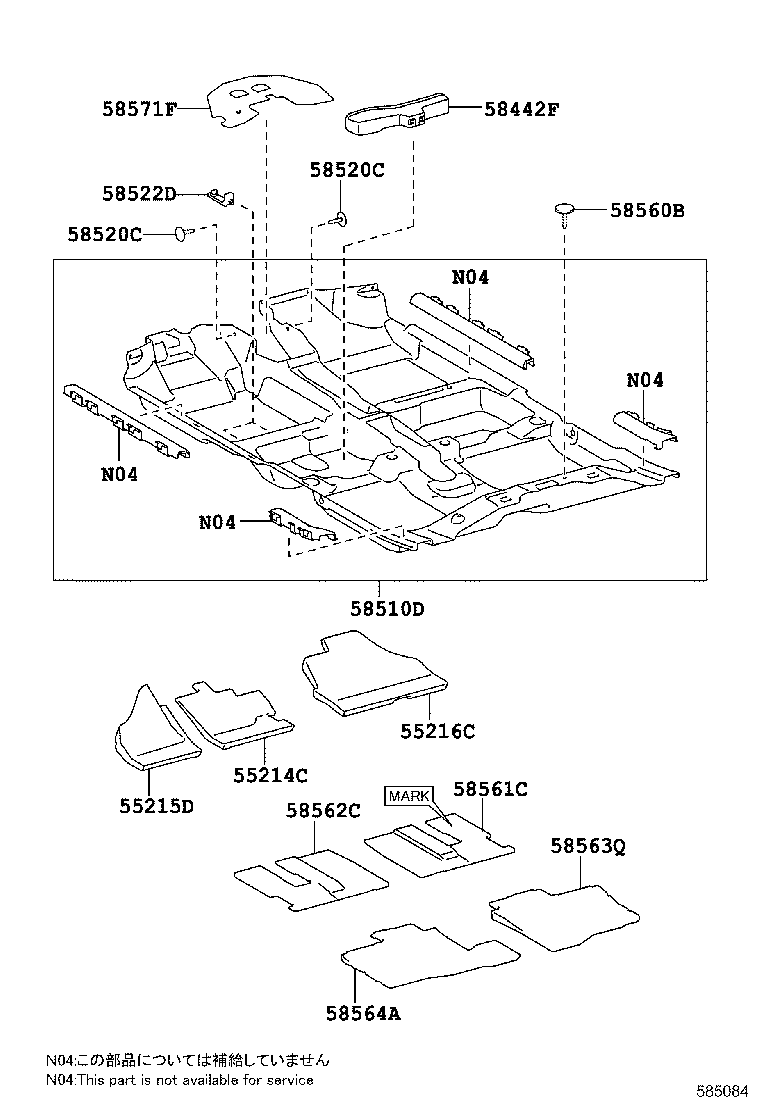

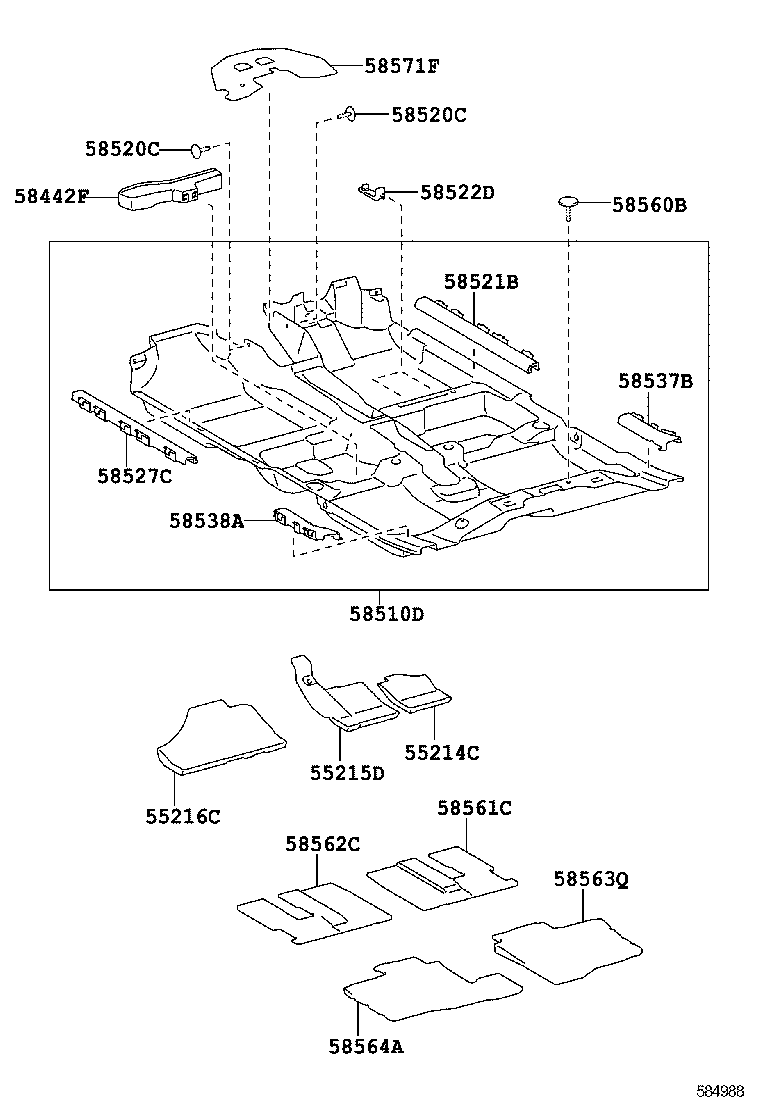

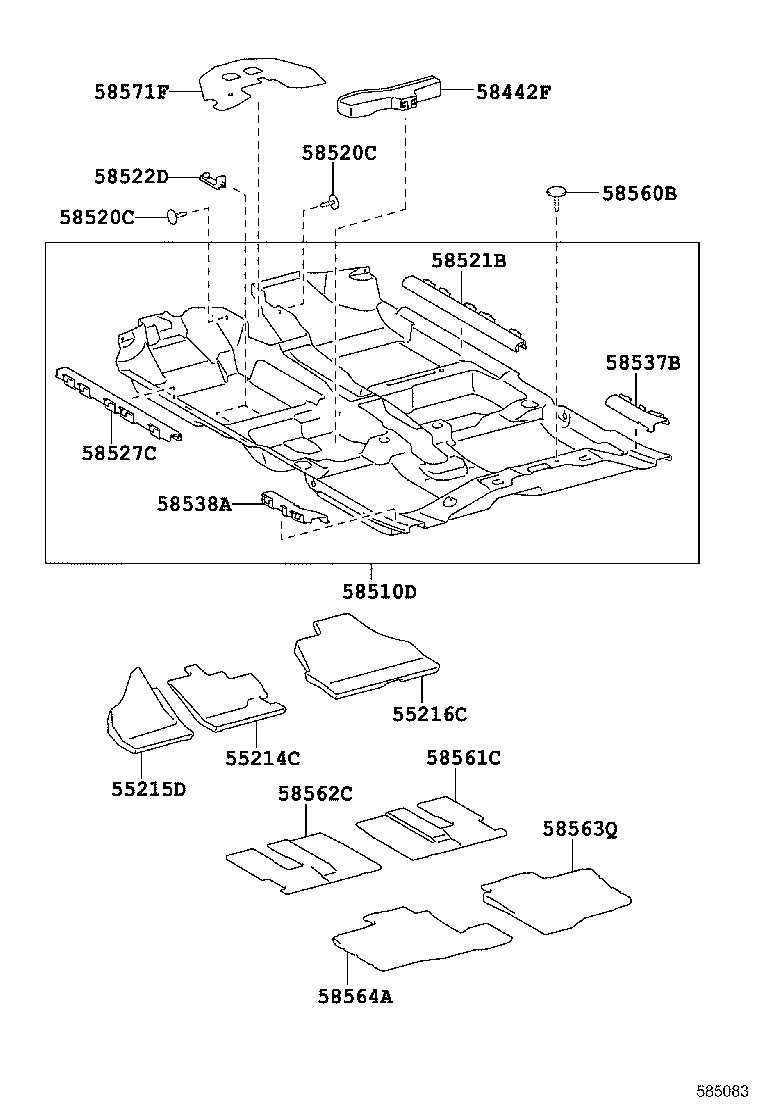

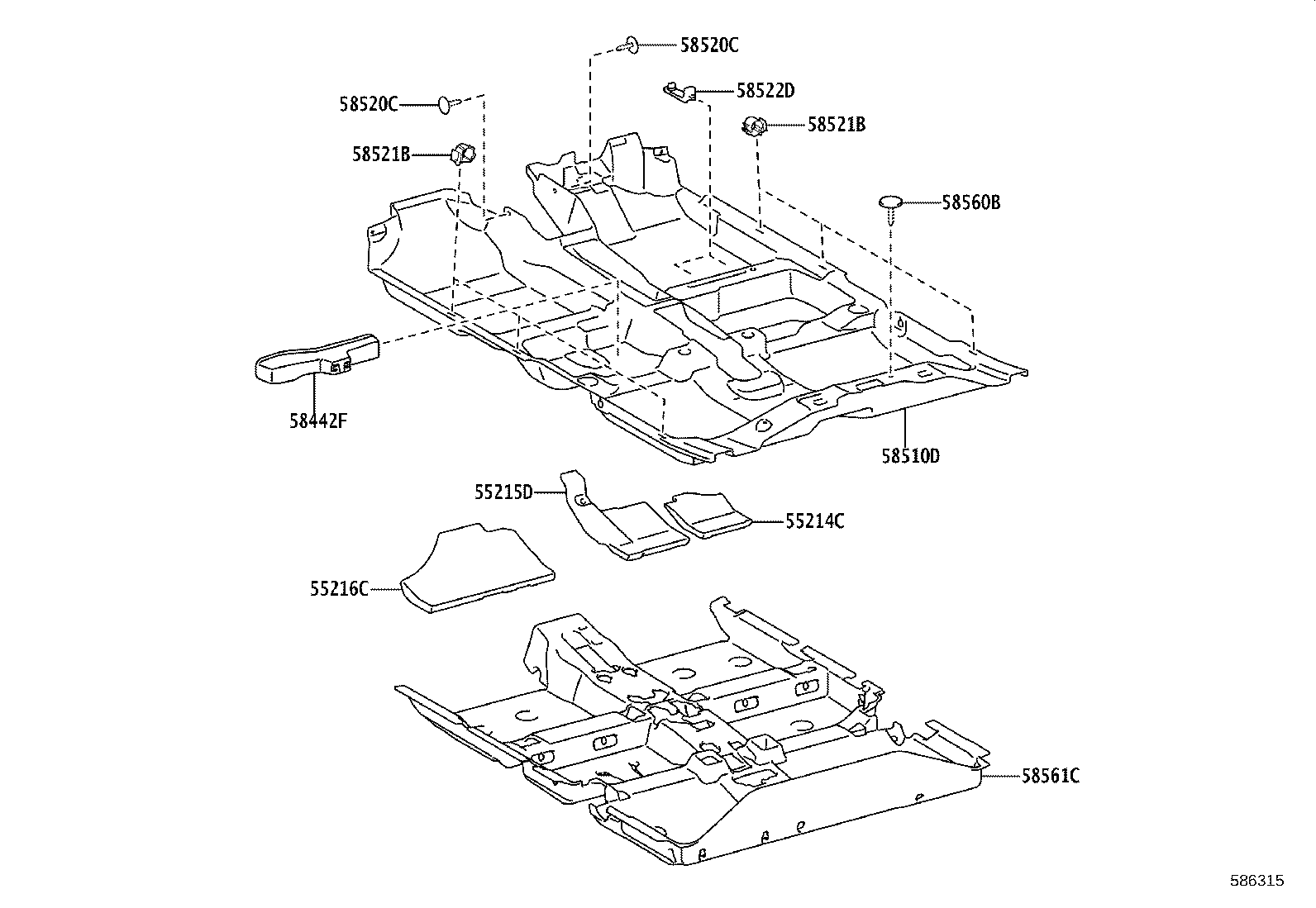

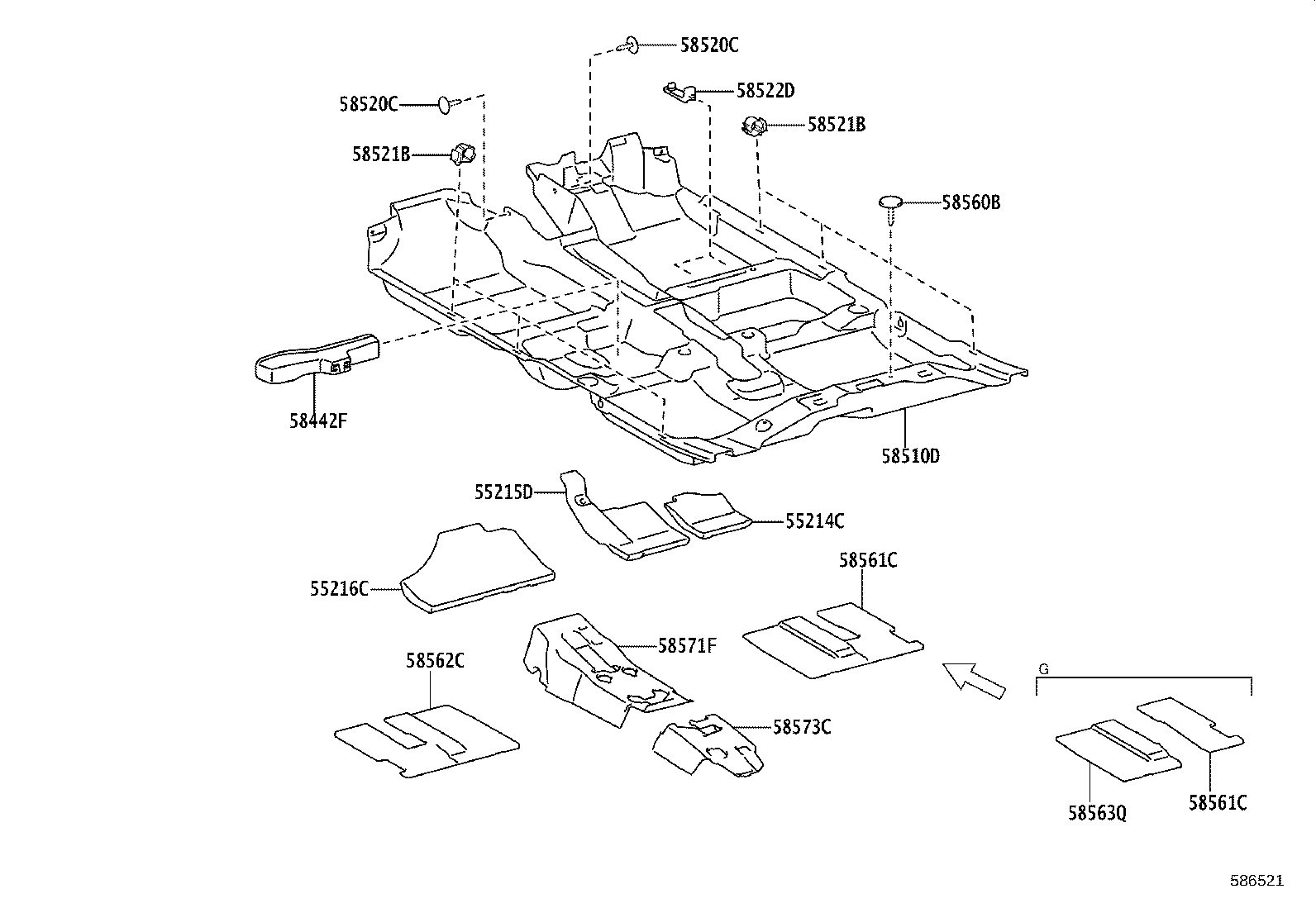

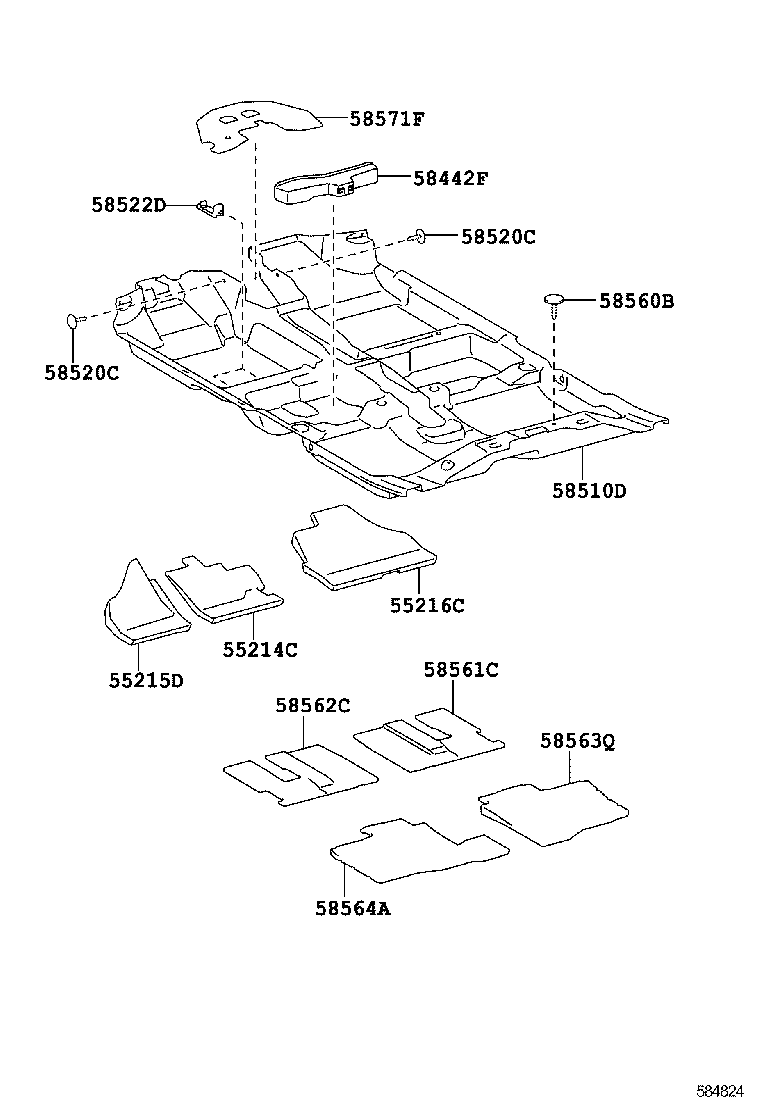

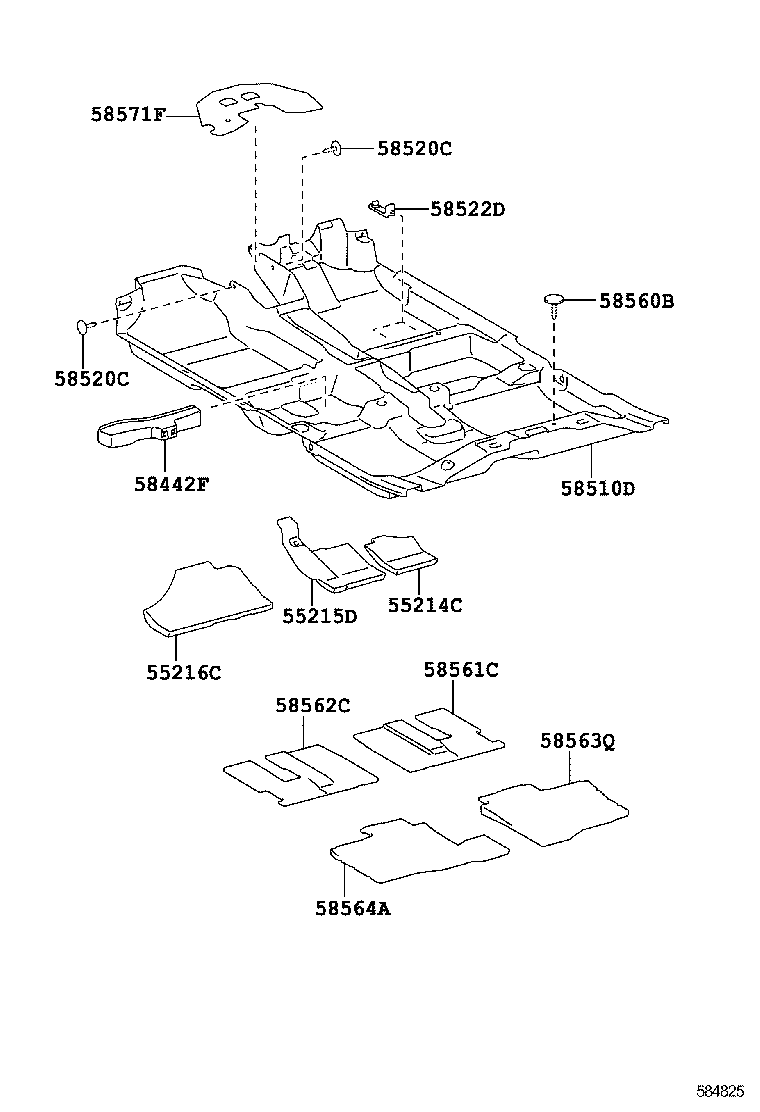

Figure 584825 584825 2013-04 → 2019-01 Figure 584825 584825 2013-04 → — Figure 584824 584824 2013-07 → — Figure 584988 584988 2013-12 → 2018-01 Figure 584988 584988 2013-12 → — Figure 585083 585083 2014-02 → 2018-01 Figure 585084 585084 2014-03 → — Figure 586315 586315 2017-08 → — Figure 586316 586316 2017-10 → — Figure 586521 586521 2018-01 → — Figure 586522 586522 2018-01 → —

Part groups

PNCDescription
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
55216C Pad, Dash Panel Insulator, NO.4
58442F Cover, Jack
58510D Carpet Assy, Floor, Front
58520C Clip(FOR FRONT FLOOR CARPET)
58521B Hook, Floor Carpet
58522D Hook, Floor Carpet, NO.2
58527C Hook, Floor Carpet, NO.1 LH
58537B Hook, Floor Carpet, Rear NO.1 RH
58538A Hook, Floor Carpet, Rear NO.1 LH
58560B Clip(FOR FLOOR CARPET, REAR)
58561C Silencer, Front Floor, NO.1
58562C Silencer, Front Floor, NO.2
58563Q Silencer, Front Floor, NO.3
58564A Silencer, Front Floor, NO.4
58571F Pad, Front Floor, Front
58573C Pad, Front Floor Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
