Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

46 part groups · 12 illustrations

Illustrations

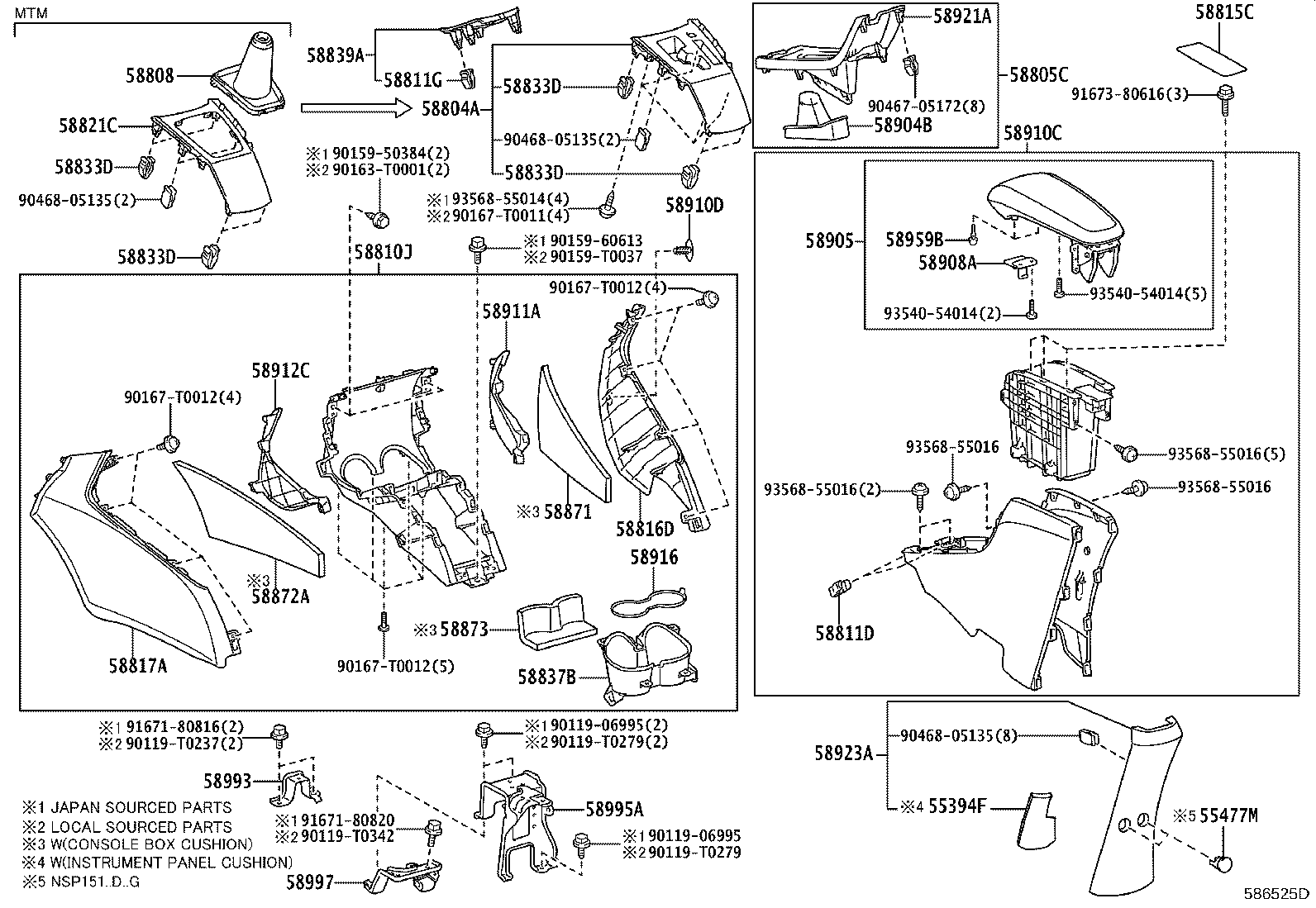

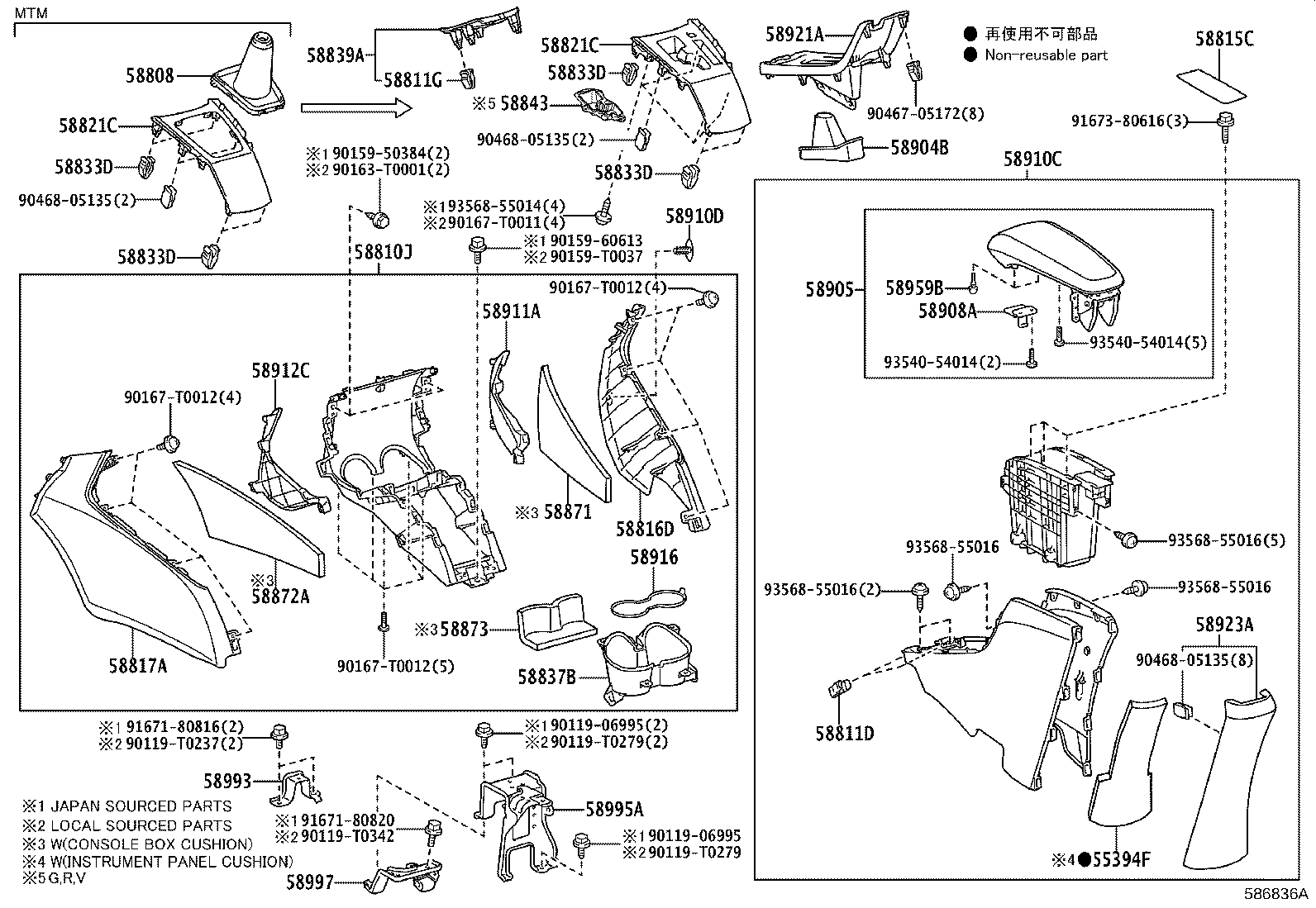

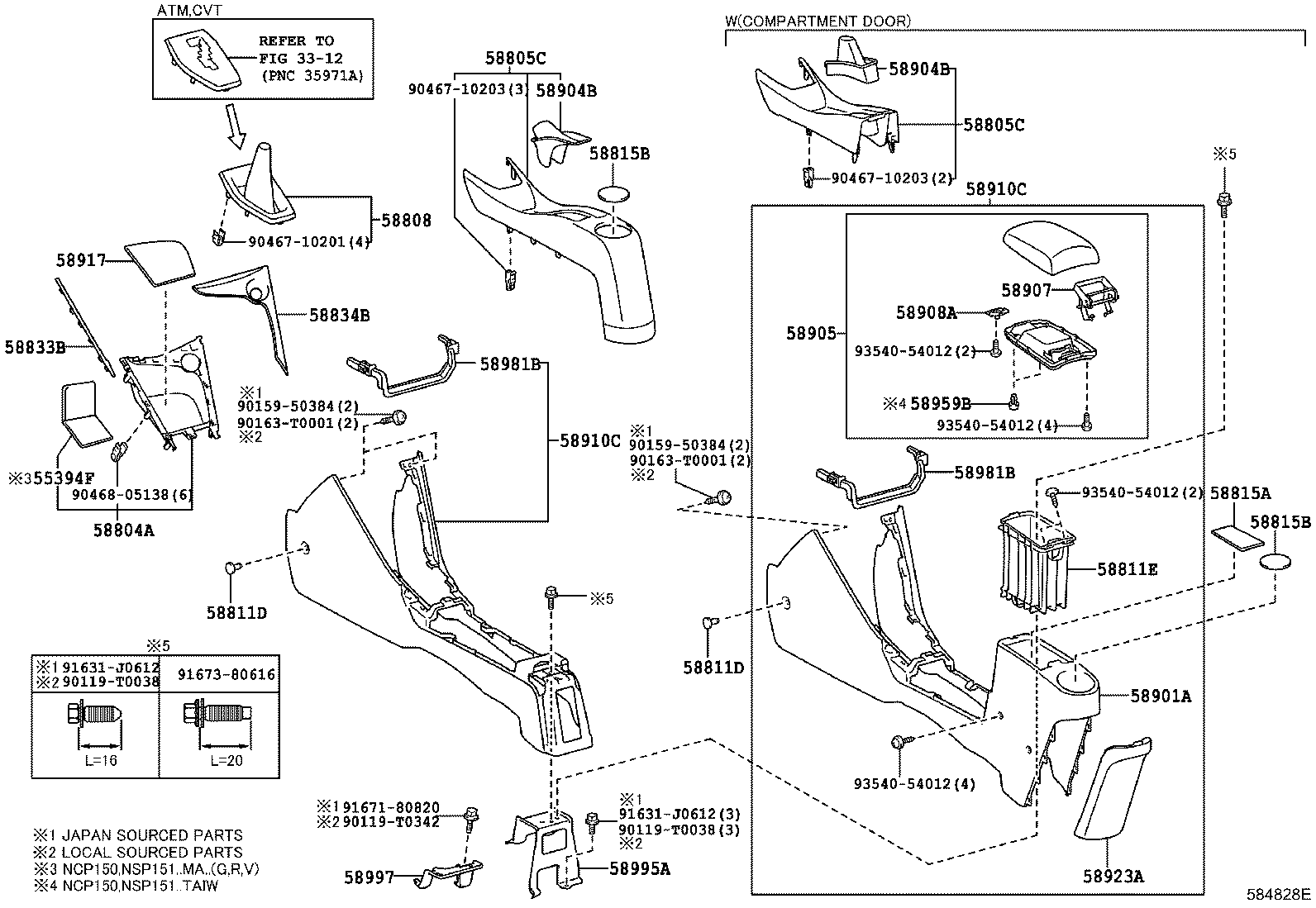

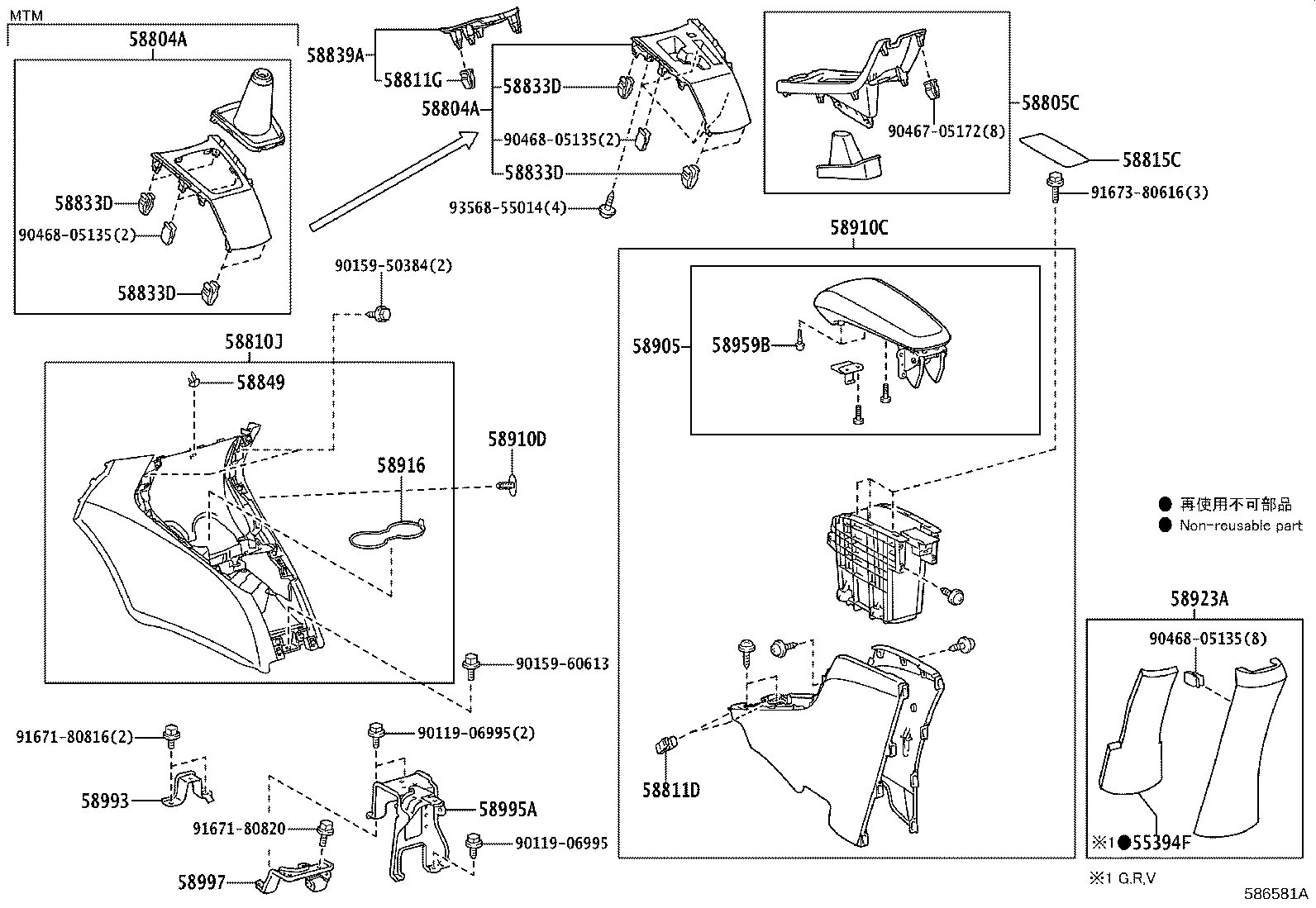

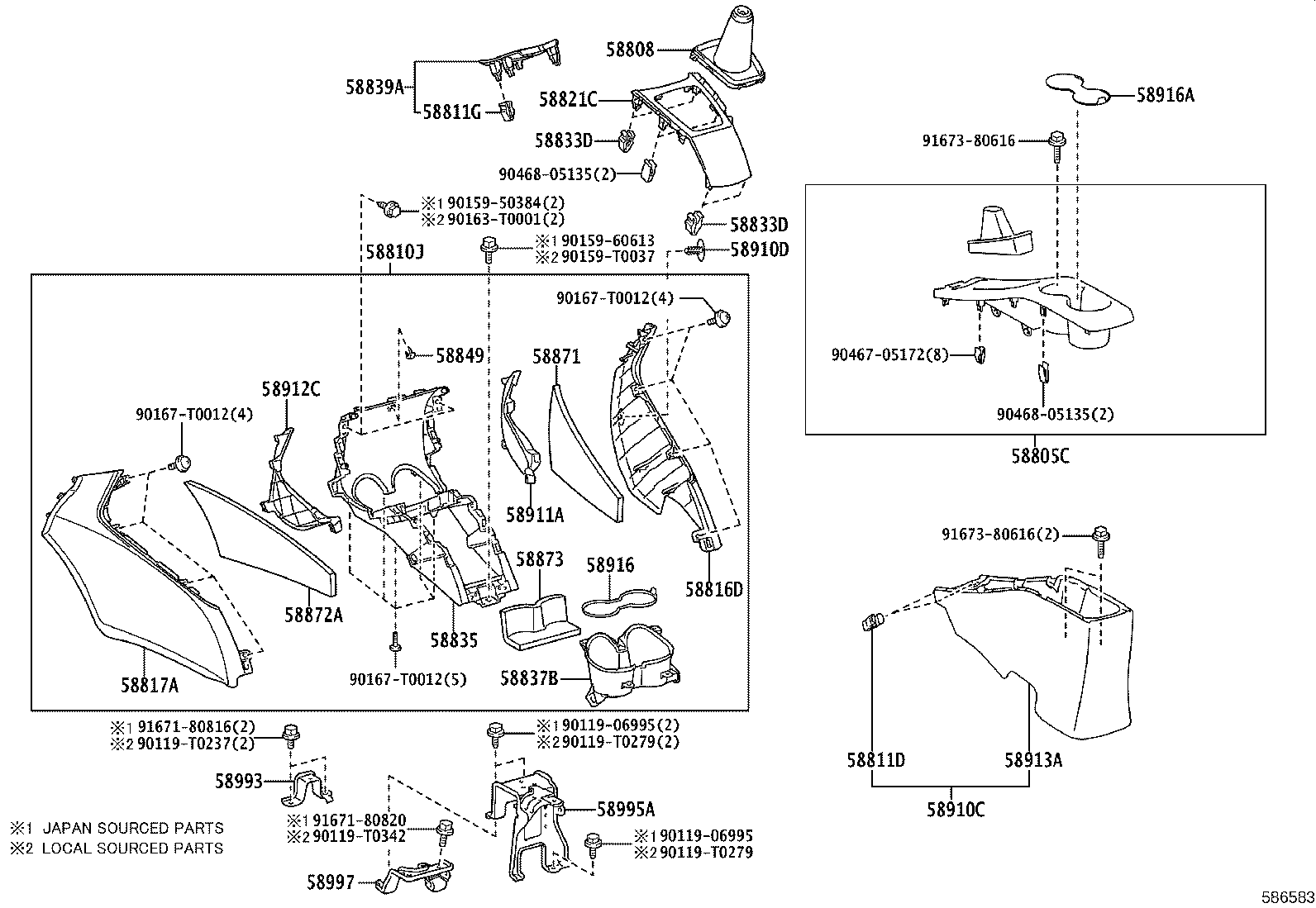

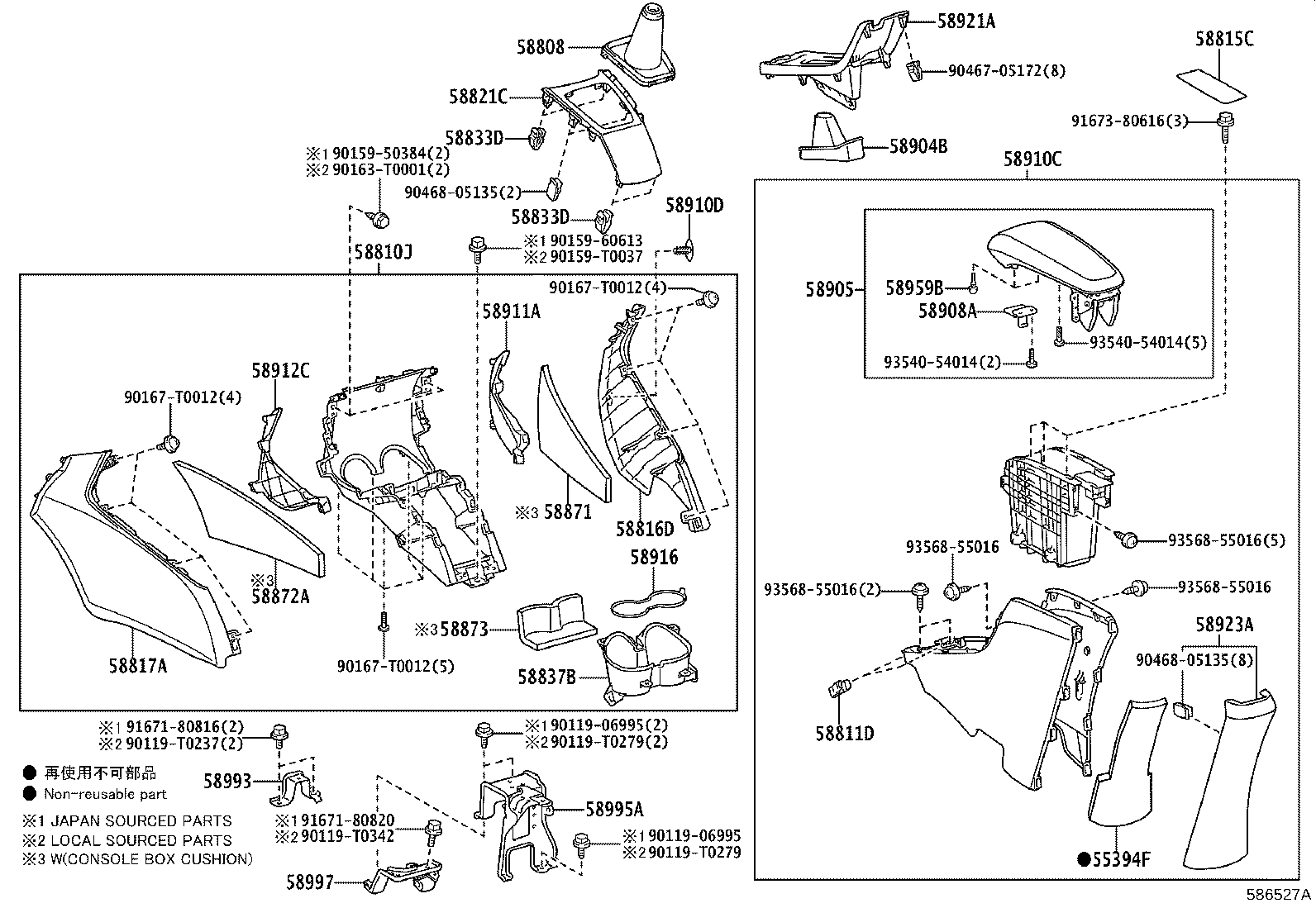

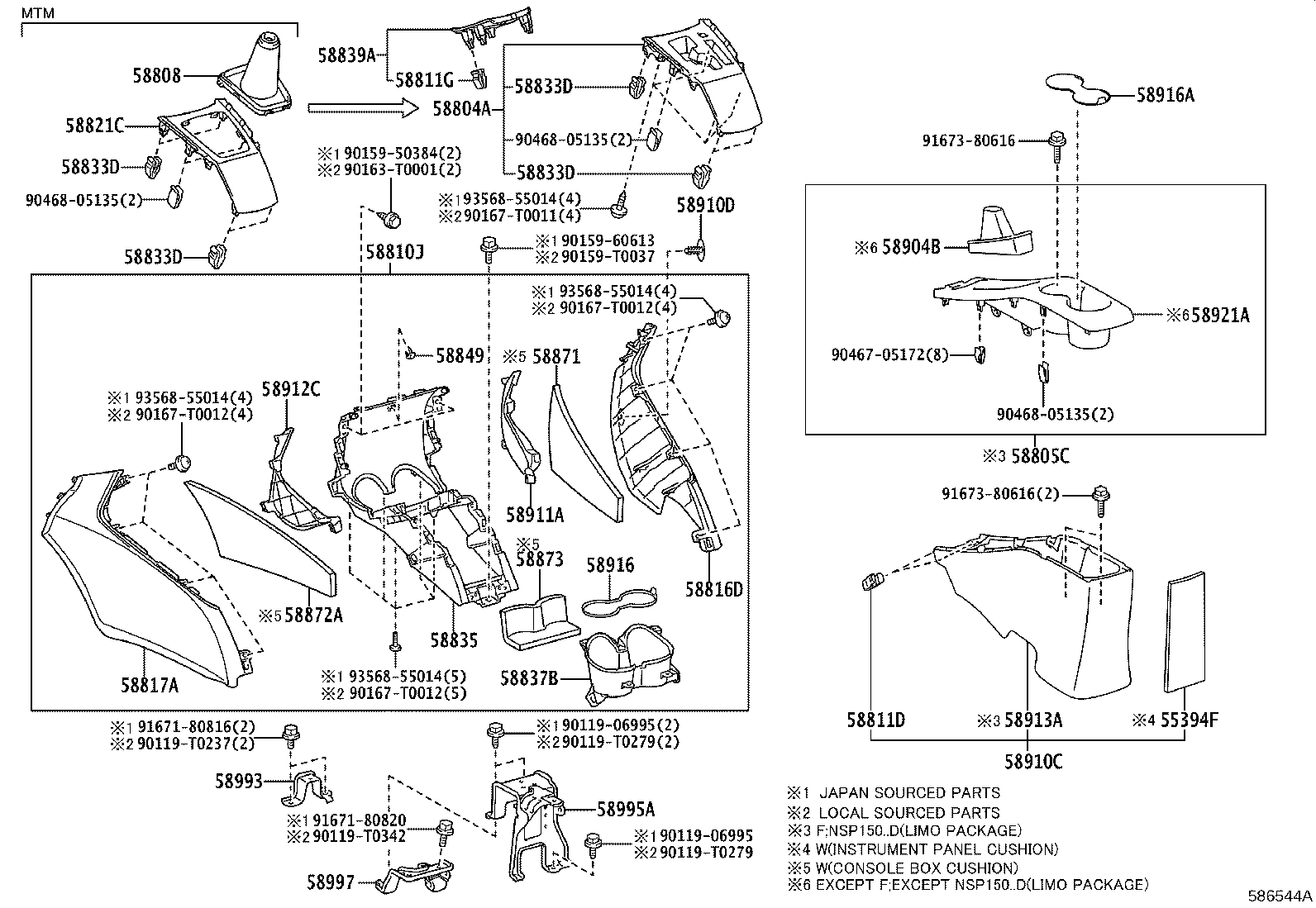

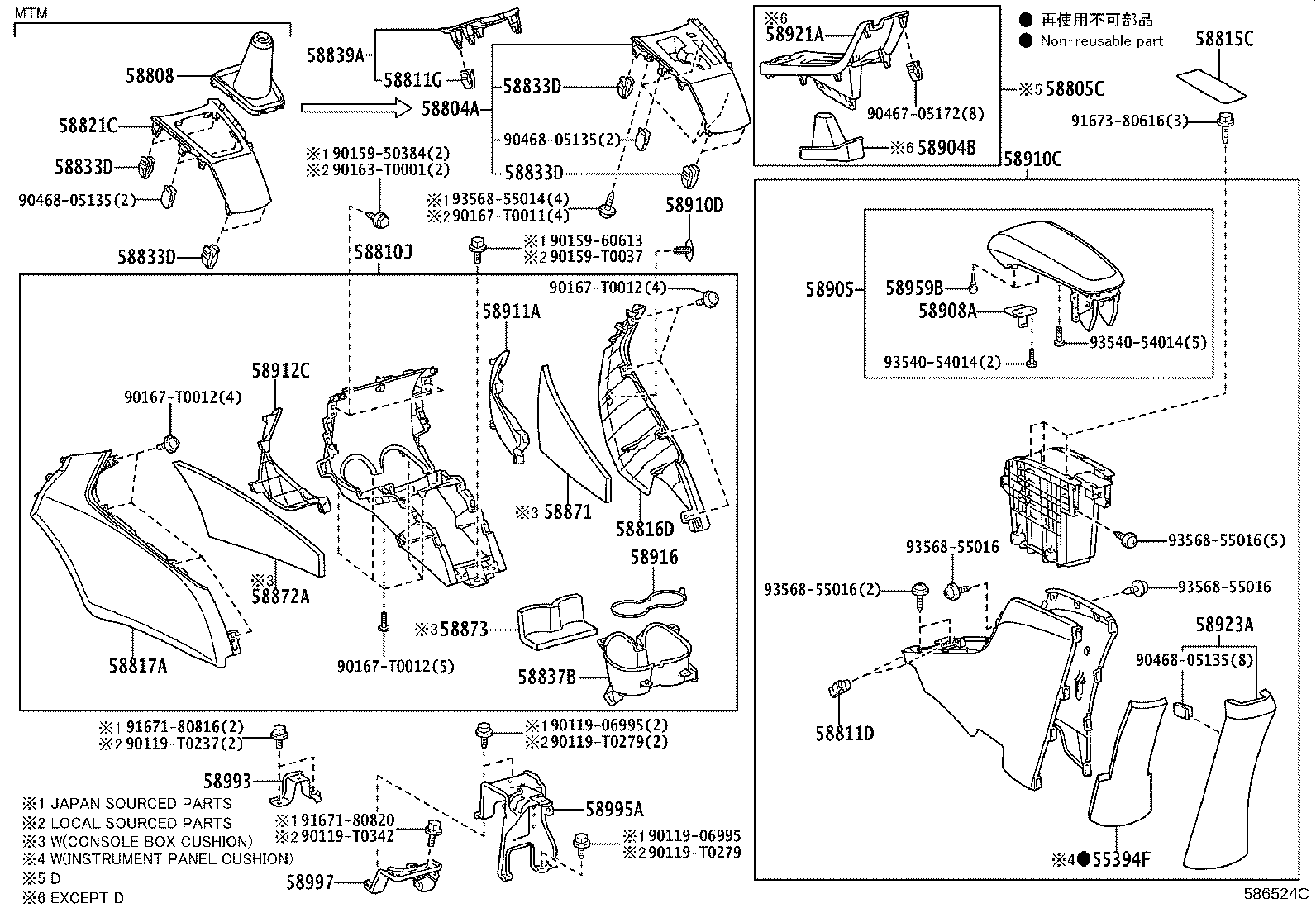

Figure 584828E 584828E 2013-04 → 2018-01 Figure 584828E 584828E 2013-04 → 2019-01 Figure 584828E 584828E 2013-04 → — Figure 586524C 586524C 2017-08 → — Figure 586524C 586524C 2018-01 → — Figure 586527A 586527A 2018-01 → — Figure 586544A 586544A 2018-01 → — Figure 586544A 586544A 2018-03 → — Figure 586525D 586525D 2018-04 → — Figure 586581A 586581A 2018-07 → — Figure 586583 586583 2018-07 → — Figure 586836A 586836A 2019-01 → —

Part groups

PNCDescription
55394F Cushion, Instrument Panel, Lower
55477M Cover, Cigarette Lighter Hole
58804A Panel Sub-assy, Console, Upper
58805C Panel Sub-assy, Console, Upper Rear
58808 Cover Sub-assy, Shifting Hole
58810J Box Assy, Console
58811D Clip(FOR CONSOLE BOX)
58811E Box, Console, Upper
58811G Clip(CONSOL BOX)
58815A Carpet, Console Box
58815B Carpet, Console Box
58815C Carpet, Console Box
58816D Insert, Console Box, Front NO.1
58817A Insert, Console Box, Front NO.2
58821C Panel, Console, Upper
58833B Garnish, Console Upper Panel, NO.1
58833D Clip(FOR CONSOLE COVER)
58834B Garnish, Console Upper Panel, NO.2
58835 Panel, Console, Upper
58837B Box, Console Cup Holder
58839A Cover, Console Box Hole
58843 Bezel, Shifting Hole
58849 Cover, Console Box Hole, NO.2
58871 Cushion, Console Box
58872A Cushion, Console Box, NO.2
58873 Cushion, Console Box, NO.3
58901A Box Sub-assy, Console, Rear
58904B Cover Sub-assy, Parking Brake Hole
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58908A Lock Sub-assy, Console Compartment Door
58910C Box Assy, Console, Rear
58910D Clip(FOR CONSOLE BOX)
58911A Panel, Box Side, NO.1
58912C Panel, Box Side, NO.2
58913A Panel, Box, NO.3
58916 Mat, Box Bottom
58916A Insert, Console Box, Rear
58917 Mat, Box Bottom, NO.2
58921A Panel, Rear Console, Upper
58923A Panel, Console Rear End
58959B Cushion, Console Compartment Door
58981B Retainer, Console Mounting, NO.1
58993 Bracket, Console Box Mounting, Rear
58995A Bracket, Console Box Mounting, NO.1
58997 Bracket, Console Box Mounting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
