Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

58 part groups · 10 illustrations

Illustrations

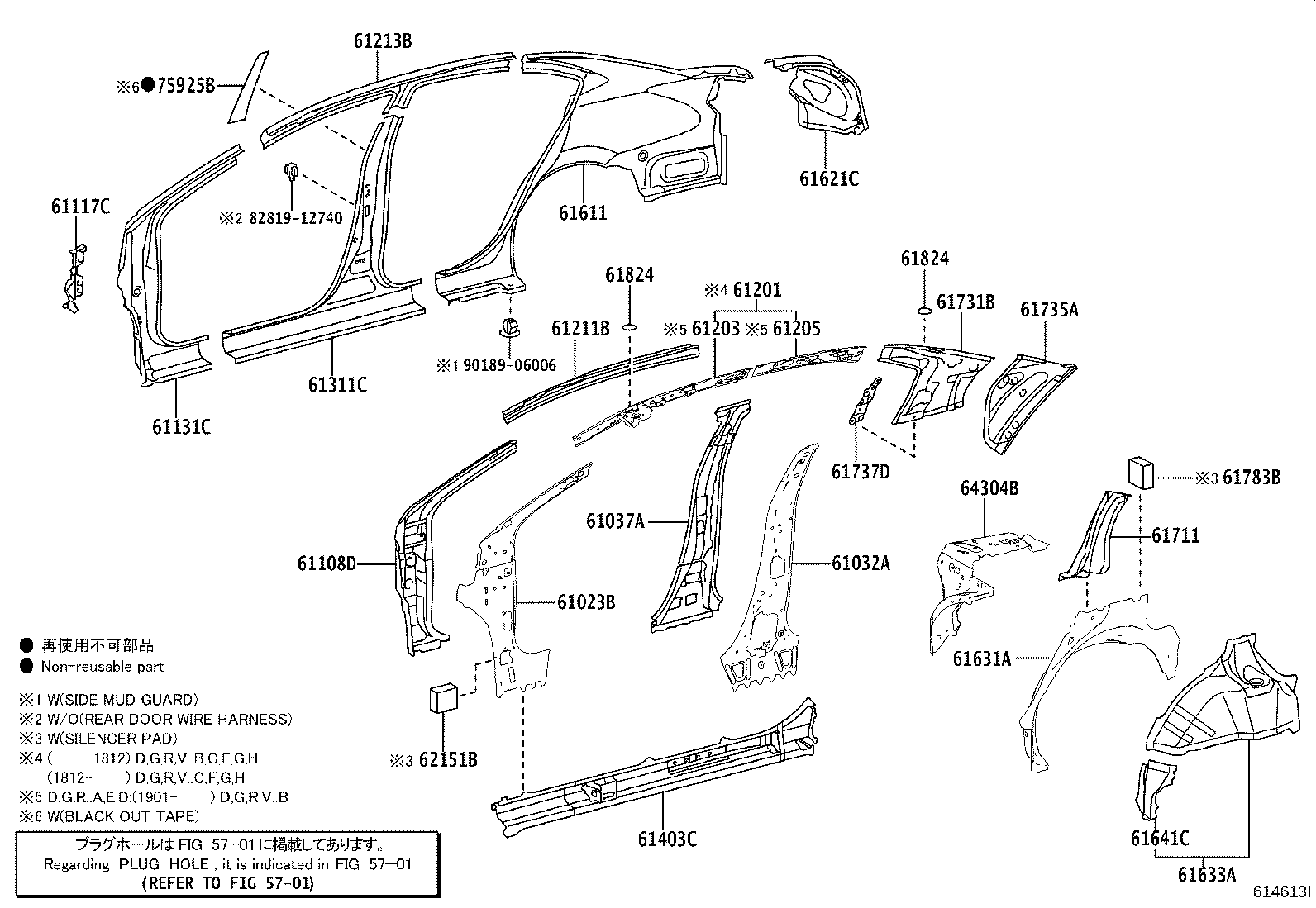

614613I 2013-04 → —

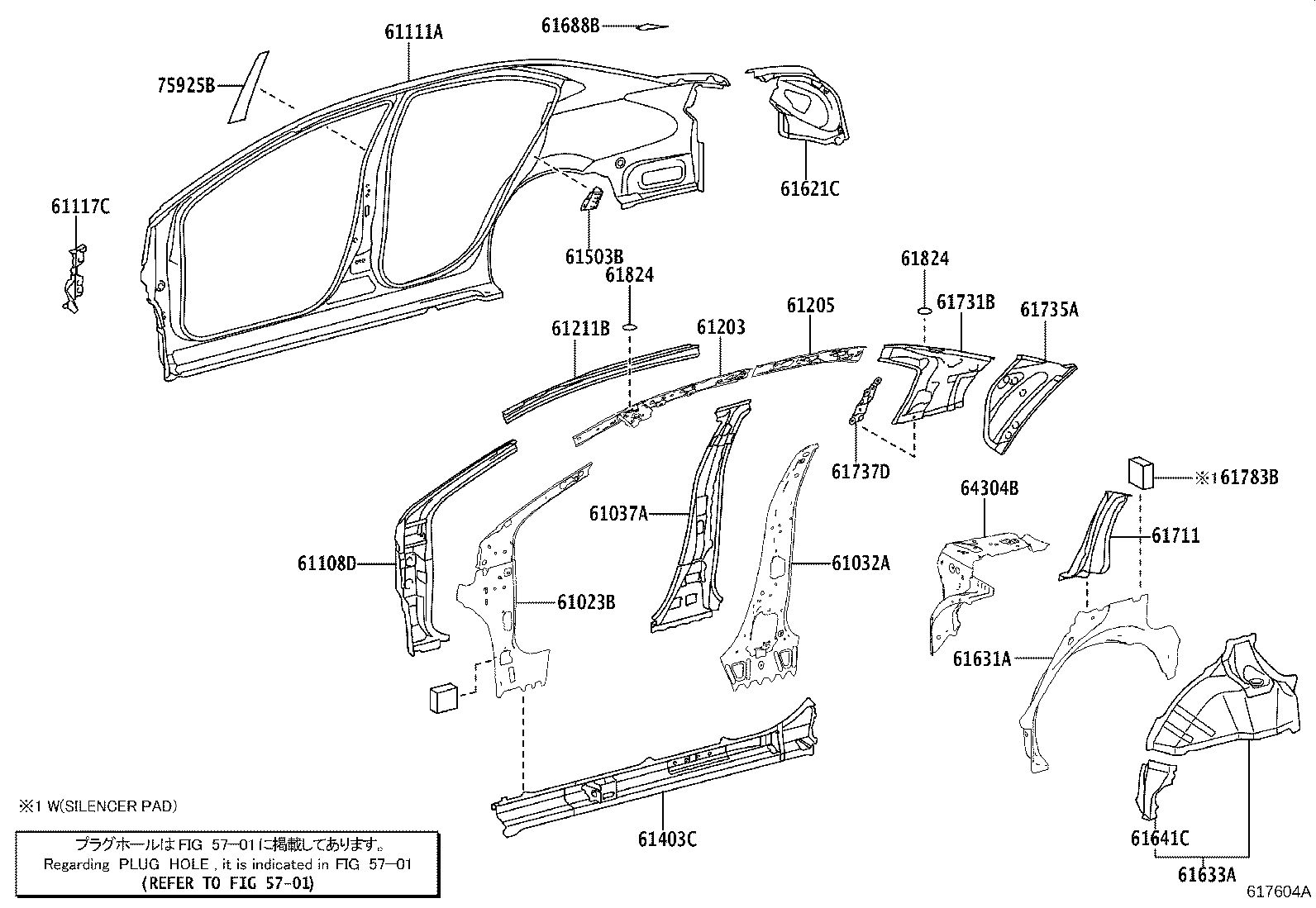

617604A 2020-03 → —

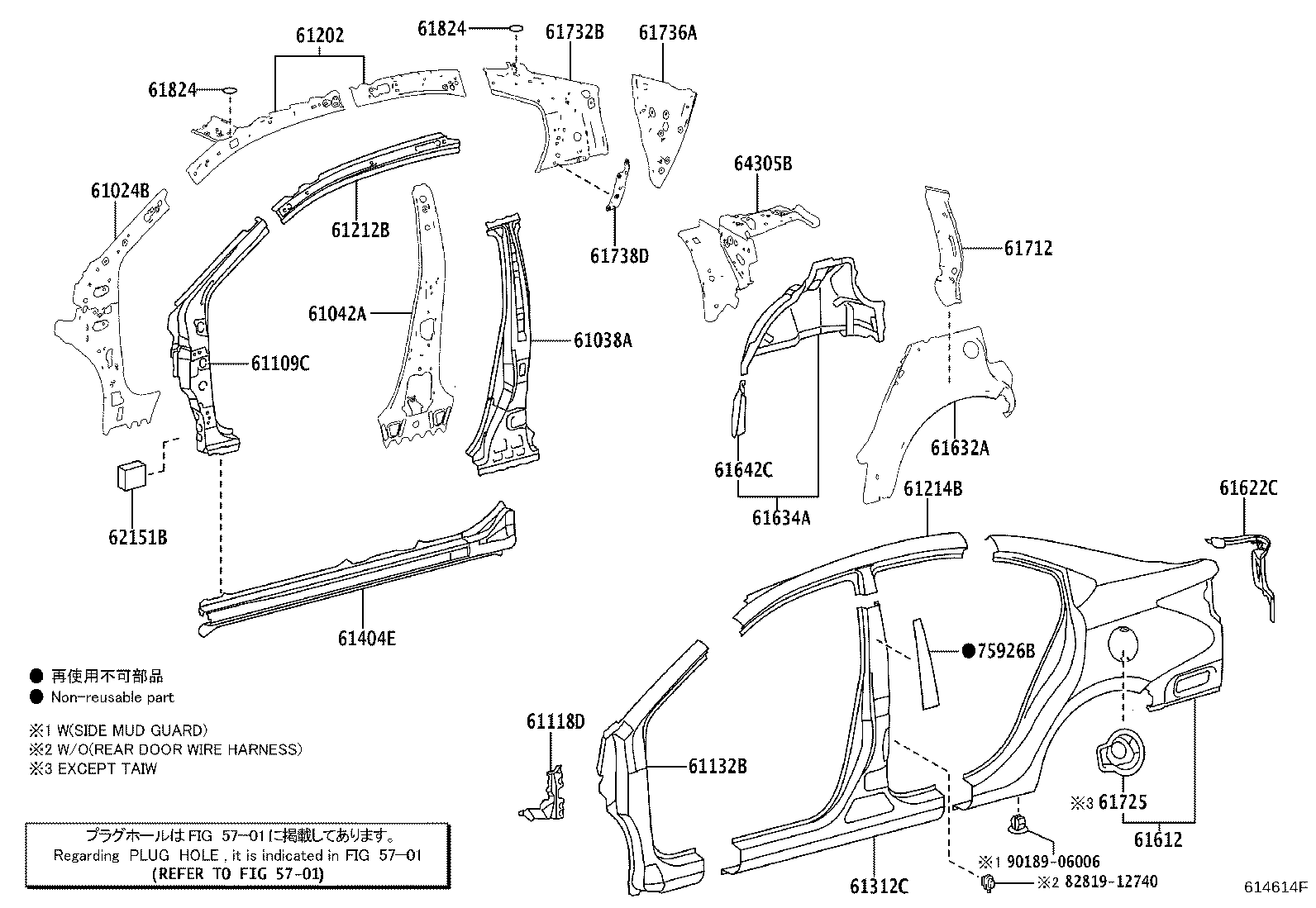

614614F 2013-04 → —

614614F 2016-01 → 2018-01

614614F 2016-04 → 2018-12

Part groups

PNC	Description
61023B	Pillar Sub-assy, Front Body, Inner RH
61024B	Pillar Sub-assy, Front Body, Inner LH
61032A	Pillar Sub-assy, NO.1 Inner, RH
61037A	Reinforcement Sub-assy, Center Body Pillar, RH
61038A	Reinforcement Sub-assy, Center Body Pillar, LH
61042A	Pillar Sub-assy, NO.1 Inner, LH
61108D	Reinforcement Sub-assy, Front Pillar, Lower RH
61109C	Reinforcement Sub-assy, Front Pillar, Lower LH
61111A	Panel, Front Side, Outer RH
61112A	Panel, Front Side, Outer LH
61117C	Gusset, Side Panel TO Cowl, RH
61118D	Gusset, Side Panel TO Cowl, LH
61131C	Pillar, Front Body, Outer RH
61132B	Pillar, Front Body, Outer LH
61201	Rail Sub-assy, Roof Side, RH
61202	Rail Sub-assy, Roof Side, LH
61203	Rail Sub-assy, Roof Side, Inner RH
61204	Rail Sub-assy, Roof Side, Inner LH
61205	Rail Sub-assy, Roof Side, Inner Rear RH
61206	Rail Sub-assy, Roof Side, Inner Rear LH
61211B	Rail, Roof Side, Outer Rear RH
61212B	Rail, Roof Side, Outer Rear LH
61213B	Rail, Roof Side, Outer NO.2 RH
61214B	Rail, Roof Side, Outer NO.2 LH
61311C	Panel, Rear Body Front Outside, RH
61312C	Panel, Rear Body Front Outside, LH
61403C	Reinforce Sub-assy, Rocker, Outer RH
61404E	Reinforce Sub-assy, Rocker, Outer LH
61503B	Reinforcement Sub-assy, Quarter Lock Pillar, RH
61504B	Reinforcement Sub-assy, Quarter Lock Pillar, LH
61611	Panel, Quarter, RH
61612	Panel, Quarter, LH
61621C	Trough, Luggage Compartment Opening, RH
61622C	Trough, Luggage Compartment Opening, LH
61631A	Panel, Quarter Wheel House, Outer RH
61632A	Panel, Quarter Wheel House, Outer LH
61633A	Panel, Quarter Wheel House, Inner RH
61634A	Panel, Quarter Wheel House, Inner LH
61641C	Gusset, Quarter Wheel House, Front RH
61642C	Gusset, Quarter Wheel House, Front LH
61688B	Lining, Quarter Panel Reinforcement, RH
61689B	Lining, Quarter Panel Reinforcement, LH
61711	Panel, Roof Side, Outer RH
61712	Panel, Roof Side, Outer LH
61725	Box, Fuel Inlet
61731B	Panel, Roof Side, Inner RH
61732B	Panel, Roof Side, Inner LH
61735A	Panel, Roof Side, Inner Rear RH
61736A	Panel, Roof Side, Inner Rear LH
61737D	Reinforcement, Roof Side, Inner RH
61738D	Reinforcement, Roof Side, Inner LH
61783B	Pad, Rear Wheel Opening Extension, NO.1
61824	Plate, Noise Control, NO.1
62151B	Pad, Cowl Side Silencer
64304B	Reinforce Sub-assy, Package Tray Bracket, RH
64305B	Reinforce Sub-assy, Package Tray Bracket, LH
75925B	Tape, Black Out, NO.3 RH
75926B	Tape, Black Out, NO.3 LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
