Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

20 part groups · 12 illustrations

Illustrations

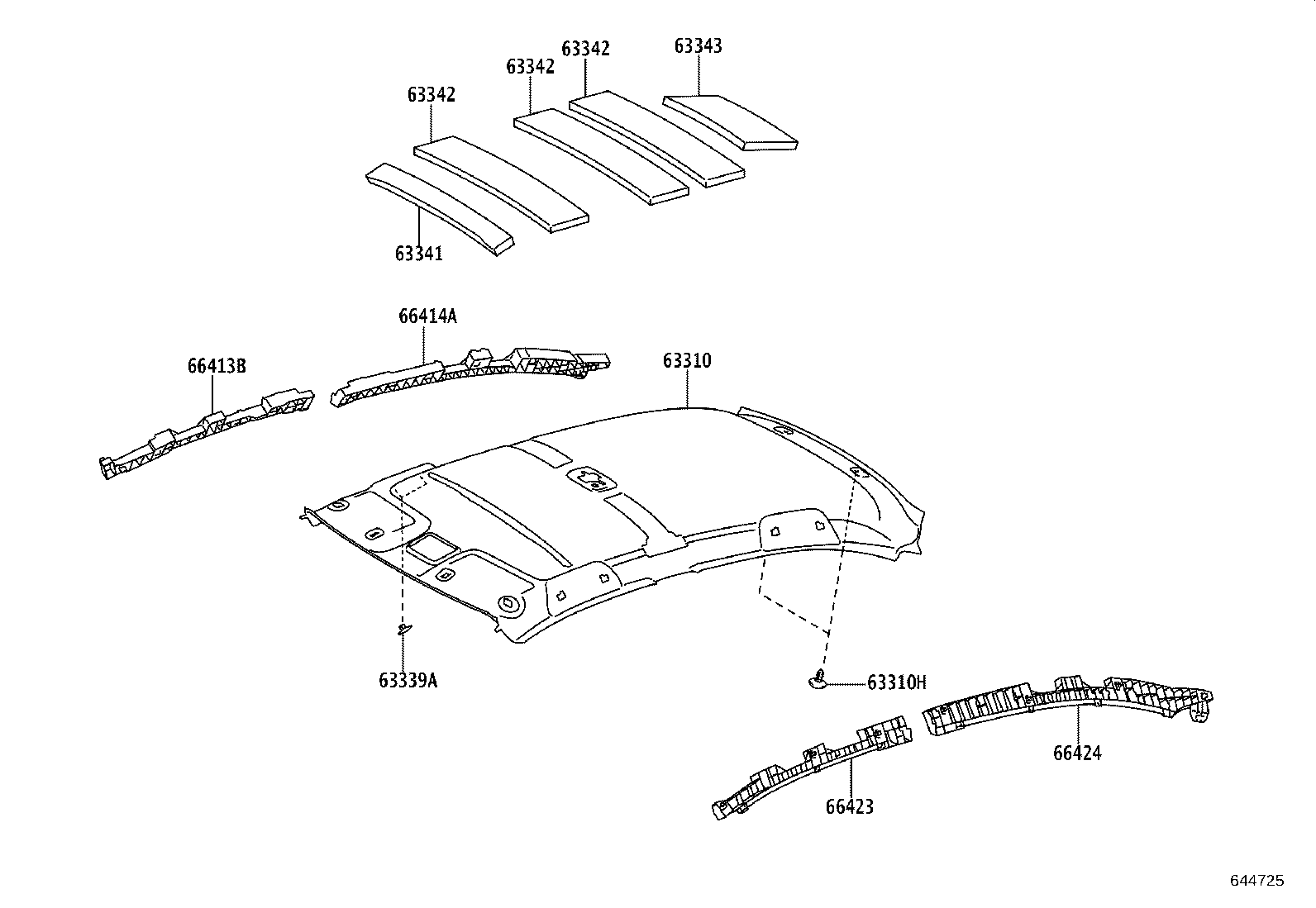

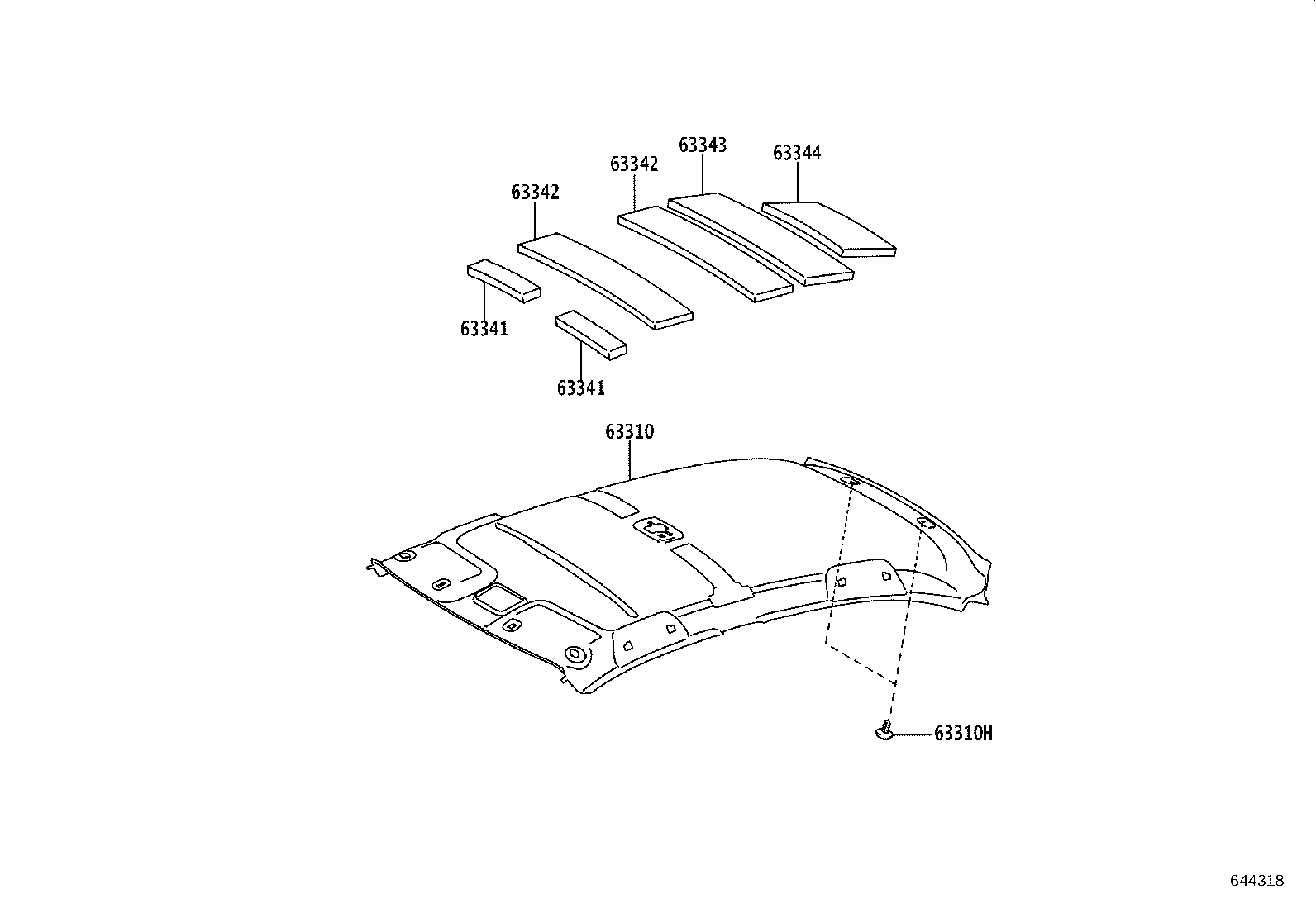

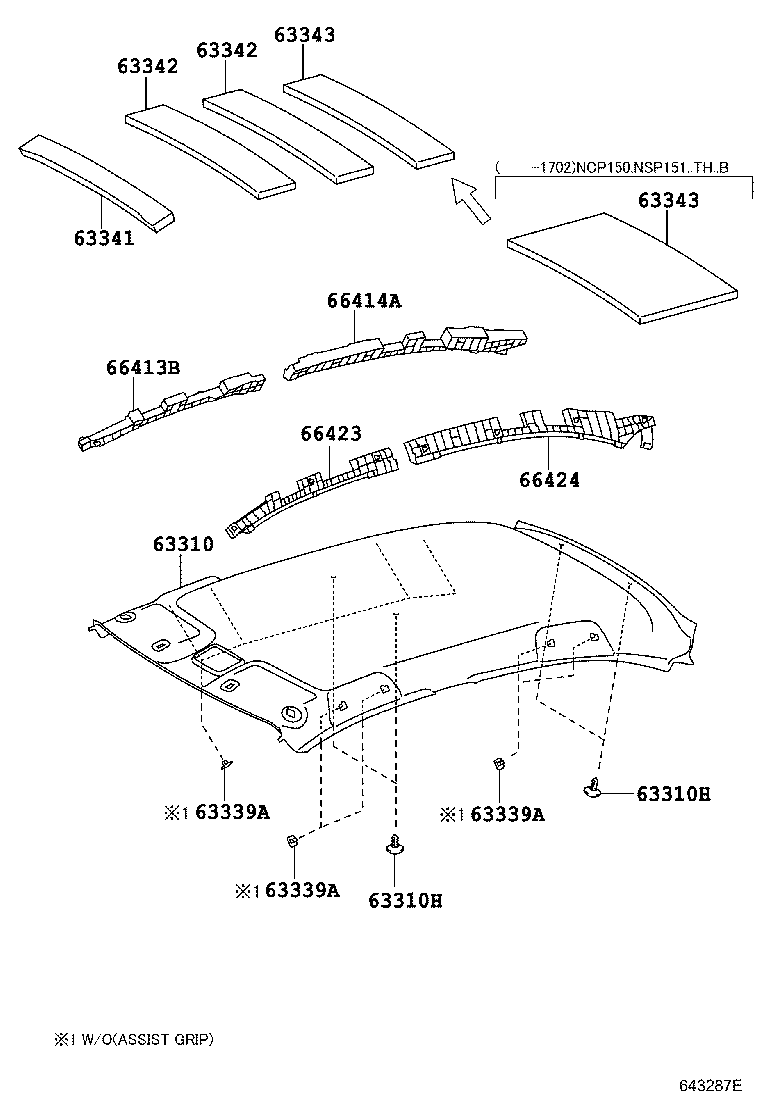

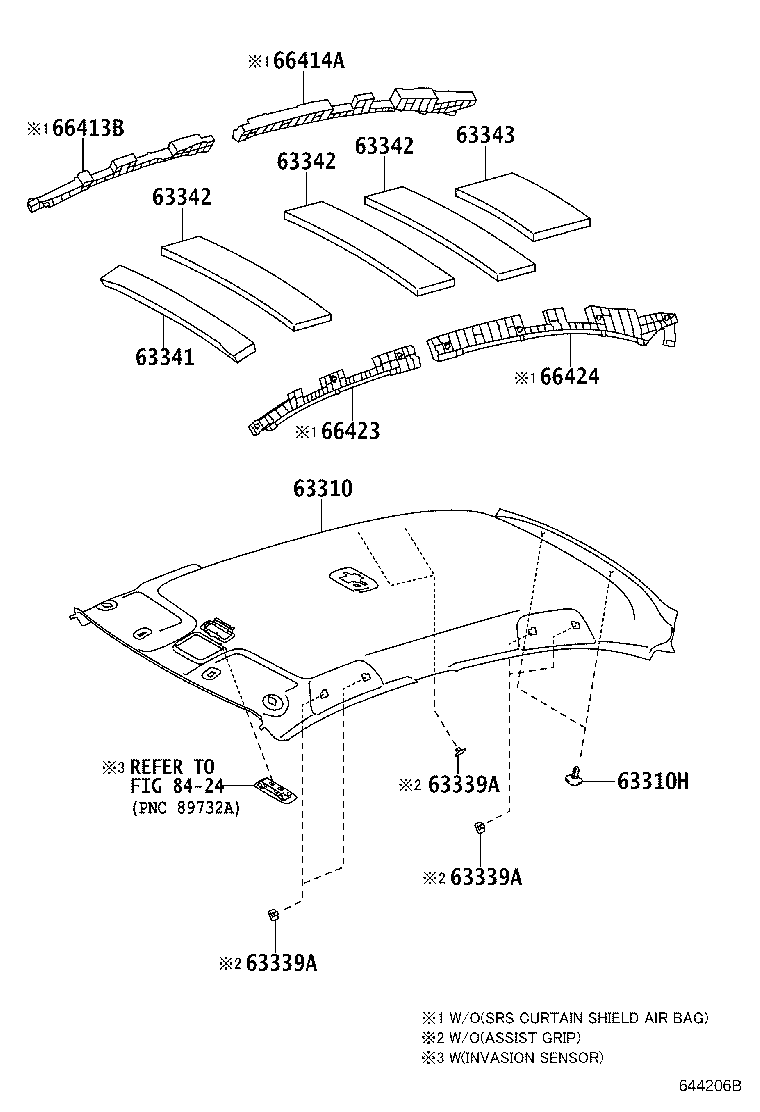

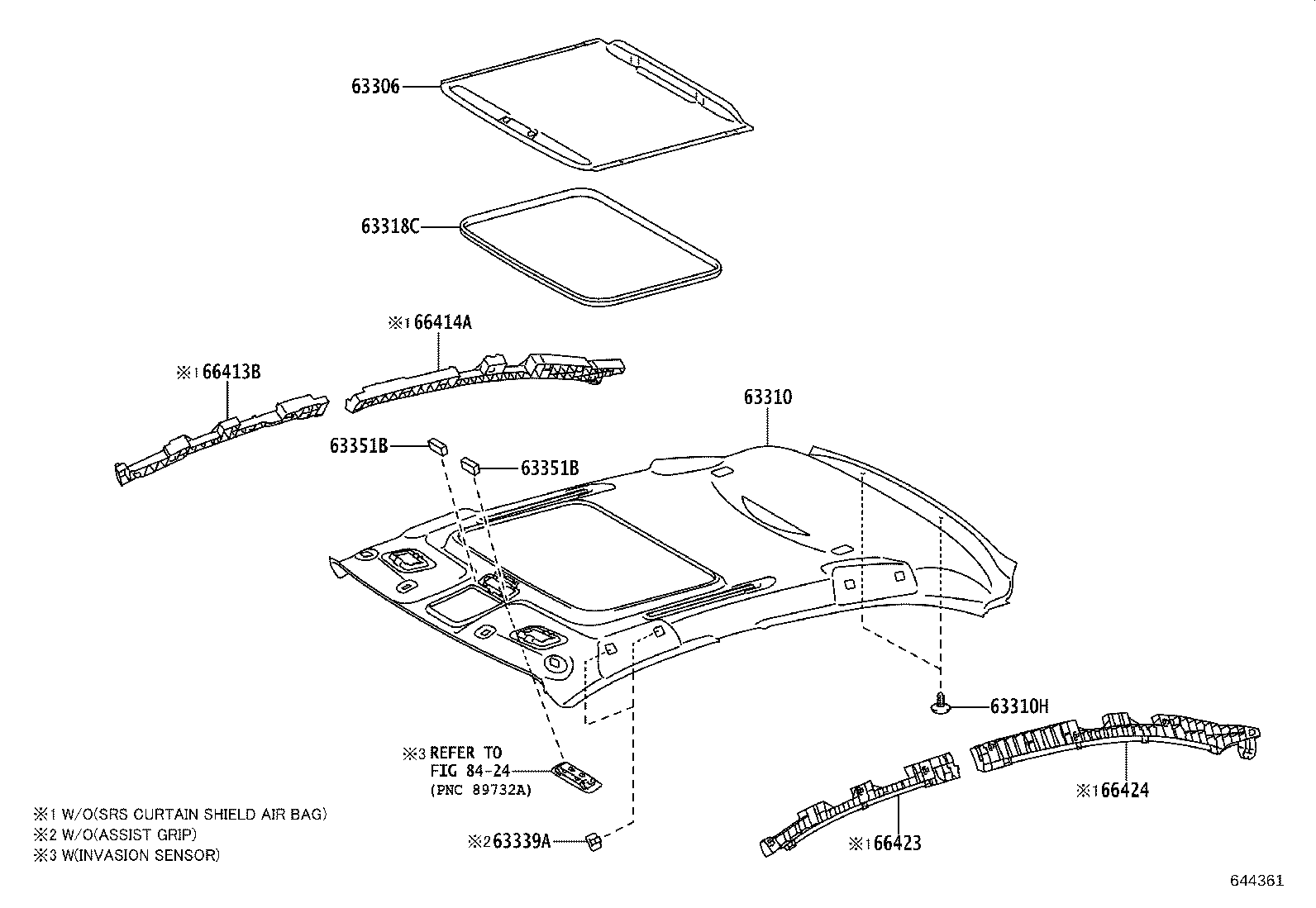

Figure 643287E 643287E 2013-04 → 2016-09 Figure 643287E 643287E 2016-01 → 2018-01 Figure 643287E 643287E 2016-04 → 2018-12 Figure 643287E 643287E 2018-12 → — Figure 644206B 644206B 2017-08 → — Figure 644206B 644206B 2018-01 → — Figure 644206B 644206B 2018-07 → — Figure 644206B 644206B 2019-01 → — Figure 644318 644318 2018-04 → — Figure 644319 644319 2018-04 → — Figure 644361 644361 2018-07 → — Figure 644725 644725 2020-03 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310H Clip(FOR ROOF HEADLINING)
63318C Moulding, Sun Roof Opening Trim
63339A Cover, Roof Headlining Service Hole
63341 Pad, Roof Silencer, NO.1
63341G Pad, Roof Silencer
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63344 Pad, Roof Silencer, NO.4
63351B Pad, Roof Headlining
63351C Pad, Roof Headlining
63352D Pad, Roof Headlining, NO.2
63353C Pad, Roof Headlining, Center
63356C Holder, Sunshade Trim
63660 Cover Assy, Roof Headlining Trim, NO.1
66413B Spacer, Side Rail, Front RH
66414A Spacer, Side Rail, Rear RH
66423 Spacer, Side Rail, Front LH
66424 Spacer, Side Rail, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
