Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

24 part groups · 13 illustrations

Illustrations

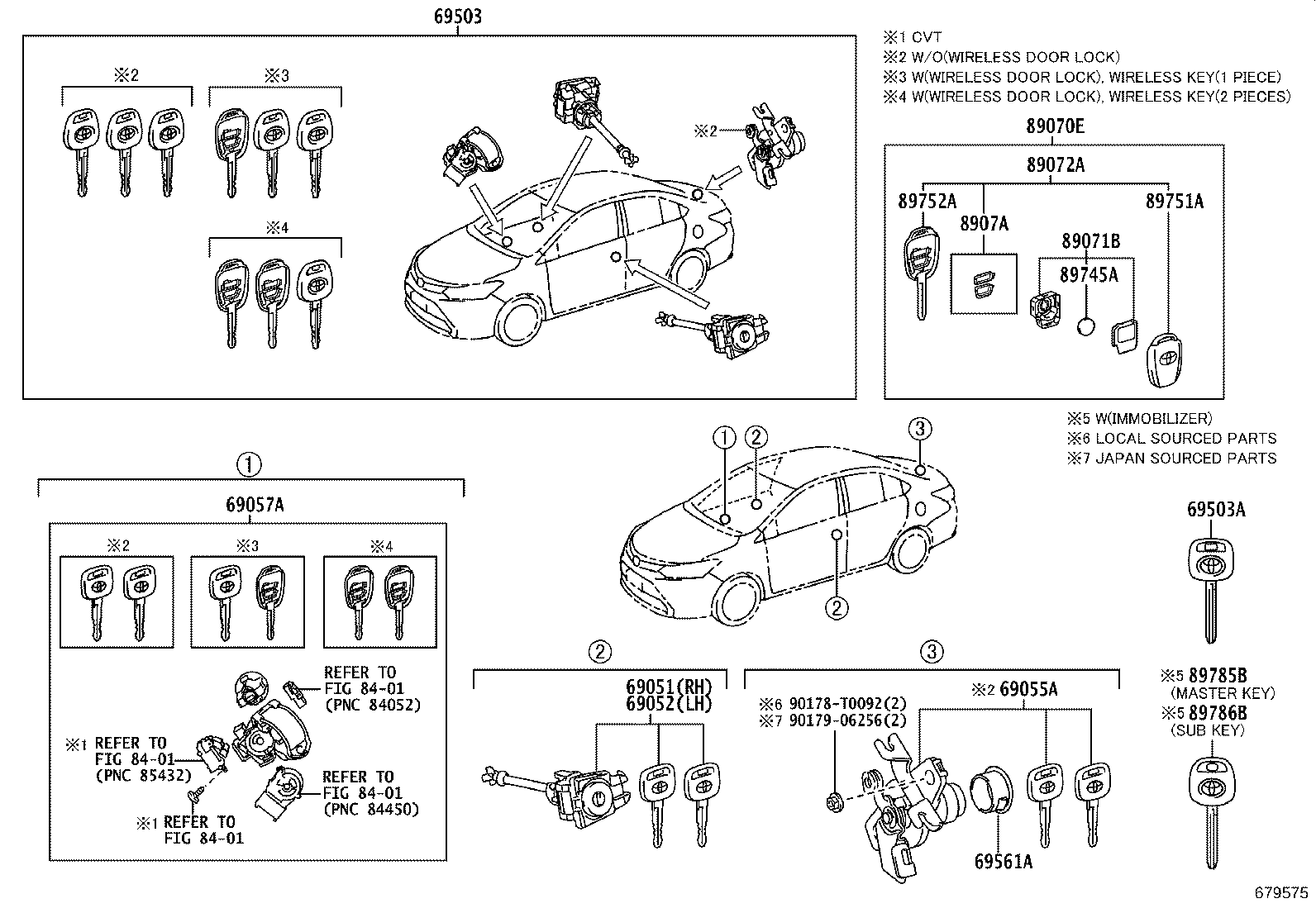

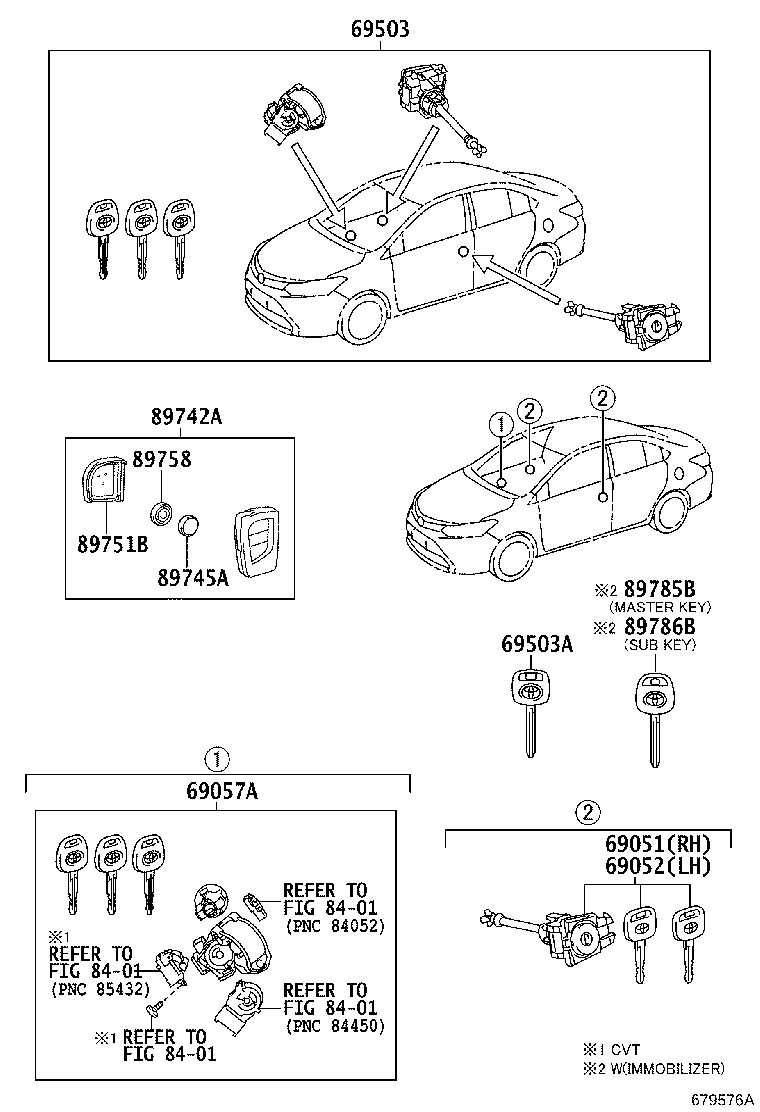

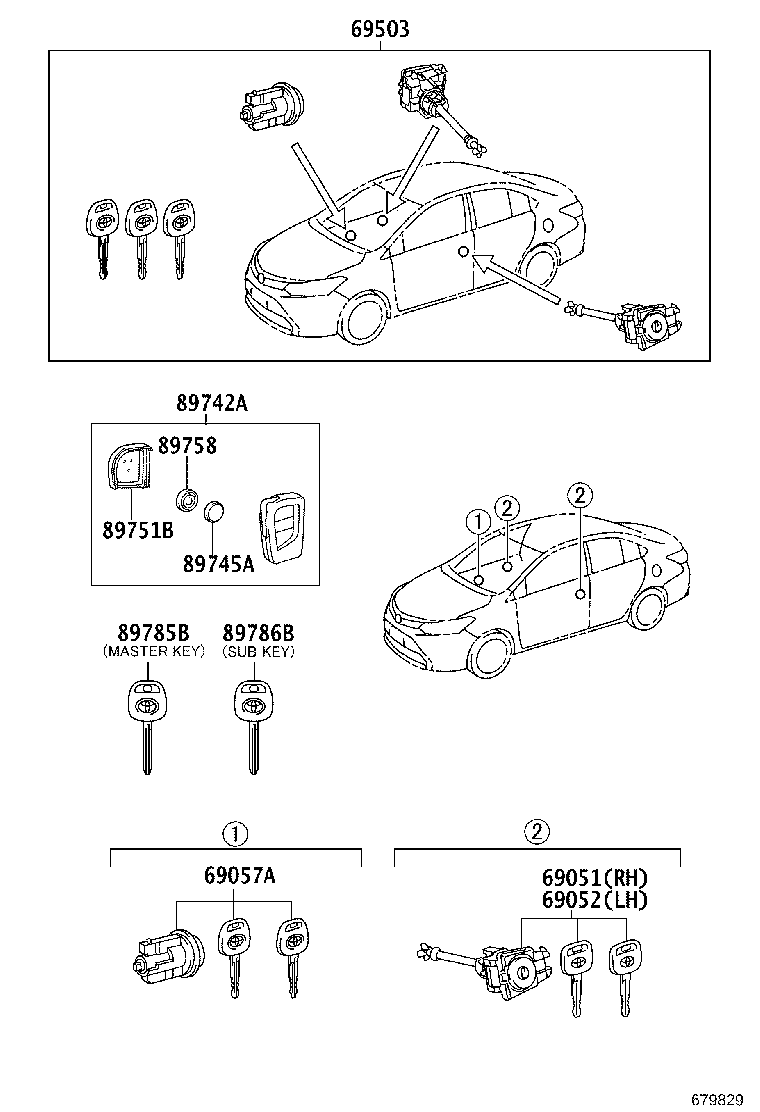

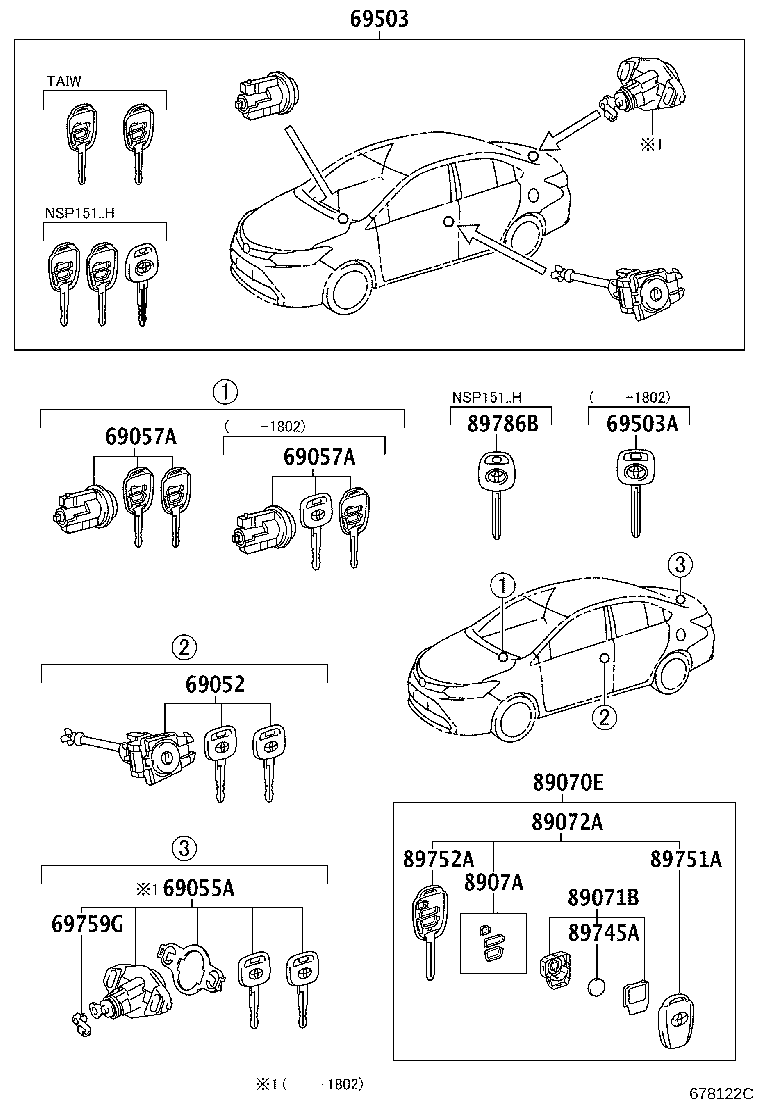

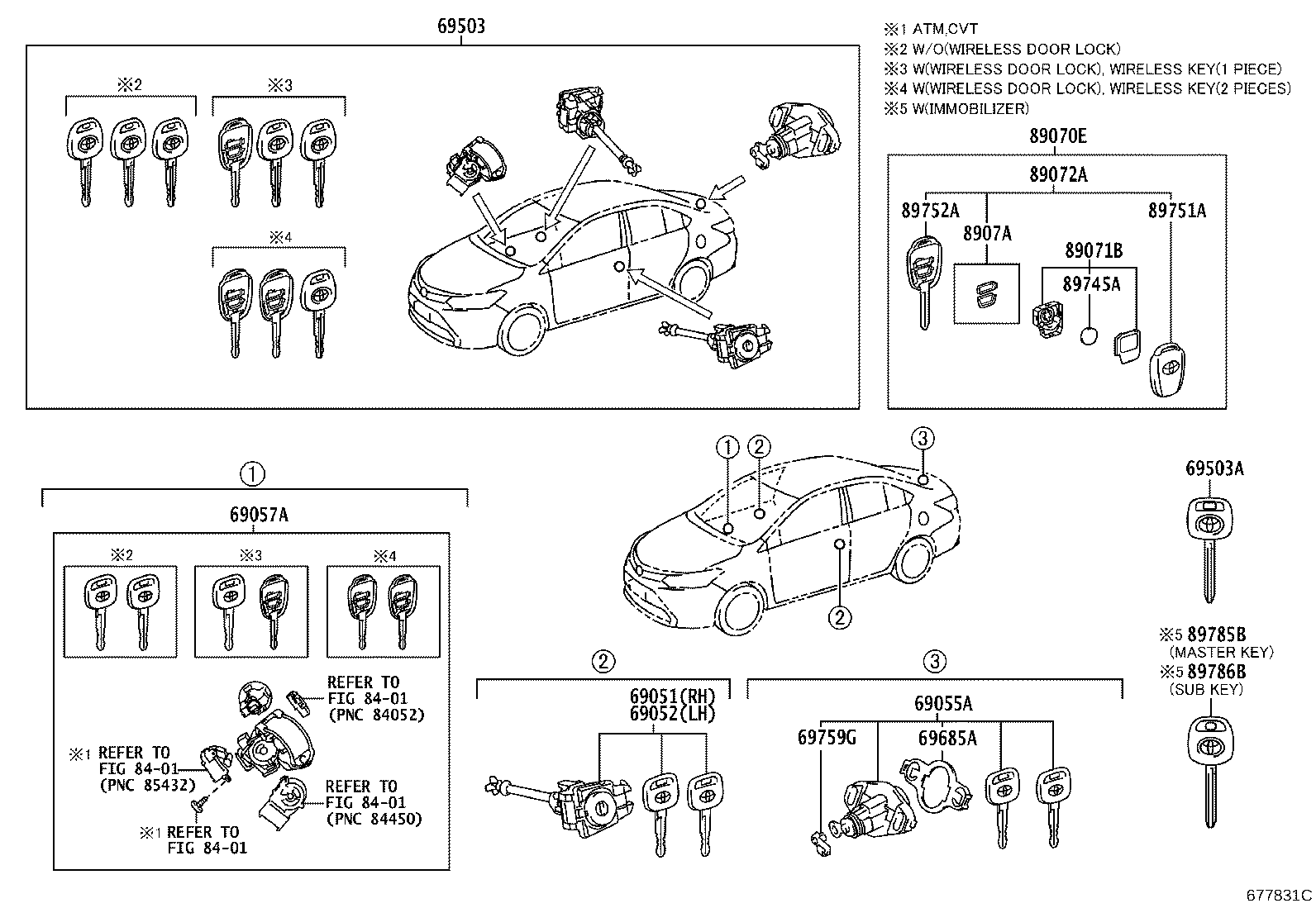

Figure 677829C 677829C 2013-04 → — Figure 677831C 677831C 2013-04 → 2016-09 Figure 677831C 677831C 2016-04 → 2018-12 Figure 677831C 677831C 2016-04 → — Figure 677831C 677831C 2016-10 → 2017-12 Figure 678122C 678122C 2014-04 → — Figure 678122C 678122C 2018-07 → — Figure 679575A 679575A 2017-08 → — Figure 679575A 679575A 2018-01 → — Figure 679575A 679575A 2019-11 → — Figure 679575A 679575A 2020-03 → — Figure 679576A 679576A 2017-10 → — Figure 679829 679829 2018-04 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69055A Cylinder & Key Set, Luggage Compartment Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69561A Retainer, Luggage Compartment Lock Cylinder
69685A Pad, Lock Cylinder
69759G Snap, Luggage Door Lock Cylinder
89070E Transmitter Assy, Door Control
89071B Module Set, Transmitter Sub-assy, Door Control
89072A Housing Set, Door Control Transmitter
8907A Switch Set, Transmitter
89742A Transmitter, Door Control
89745A Battery, Transmitter
89745C Battery, Transmitter
89751A Cover, Transmitter Housing
89751B Cover, Transmitter Housing
89752A Case, Transmitter Housing
89758 Packing, Door Control Transmitter
8975B Cover, Transmitter Battery Housing
89785B Transmitter, Transponder Key Master
89786B Transmitter, Transponder Key Sub
89904B Transmitter Sub-assy, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
