Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

4 part groups · 2 illustrations

Illustrations

743768 2013-04 → —

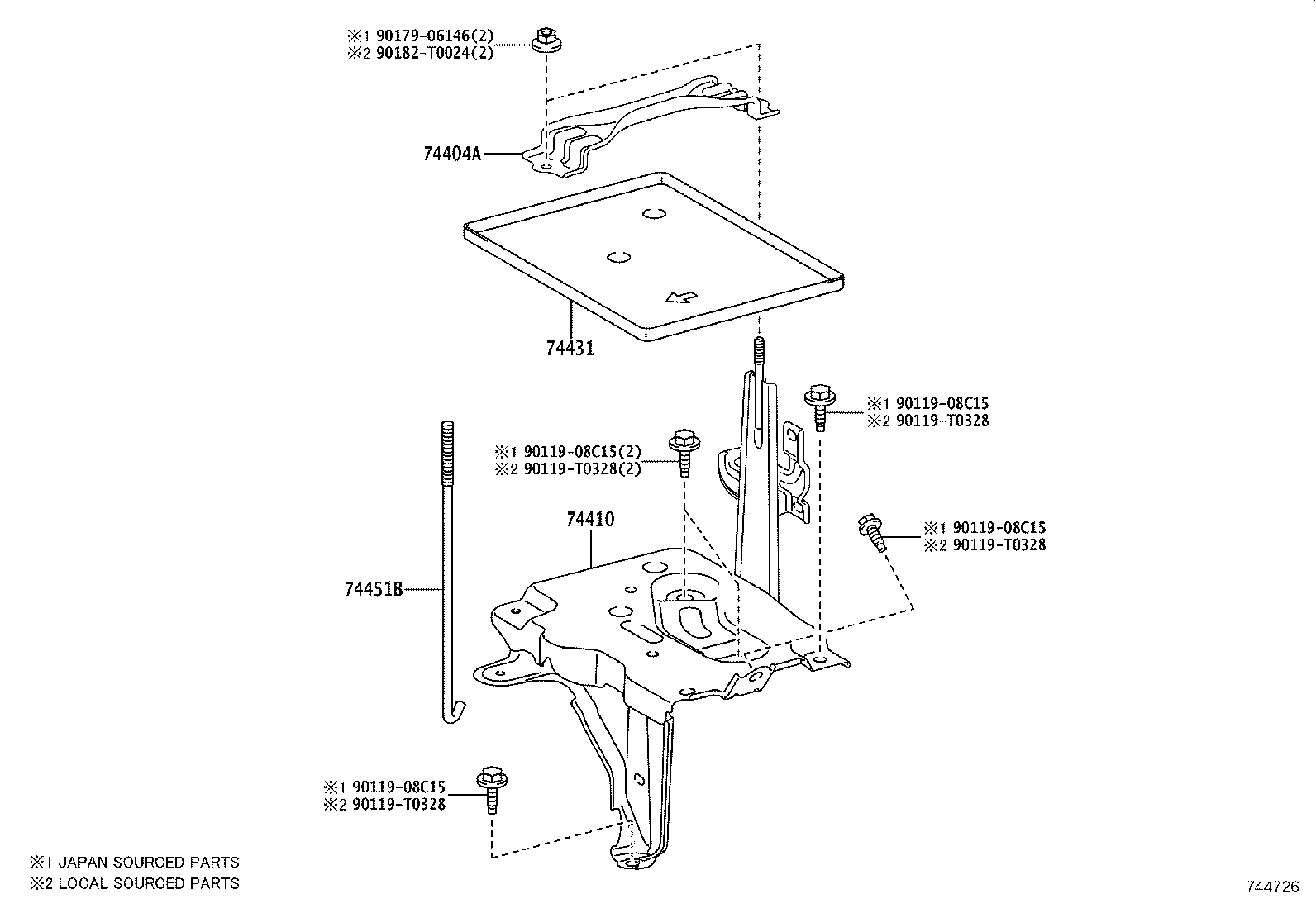

744726 2018-07 → —

Part groups

PNC	Description
74404A	Clamp Sub-assy, Battery
74410	Carrier Assy, Battery
74431	Tray, Battery
74451B	Bolt, Battery Clamp

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
