Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

14 part groups · 3 illustrations

Illustrations

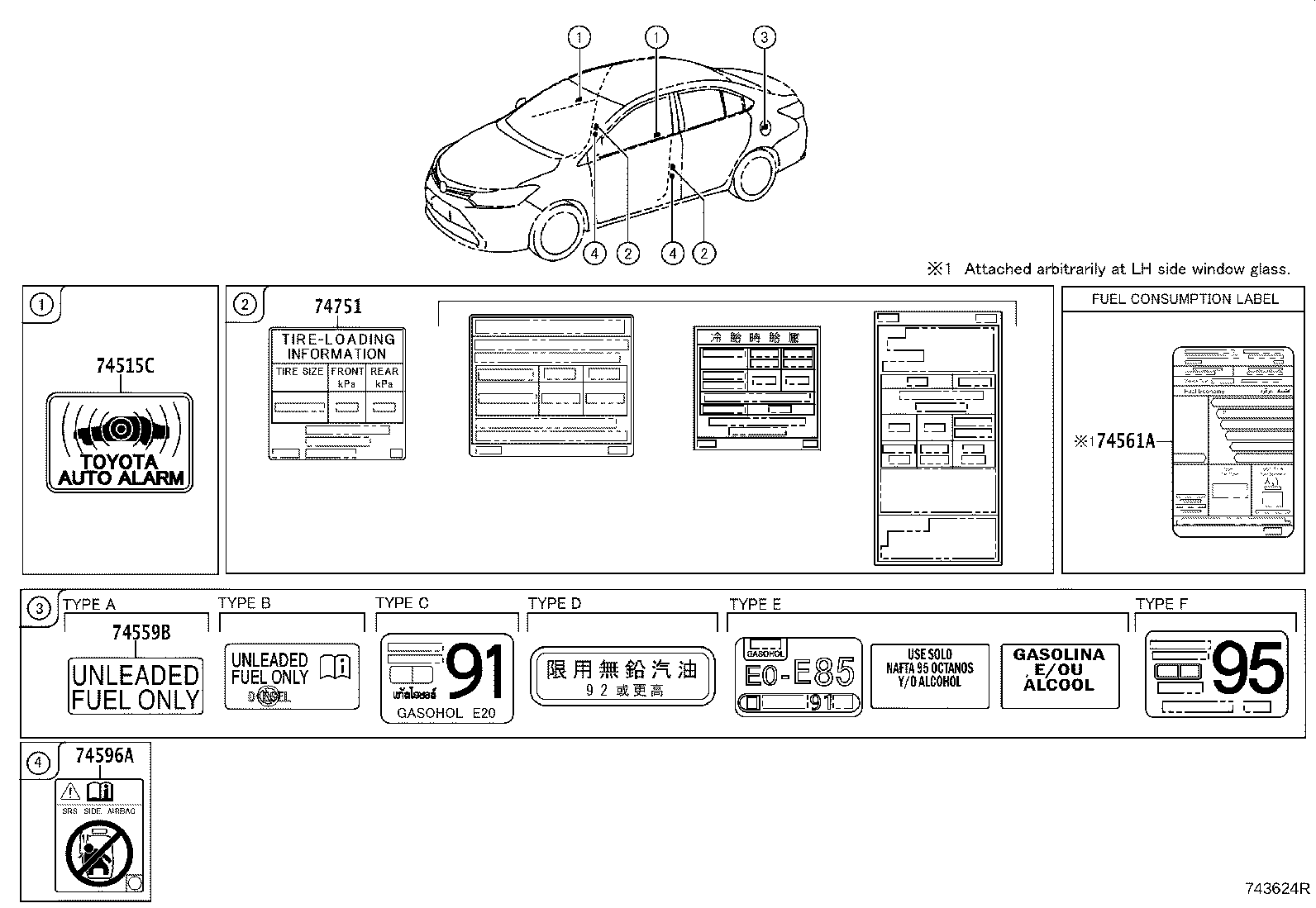

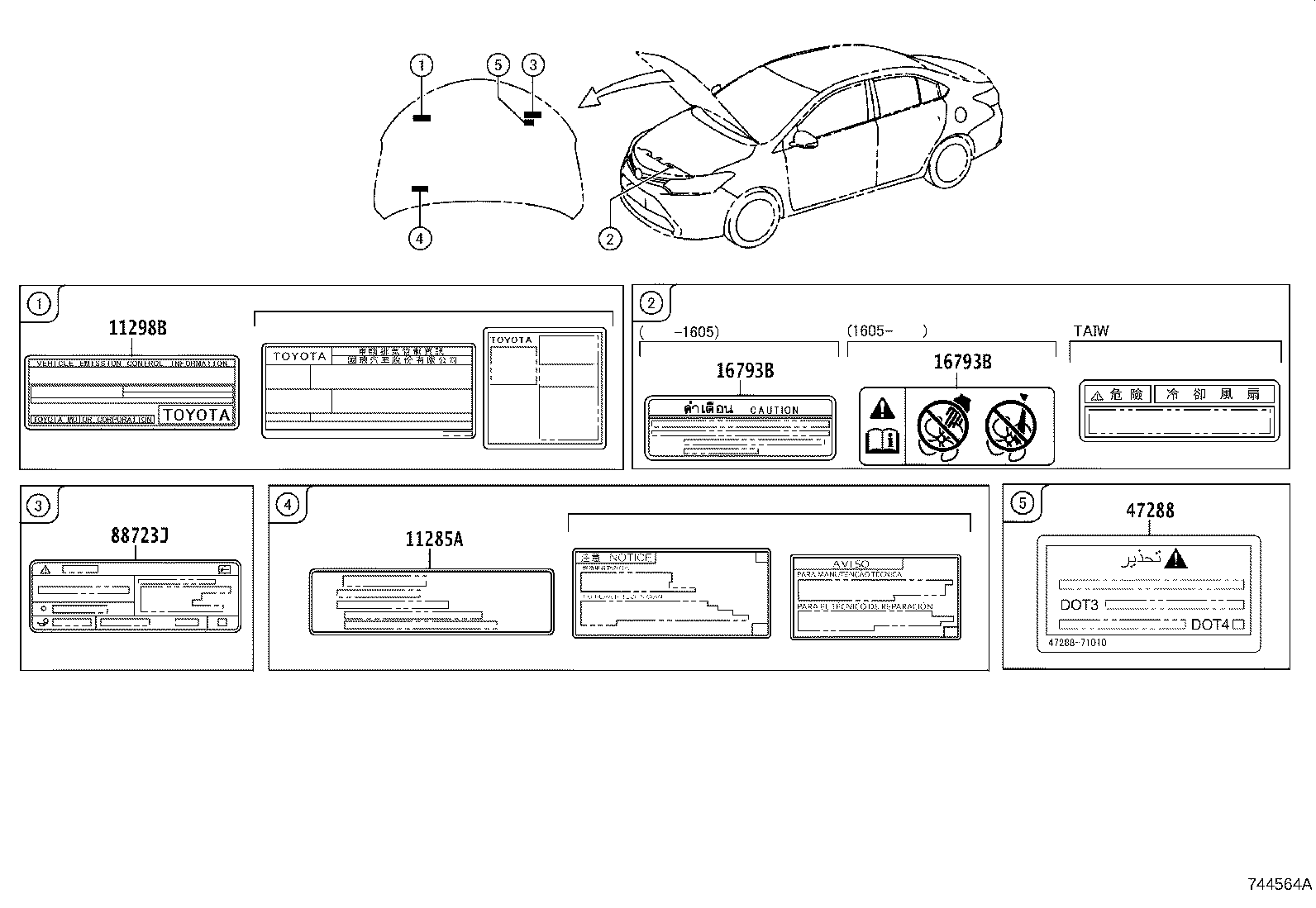

Figure 744564A 744564A 2013-04 → — Figure 743624R 743624R 2013-04 → — Figure 743780B 743780B 2013-04 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11298B Label, Emission Control Information
16793B Label, Cooling Fan Information
47288 Label, Brake Fluid Notice
69339C Label, Child Protector Information
74515C Label, Theft Warning Information
74541E Plate, Compact Spare Tire Caution
74559A Plate, Fuel Caution
74559B Label, Fuel Information
74561A Label, Fuel Consumption Information
74596A Label, Side Airbag Caution
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
88723J Label, Cooler Service Caution, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
