Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

9 part groups · 7 illustrations

Illustrations

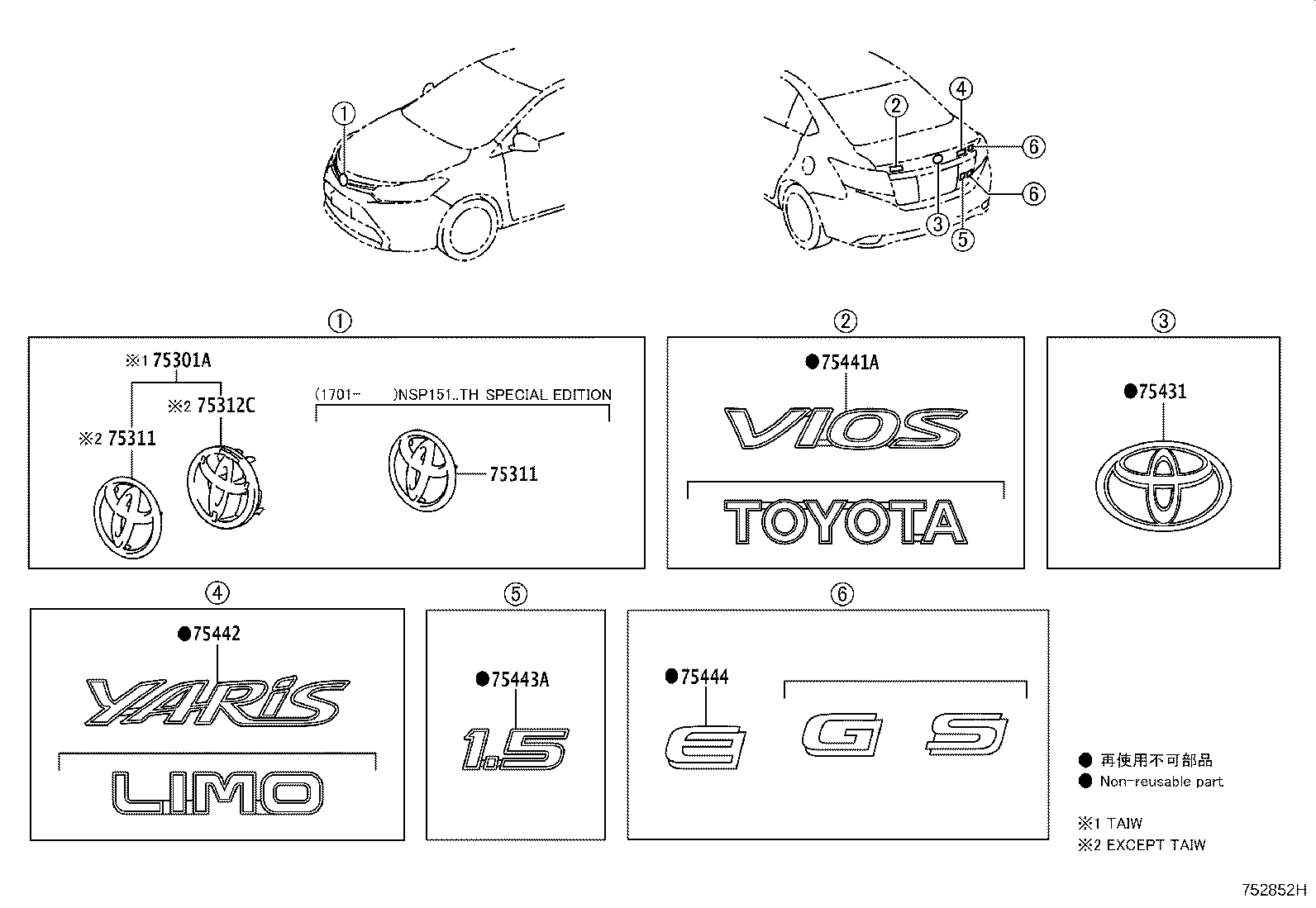

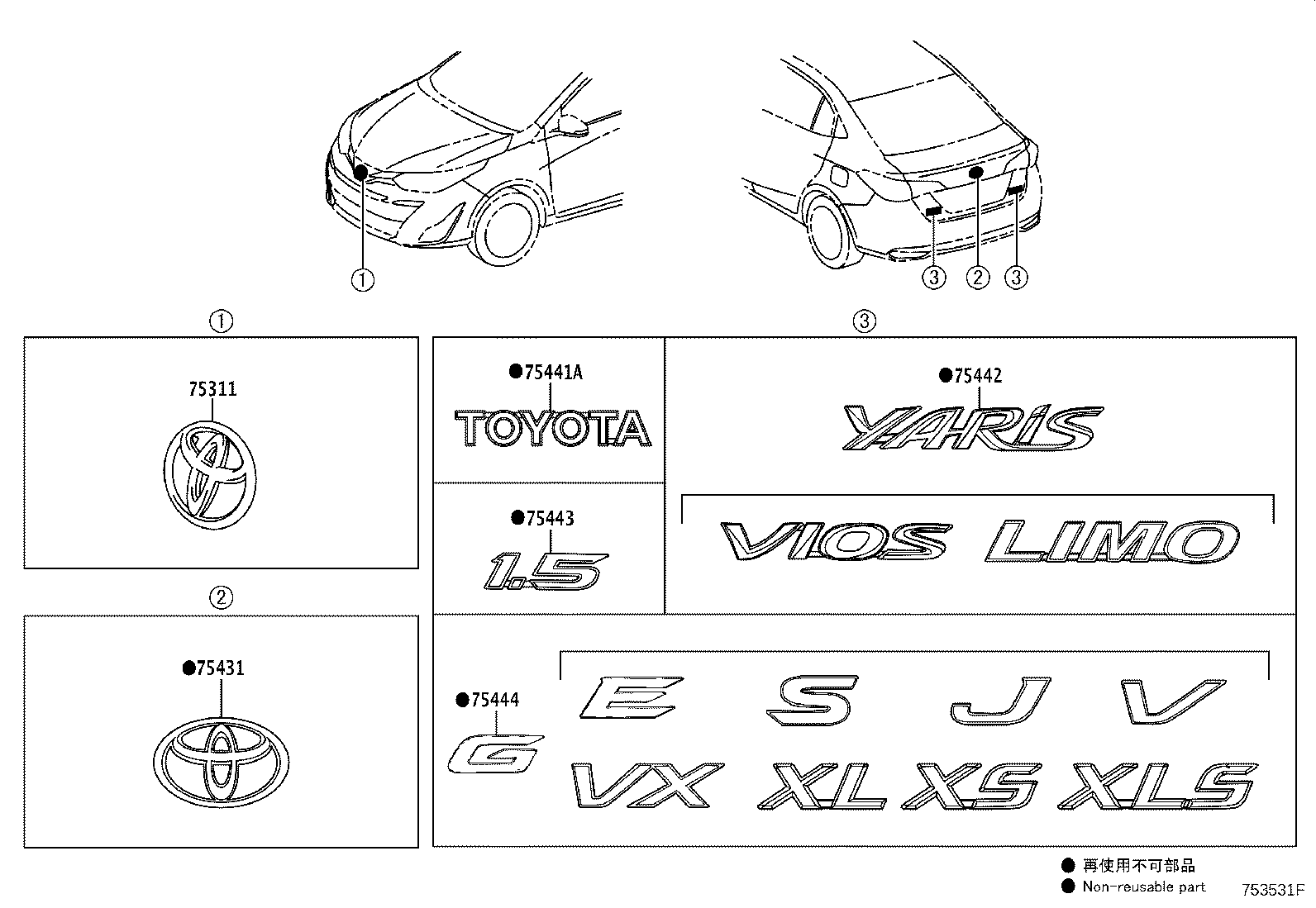

Figure 752852H 752852H 2013-04 → — Figure 752852H 752852H 2016-01 → 2018-01 Figure 752852H 752852H 2016-04 → 2018-12 Figure 752852H 752852H 2016-04 → — Figure 753531F 753531F 2017-08 → — Figure 753531F 753531F 2018-01 → — Figure 753531F 753531F 2019-01 → —

Part groups

PNCDescription
75301A Emblem Sub-assy, Front Bumper
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75312C Base, Front Bumper Emblem
75431 Emblem, Luggage Compartment Door
75441A Plate, Luggage Compartment Door Name, NO.1
75442 Plate, Luggage Compartment Door Name, NO.2
75443 Plate, Back Door Name, NO.3
75443A Plate, Luggage Compartment Door, NO.3
75444 Plate, Luggage Compartment Door, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
