Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

8 part groups · 12 illustrations

Illustrations

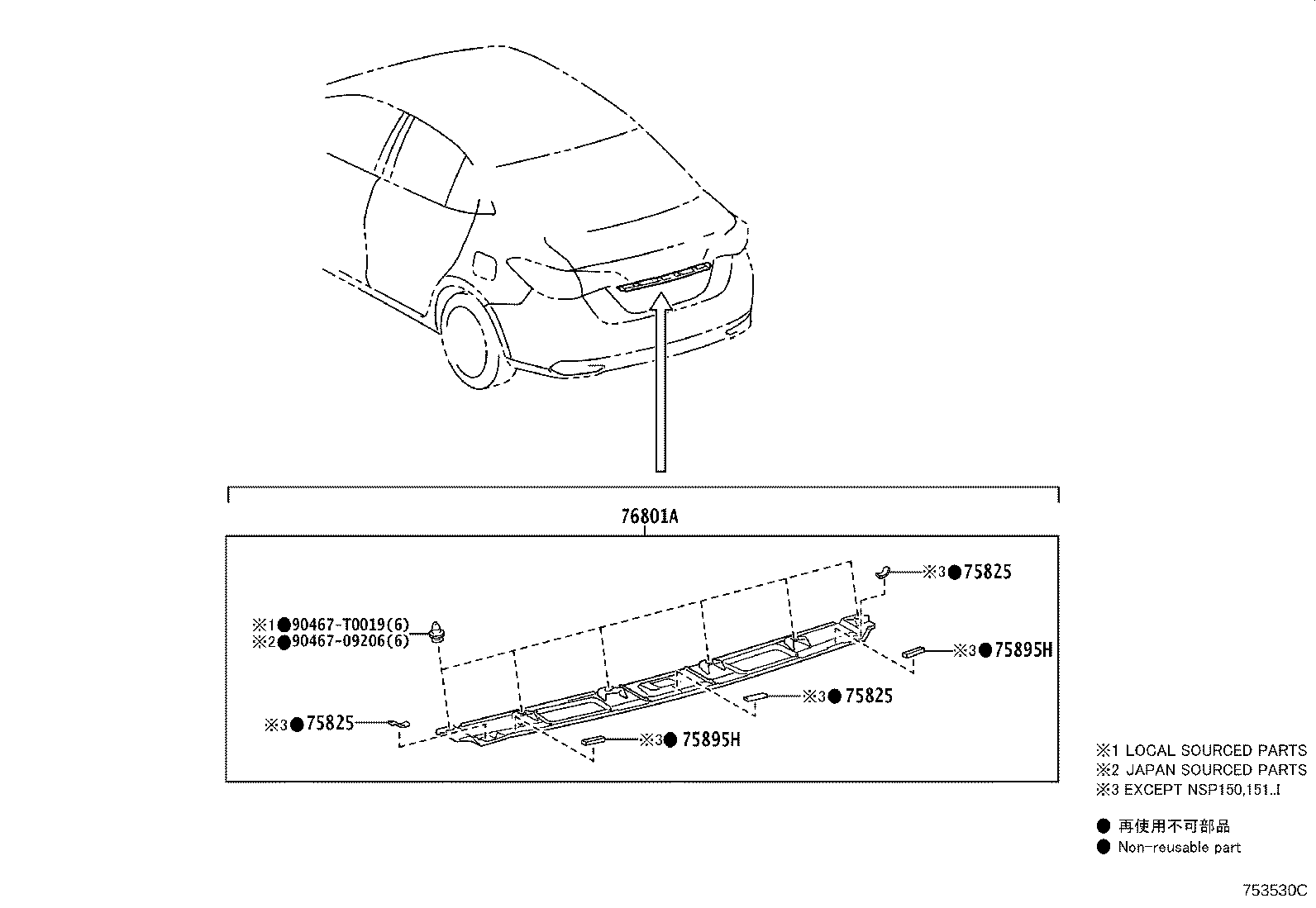

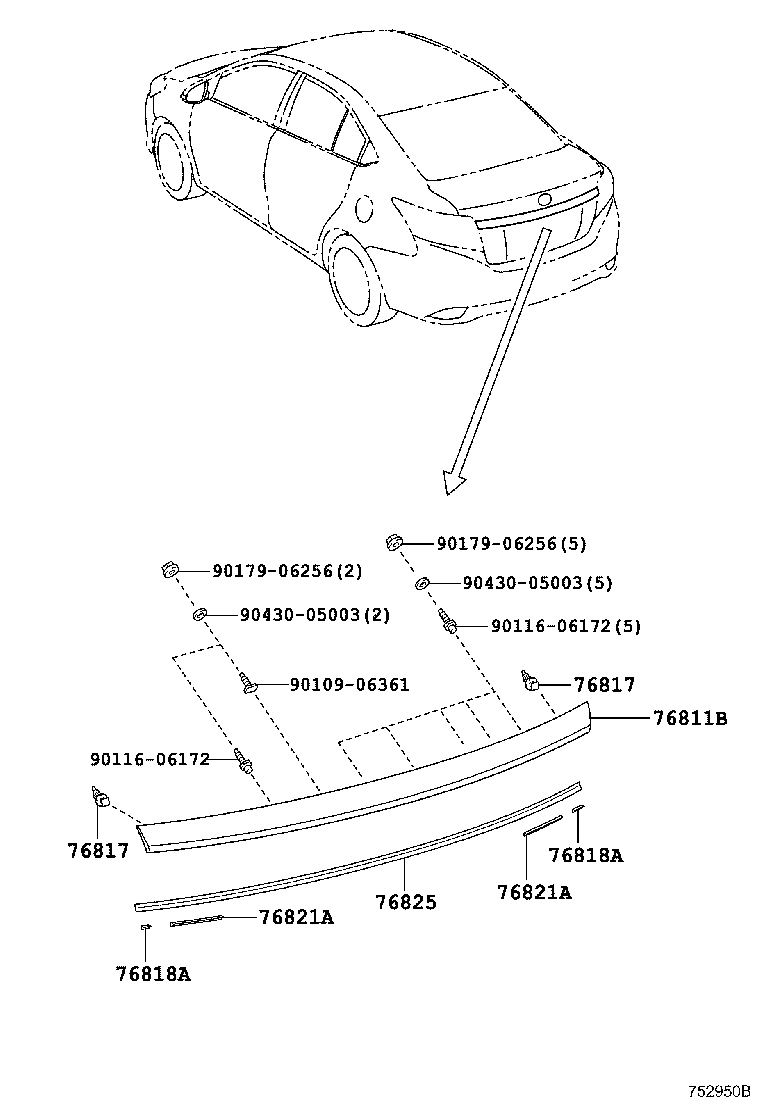

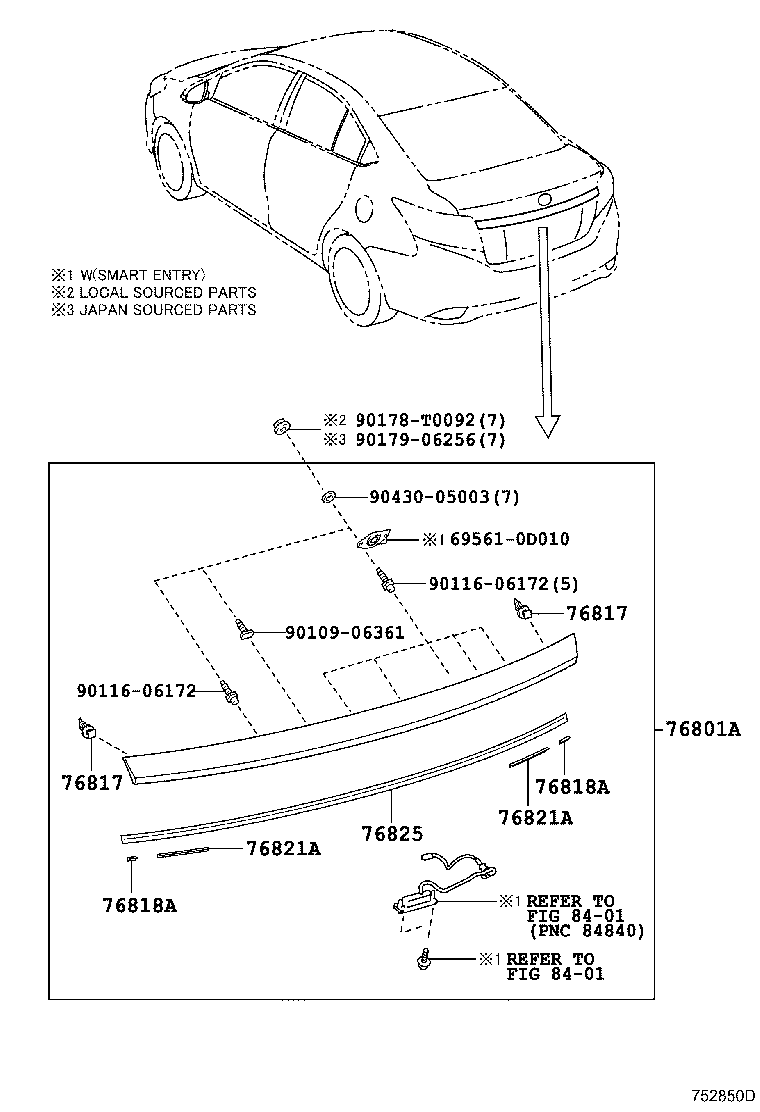

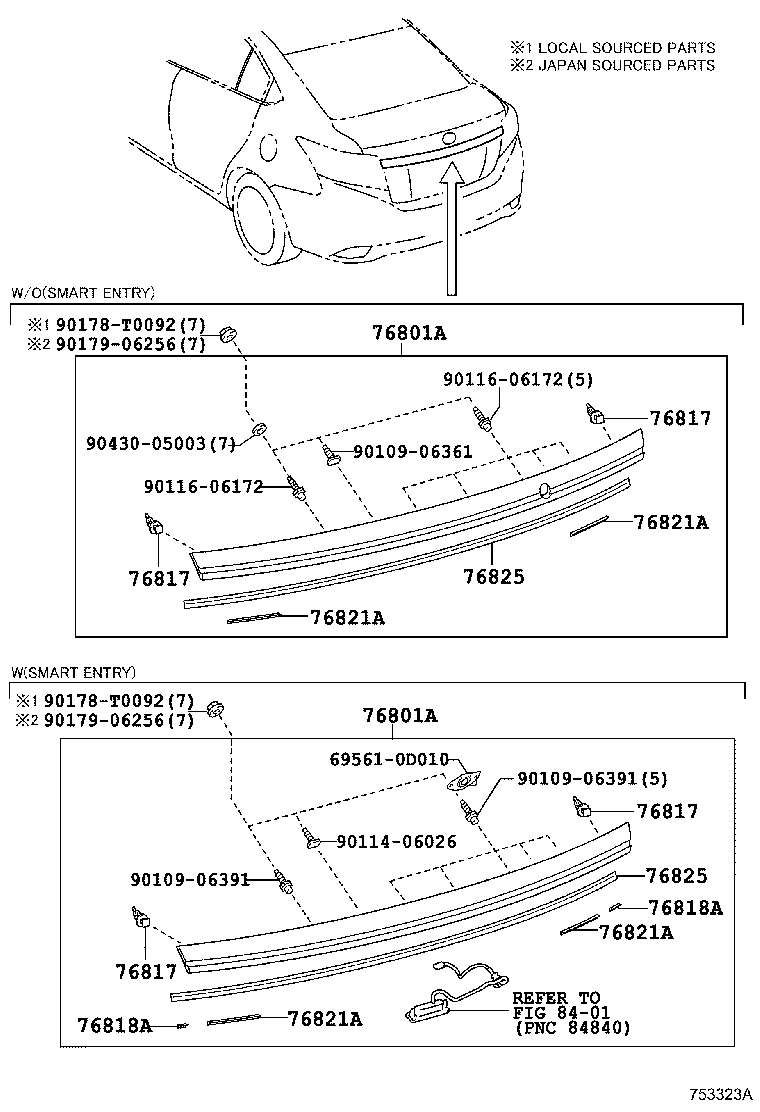

Figure 752850D 752850D 2013-04 → 2018-01 Figure 752850D 752850D 2013-04 → 2019-01 Figure 752850D 752850D 2013-04 → — Figure 752850D 752850D 2013-08 → 2018-01 Figure 752850D 752850D 2019-01 → — Figure 752950B 752950B 2014-04 → — Figure 753323A 753323A 2017-01 → — Figure 753530C 753530C 2017-08 → — Figure 753530C 753530C 2018-01 → — Figure 753530C 753530C 2019-01 → — Figure 753530C 753530C 2019-11 → — Figure 753530C 753530C 2019-11 → —

Part groups

PNCDescription
75825 Pad, Luggage Compartment Door Moulding
75895H Tape, Moulding, NO.1
76801A Garnish Sub-assy, Luggage Compartment Door, Outside
76811B Garnish, Luggage Compartment Door, Outside
76817 Clip, Back Door Outside Garnish
76818A Pad, Luggage Garnish, NO.1
76821A Protector, Luggage Compartment Door Outside Garnish
76825 Protector, Back Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
