Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

61 part groups · 22 illustrations

Illustrations

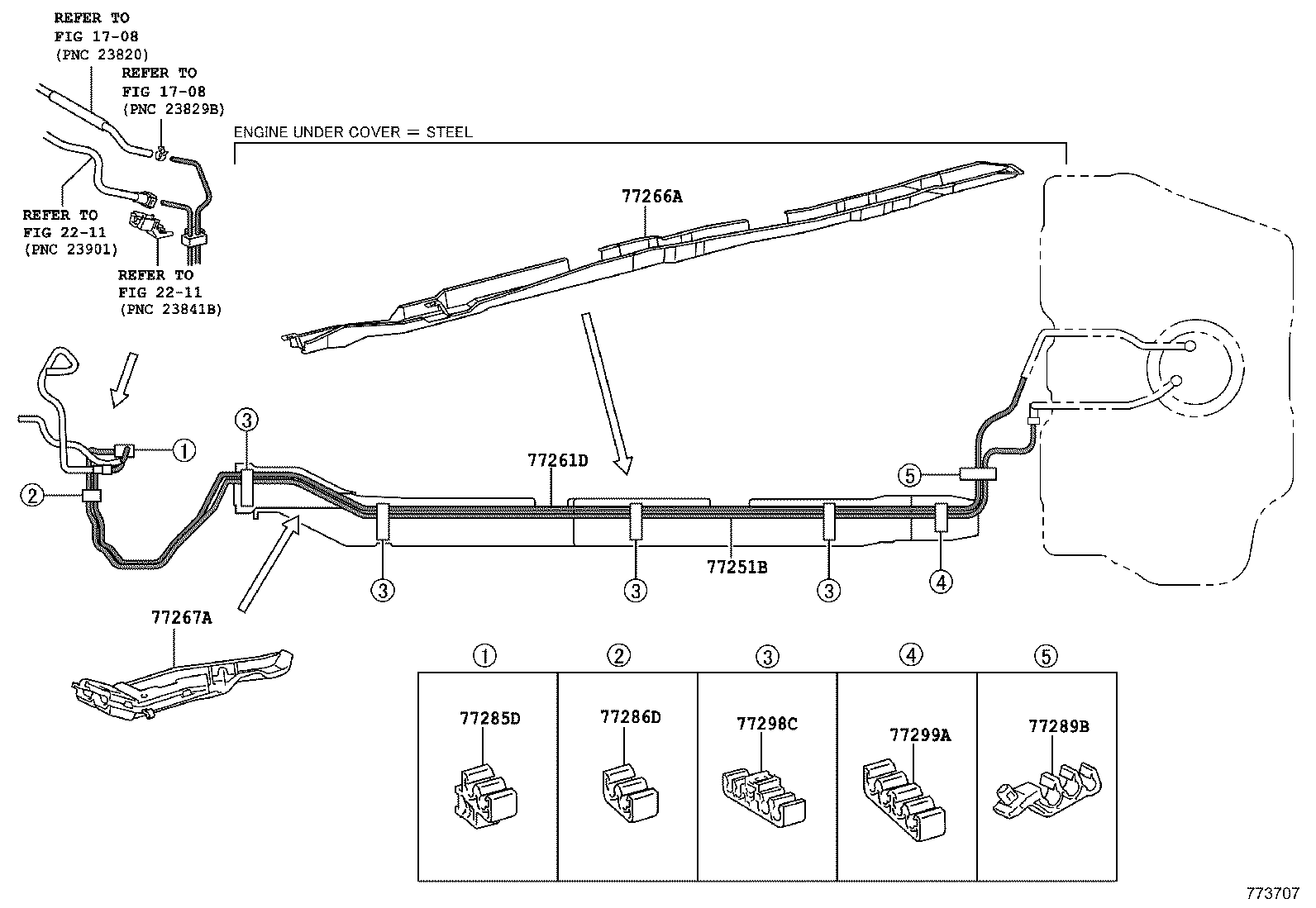

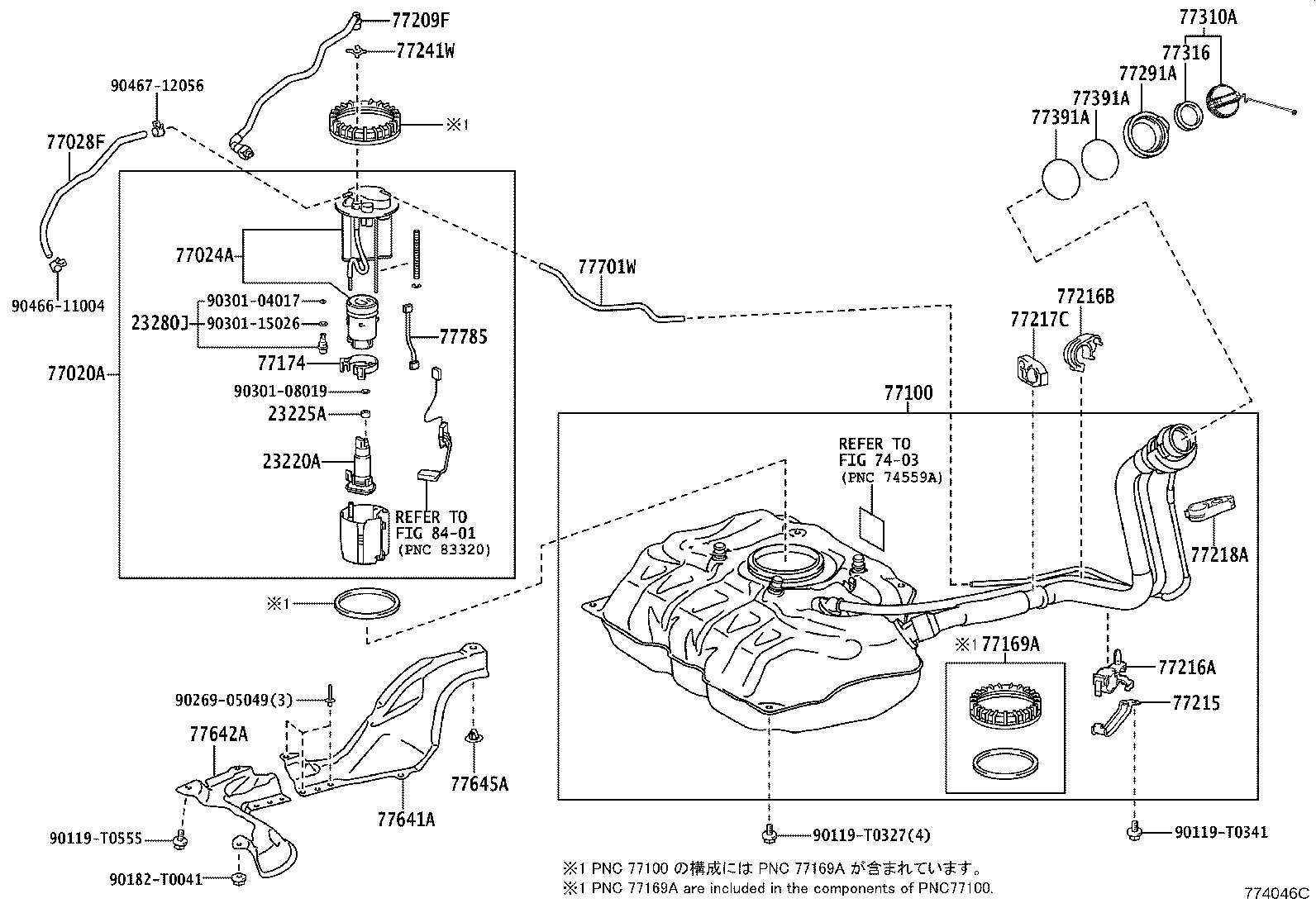

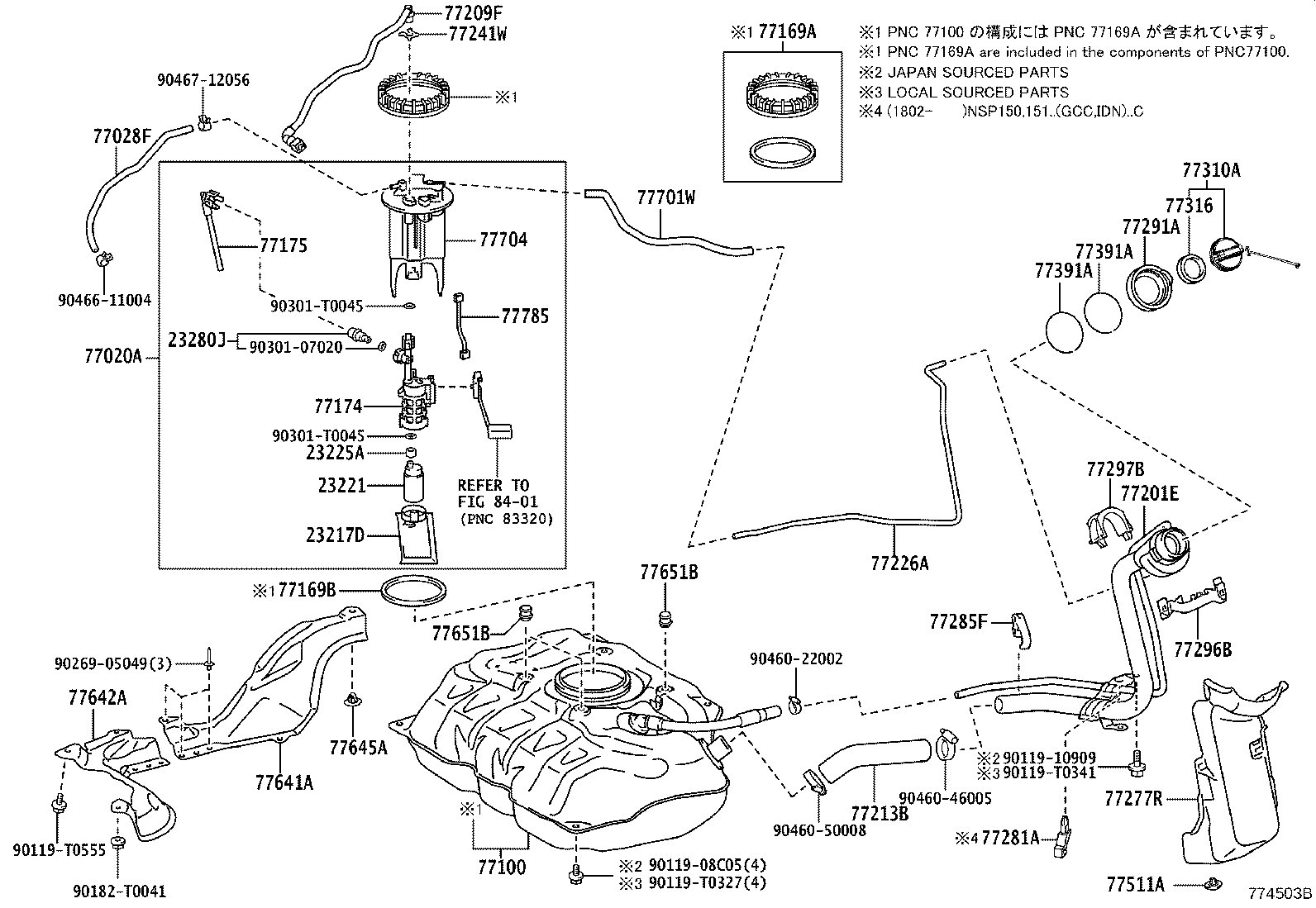

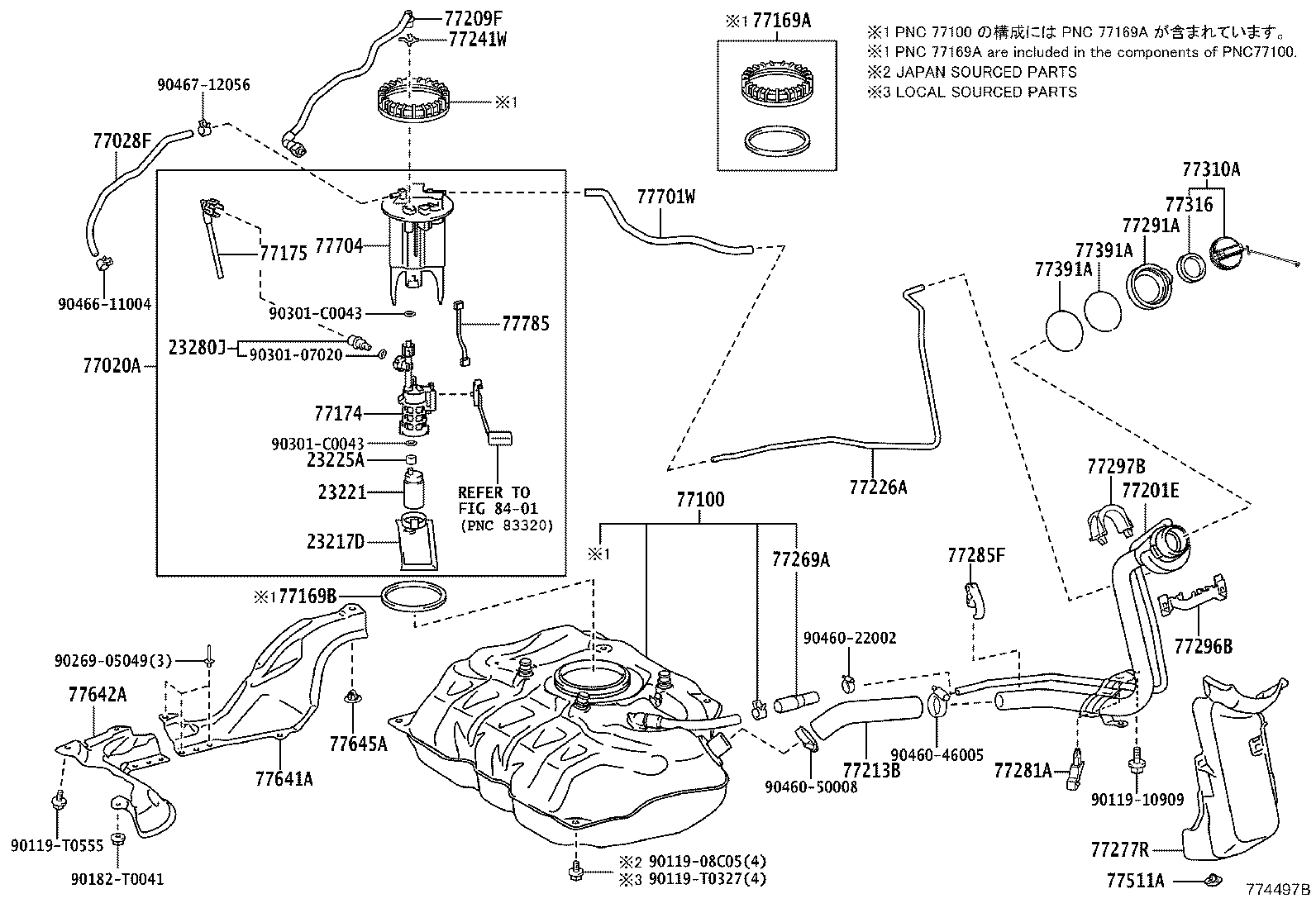

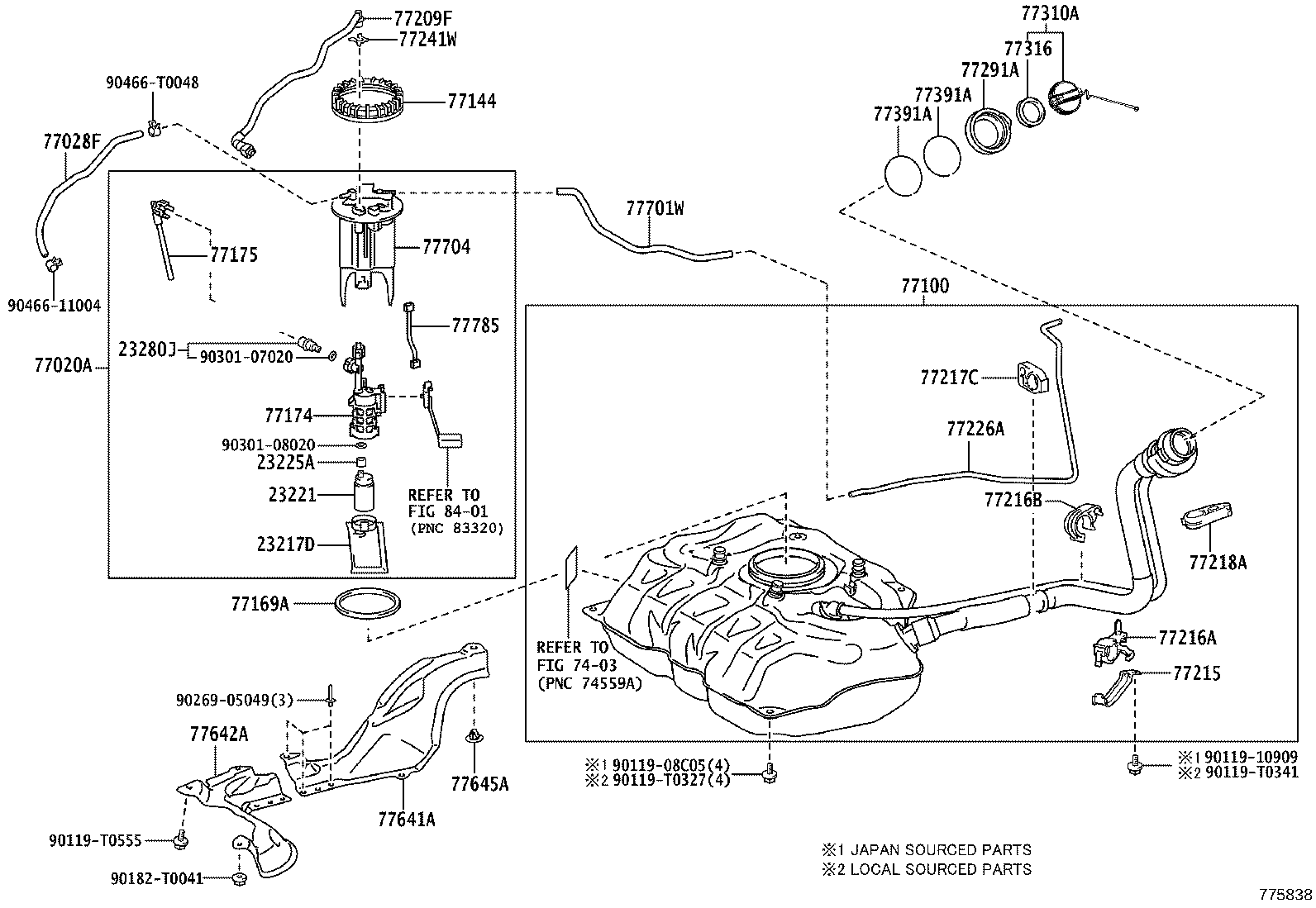

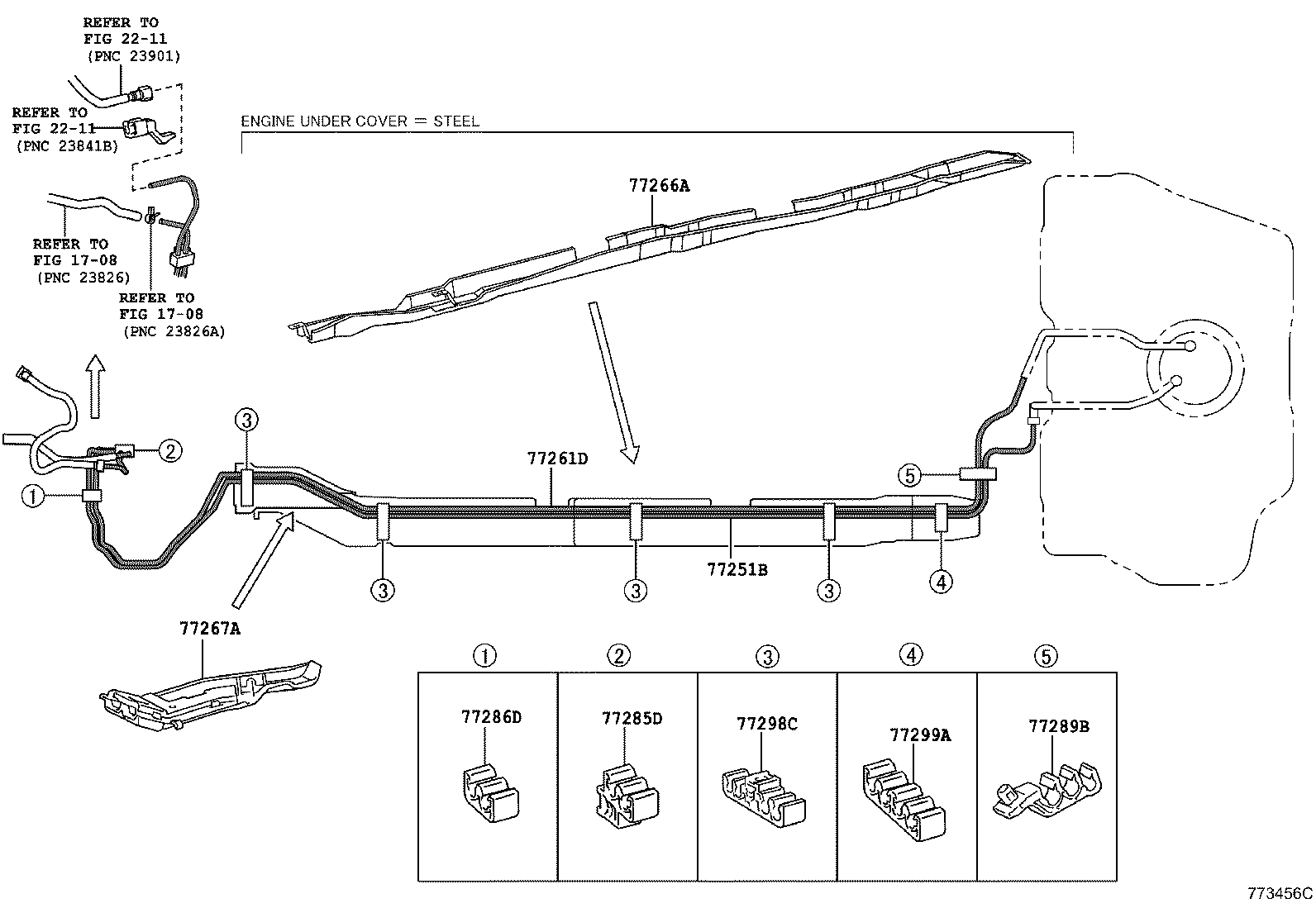

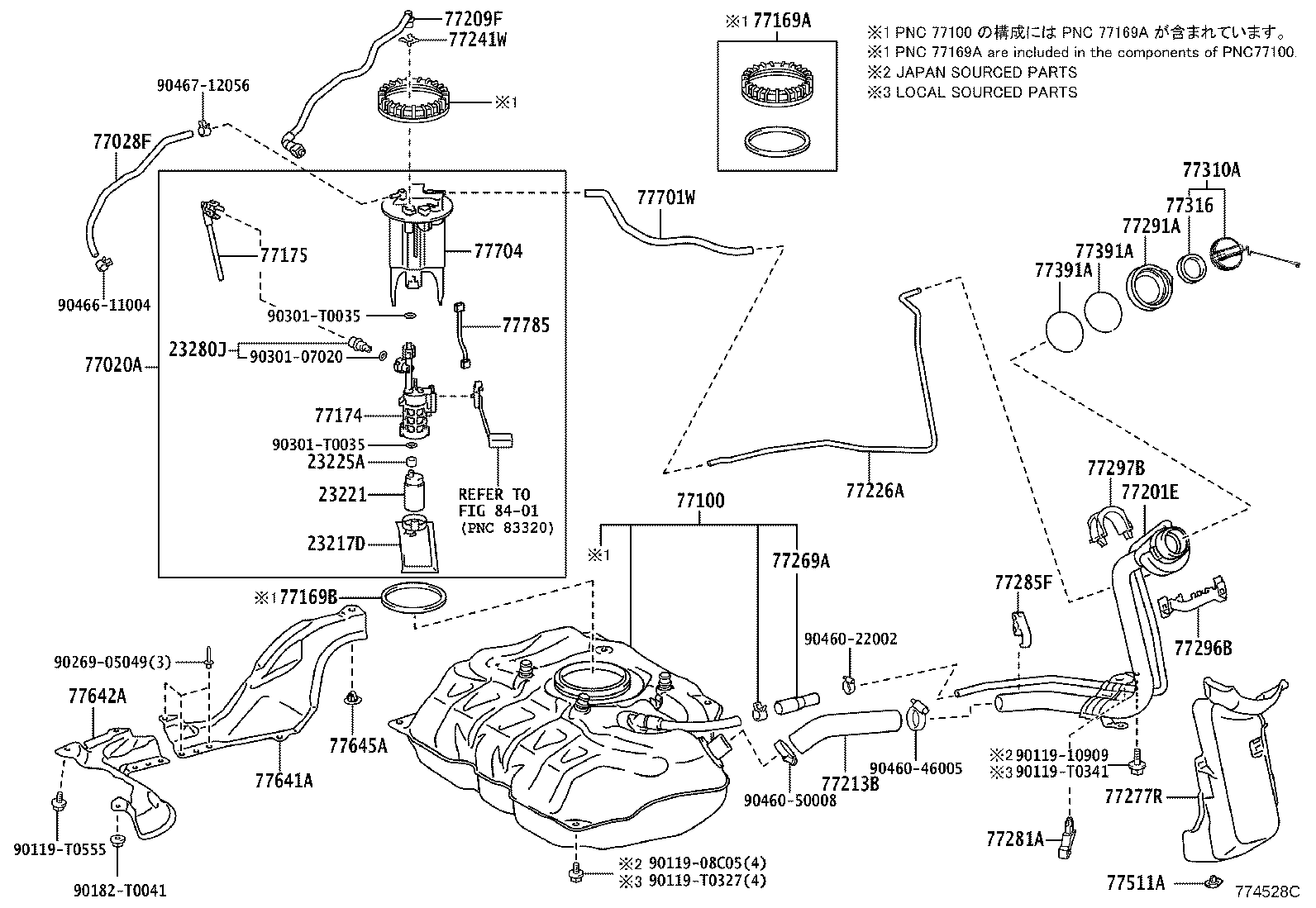

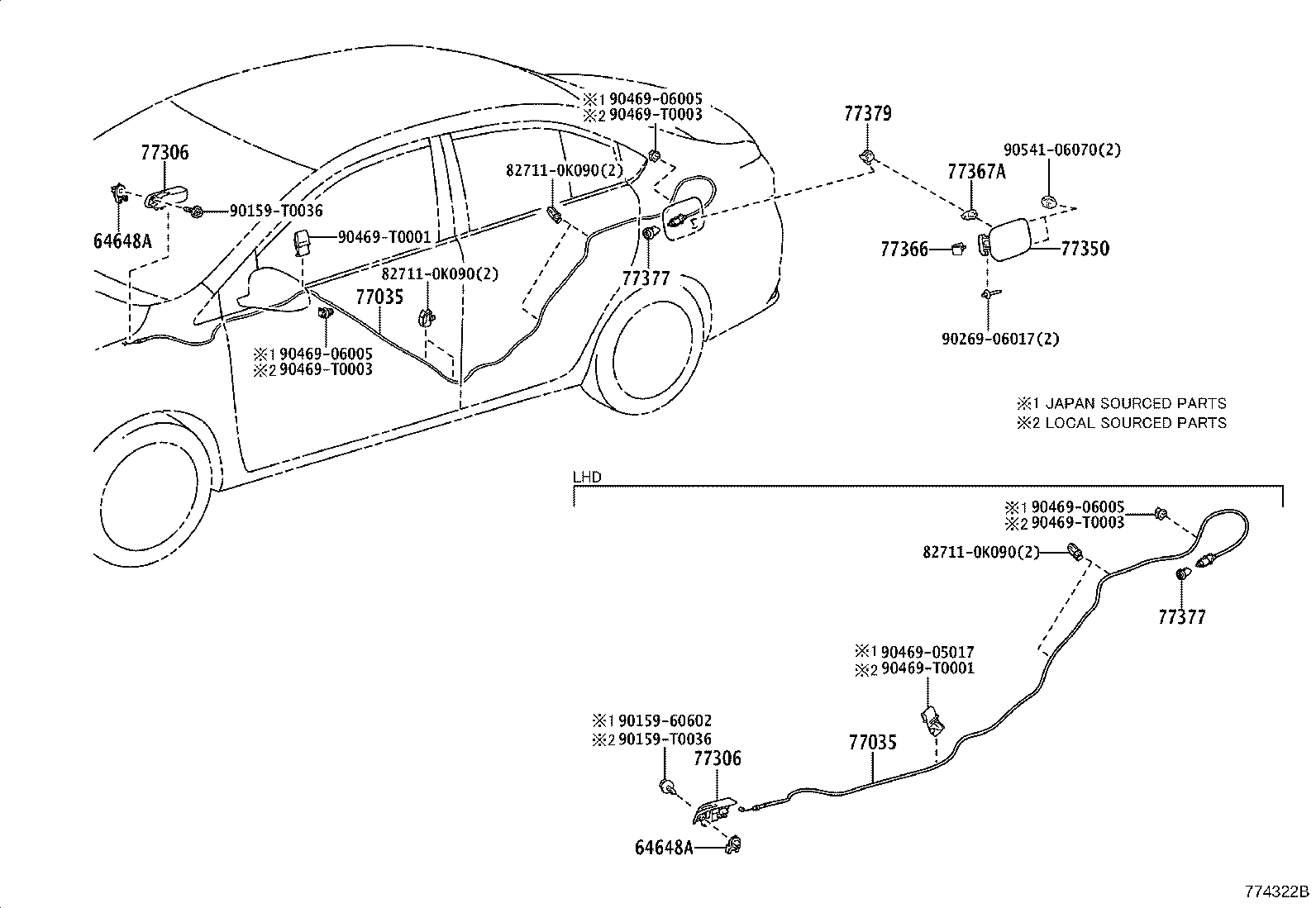

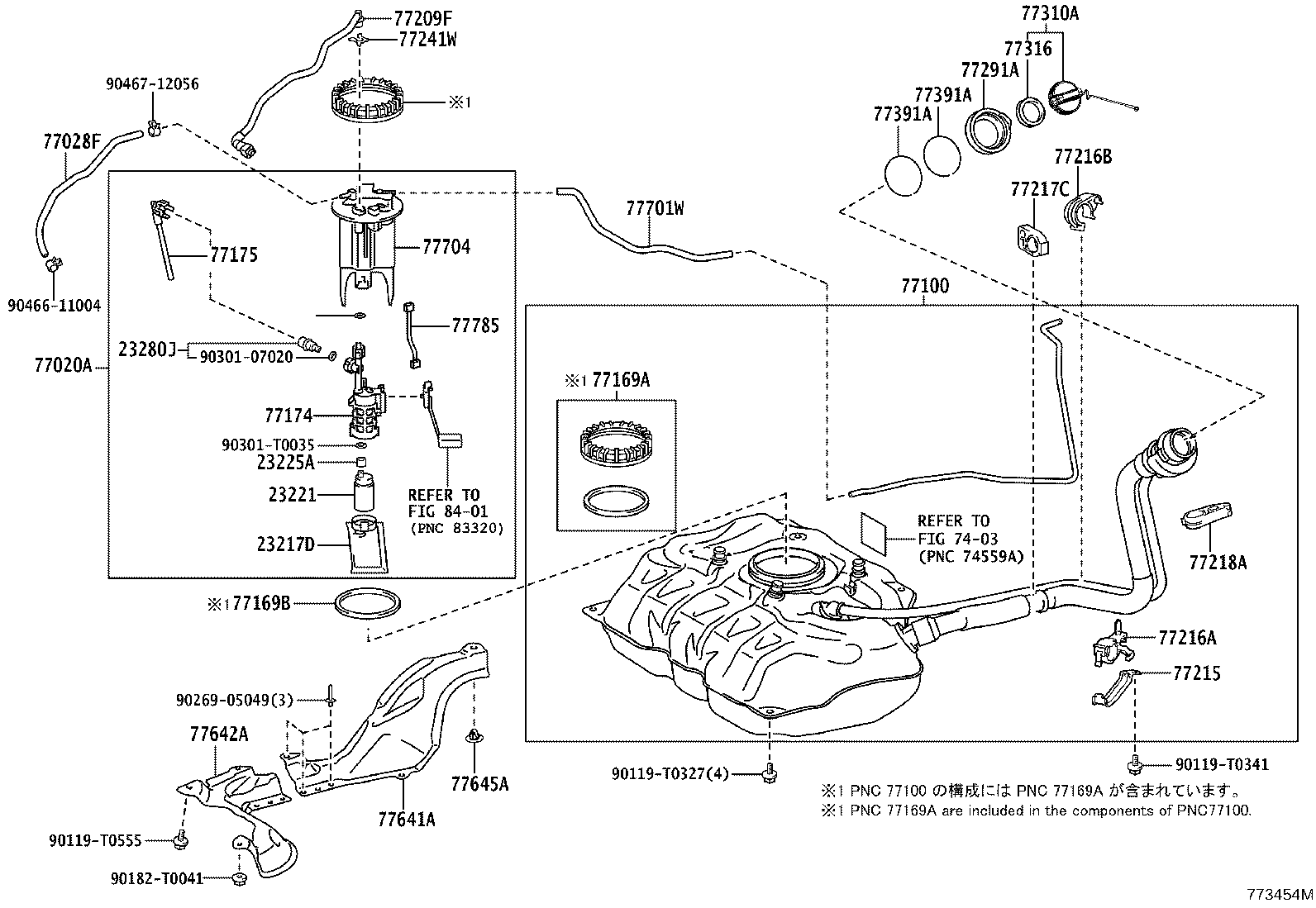

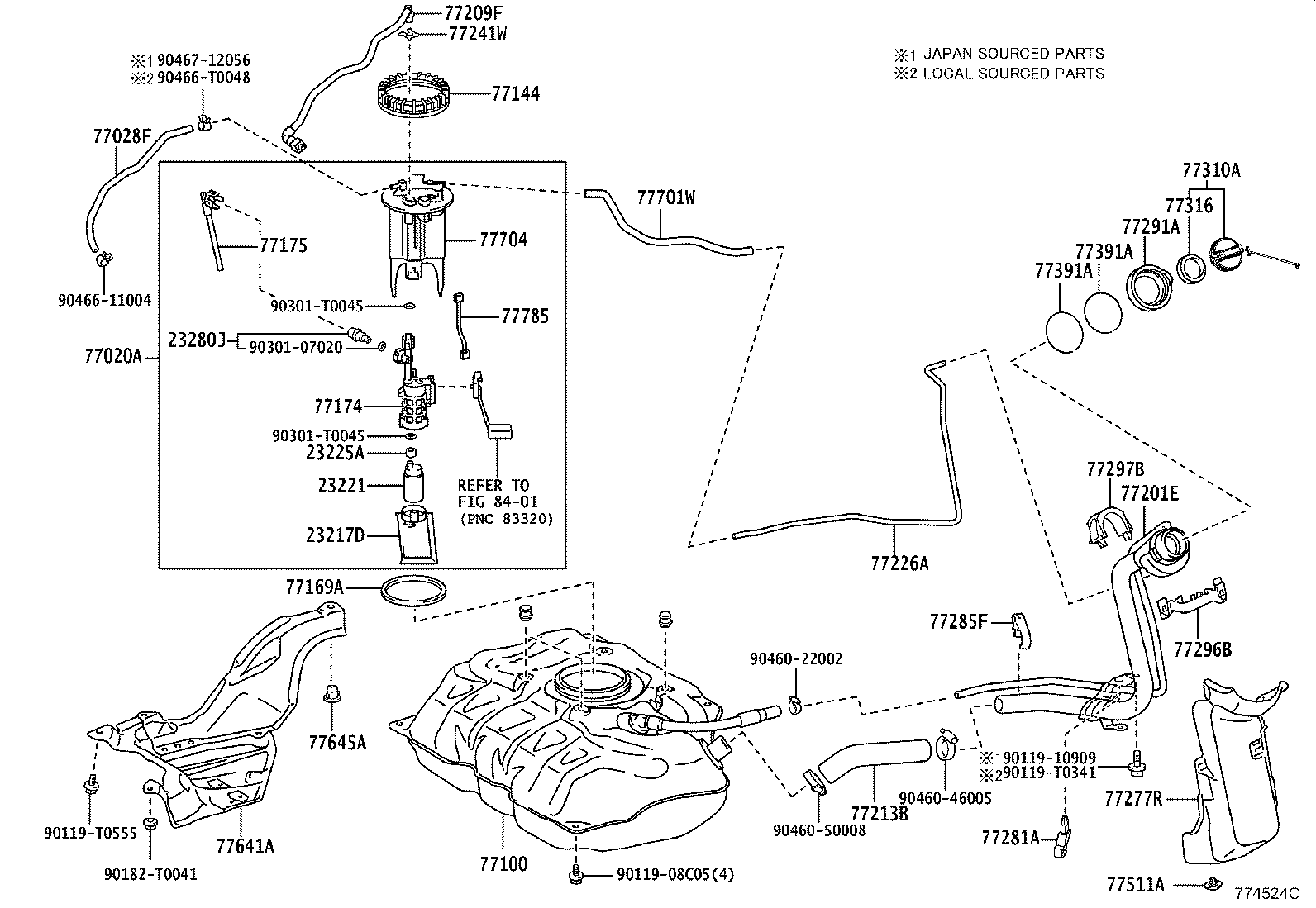

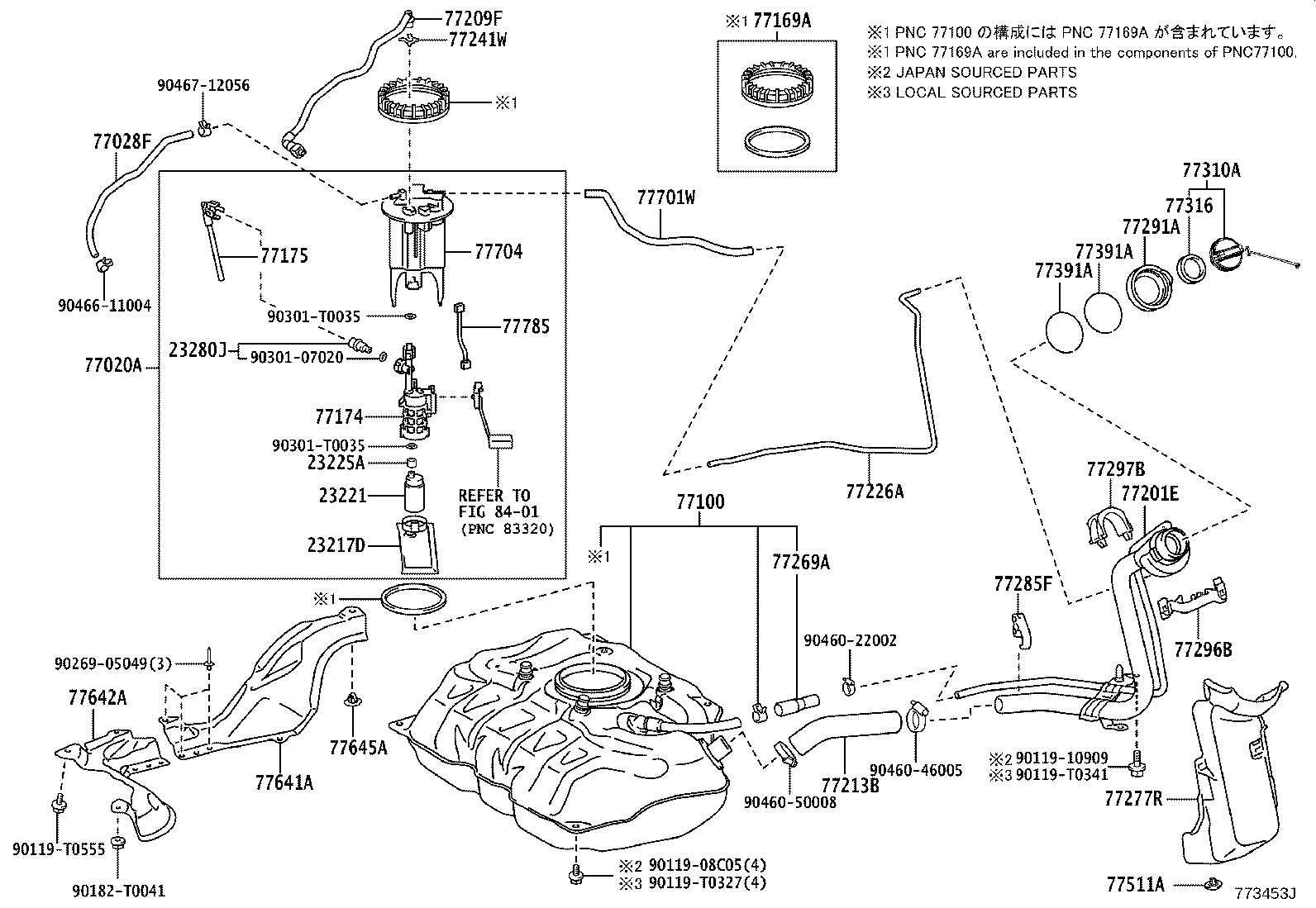

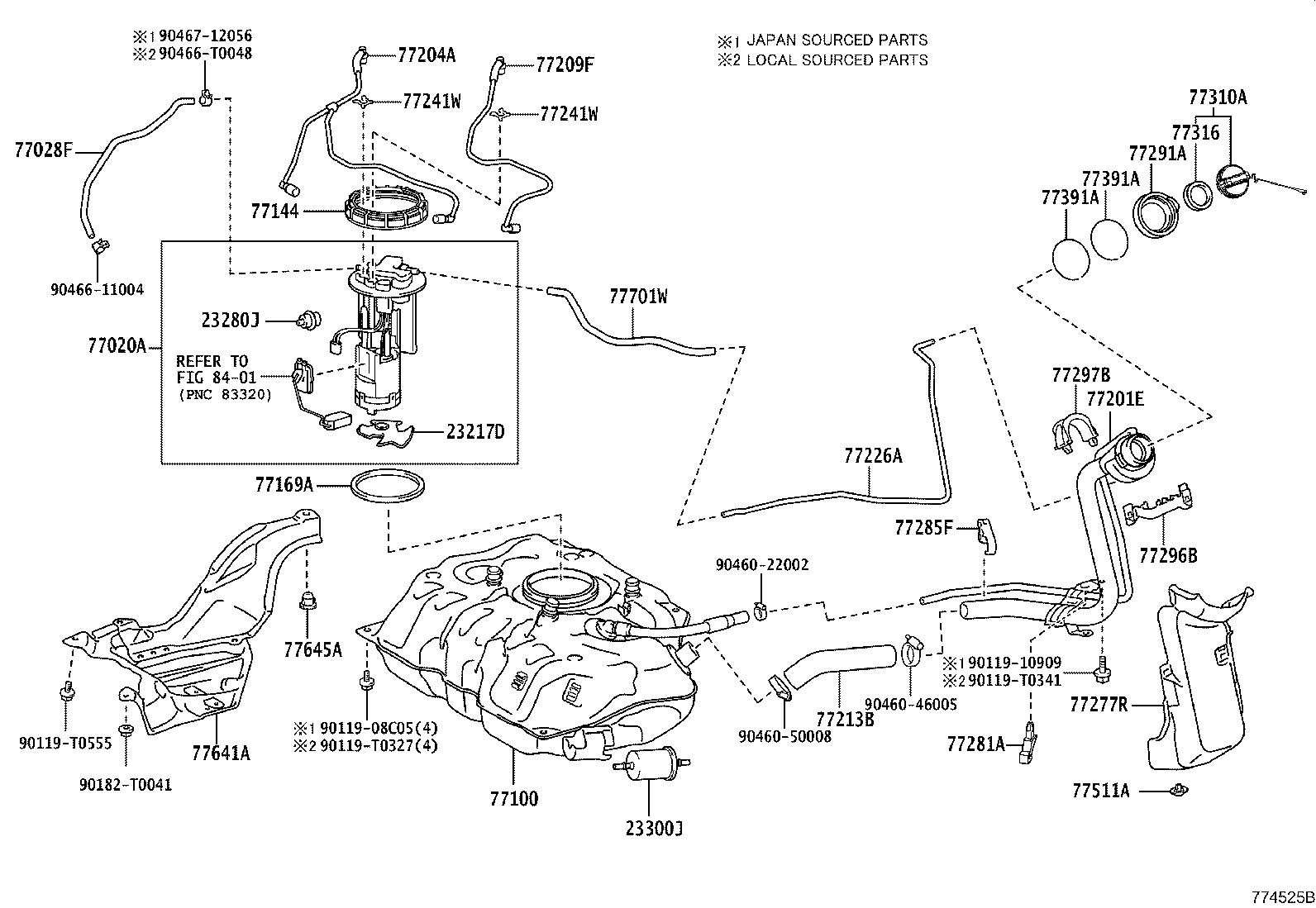

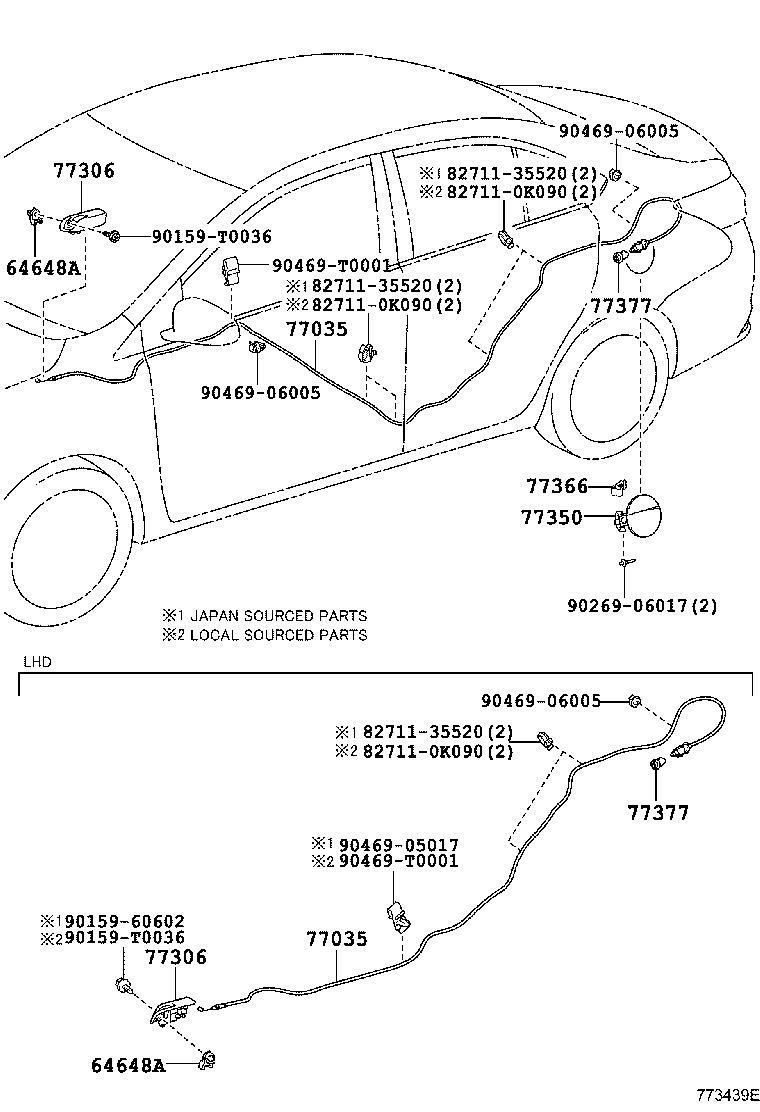

Figure 773454M 773454M 2013-04 → 2018-06 Figure 773454M 773454M 2013-04 → — Figure 773454M 773454M 2013-04 → — Figure 773453J 773453J 2013-07 → 2019-01 Figure 775838 775838 2018-04 → — Figure 774528C 774528C 2018-06 → — Figure 774528C 774528C 2018-07 → — Figure 774528C 774528C 2019-01 → — Figure 774528C 774528C 2019-12 → — Figure 774503B 774503B 2013-12 → — Figure 774497B 774497B 2014-04 → — Figure 774046C 774046C 2016-04 → — Figure 774524C 774524C 2018-07 → — Figure 774525B 774525B 2018-07 → — Figure 773707 773707 2013-04 → — Figure 773456C 773456C 2016-04 → — Figure 773439E 773439E 2013-04 → 2018-01 Figure 773439E 773439E 2013-04 → 2019-01 Figure 773439E 773439E 2019-01 → — Figure 774322B 774322B 2017-08 → — Figure 774322B 774322B 2018-01 → — Figure 774322B 774322B 2019-01 → —

Part groups

PNCDescription
23217D Filter, Fuel Pump
23220A Pump Assy, Fuel W/Filter
23221 Pump, Fuel
23225A Spacer, Fuel Pump
23280J Regulator Assy, Fuel Pressure
23300J Filter Assy, Fuel
64648A Grommet, Luggage Door Lock Opener
77020A Tube Assy, Fuel Suction W/Pump & Gage
77024A Plate Sub-assy, Fuel Suction
77028F Tube Sub-assy, Fuel Emission, NO.2
77035 Cable Sub-assy, Fuel Lid Lock Control
77100 Tank Assy, Fuel
77144 Retainer, Fuel Pump Gauge
77169A Gasket, Fuel Suction Tube Set
77169B Gasket, Fuel Suction Tube Set, NO.1
77174 Support, Fuel Suction, NO.1
77175 Support, Fuel Suction, NO.2
77201E Pipe Sub-assy, Fuel Tank Filler
77204A Tube, Fuel Tank Return
77209F Tube Sub-assy, Fuel Tank Main
77213B Hose, Fuel Tank TO Filler Pipe
77215 Plate, Fuel Tank Filler Pipe Flange
77216A Support, Fuel Tank Filler Pipe, NO.1
77216B Support, Fuel Tank Filler Pipe, NO.2
77217C Support, Fuel Tank Filler Pipe, NO.2
77218A Support, Fuel Tank Filler Pipe, NO.3
77226A Tube, Fuel Tank Breather, NO.6
77241W Clip, Tube Joint
77251B Tube, Fuel Main
77261D Tube, Fuel Tank TO Canister
77266A Protector, Fuel Tube, NO.1
77267A Protector, Fuel Tube, NO.2
77269A Hose, Fuel Tank Breather
77277R Protector, Fuel Tank Filler Pipe
77281A Clamp, Fuel Filler Pipe
77285D Clamp, Fuel Tube, NO.1
77285F Clamp, Fuel Tube, NO.1
77286D Clamp, Fuel Tube, NO.2
77289B Clamp, Fuel Tube, NO.3
77291A Shield, Fuel Tank Filler Pipe
77296B Support, Fuel Tube Protector, NO.1
77297B Support, Fuel Tube Protector, NO.2
77298C Clamp, Fuel Tube, NO.4
77299A Clamp, Fuel Tube, NO.5
77306 Lever Sub-assy, Fuel Lid Lock Open
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77350 Lid Assy, Fuel Filler Opening
77366 Spring, Fuel Filler Opening Lid Hinge
77367A Clamp, Fuel Filler Lid Pin, NO.1
77377 Retainer, Fuel Filler Opening Lid Lock
77379 Spacer, Fuel Inlet Box Cover, NO.2
77391A Ring, Fuel Inlet Box
77511A Bracket, Fuel Tank
77641A Protector, Fuel Tank, NO.1
77642A Protector, Fuel Tank, NO.2
77645A Retainer, Fuel Tank Protector
77651B Cushion, Fuel Tank
77701W Hose Sub-assy, Canister Outlet, NO.1
77704 Canister Sub-assy, Charcoal
77785 Harness, Fuel Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
