Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

22 part groups · 24 illustrations

Illustrations

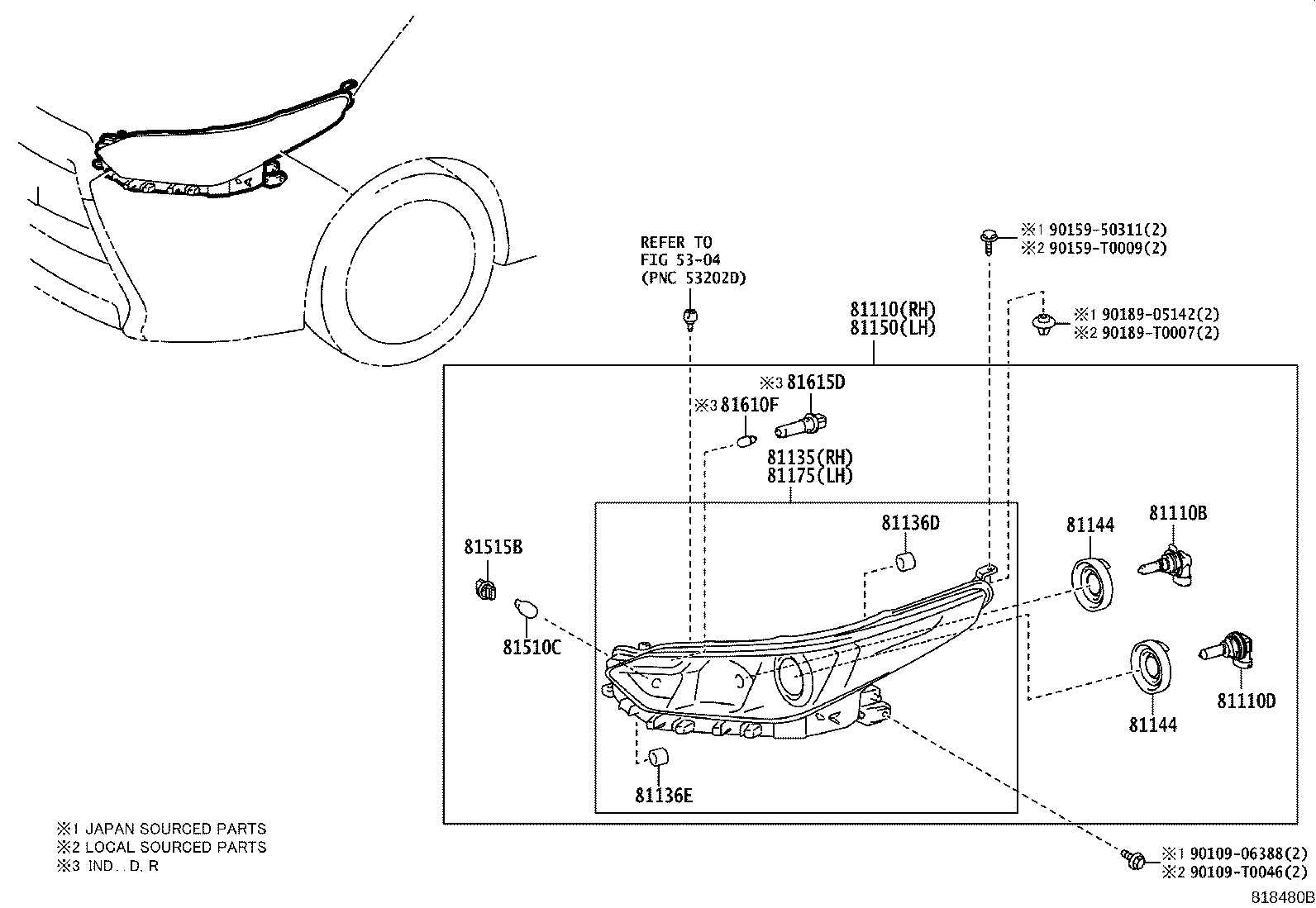

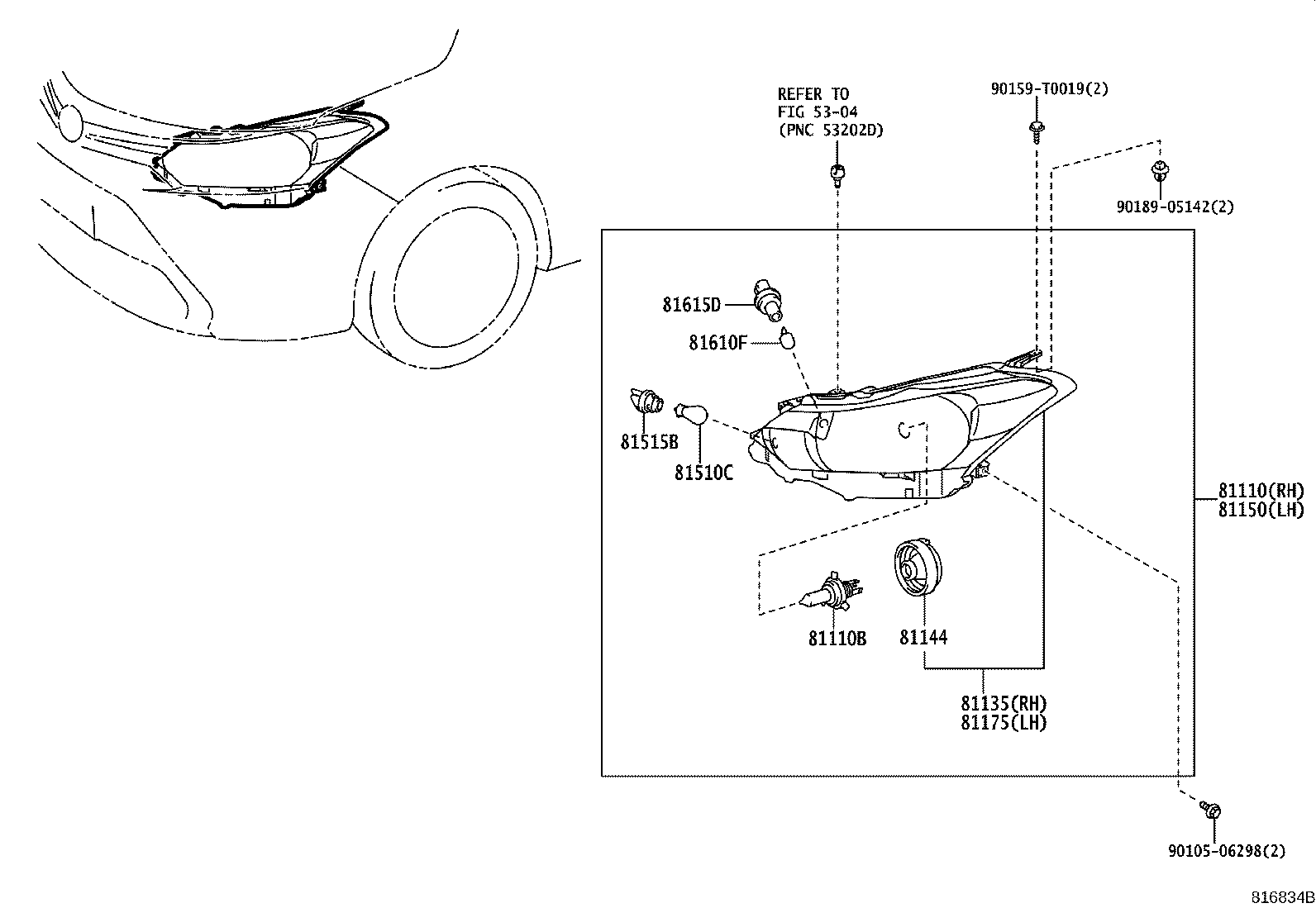

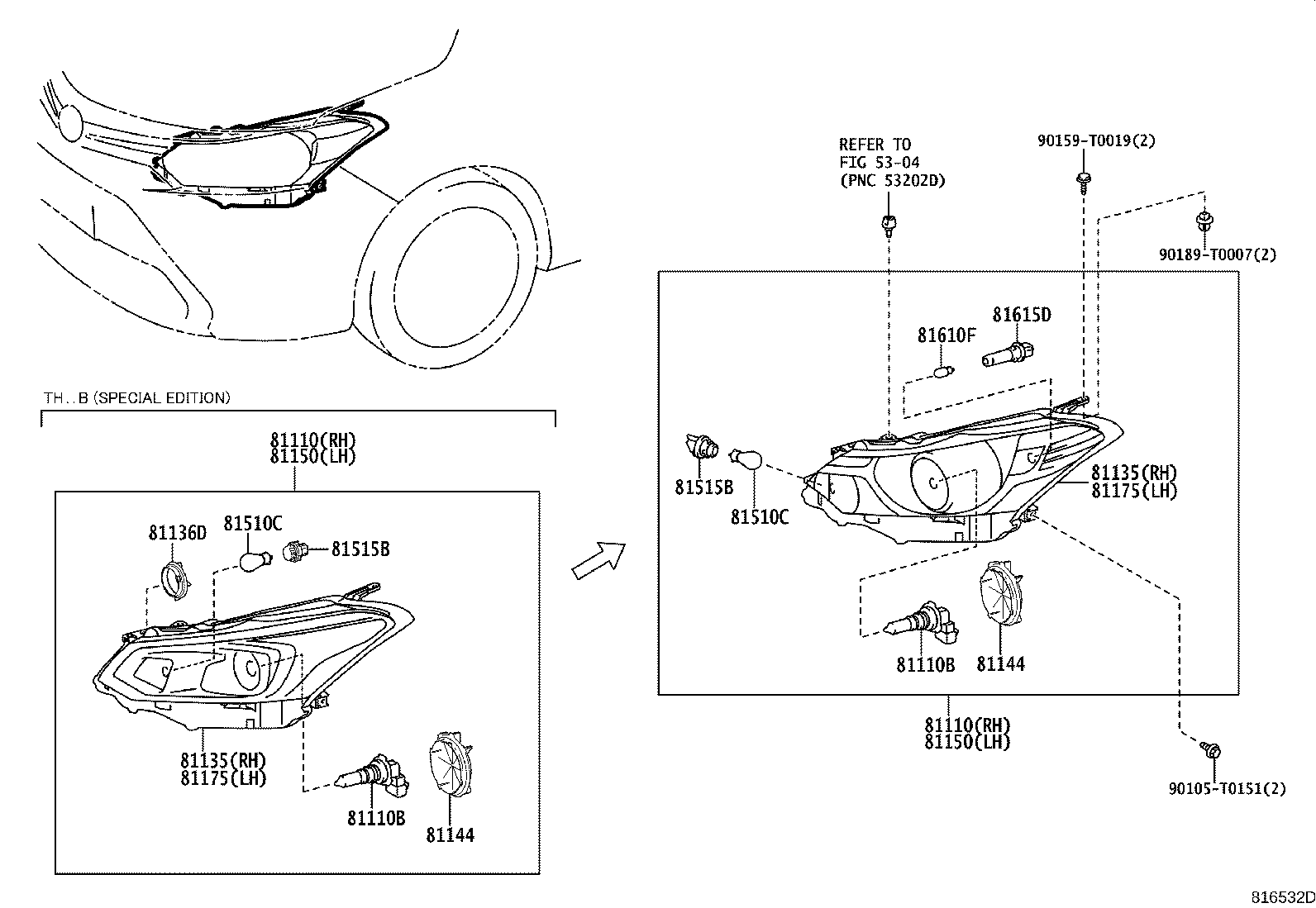

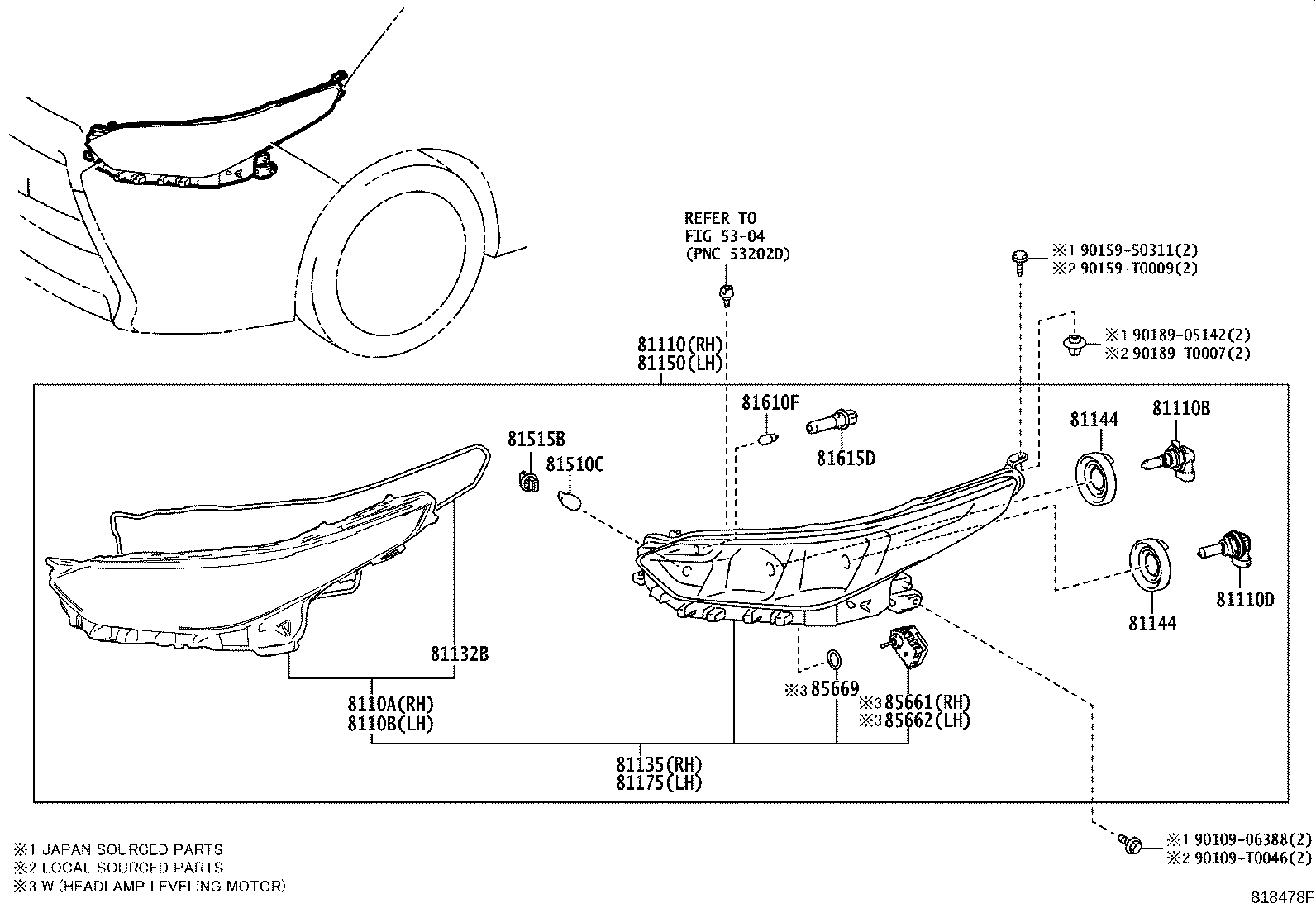

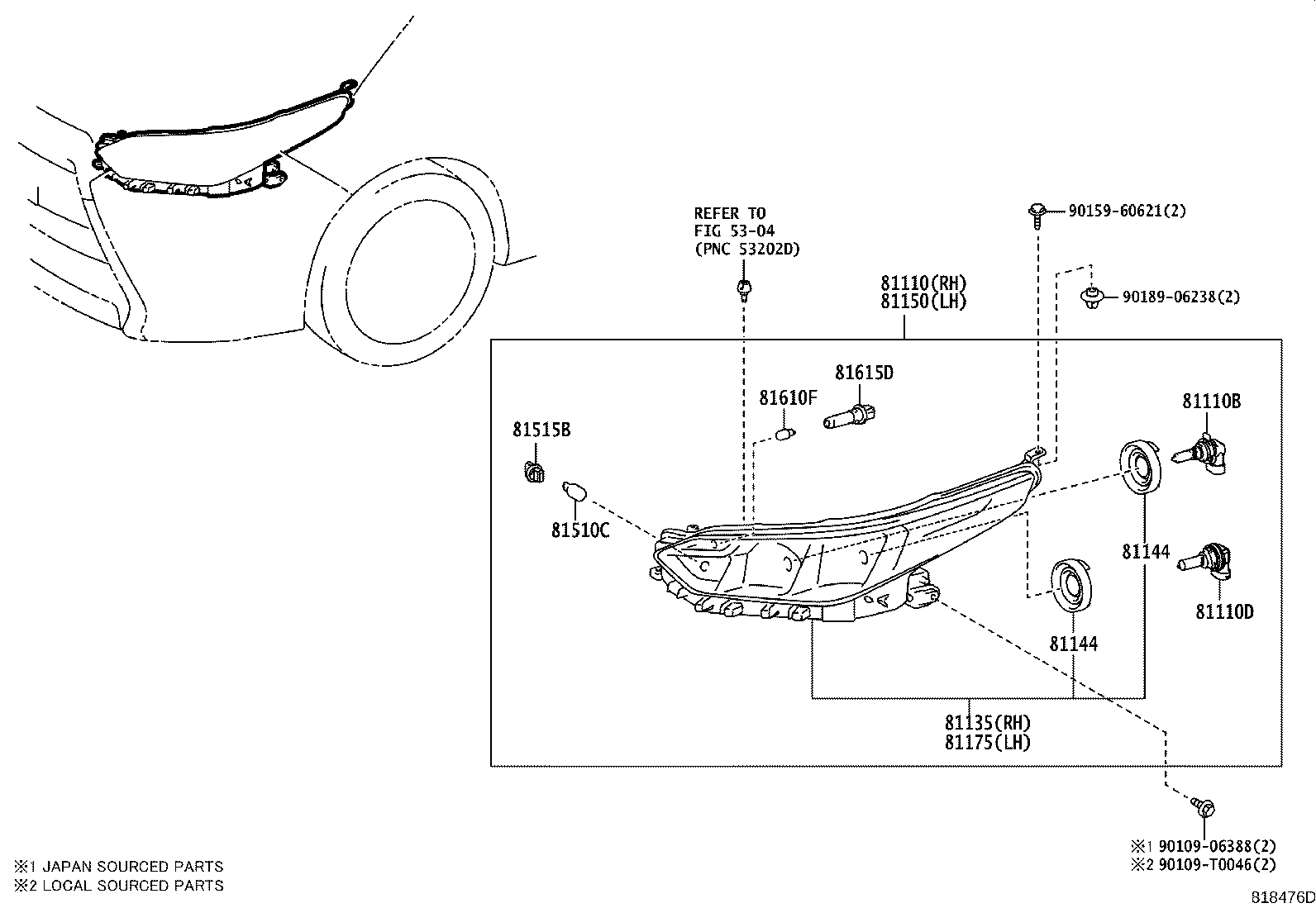

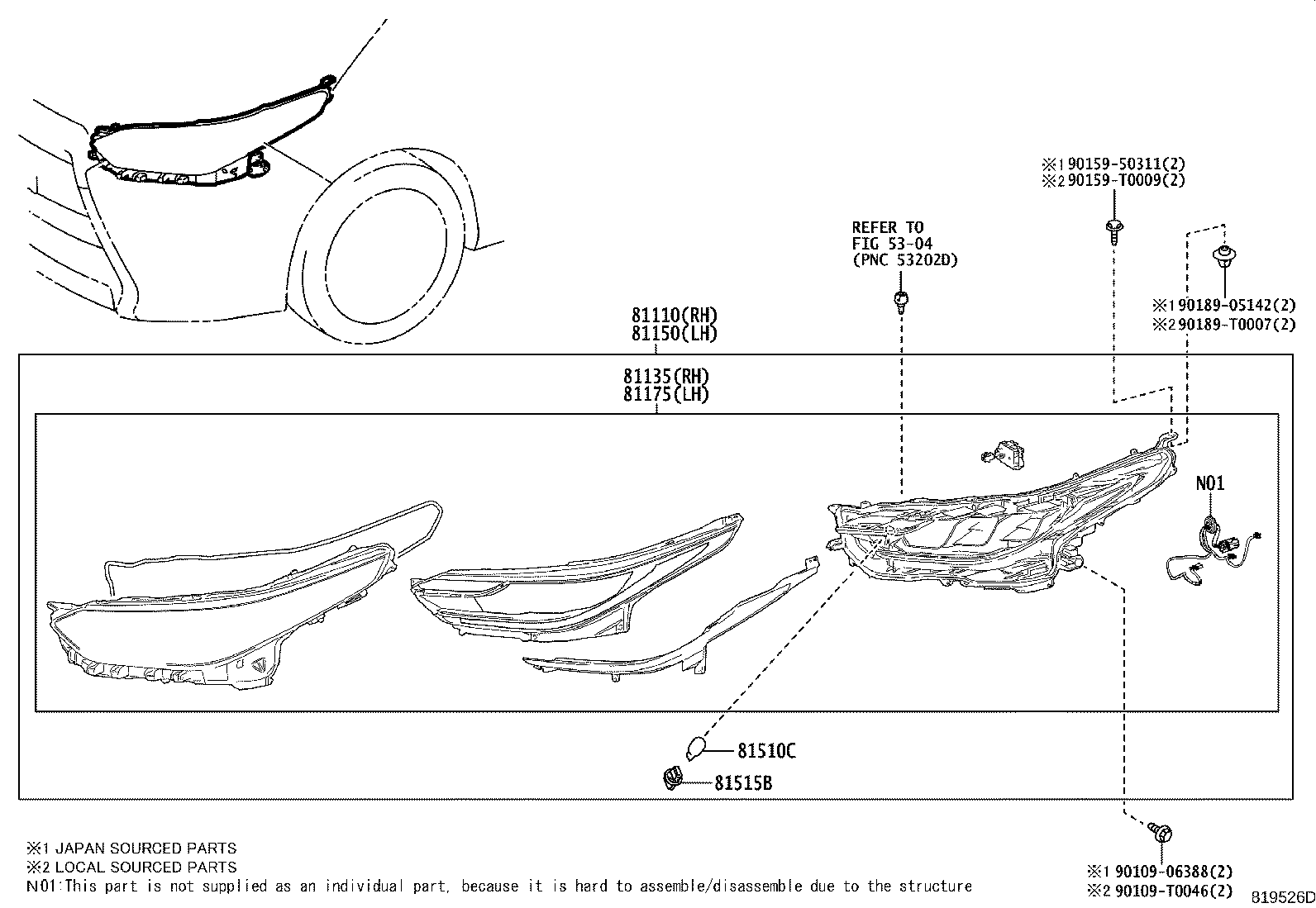

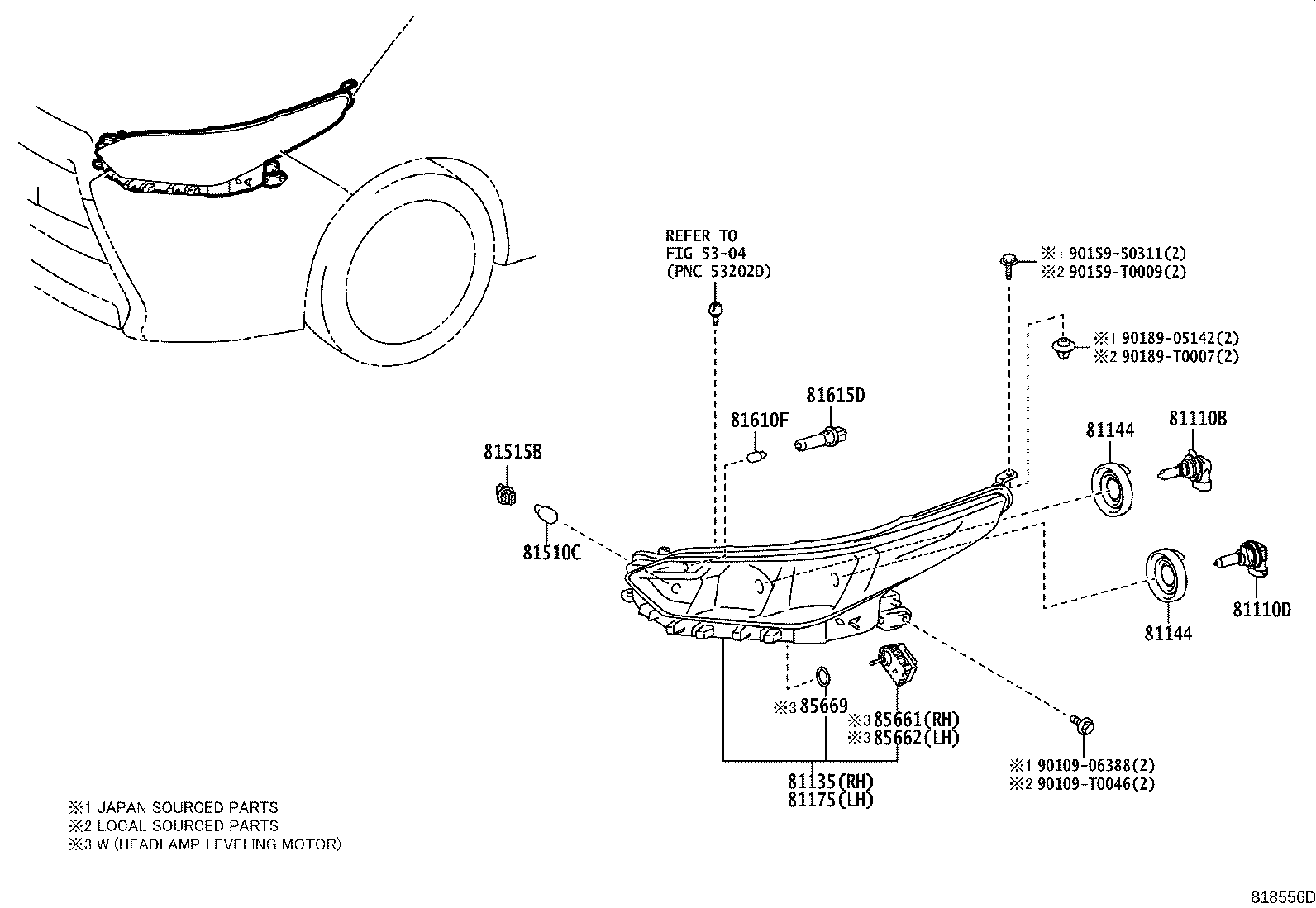

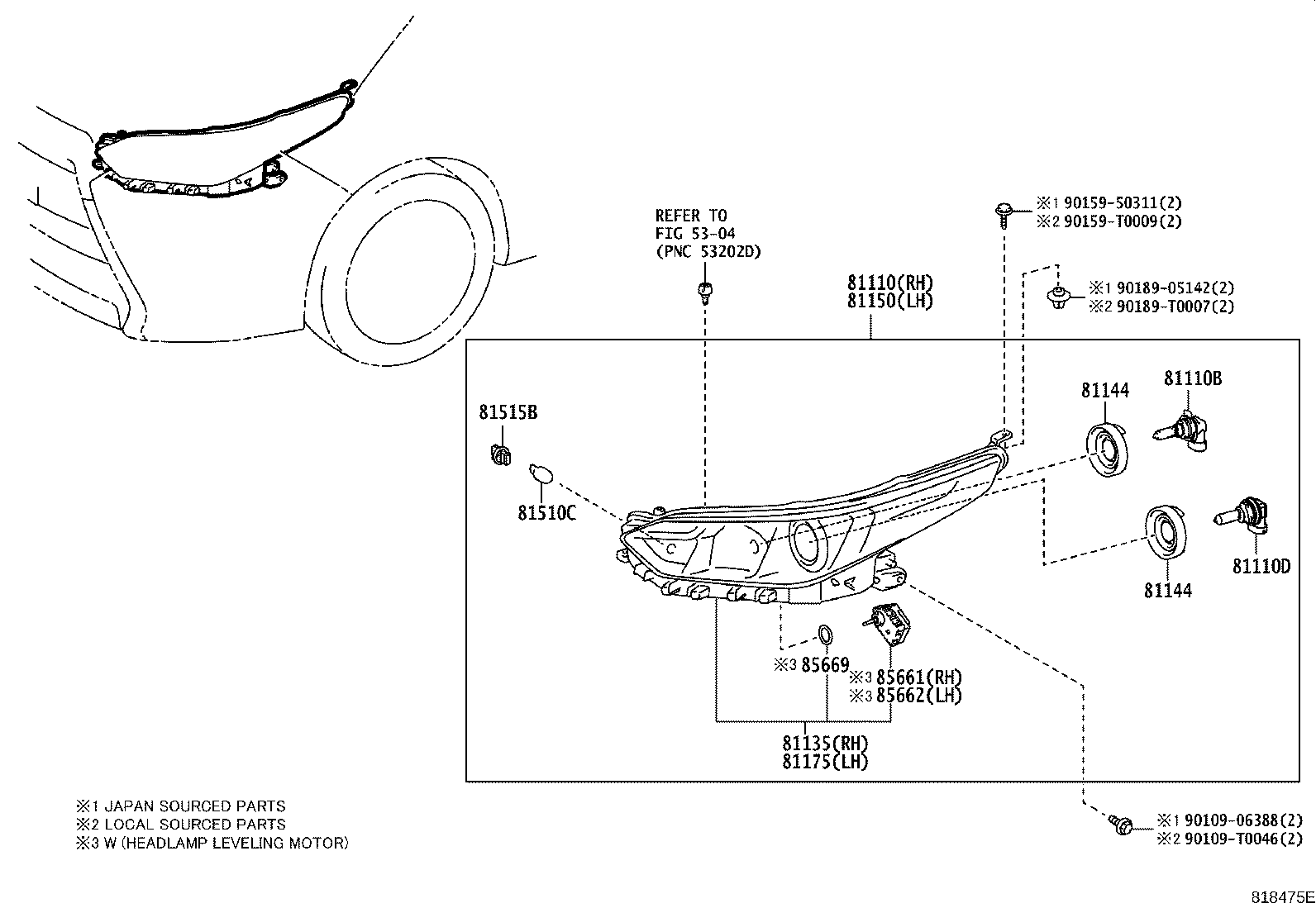

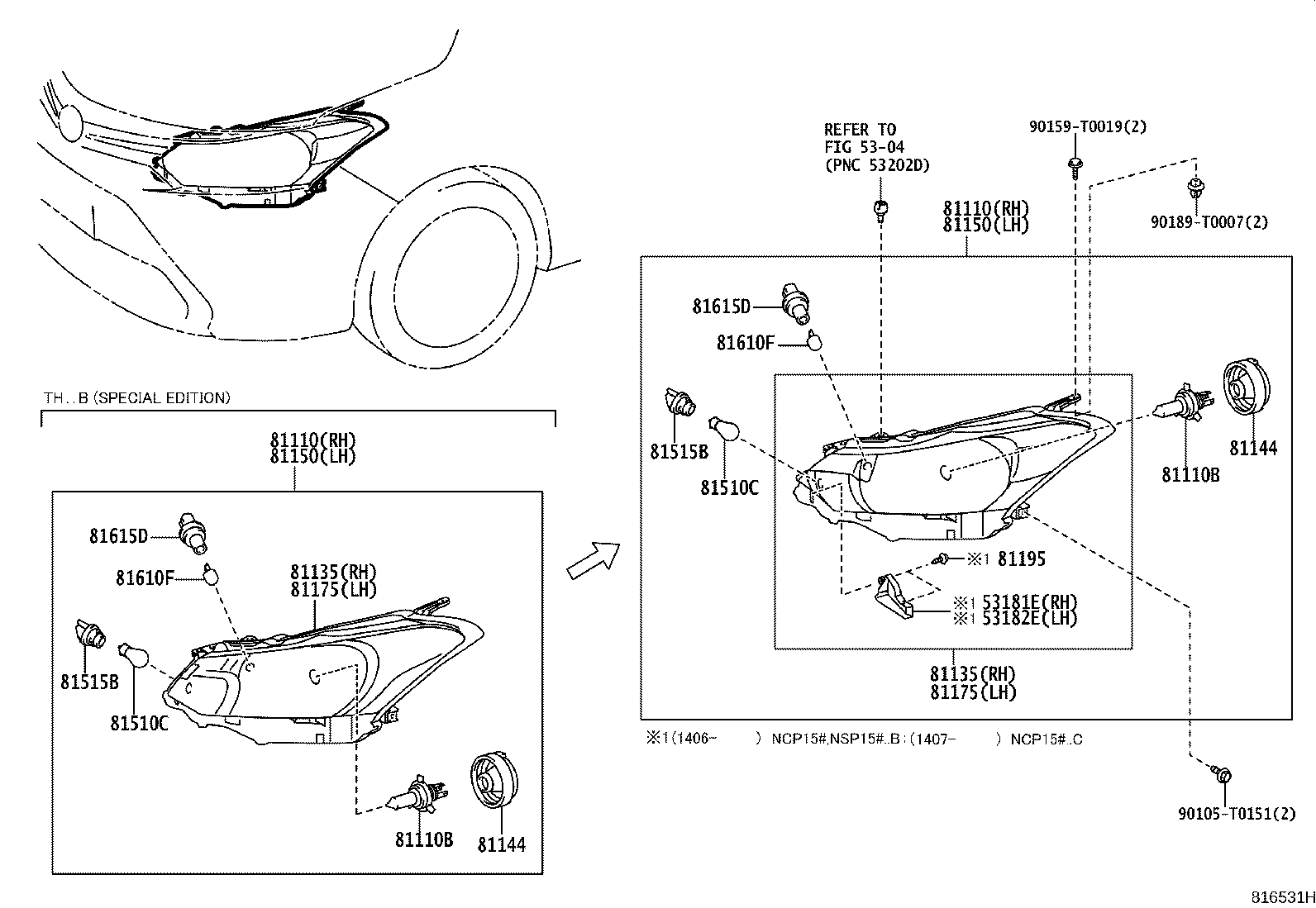

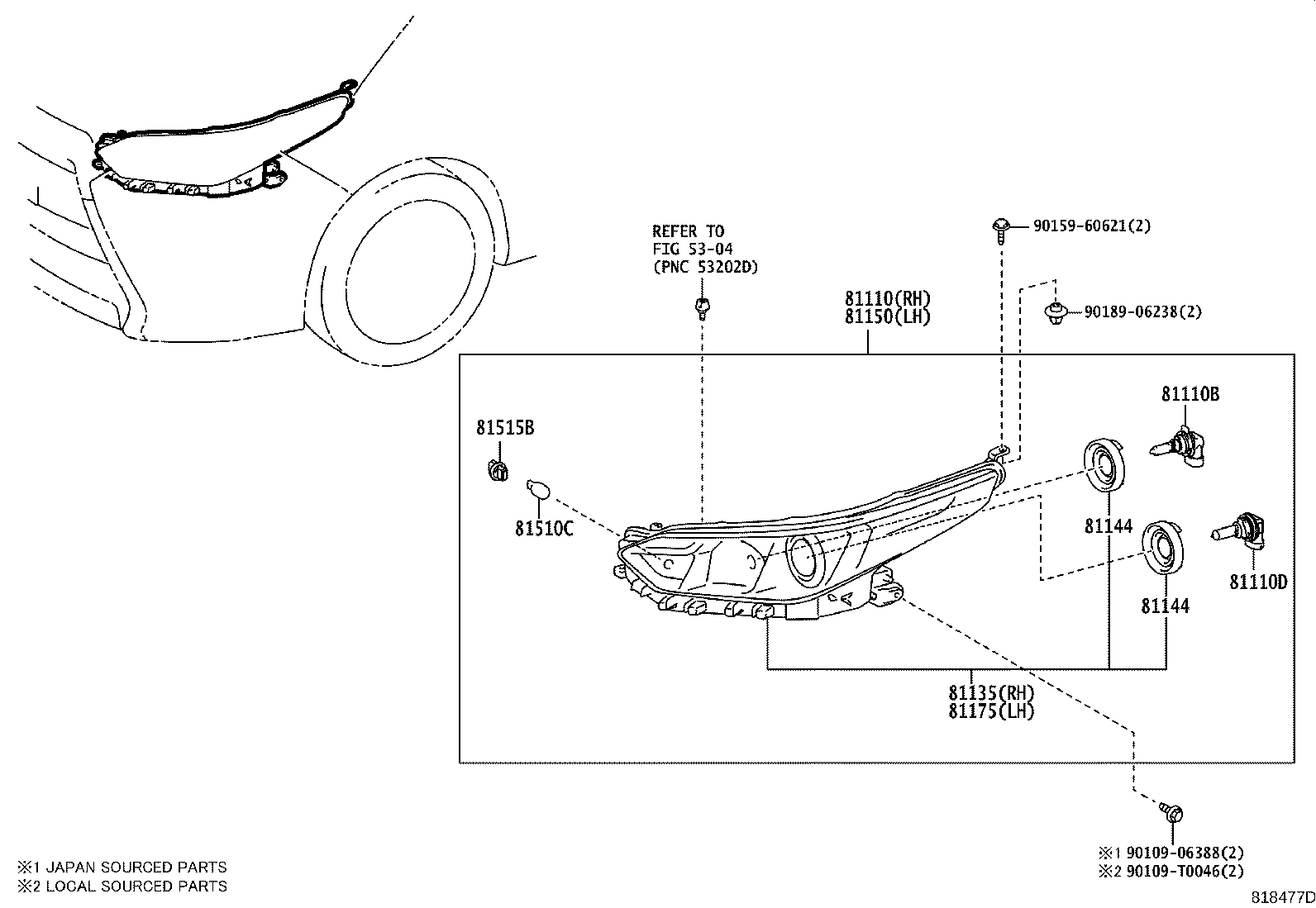

Figure 816531I 816531I 2013-04 → 2018-01 Figure 816531I 816531I 2013-04 → — Figure 816531I 816531I 2013-08 → 2017-09 Figure 816531I 816531I 2016-08 → 2018-12 Figure 816834B 816834B 2014-04 → 2018-02 Figure 816532D 816532D 2013-04 → 2018-01 Figure 816532D 816532D 2013-04 → — Figure 816532D 816532D 2013-08 → 2017-09 Figure 818478F 818478F 2017-08 → — Figure 818478F 818478F 2018-01 → — Figure 818478F 818478F 2018-07 → — Figure 818478F 818478F 2019-01 → — Figure 818478F 818478F 2019-11 → — Figure 818478F 818478F 2019-12 → — Figure 818475E 818475E 2017-08 → — Figure 818475E 818475E 2018-01 → — Figure 818475E 818475E 2018-07 → — Figure 818475E 818475E 2019-01 → — Figure 818475E 818475E 2019-11 → — Figure 818476D 818476D 2018-03 → — Figure 818477D 818477D 2018-03 → — Figure 818480B 818480B 2018-04 → — Figure 818556D 818556D 2018-07 → — Figure 819526D 819526D 2020-05 → —

Part groups

PNCDescription
53181E Cover, Headlamp, RH
53182E Cover, Headlamp, LH
8110A Lens Sub-assy, Headlamp, RH
8110B Lens Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81132B Gasket, Headlamp Lens
81135 Unit Assy, Headlamp, RH
81136D Cover, Headlamp
81136E Cover, Headlamp, NO.2
81144 Cover, Headlamp, NO.1
81150 Headlamp Assy, LH
81175 Unit Assy, Headlamp, LH
81195 Screw, Headlamp
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
85669 Packing, Headlamp Leveling Motor Base
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
