Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

4 part groups · 2 illustrations

Illustrations

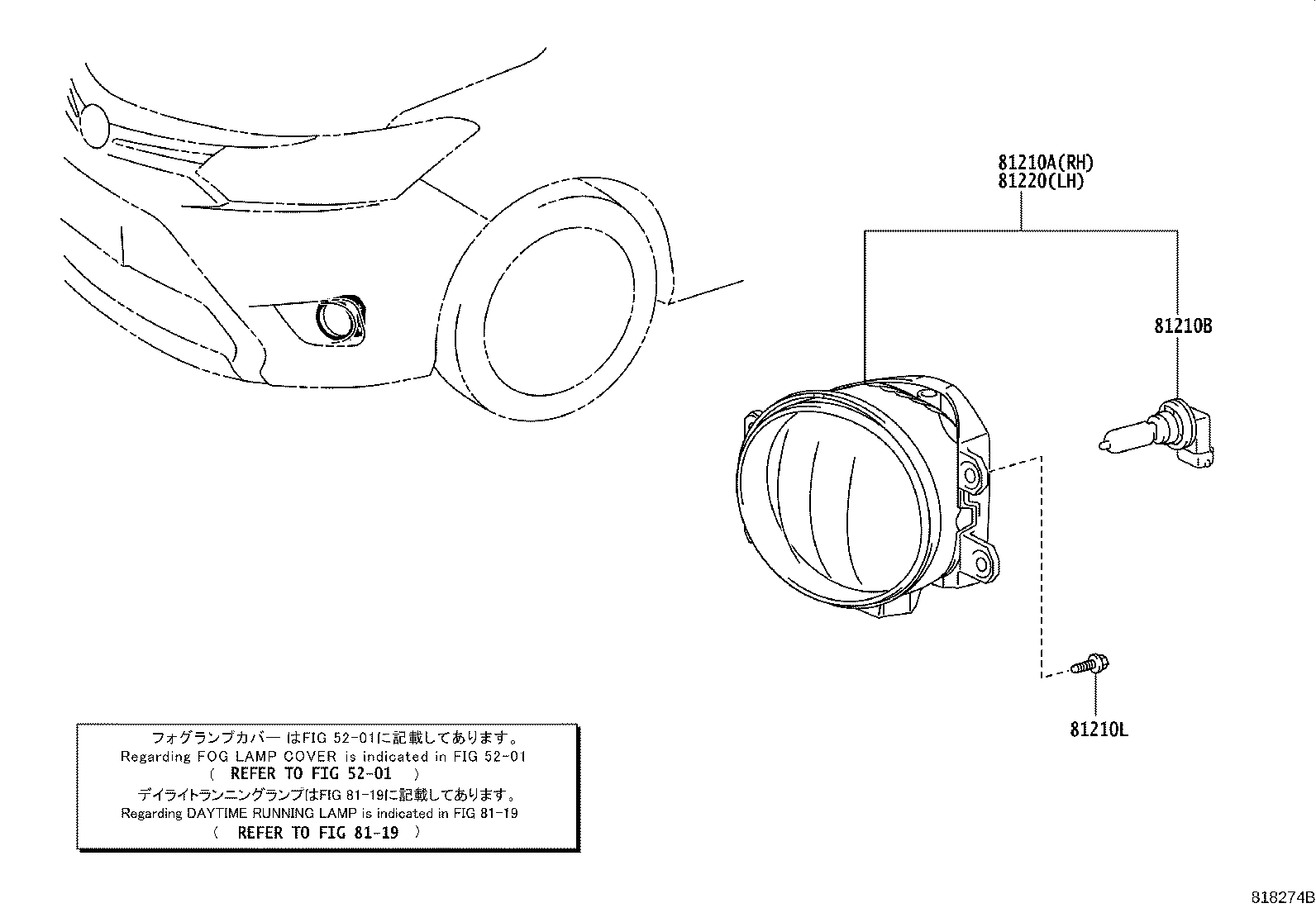

Figure 818274B

818274B 2013-04 → —

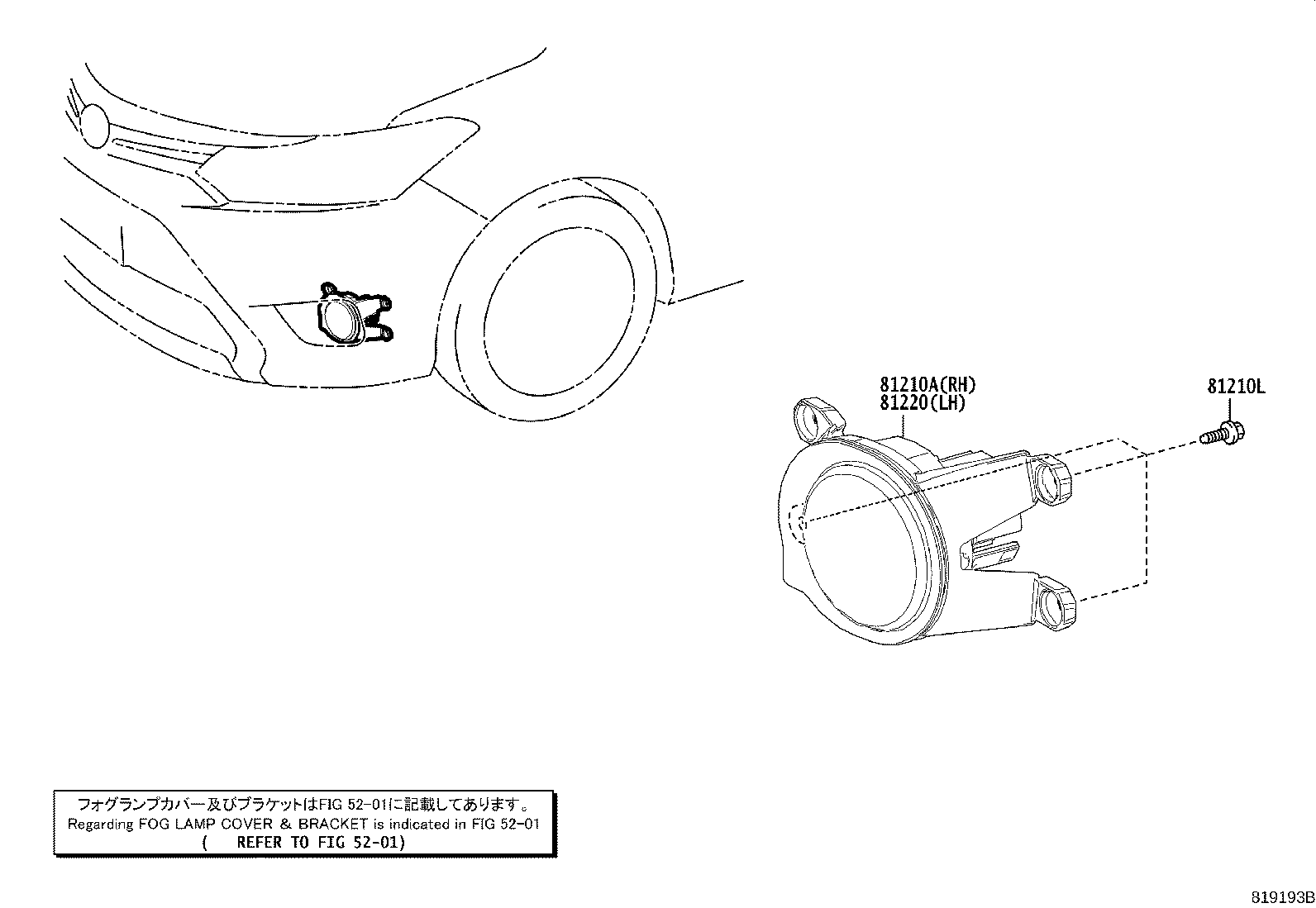

Figure 819193B

819193B 2019-11 → —

Part groups

PNC	Description
81210A	Lamp Assy, Fog, RH
81210B	Bulb, Fog Lamp
81210L	Screw(FOR FRONT FOG LAMP)
81220	Lamp Assy, Fog, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
