Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear License Plate Lamp

4 part groups · 1 illustrations

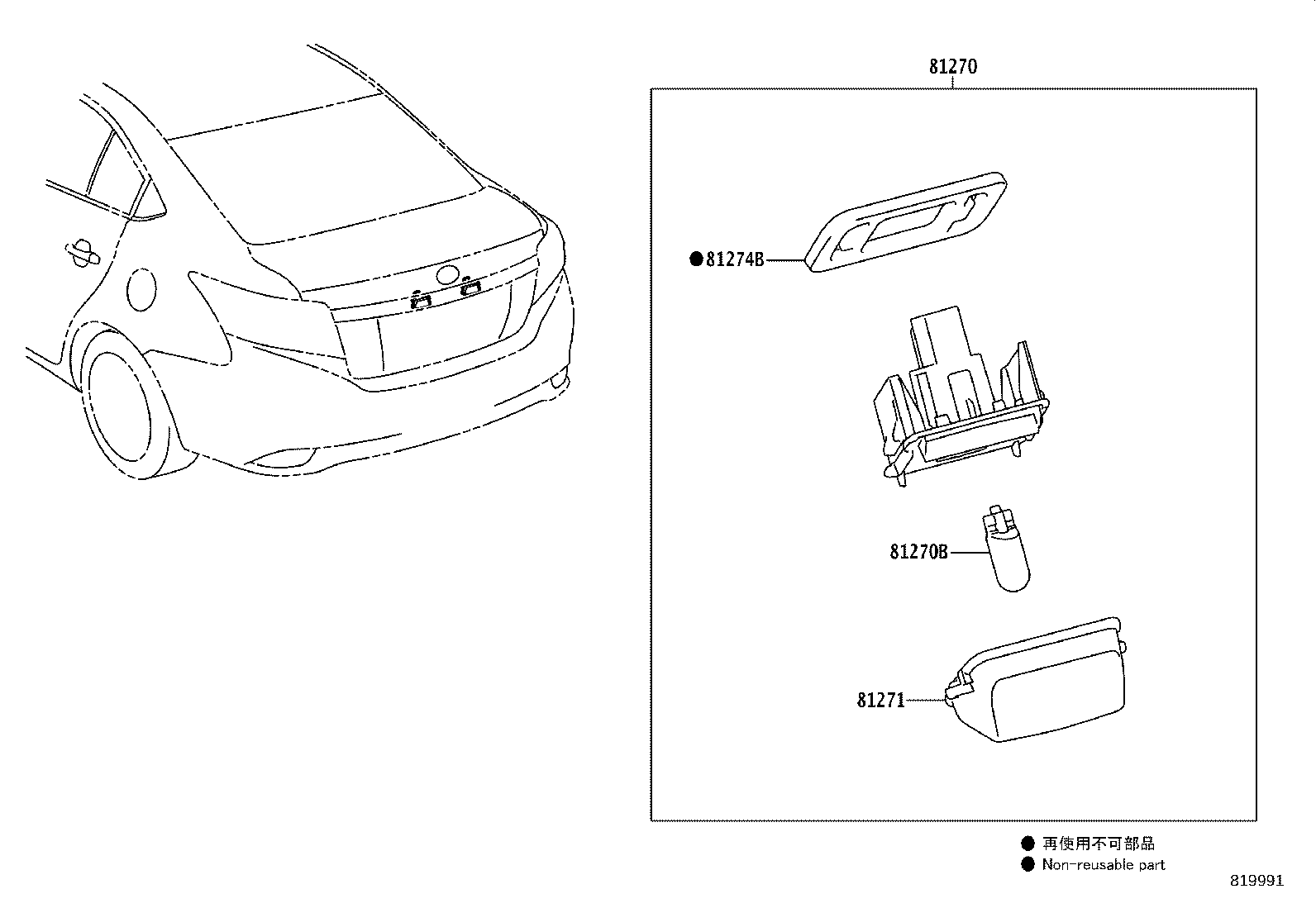

Illustrations

819991 2013-04 → —

Part groups

PNC	Description
81270	Lamp Assy, License Plate
81270B	Bulb (FOR LICENSE PLATE LAMP)
81271	Lens, License Plate Lamp
81274B	Packing, License Plate Lamp

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
