Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Fog Lamp

6 part groups · 1 illustrations

Illustrations

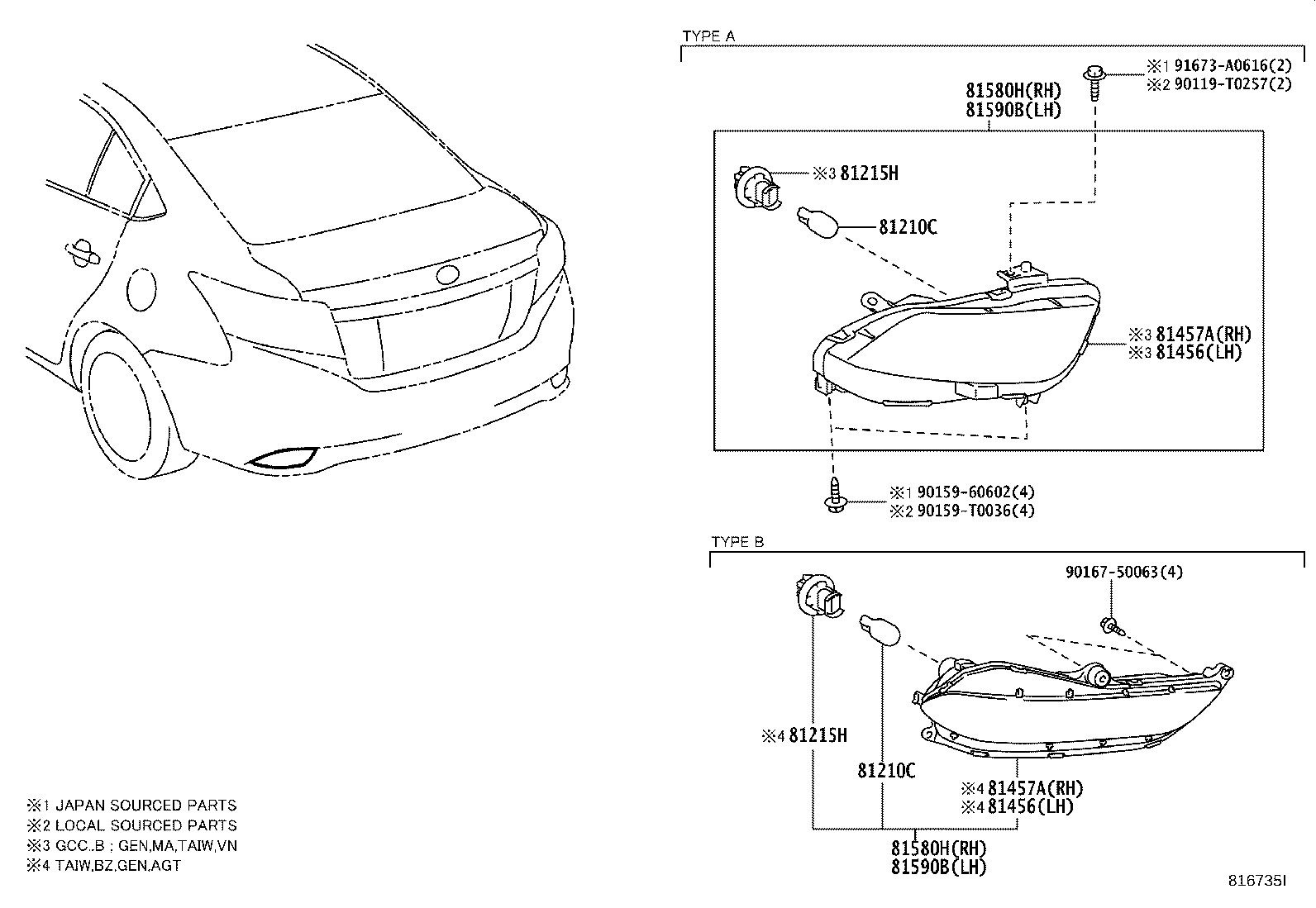

Figure 816735I

816735I 2013-10 → —

Part groups

PNC	Description
81210C	Bulb, Rear Fog Lamp
81215H	Socket, Rear Fog Lamp
81456	Lens & Body, Rear Fog Lamp, LH
81457A	Lens & Body, Rear Fog Lamp, RH
81580H	Lamp Assy, Rear Fog, RH
81590B	Lamp Assy, Rear Fog, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
