Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Center Stop Lamp

6 part groups · 4 illustrations

Illustrations

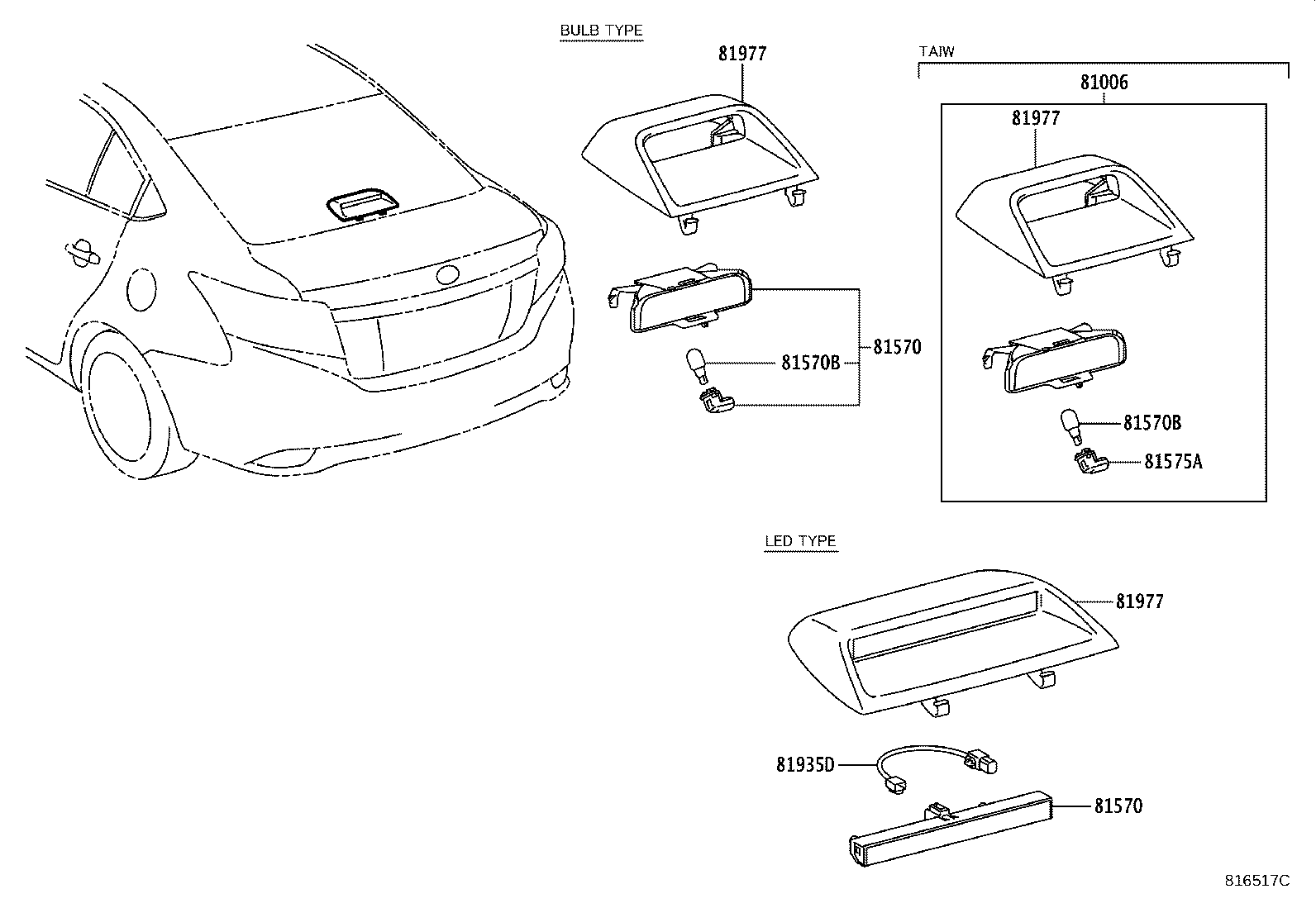

Figure 816517C

816517C 2013-04 → —

Figure 816517C

816517C 2016-08 → 2018-12

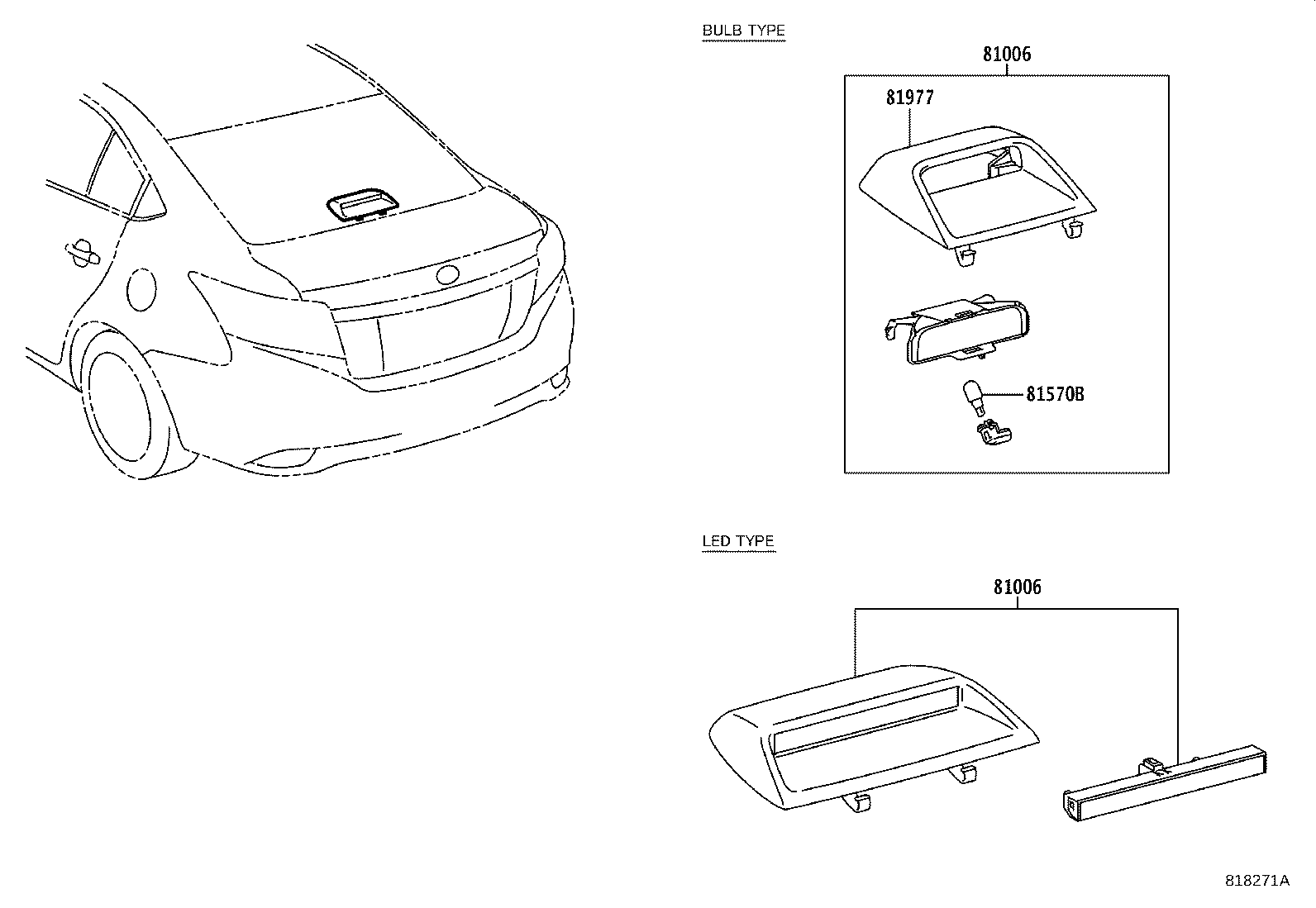

Figure 818271A

818271A 2017-08 → —

Figure 818271A

818271A 2019-01 → —

Part groups

PNC	Description
81006	Lamp Set, Stop Center
81570	Lamp Assy, Center Stop
81570B	Bulb (FOR CENTER STOP LAMP)
81575A	Socket, Center Stop Lamp
81935D	Cord Assy, Center Stop Lamp
81977	Cover, Center Stop Lamp

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
