Toyota Yaris/Vios/Limo
2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States
Supported model
Data version 2019-11

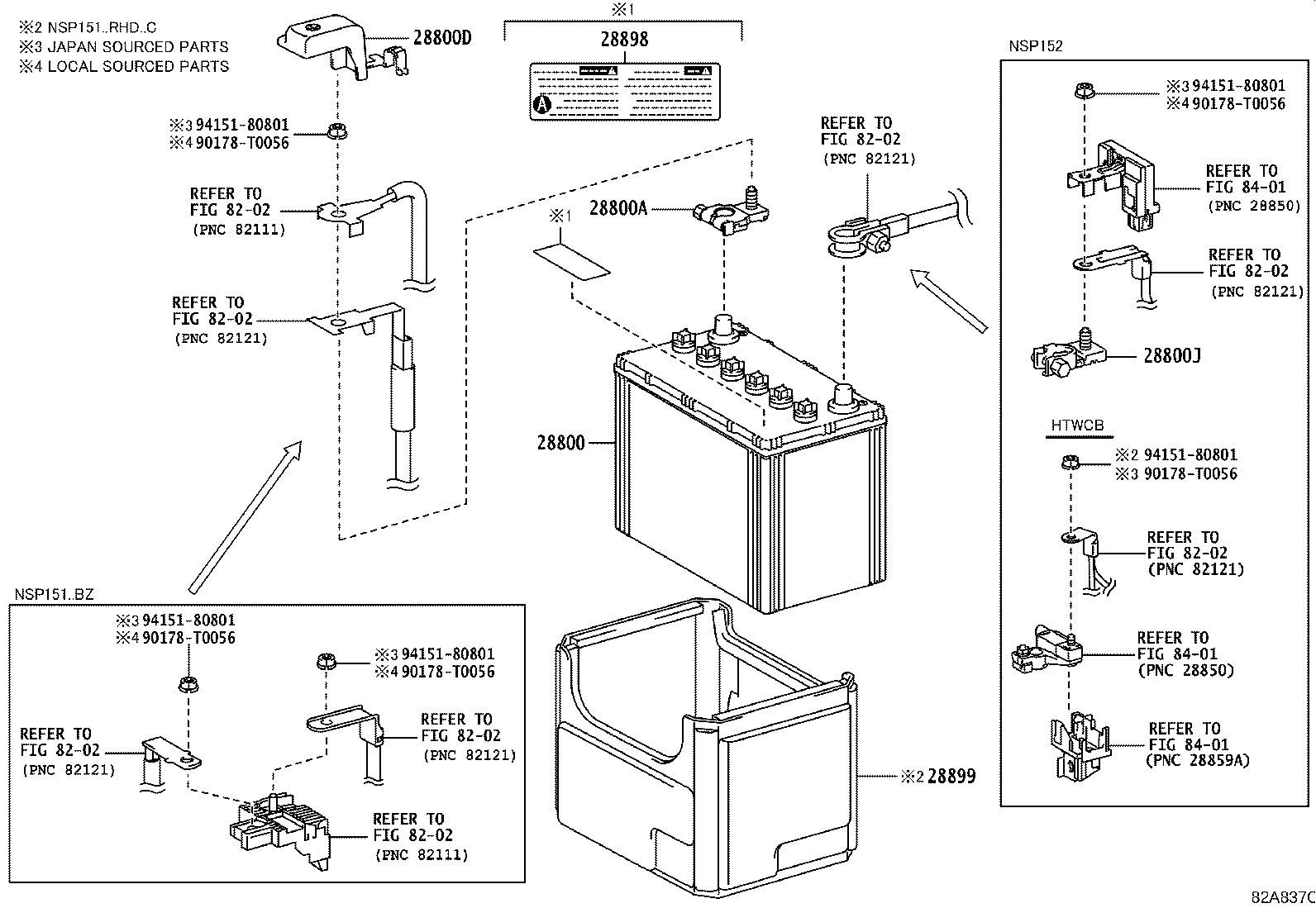

Battery & Battery Cable
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 28800 | Battery |
| 28800A | Terminal, Battery Positive |
| 28800D | Cover, Connector(FOR BATTERY TERMINAL) |
| 28800J | Terminal, Battery Negative |
| 28898 | Plate, Battery |
| 28899 | Insulator, Battery |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
