Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

2 part groups · 8 illustrations

Illustrations

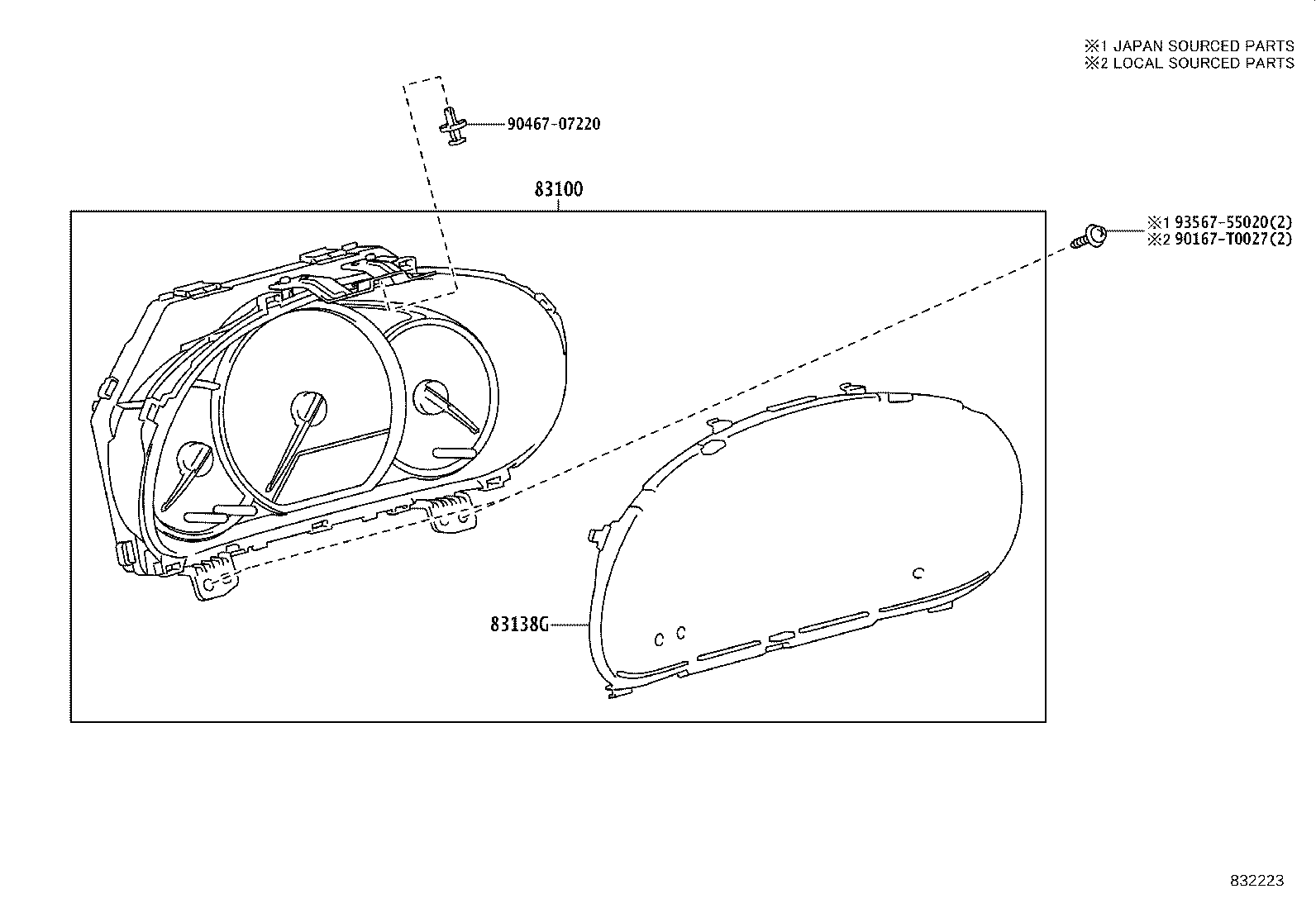

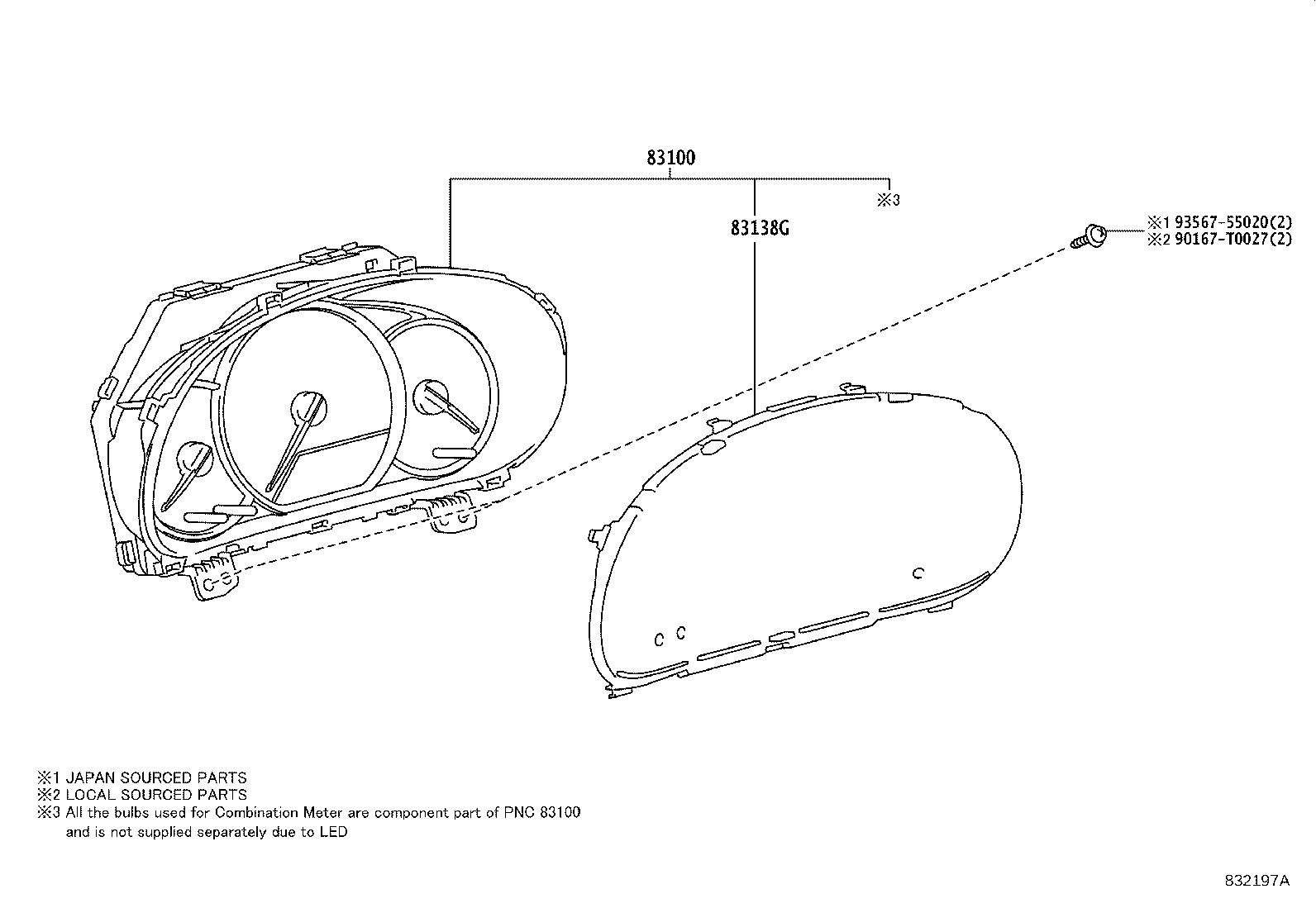

Figure 831797B 831797B 2013-04 → — Figure 831797B 831797B 2016-08 → 2018-12 Figure 831797B 831797B 2016-10 → 2018-01 Figure 832197A 832197A 2017-08 → — Figure 832197A 832197A 2018-01 → — Figure 832197A 832197A 2018-01 → — Figure 832197A 832197A 2019-01 → — Figure 832223 832223 2018-04 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83138G Glass, Combination Meter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
