Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

4 part groups · 1 illustrations

Illustrations

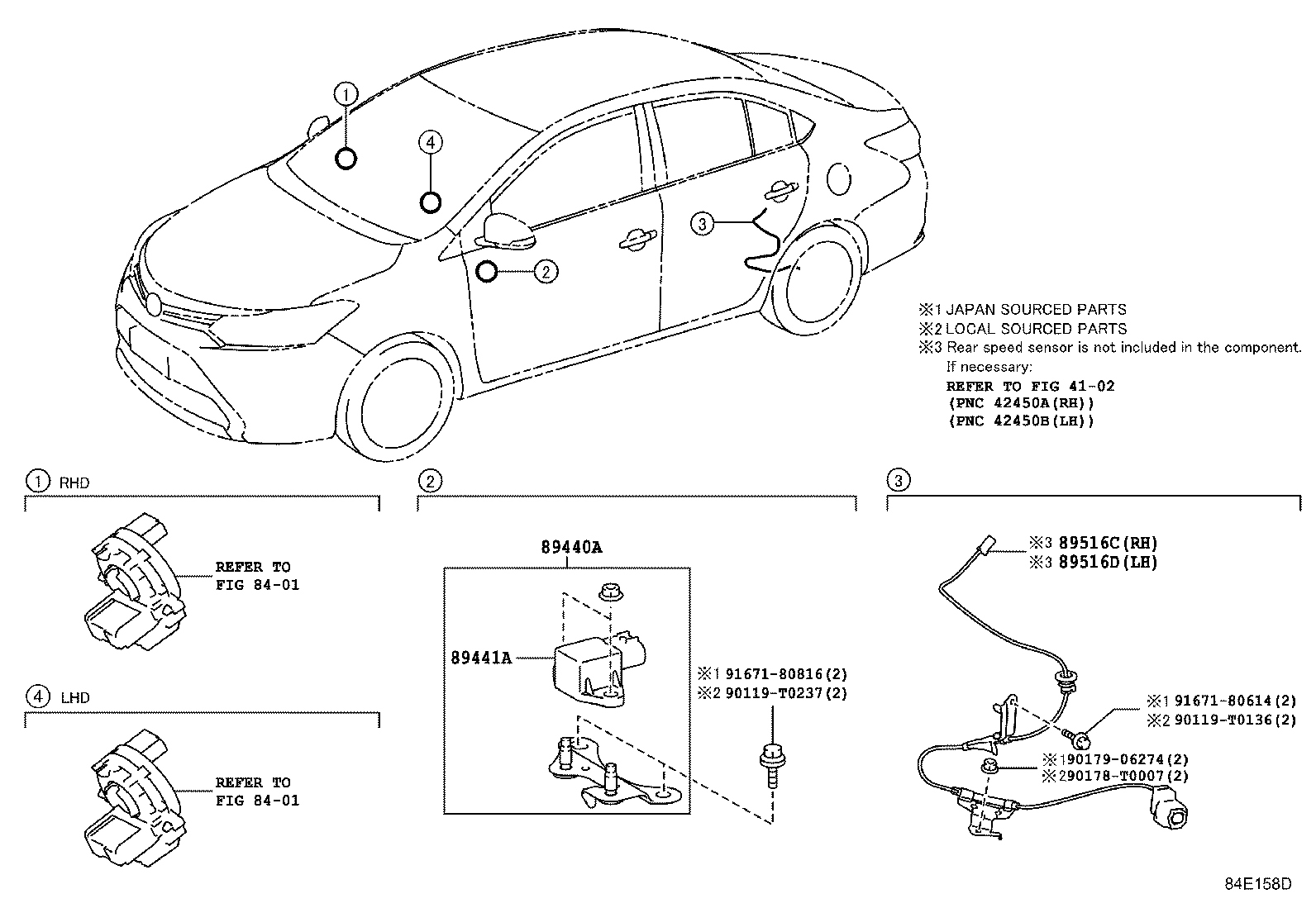

Figure 84E158D

84E158D 2013-04 → —

Part groups

PNC	Description
89440A	Sensor Assy, Deceleration
89441A	Sensor, Deceleration
89516C	Wire, Skid Control Sensor, RH
89516D	Wire, Skid Control Sensor, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
