Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

6 part groups · 3 illustrations

Illustrations

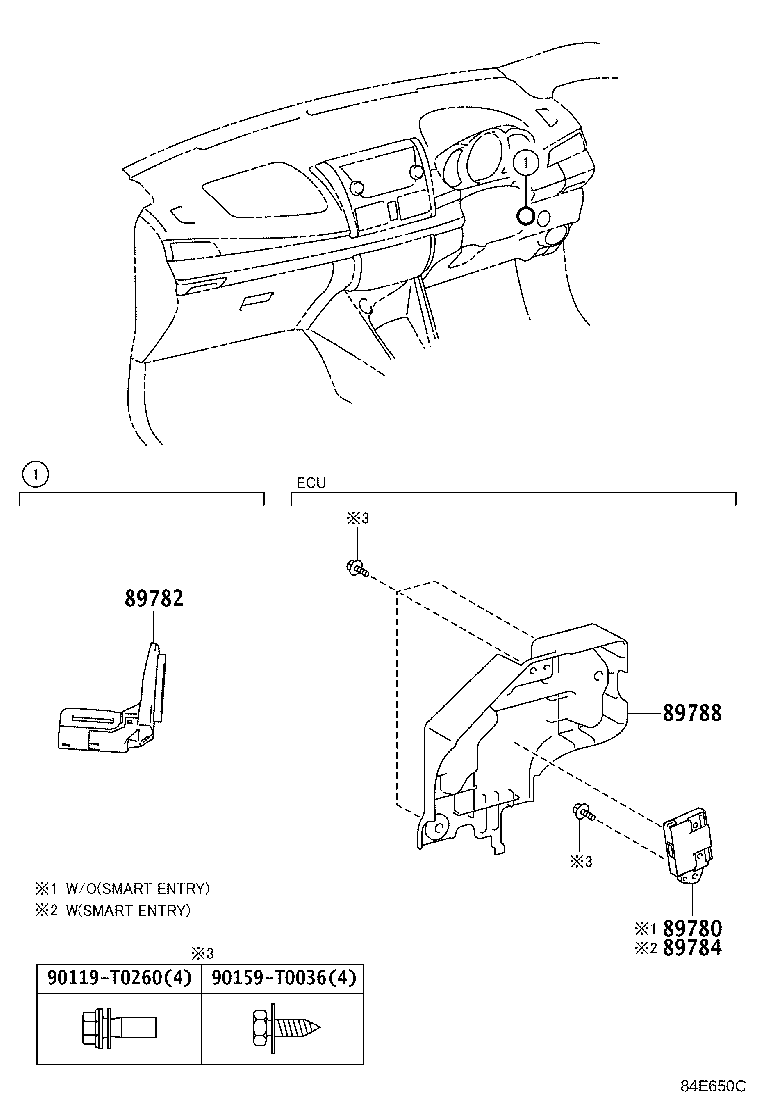

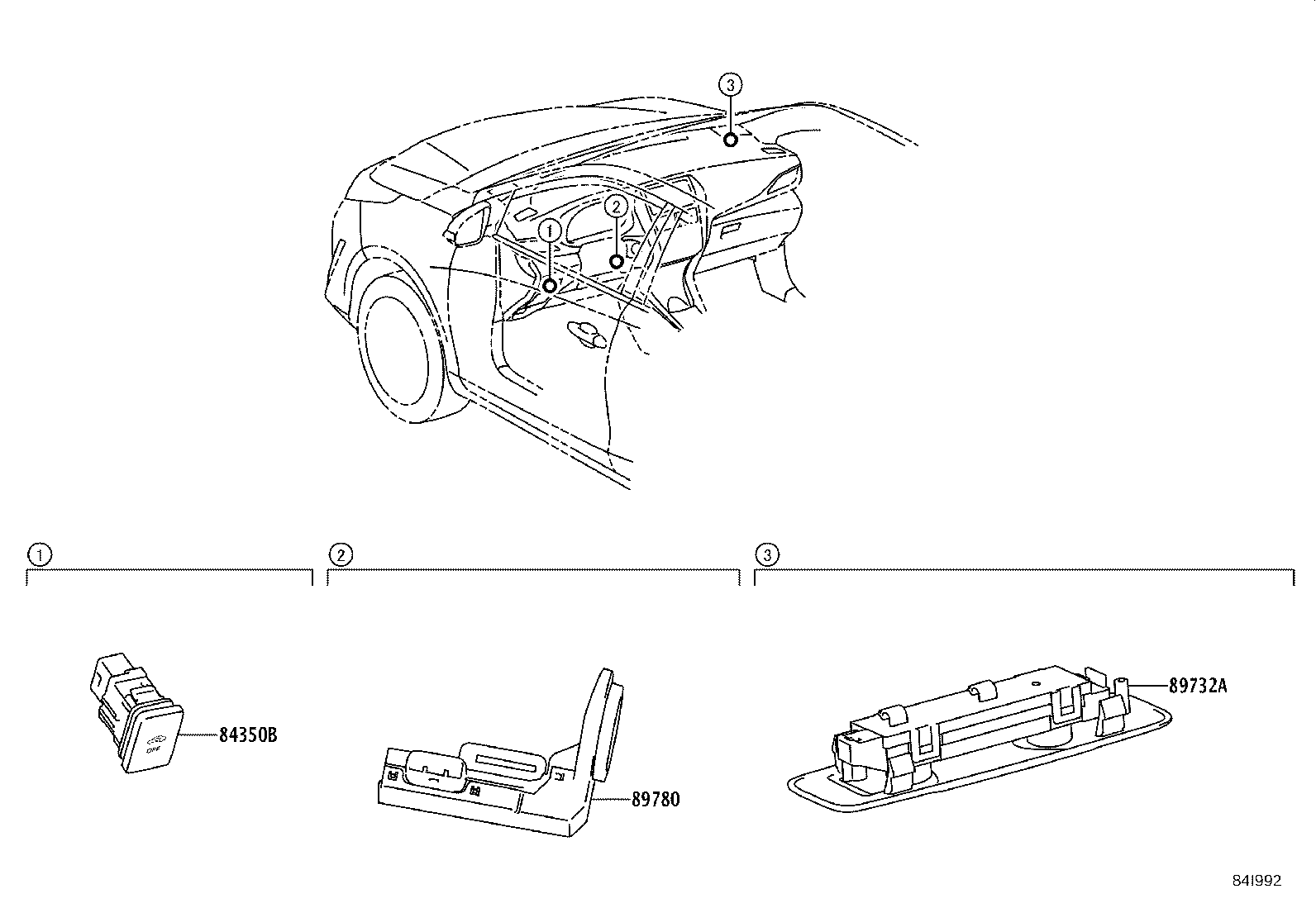

Figure 84E150 84E150 2013-04 → — Figure 84E650C 84E650C 2013-10 → — Figure 84I992 84I992 2018-07 → —

Part groups

PNCDescription
84350B Switch Assy, Theft Warning Sensor
89732A Sensor, Theft Warning Ultrasonic
89780 Computer Assy, Transponder Key
89782 Coil, Transponder Key
89784 Computer, Immobilizer Code
89788 Bracket, Transponder Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
