Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

8 part groups · 7 illustrations

Illustrations

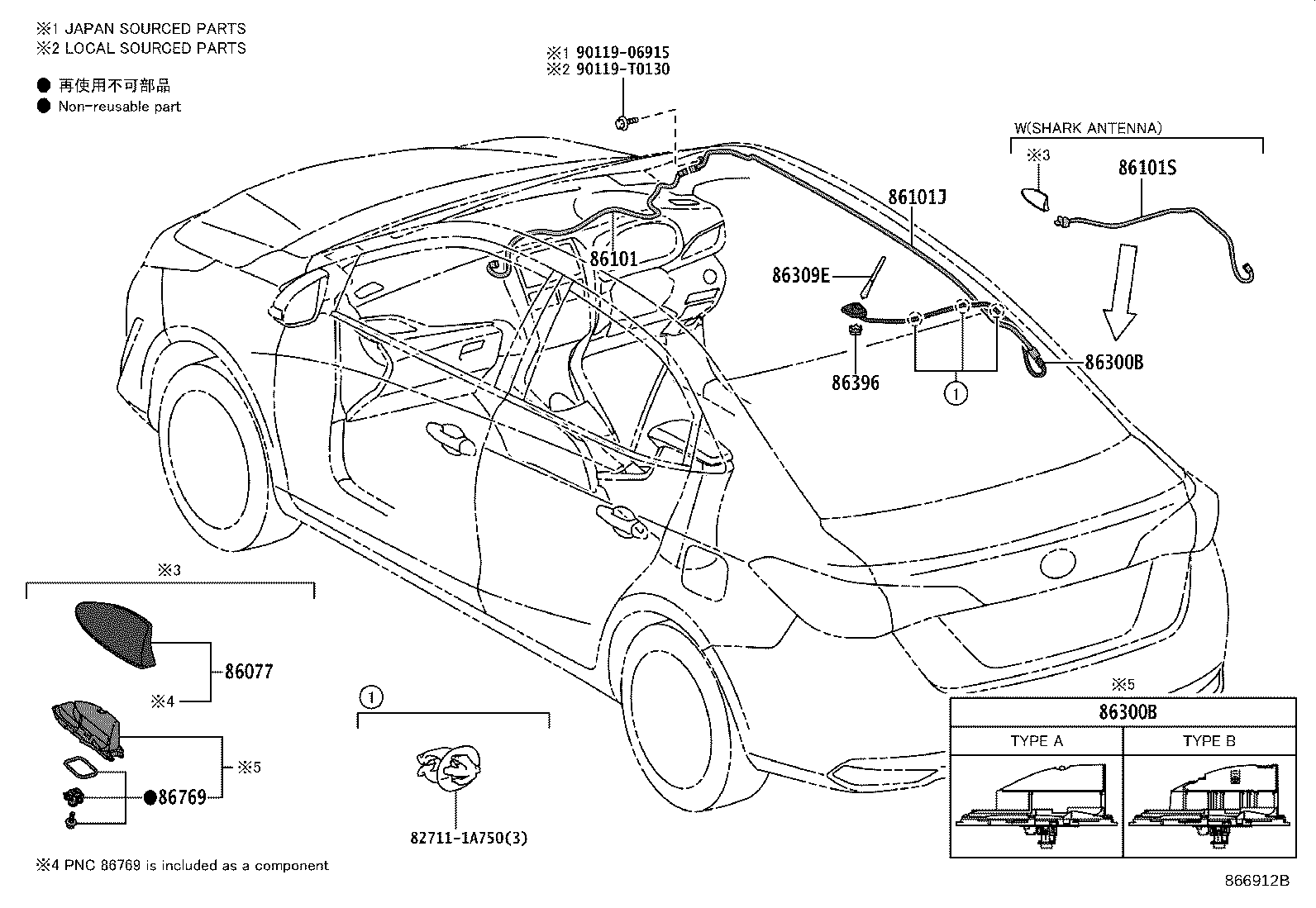

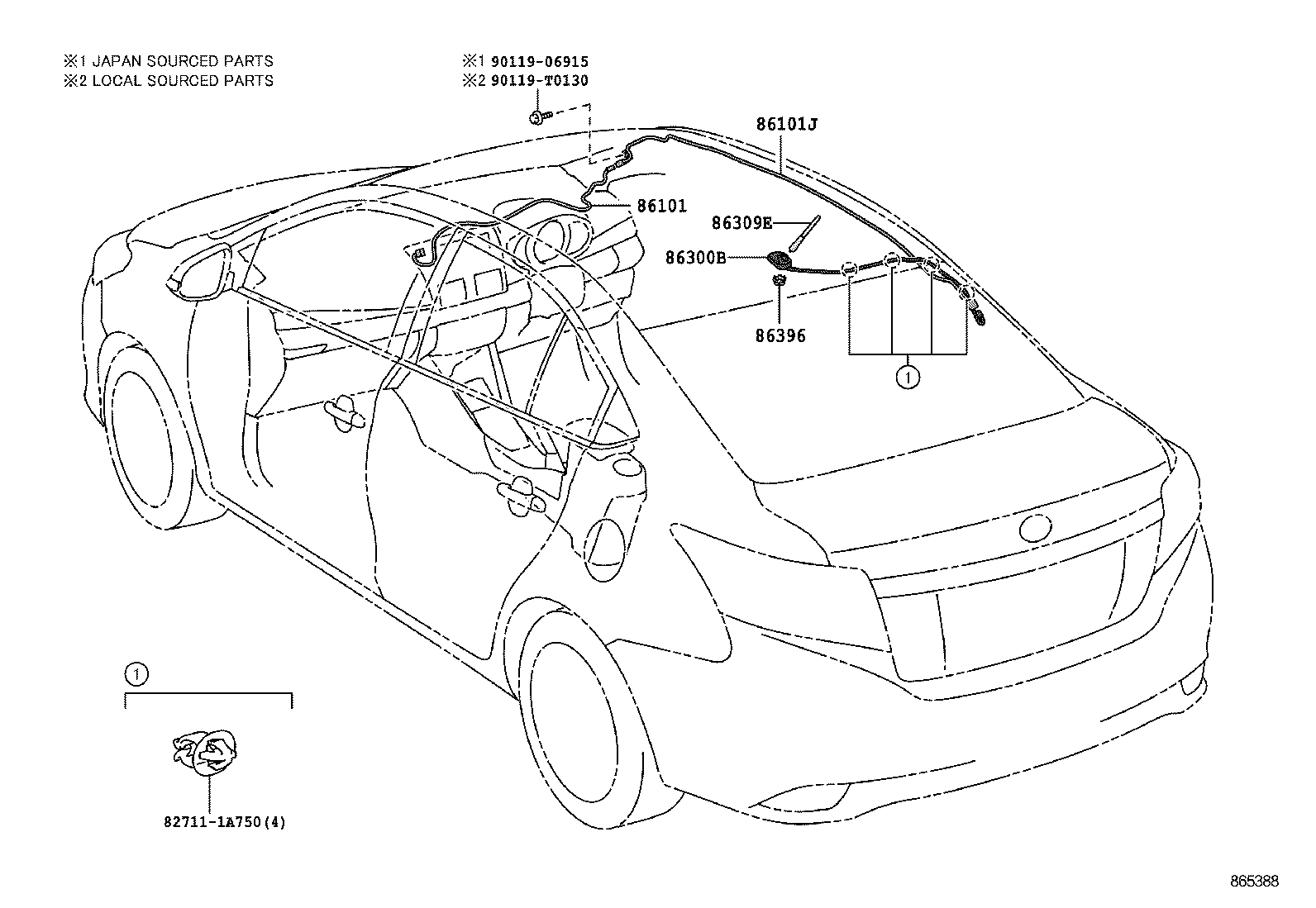

Figure 865388 865388 2013-04 → 2016-09 Figure 865388 865388 2016-01 → 2018-01 Figure 865388 865388 2016-04 → — Figure 865388 865388 2016-08 → 2018-12 Figure 866912B 866912B 2017-08 → — Figure 866912B 866912B 2018-01 → — Figure 866912B 866912B 2019-01 → —

Part groups

PNCDescription
86077 Cover Kit, Antenna
86101 Cord Sub-assy, Antenna
86101J Cord Sub-assy, Antenna, NO.2
86101S Cord Sub-assy, Antenna
86300B Antenna Assy, Amplifier, NO.1
86309E Pole Sub-assy, Roof Antenna
86396 Nut, Antenna
86769 Housing, Roof Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
