Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Horn

4 part groups · 1 illustrations

Illustrations

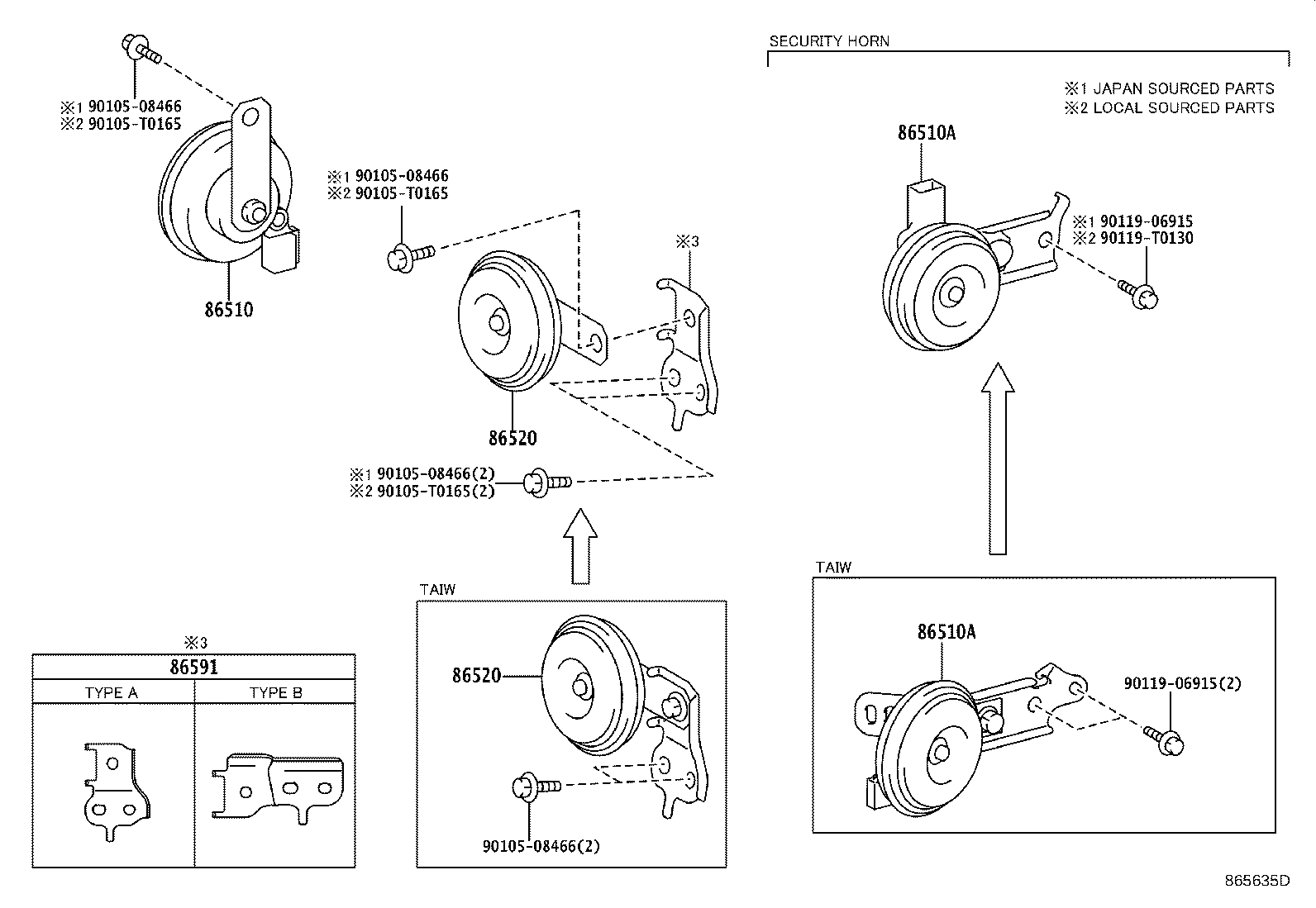

Figure 865635D

865635D 2013-04 → —

Part groups

PNC	Description
86510	Horn Assy, High Pitched
86510A	Horn Assy, Security
86520	Horn Assy, Low Pitched
86591	Bracket, Horn

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
