Toyota Yaris/Vios/Limo

2013-04 → present · chassis NCP15#,NSP15# · catalogue 149330 · United States

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

4 part groups · 8 illustrations

Illustrations

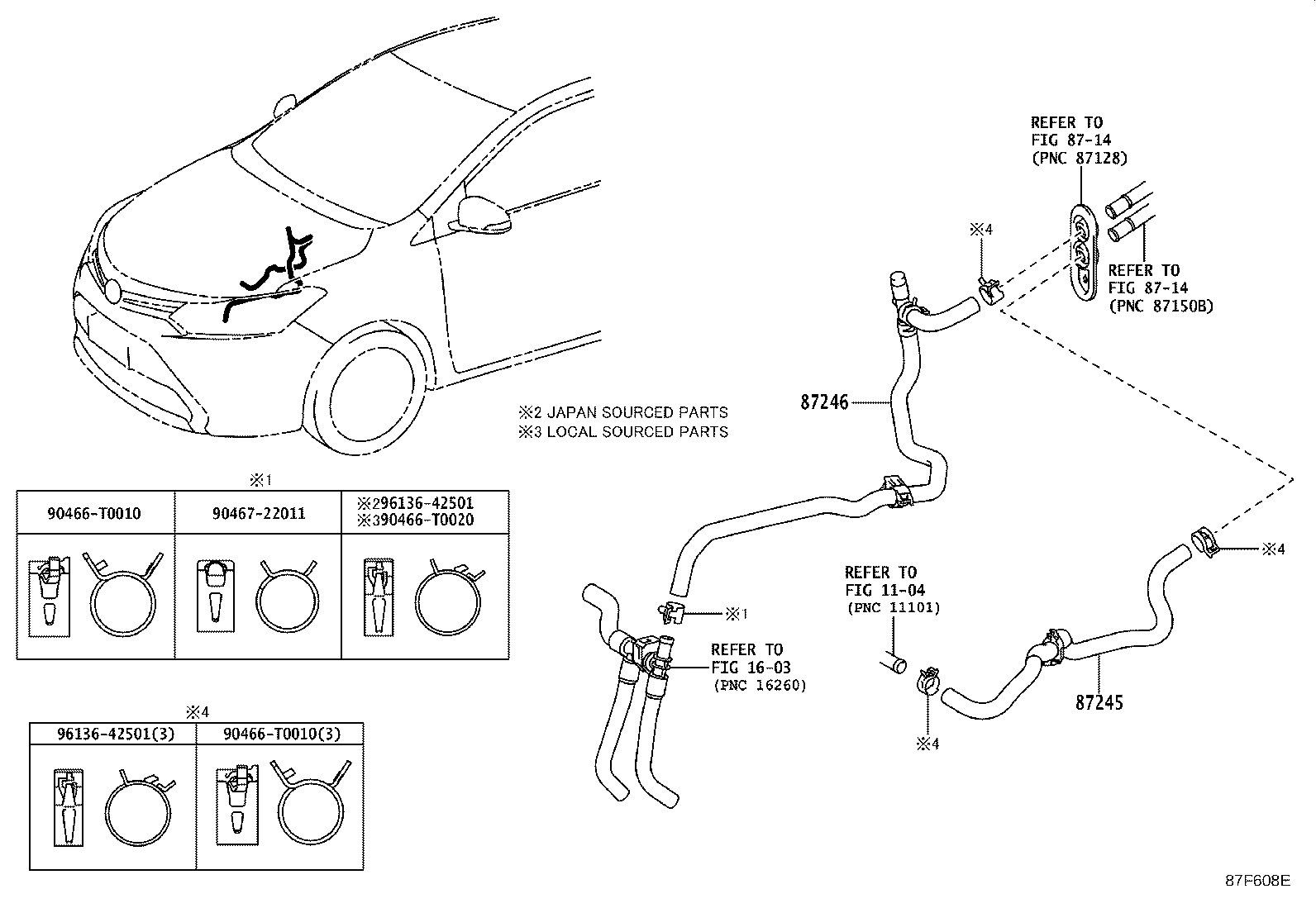

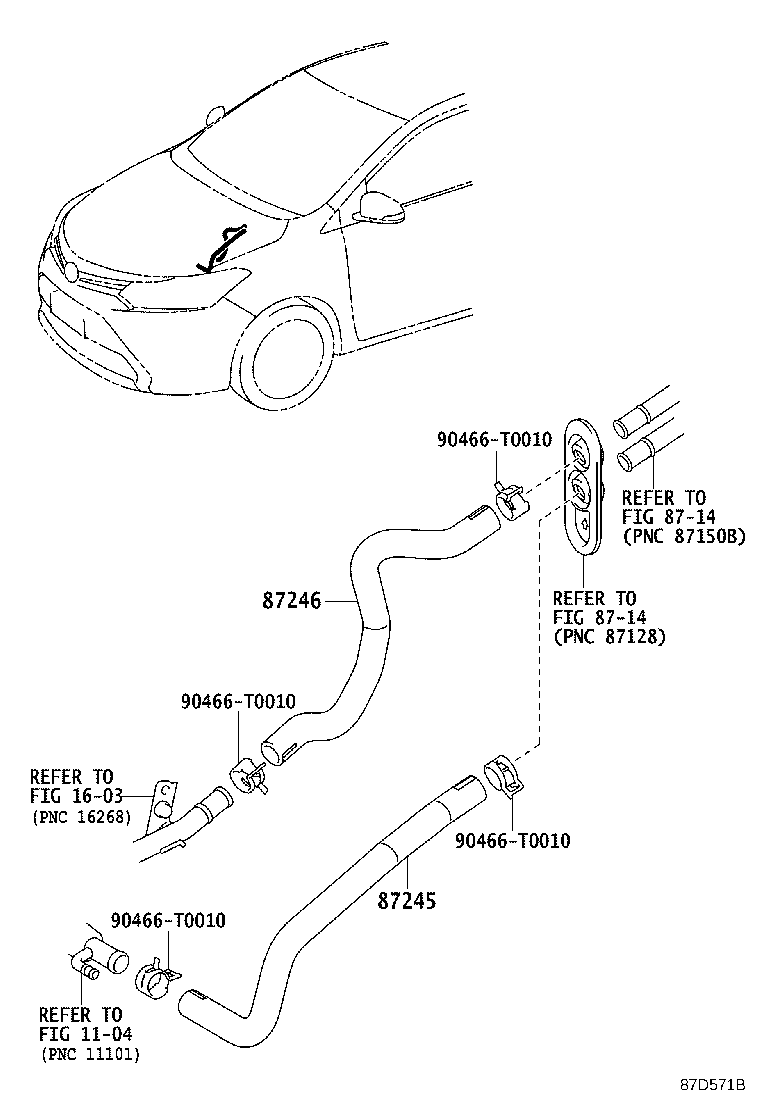

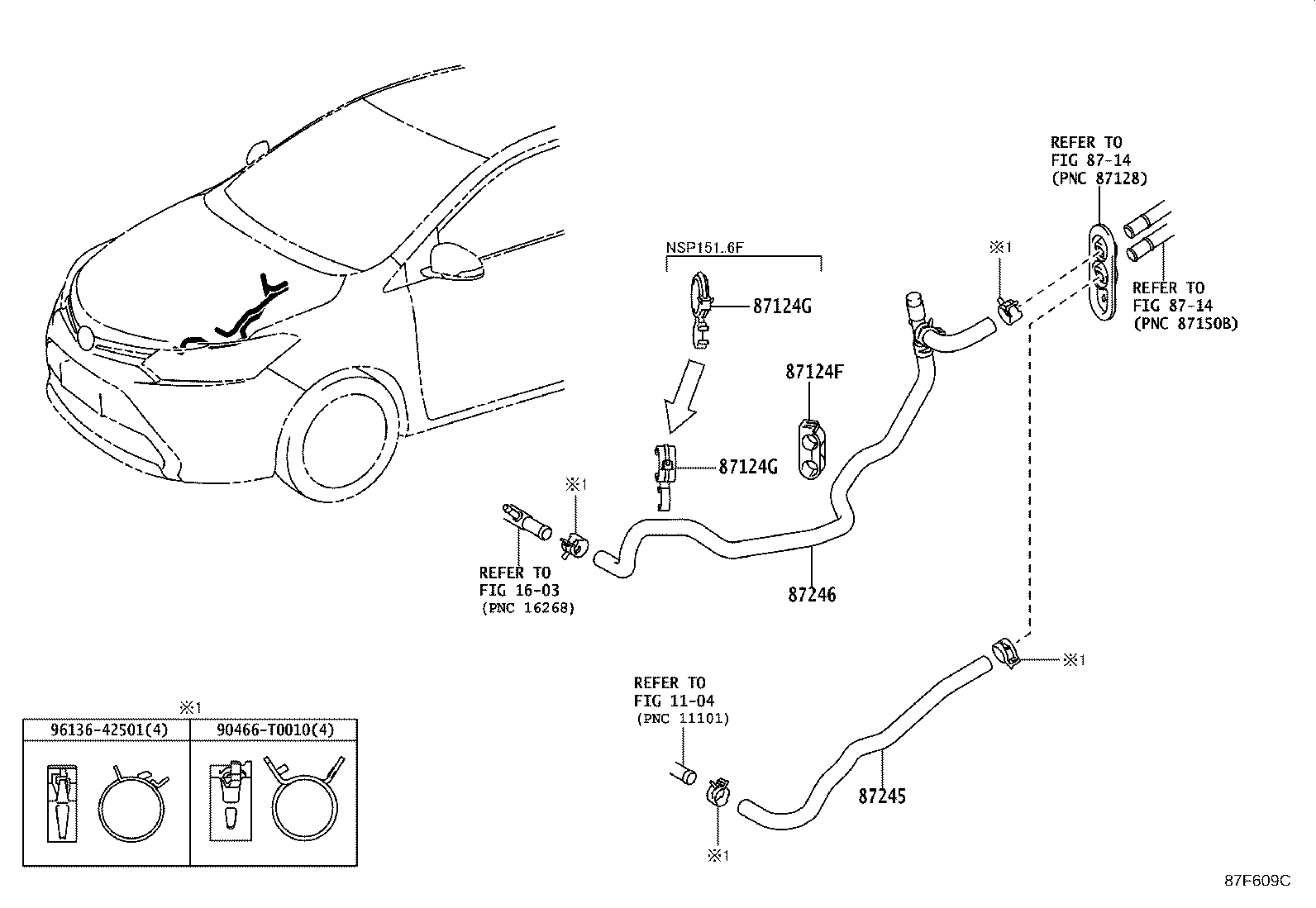

Figure 87D571B 87D571B 2013-08 → — Figure 87F608E 87F608E 2016-04 → — Figure 87F608E 87F608E 2018-01 → — Figure 87F608E 87F608E 2018-03 → — Figure 87F608E 87F608E 2018-04 → — Figure 87F609C 87F609C 2016-04 → — Figure 87F609C 87F609C 2018-01 → — Figure 87F609C 87F609C 2018-04 → —

Part groups

PNCDescription
87124F Clamp, Heater Hose, NO.1
87124G Clamp, Heater Hose, NO.2
87245 Hose, Heater Water, Inlet
87246 Hose, Heater Water, Outlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
