Toyota Vios/Yaris
2023-03 → present · chassis NSP15# · catalogue 149340 · United States
Supported model
Data version 2024-06

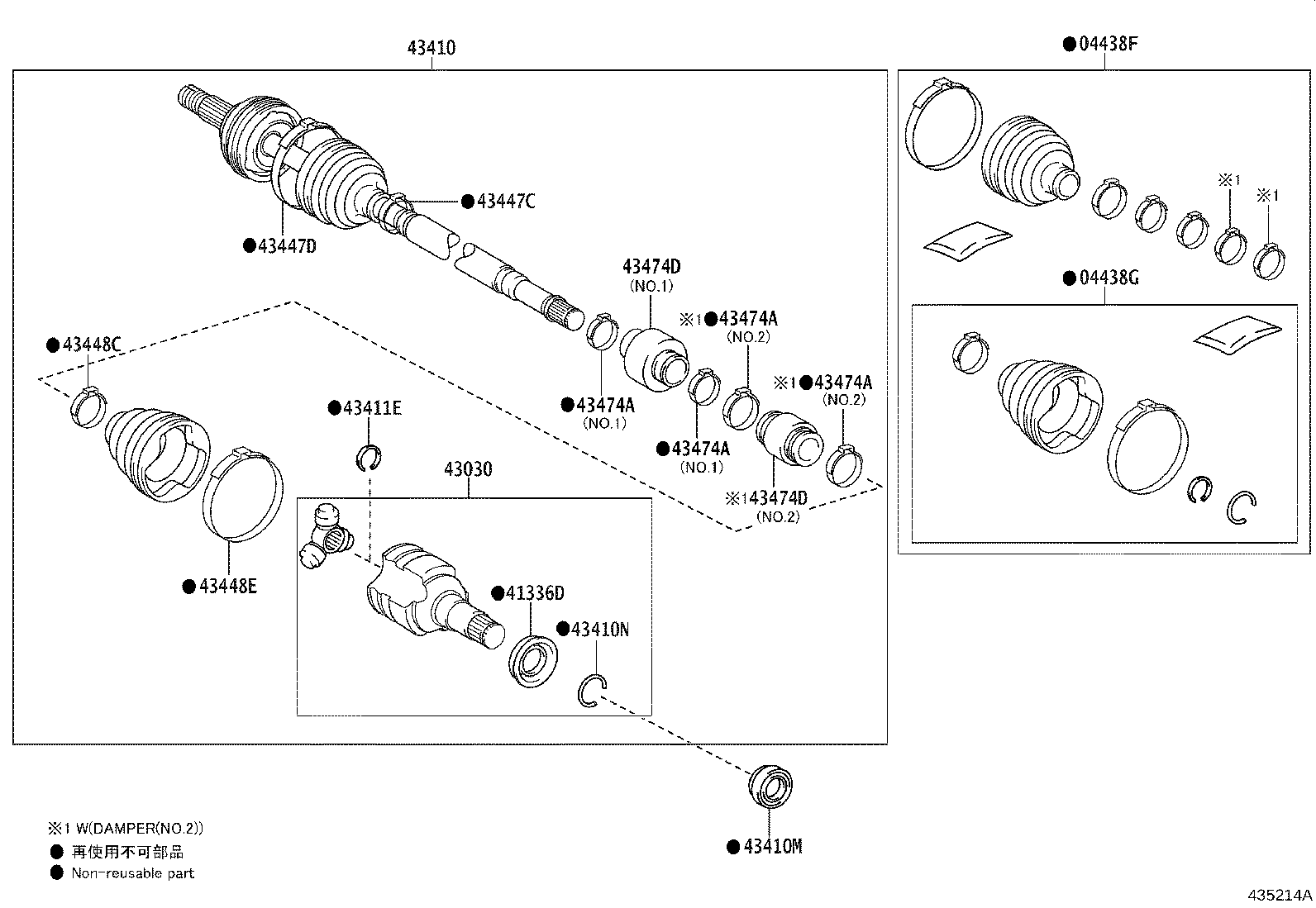

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04438F — Boot Kit, Front Drive Shaft, IN & Outboard, RH | ||||
| 04427-0D340 |
Boot Kit, Front Drive Shaft, IN & Outboard, RH
2023-03 → —
|
NSP152 | — | |
| 04427-0D351 |
Boot Kit, Front Drive Shaft, IN & Outboard, RH
2023-03 → —
|
NSP151;NSP150 5F | — | |
| 04428-0D371 |
Boot Kit, Front Drive Shaft, IN & Outboard, RH
2023-03 → —
|
NSP150 CVT | — | |
| 04438G — Boot Kit, Front Drive Shaft Inboard Joint, RH | ||||
| 04437-0D240 |
Boot Kit, Front Drive Shaft Inboard Joint, RH
2023-03 → —
|
NSP152 | — | |
| 04437-0D250 |
Boot Kit, Front Drive Shaft Inboard Joint, RH
2023-03 → —
|
NSP150,151 | — | |
| 41336D — Cover, Front Drive Shaft Dust, RH | ||||
| 41336-0D040 |
Cover, Front Drive Shaft Dust, RH
2023-03 → —
|
NSP152 | — | |
| 41336-0D120 |
Cover, Front Drive Shaft Dust, RH
2023-03 → —
|
NSP150,151 | — | |
| 43030 — Joint Assy, Front Drive Inboard, RH | ||||
| 43040-0D030 |
Joint Assy, Front Drive Inboard, RH
2023-03 → —
|
NSP150,151 | — | |
| 43040-0D040 |
Joint Assy, Front Drive Inboard, RH
2023-03 → —
|
NSP152 | — | |
| 43410 — Shaft Assy, Front Drive, RH | ||||
| 43410-0D451 |
Shaft Assy, Front Drive, RH
2023-03 → —
|
NSP152 | — | |
| 43410-0D570 |
Shaft Assy, Front Drive, RH
2023-03 → —
|
NSP150 CVT | — | |
| 43410-0D700 |
Shaft Assy, Front Drive, RH
2023-03 → —
|
NSP151;NSP150 5F | — | |
| 43410M — Oil Seal, Front Drive Shaft, RH | ||||
| 90311-34047 |
Oil Seal, Front Drive Shaft, RH
2023-03 → —
|
NSP150,152 CVT | — | |
| 90311-34050 |
Oil Seal, Front Drive Shaft, RH
2023-03 → 2025-03
ended
|
NSP151 5D VN | — | |
| 90311-34050 |
Oil Seal, Front Drive Shaft, RH
2023-03 → —
|
NSP151 4D CVT VN;NSP151 +2 | — | |
| 90311-T0104 |
Oil Seal, Front Drive Shaft, RH
2023-03 → —
|
NSP150,151 5F | — | |
| 43410N — Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH) | ||||
| 43425-0D130 |
Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2023-03 → —
|
NSP152 | — | |
| 43425-0D390 |
Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2023-03 → —
|
NSP150,151 | — | |
| 43411E — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 43425-0D370 |
Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2023-03 → —
|
NSP152 | — | |
| 43425-0D380 |
Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2023-03 → —
|
NSP150,151 | — | |
| 43447C — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-0DA10 |
Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2023-03 → —
|
NSP152 | — | |
| 42345-0DA70 |
Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2023-03 → —
|
NSP150,151 | — | |
| 43447D — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-0D680 |
Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2023-03 → —
|
NSP152 | — | |
| 42345-0DA80 |
Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2023-03 → —
|
NSP150,151 | — | |
| 43448C — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-0D890 |
Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2023-03 → —
|
NSP152 | — | |
| 42345-0DA70 |
Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2023-03 → —
|
NSP150,151 | — | |
| 43448E — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-0D880 |
Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2023-03 → —
|
NSP152 | — | |
| 42345-0DA60 |
Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2023-03 → —
|
NSP150,151 | — | |
| 43474A — Clamp (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 42345-0D890 note |
Clamp (FOR DRIVE SHAFT DAMPER SETTING)
2023-03 → —
|
NSP152 | — | |
| 42345-0DA50 note |
Clamp (FOR DRIVE SHAFT DAMPER SETTING)
2023-03 → —
|
NSP151;NSP150 5F | — | |
| 42345-0DB40 note |
Clamp (FOR DRIVE SHAFT DAMPER SETTING)
2023-03 → —
|
NSP150 CVT | — | |
| 42345-0DB40 note |
Clamp (FOR DRIVE SHAFT DAMPER SETTING)
2023-03 → —
|
NSP151;NSP150 5F | — | |
| 43474D — Damper, Front Drive Shaft, RH | ||||
| 43474-0D140 note |
Damper, Front Drive Shaft, RH
2023-03 → —
|
NSP151;NSP150 5F | — | |
| 43474-0D230 note |
Damper, Front Drive Shaft, RH
2023-03 → —
|
NSP152 | — | |
| 43474-0D290 note |
Damper, Front Drive Shaft, RH
2023-03 → —
|
NSP151;NSP150 5F | — | |
| 43474-0D310 note |
Damper, Front Drive Shaft, RH
2023-03 → —
|
NSP150 CVT | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
