Toyota Vios/Yaris
2023-03 → present · chassis NSP15# · catalogue 149340 · United States
Supported model
Data version 2024-06

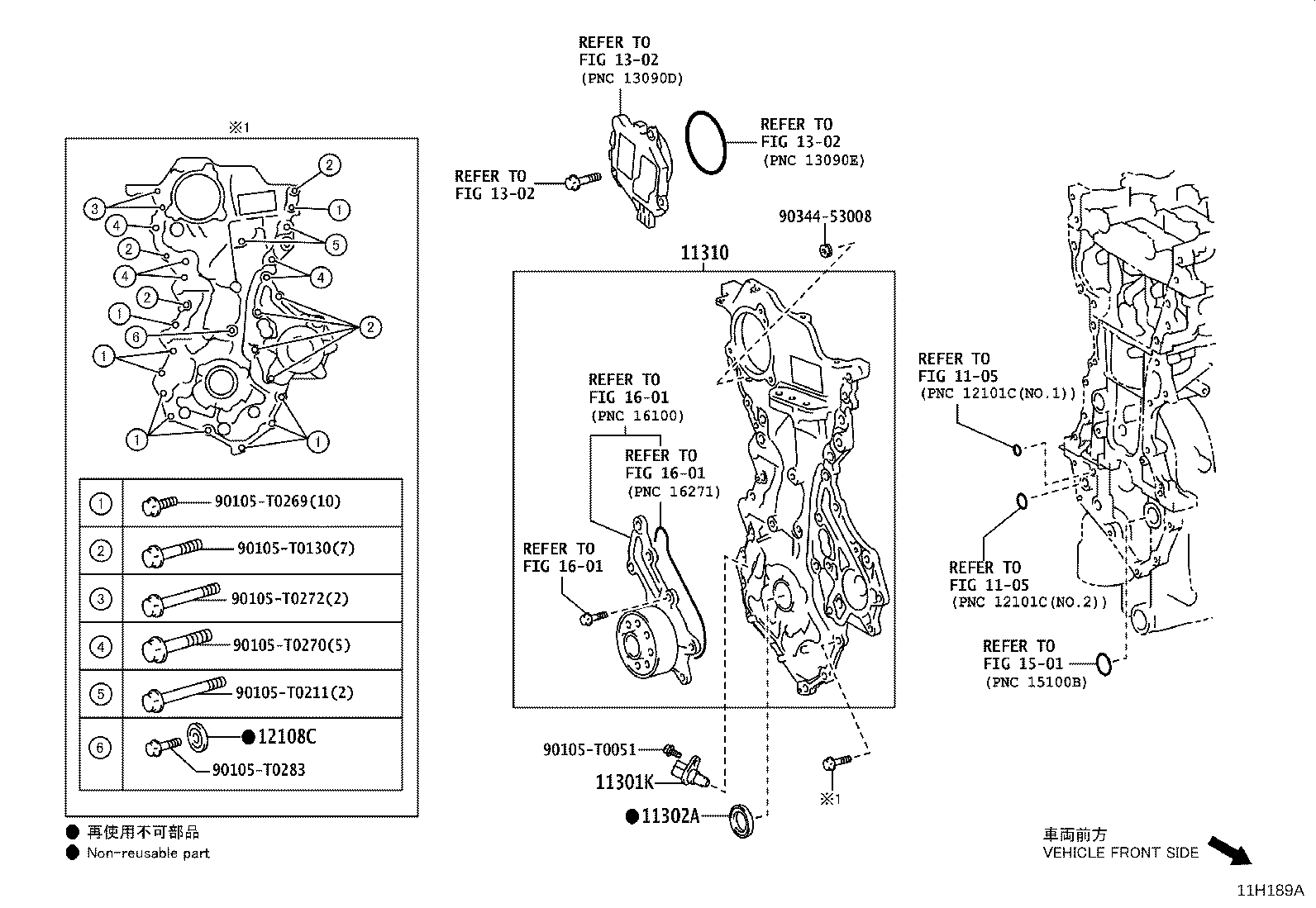

Timing Gear Cover & Rear End Plate
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11301K | Sensor, Crank Position |
| 11302A | Seal, Oil(FOR TIMING CHAIN OR BELT COVER) |
| 11310 | Cover Assy, Timing Chain |
| 11310A | Plug, Taper Screw(FOR TIMING CHAIN COVER) |
| 12108C | Gasket |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
