Toyota Vios/Yaris
2023-03 → present · chassis NSP15# · catalogue 149340 · United States
Supported model
Data version 2024-06

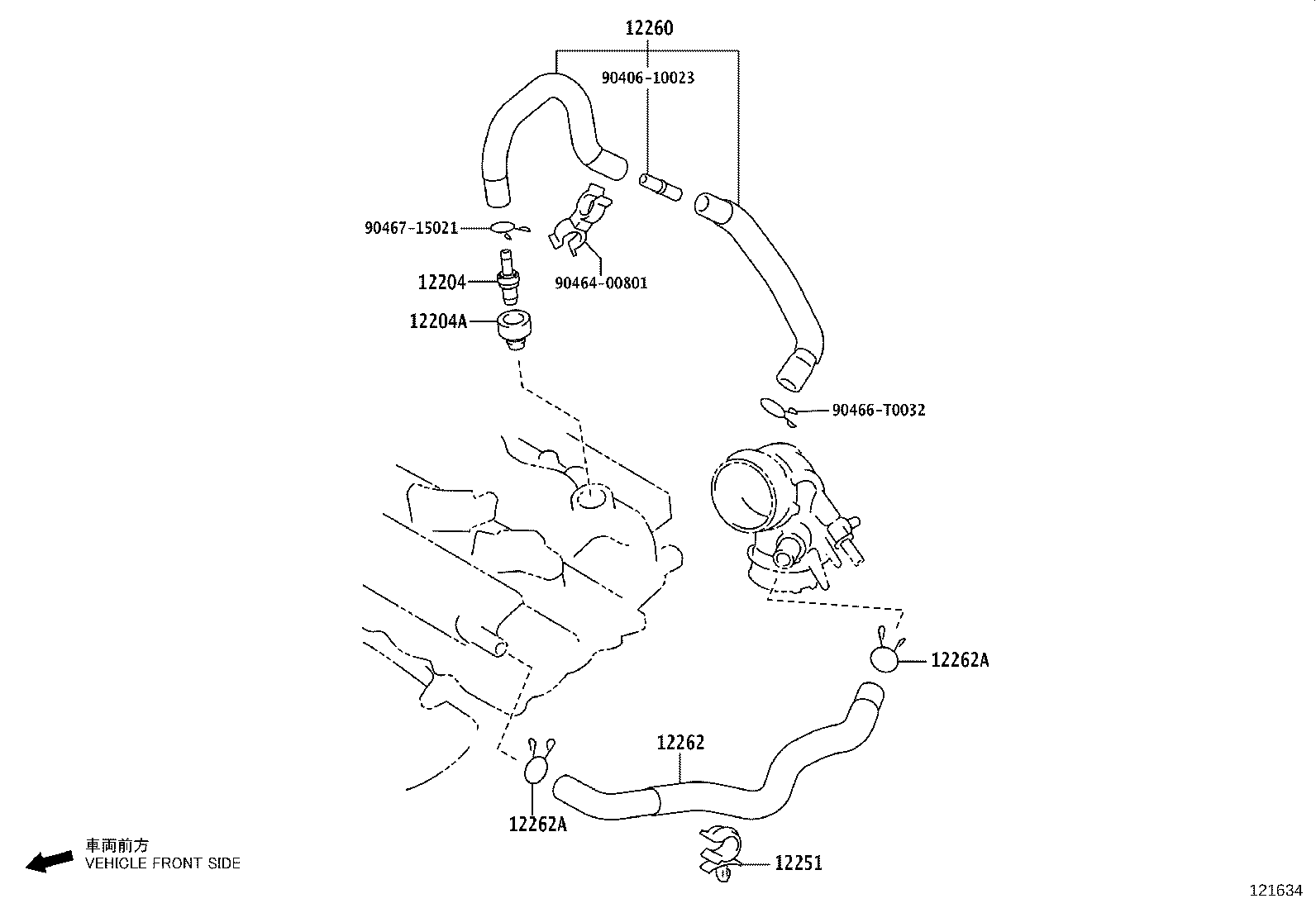

Ventilation Hose
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 12204 | Valve Sub-assy, Ventilation |
| 12204A | Grommet(FOR VENTILATION SYSTEM) |
| 12251 | Clamp, Ventilation Tube |
| 12260 | Hose Assy, Ventilation |
| 12261 | Hose, Ventilation |
| 12261A | Clip OR Clamp(FOR VENTILATION HOSE) |
| 12261B | Clip OR Clamp(FOR VENTILATION HOSE) |
| 12262 | Hose, Ventilation, NO.2 |
| 12262A | Clip(FOR VENTILATION HOSE NO.2) |
| 12262B | Clamp(FOR VENTILATION HOSE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
