Exhaust Pipe

5 part groups · 2 illustrations

Illustrations

Figure 17C609B

17C609B 2023-03 → —

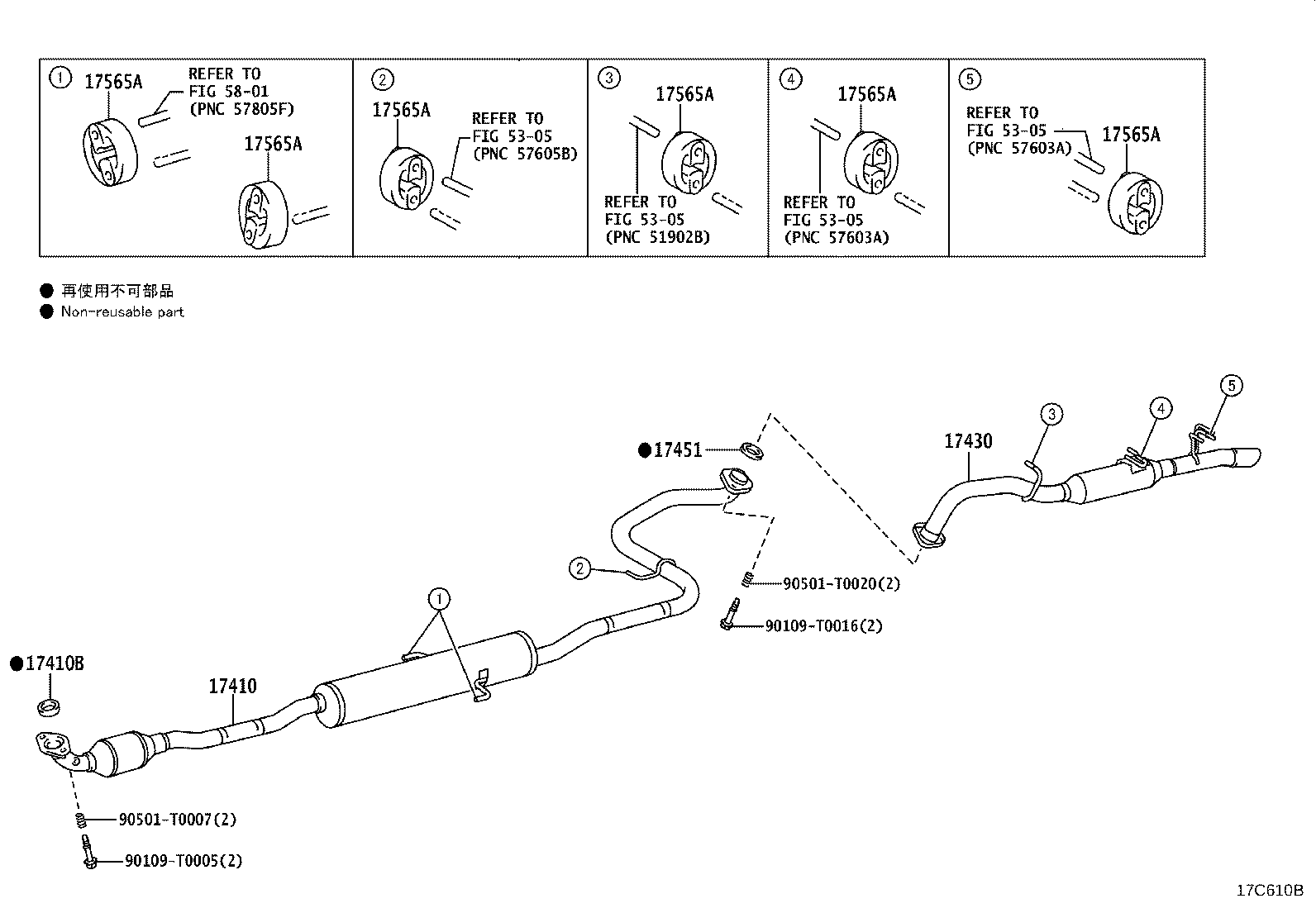

Figure 17C610B

17C610B 2023-04 → —

Part groups

PNC	Description
17410	Pipe Assy, Exhaust, Front
17410B	Gasket, Exhaust Pipe
17430	Pipe Assy, Exhaust, Tail
17451	Gasket, Exhaust Pipe
17565A	Support, Exhaust Pipe, NO.4

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
