Toyota Vios/Yaris
2023-03 → present · chassis NSP15# · catalogue 149340 · United States
Supported model
Data version 2024-06

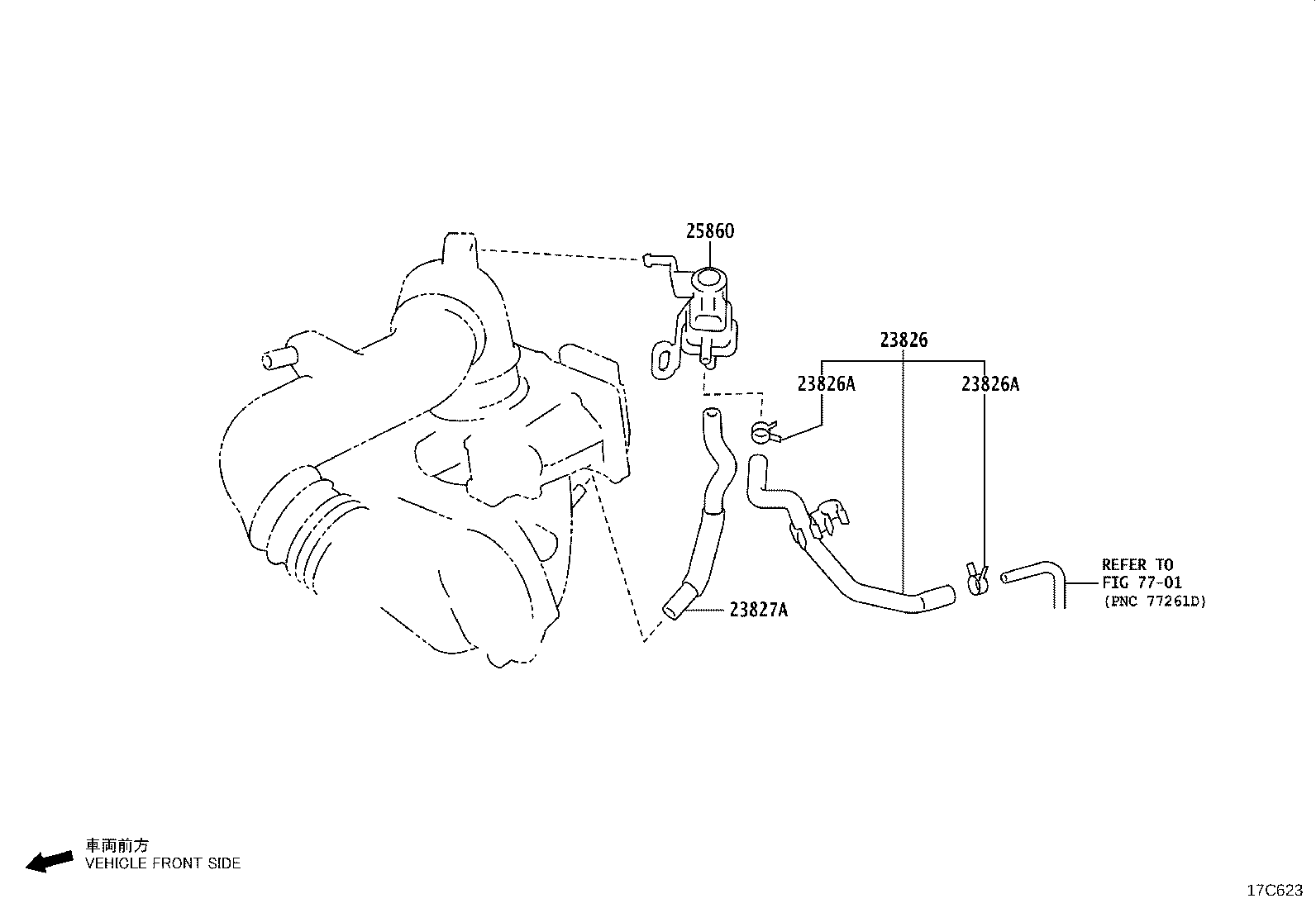

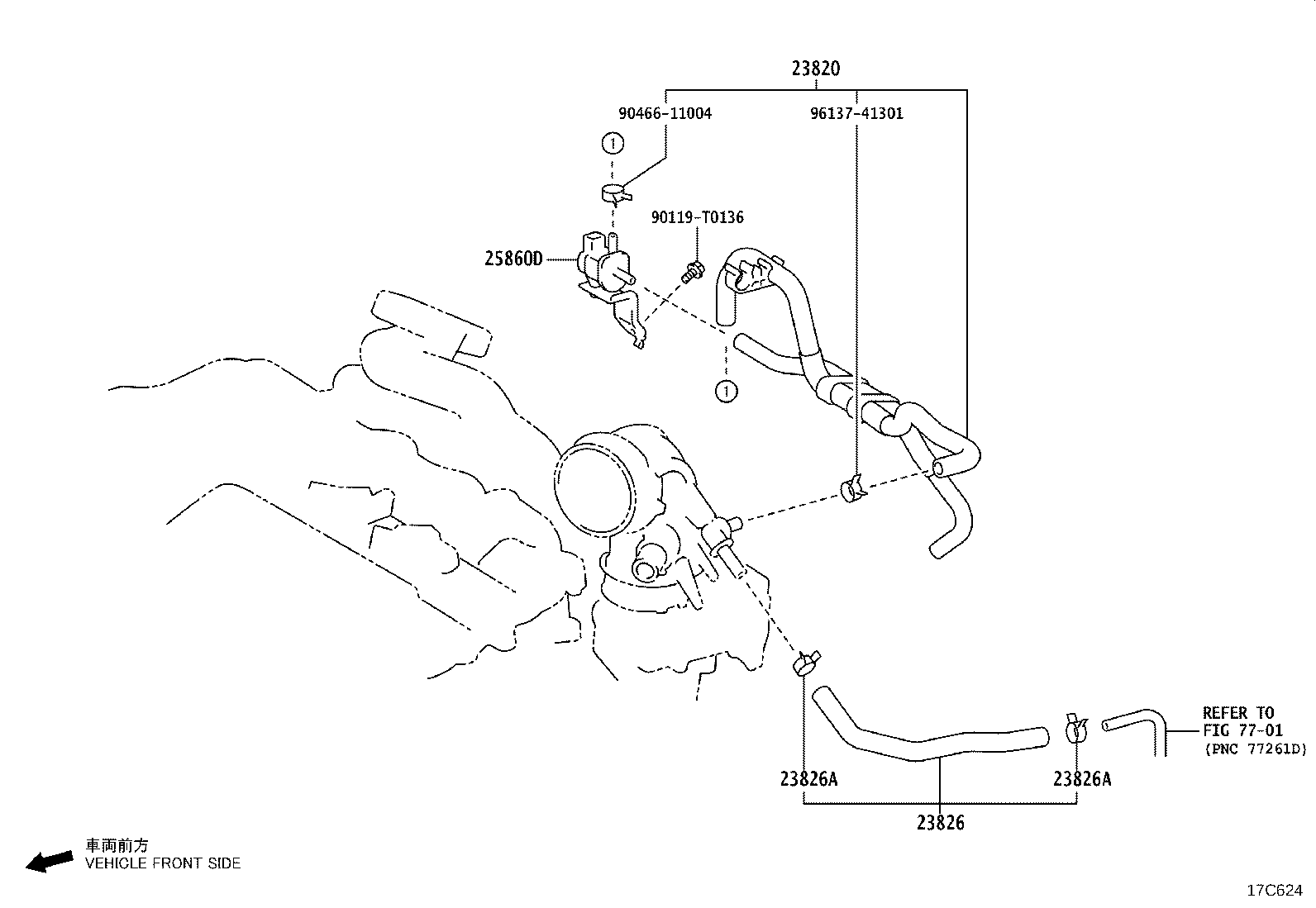

Vacuum Piping
7 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 17341T | Hose, Air, NO.1 |
| 23820 | Hose Assy, Fuel Vapor Feed |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23826A | Clip(FOR FUEL VAPOR FEED HOSE, NO.1) |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 25860D | Valve Assy, Vacuum Switching, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
