Toyota Vios/Yaris
2023-03 → present · chassis NSP15# · catalogue 149340 · United States
Supported model
Data version 2024-06

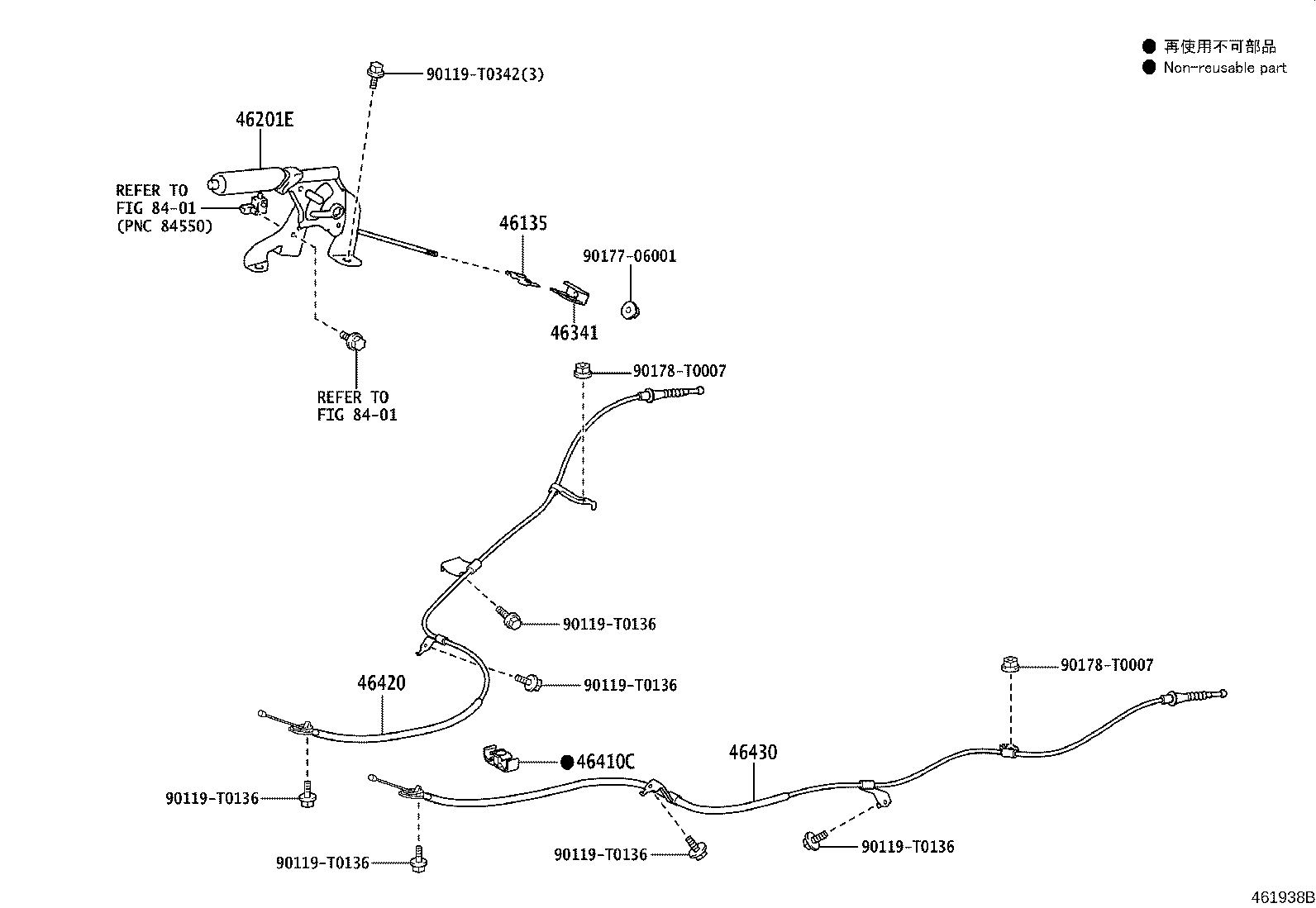

Parking Brake & Cable
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 46135 | Stopper, Parking Brake Cable End |
| 46201E | Lever Sub-assy, Parking Brake |
| 46341 | Equalizer, Parking Brake |
| 46410C | Clamp(FOR PARKING BRAKE FRONT CABLE) |
| 46420 | Cable Assy, Parking Brake, NO.2 |
| 46430 | Cable Assy, Parking Brake, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
