Toyota Vios/Yaris
2023-03 → present · chassis NSP15# · catalogue 149340 · United States
Supported model
Data version 2024-06

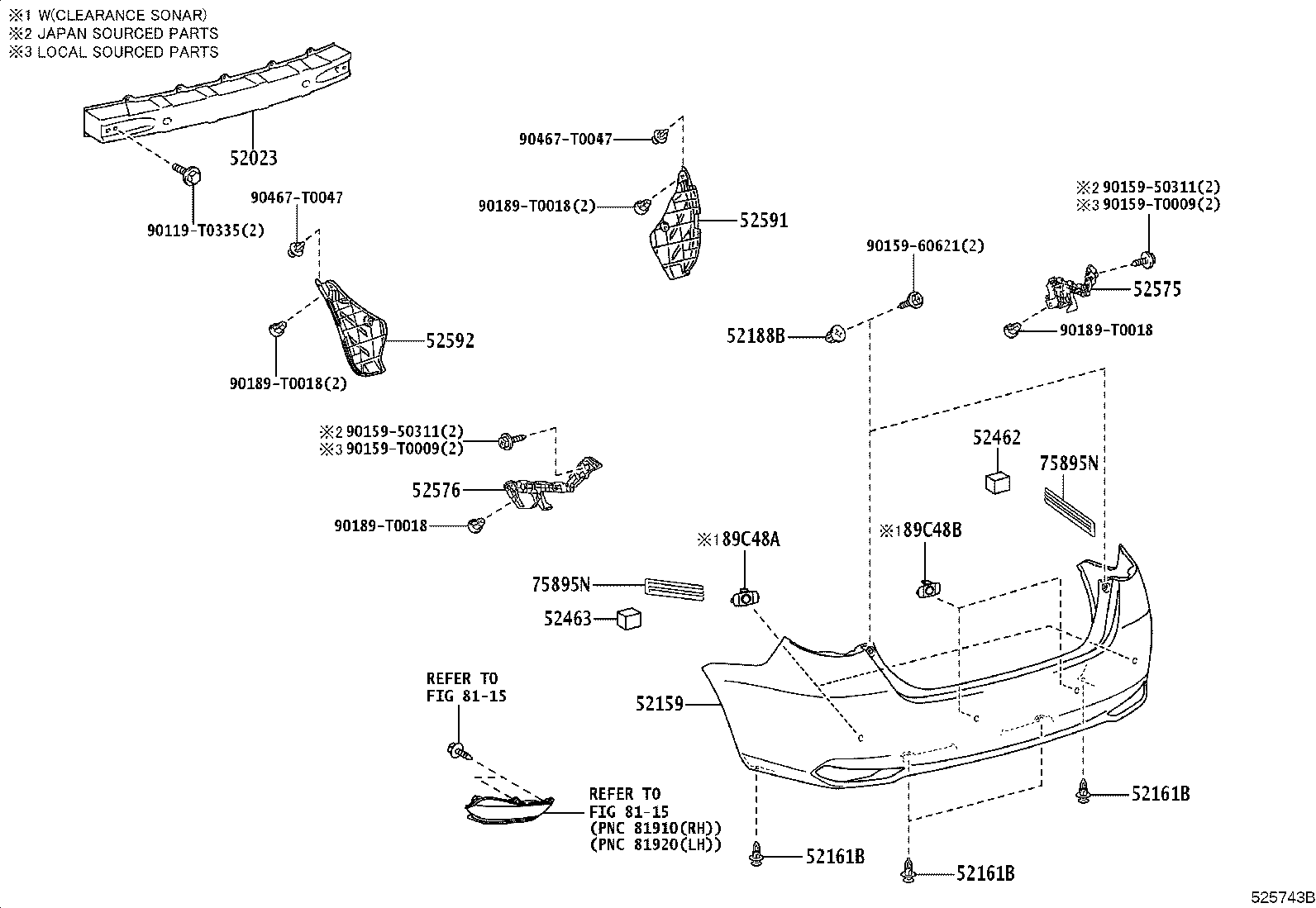

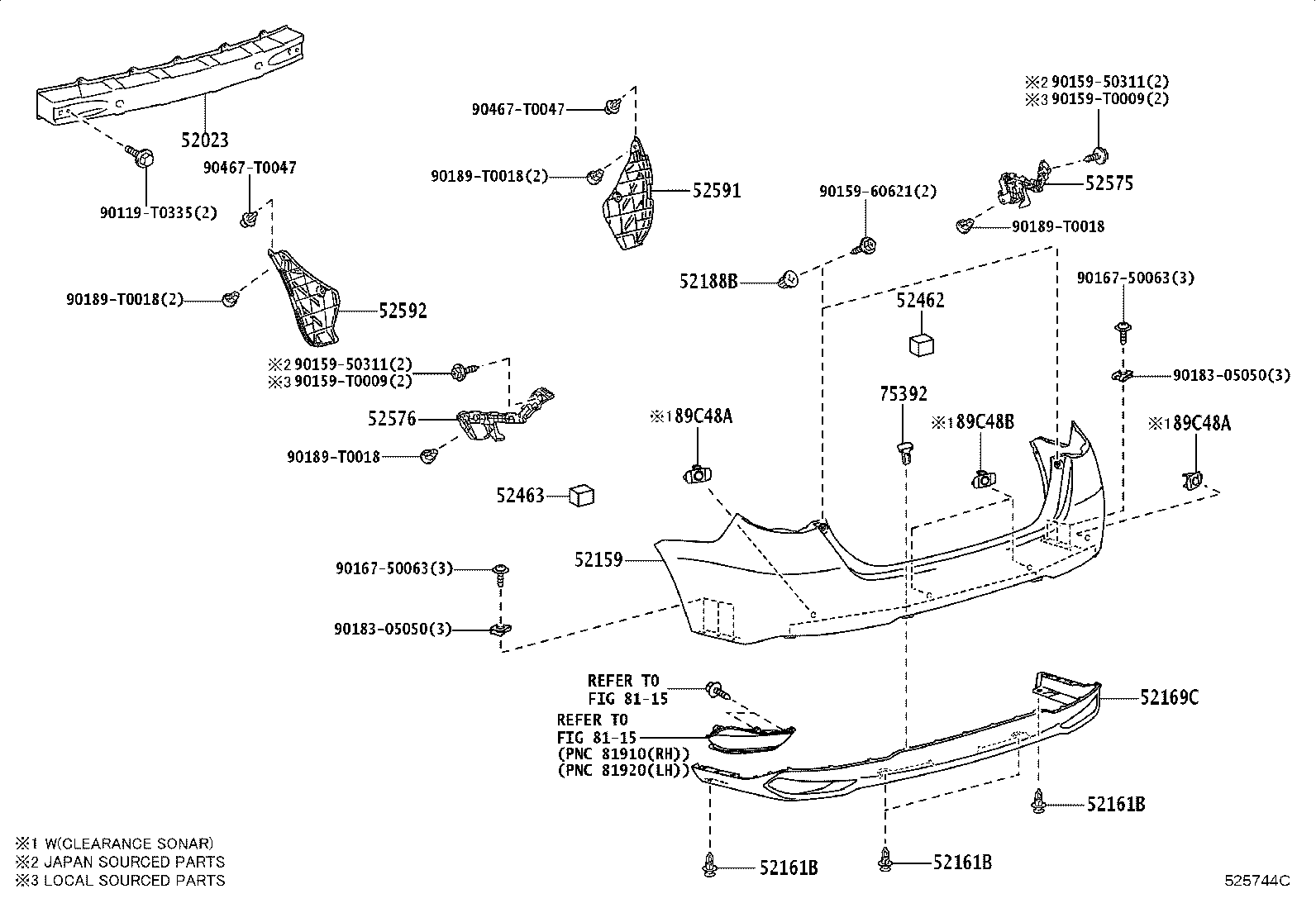

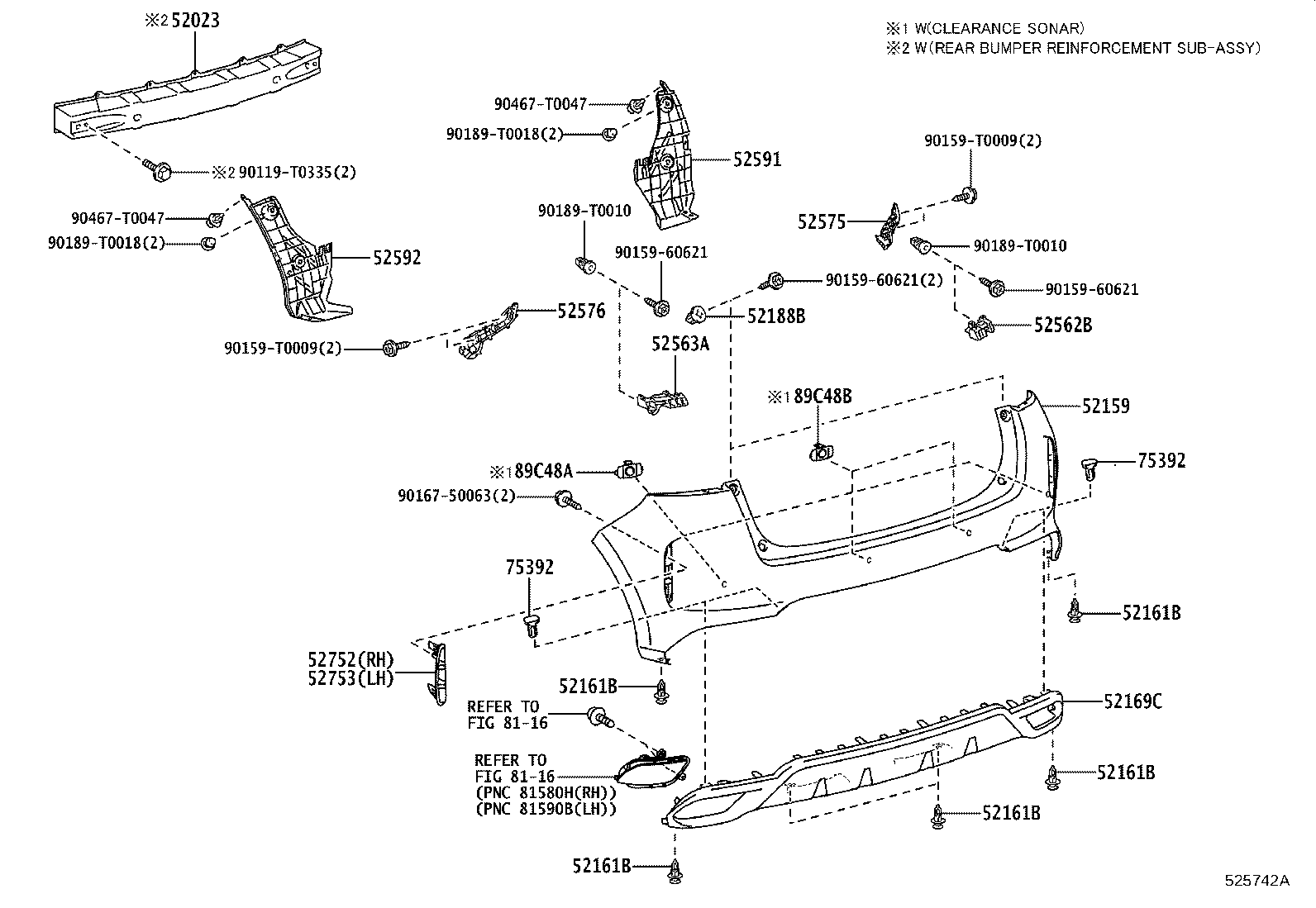

Rear Bumper & Bumper Stay
19 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52023 | Reinforcement Sub-assy, Rear Bumper |
| 52159 | Cover, Rear Bumper |
| 52161B | Piece, Rear Bumper |
| 52169C | Cover, Rear Bumper, Lower |
| 52188B | Spacer, Rear Bumper Mounting |
| 52462 | Pad, Rear Bumper, RH |
| 52463 | Pad, Rear Bumper, LH |
| 52562B | Retainer, Rear Bumper, Upper RH |
| 52563A | Retainer, Rear Bumper, Upper LH |
| 52575 | Retainer, Rear Bumper Side, RH |
| 52576 | Retainer, Rear Bumper Side, LH |
| 52591 | Seal, Rear Bumper Side, RH |
| 52592 | Seal, Rear Bumper Side, LH |
| 52752 | Moulding, Rear Bumper Side, RH |
| 52753 | Moulding, Rear Bumper Side, LH |
| 75392 | Retainer, Outside Moulding |
| 75895N | Tape, Moulding, NO.1 |
| 89C48A | Retainer, Ultrasonic Sensor, Rear Corner |
| 89C48B | Retainer, Ultrasonic Sensor, Rear Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
