Toyota Vios/Yaris
2023-03 → present · chassis NSP15# · catalogue 149340 · United States
Supported model
Data version 2024-06

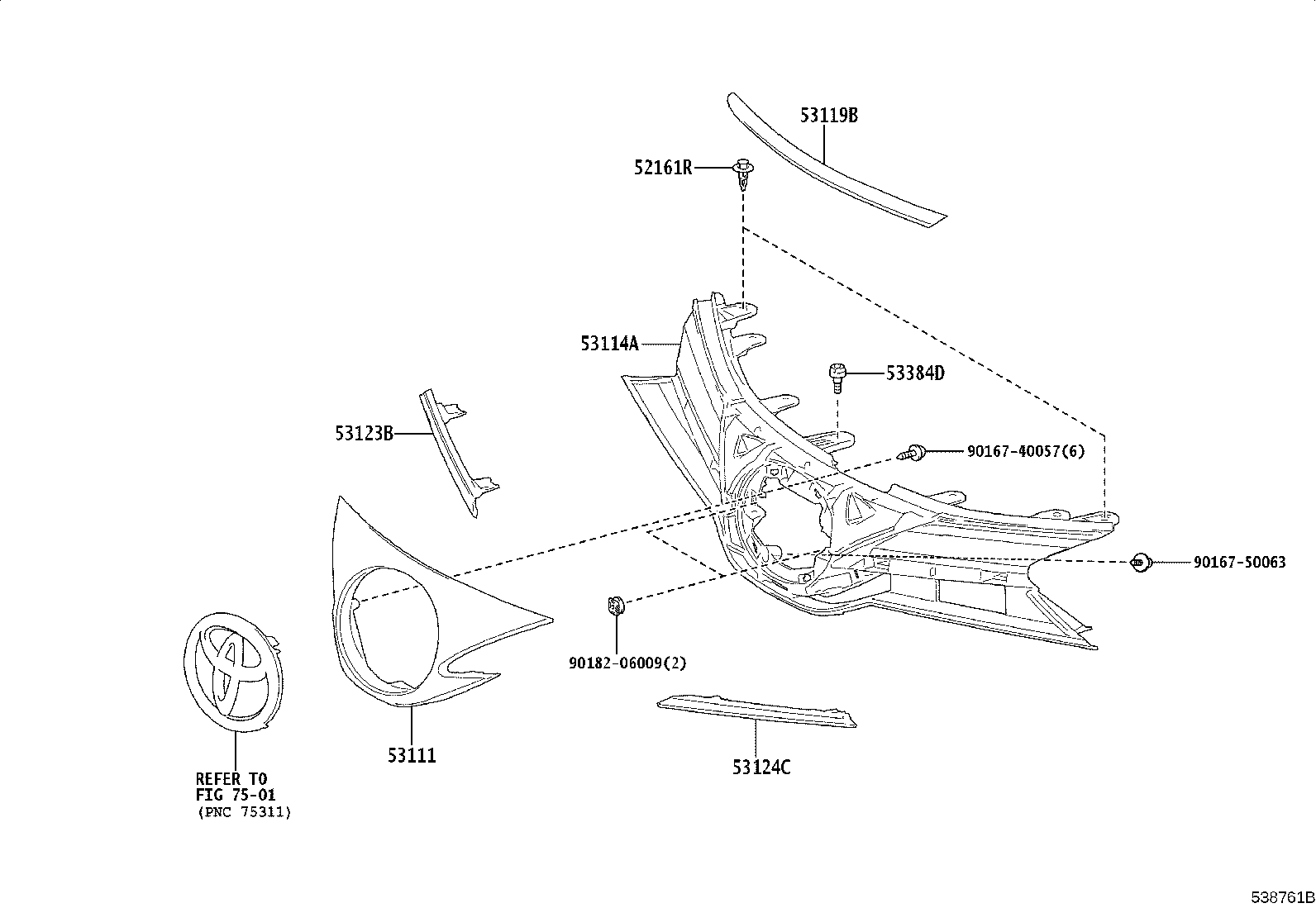

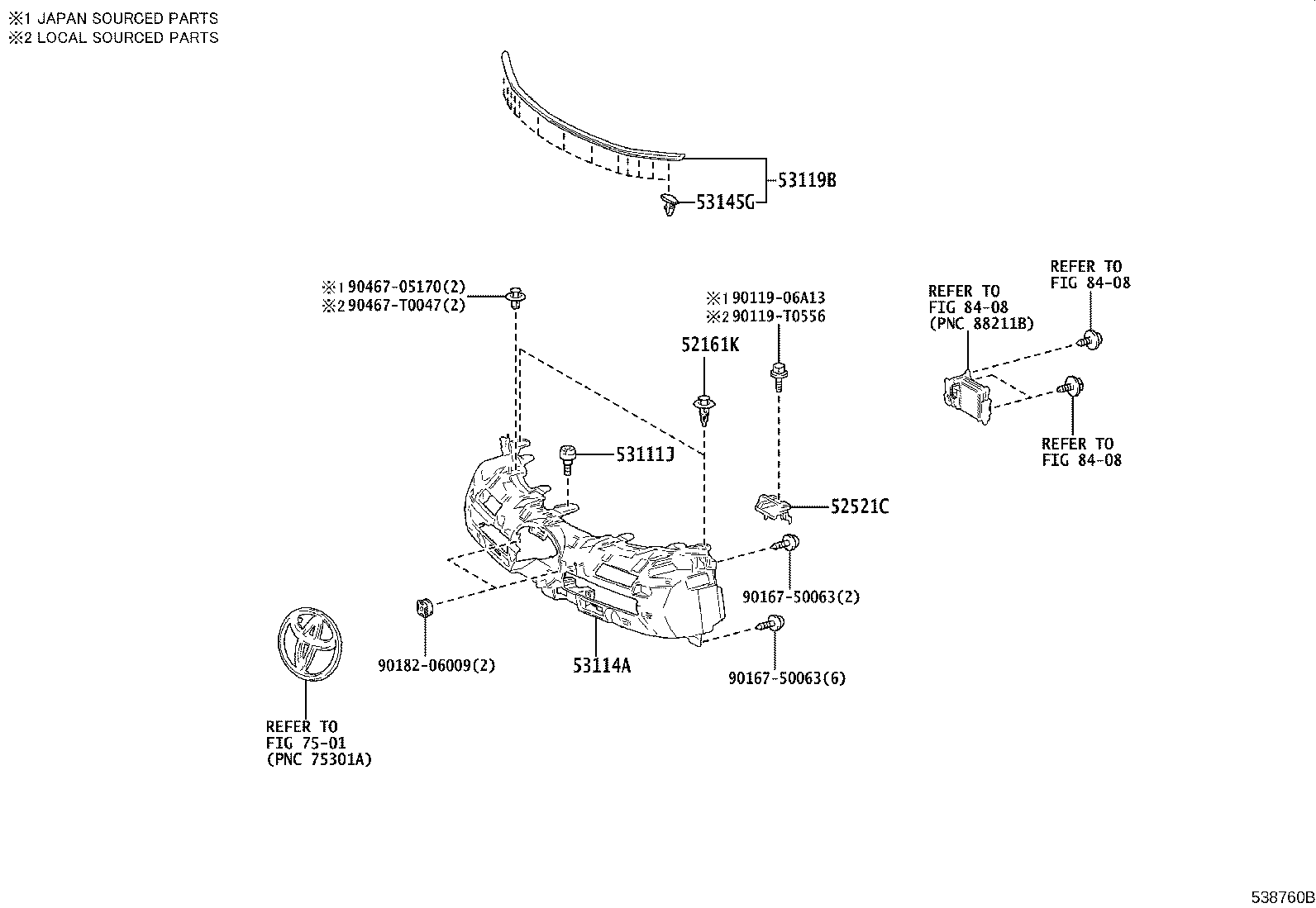

Radiator Grille
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 52161K | Piece, Front Bumper |
| 52161R | Piece, Front Bumper |
| 52521C | Retainer, Front Bumper, Upper |
| 53111 | Grille, Radiator |
| 53111A | Grille, Radiator, Outside |
| 53111J | Protector, Radiator Grille |
| 53114A | Grille, Radiator, Inner |
| 53119B | Protector, Radiator Grille |
| 53123B | Moulding, Radiator Grille Side, RH |
| 53124C | Moulding, Radiator Grille, Upper LH |
| 53145G | Clip, Radiator Grille |
| 53384D | Cushion, Hood, Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
