Toyota Vios/Yaris

2023-03 → present · chassis NSP15# · catalogue 149340 · United States

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

50 part groups · 16 illustrations

Illustrations

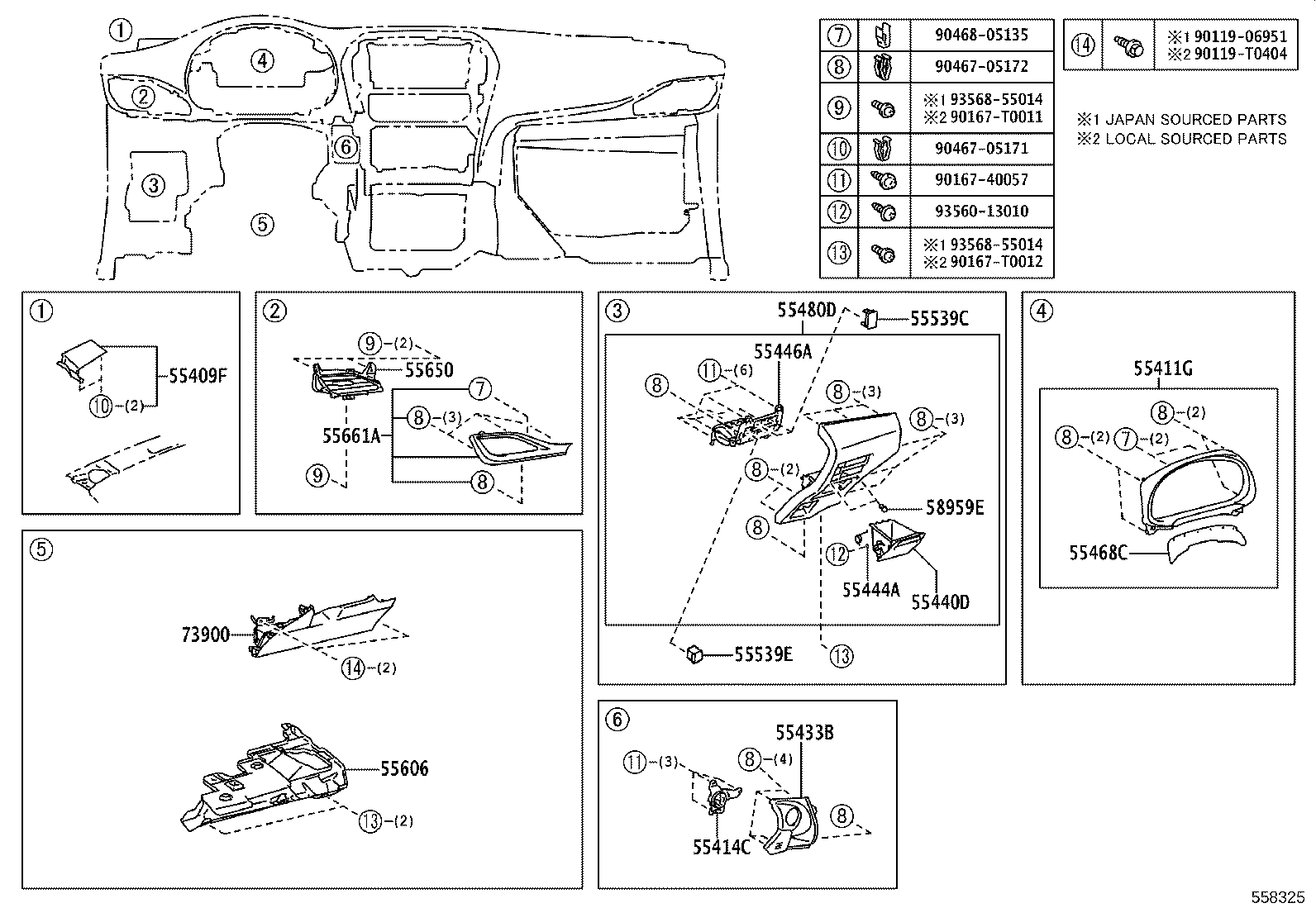

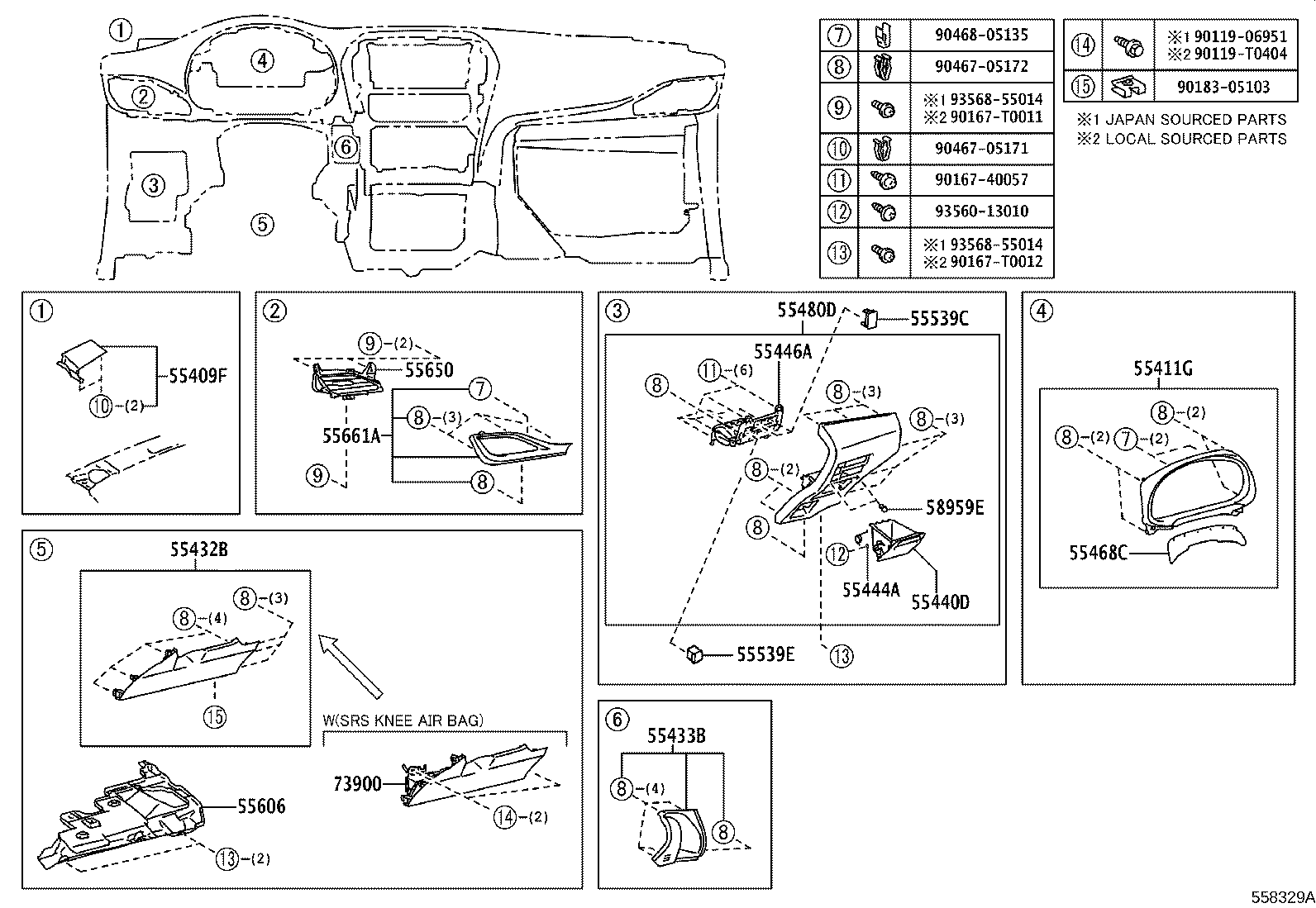

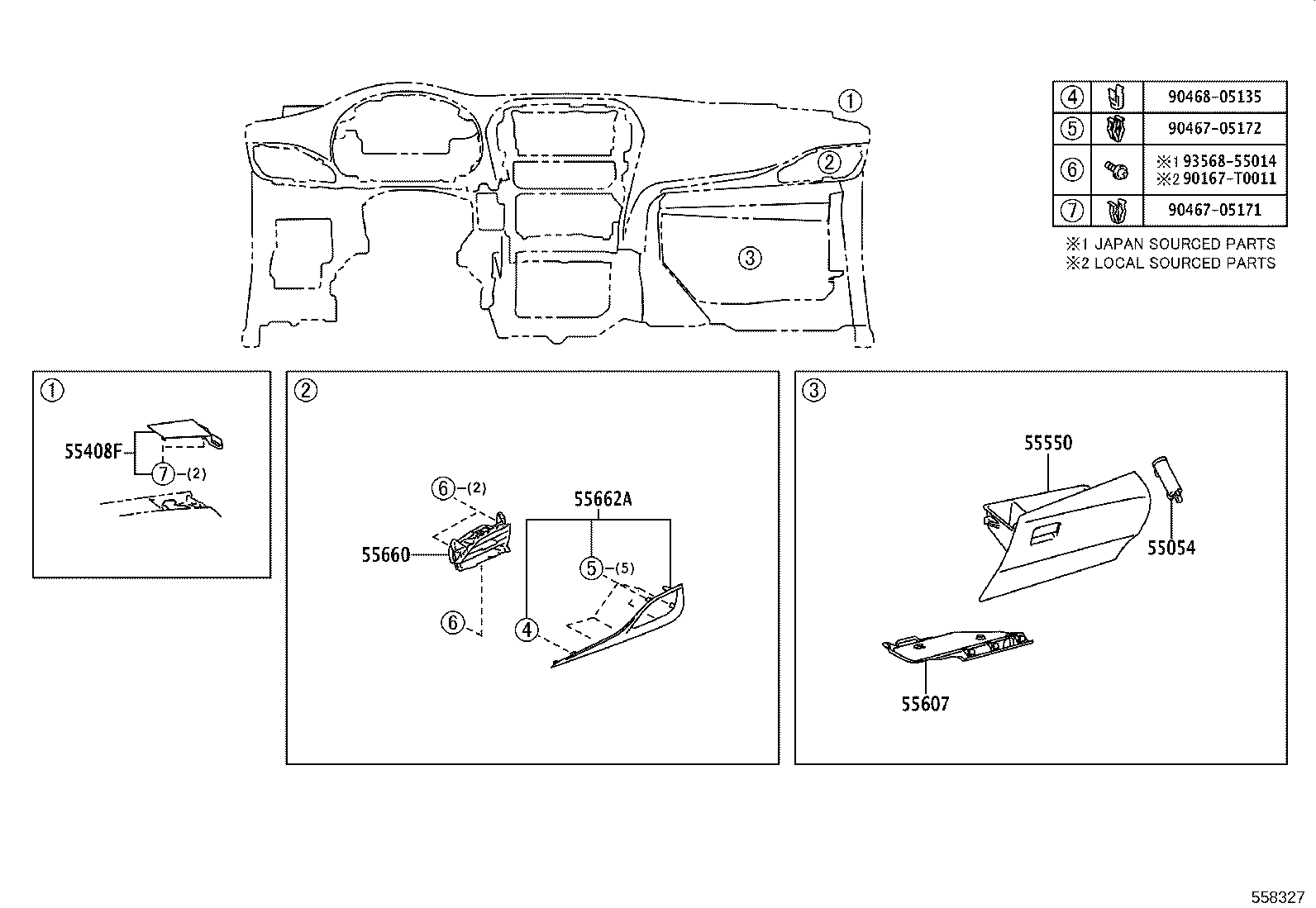

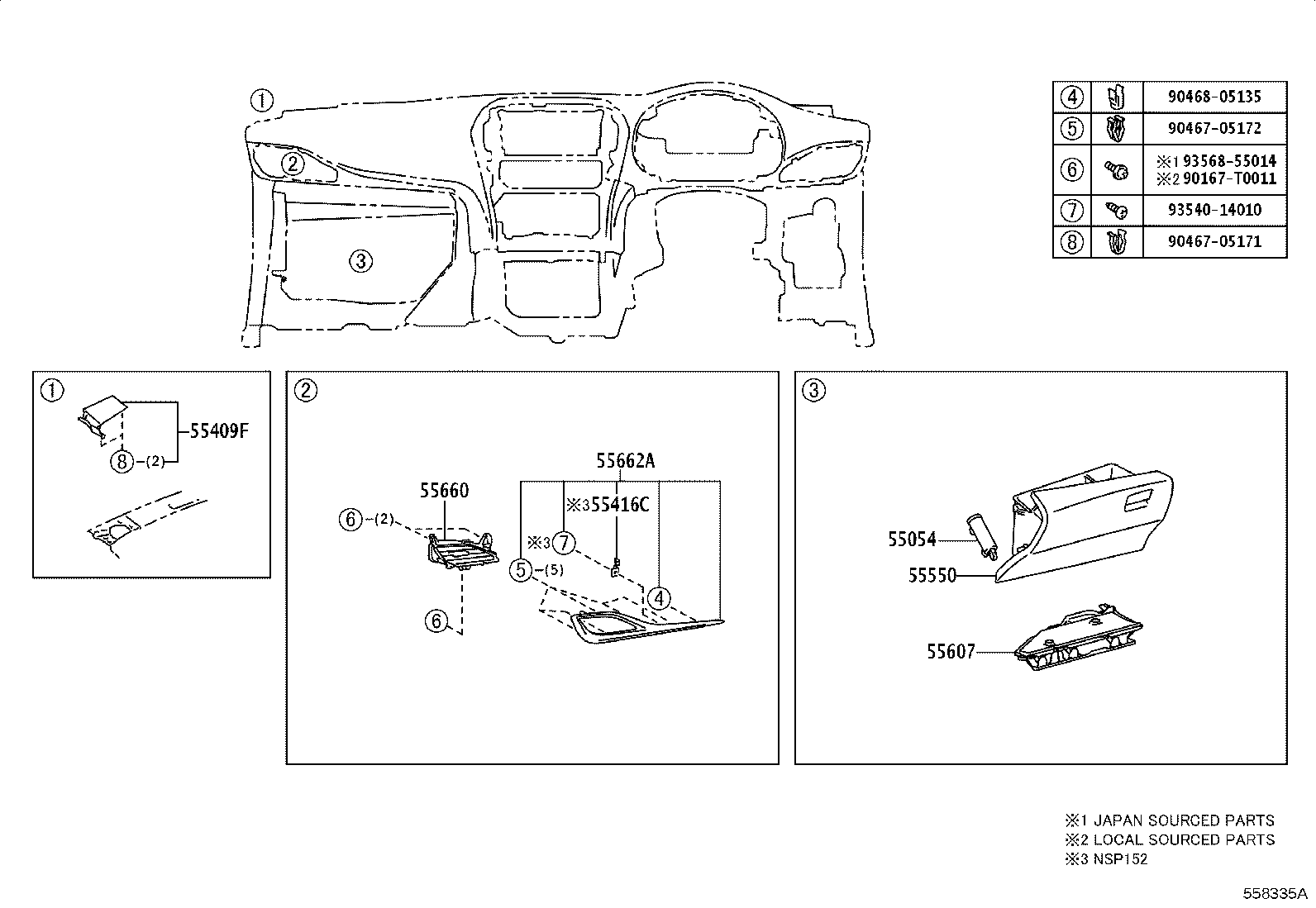

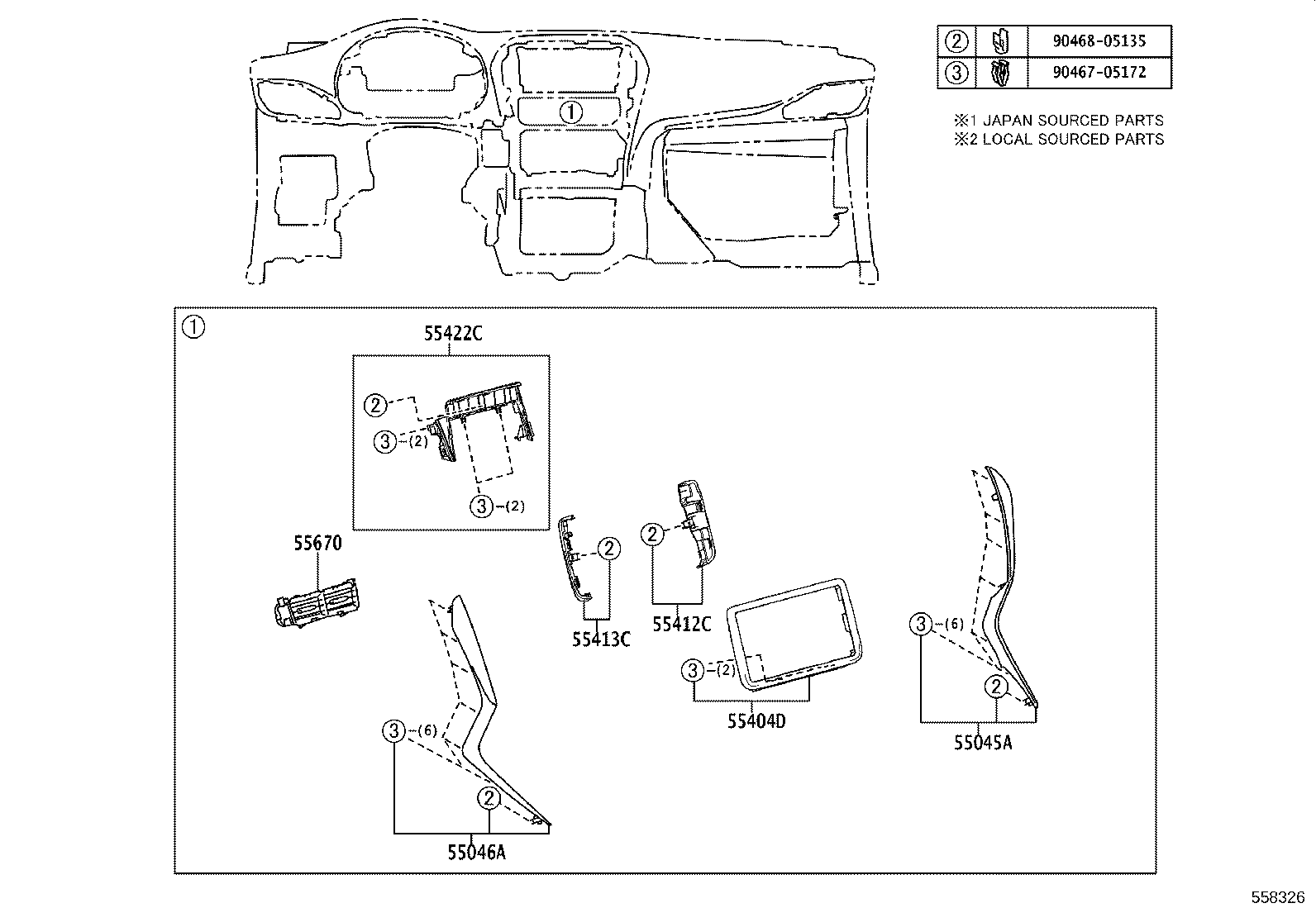

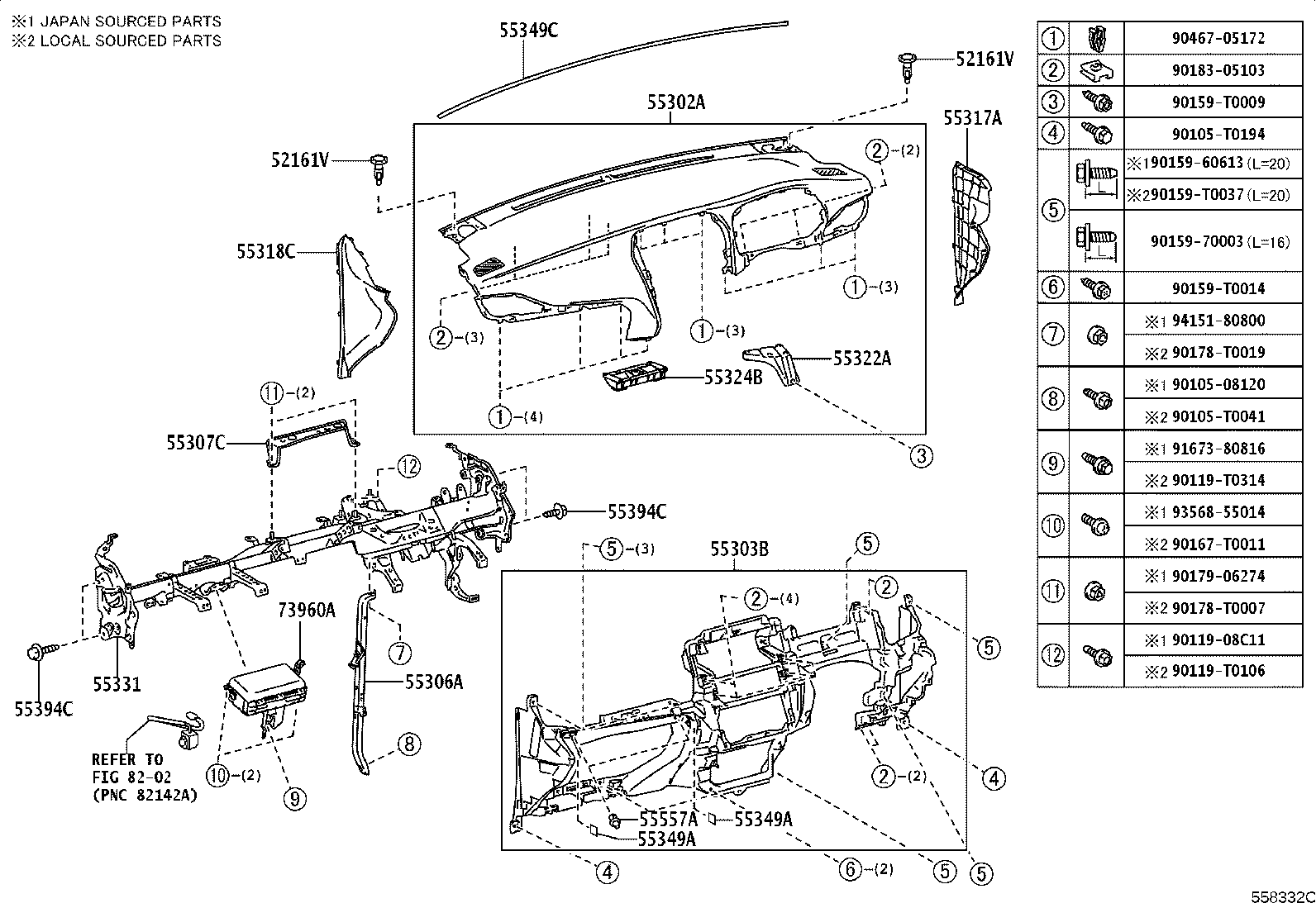

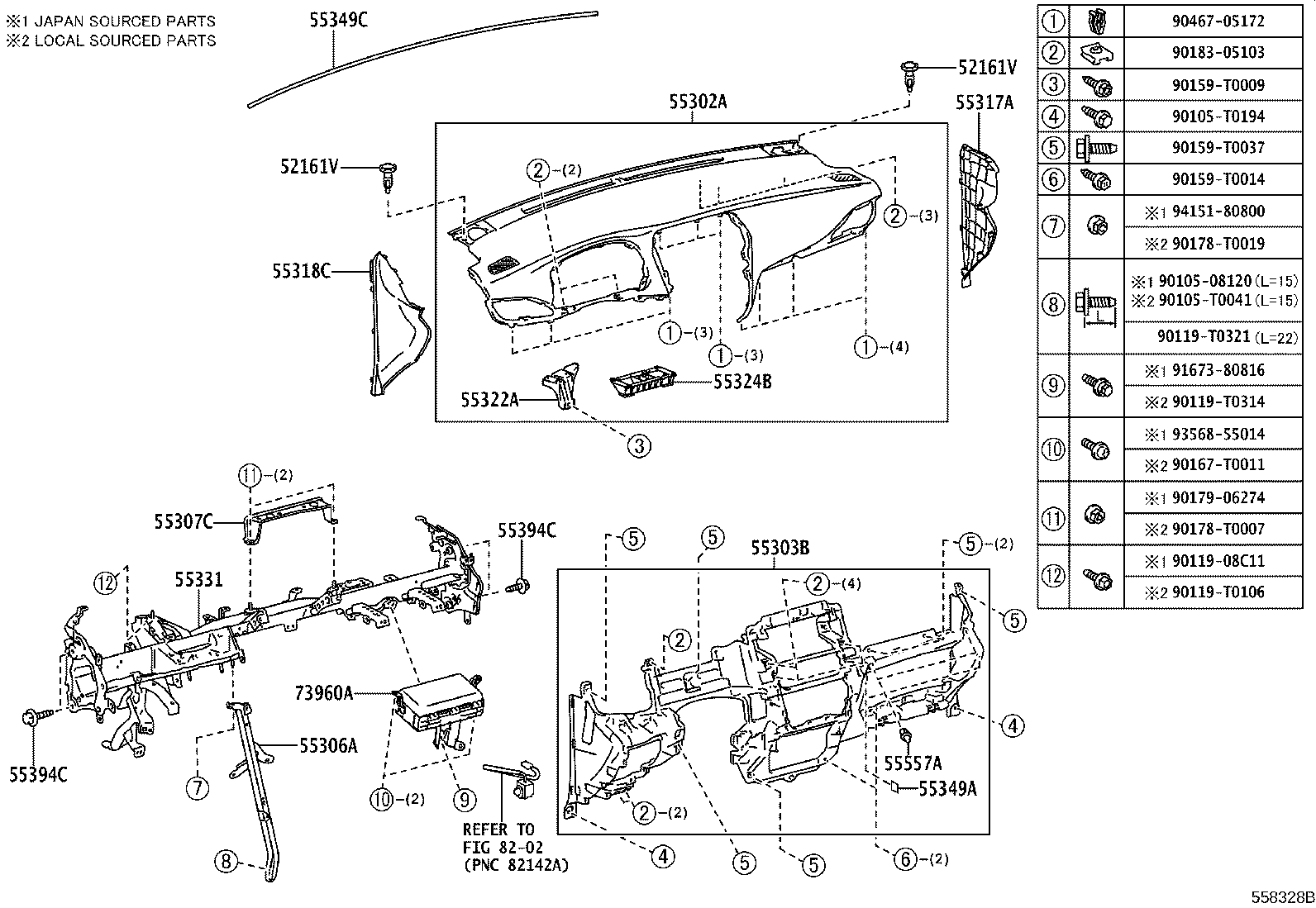

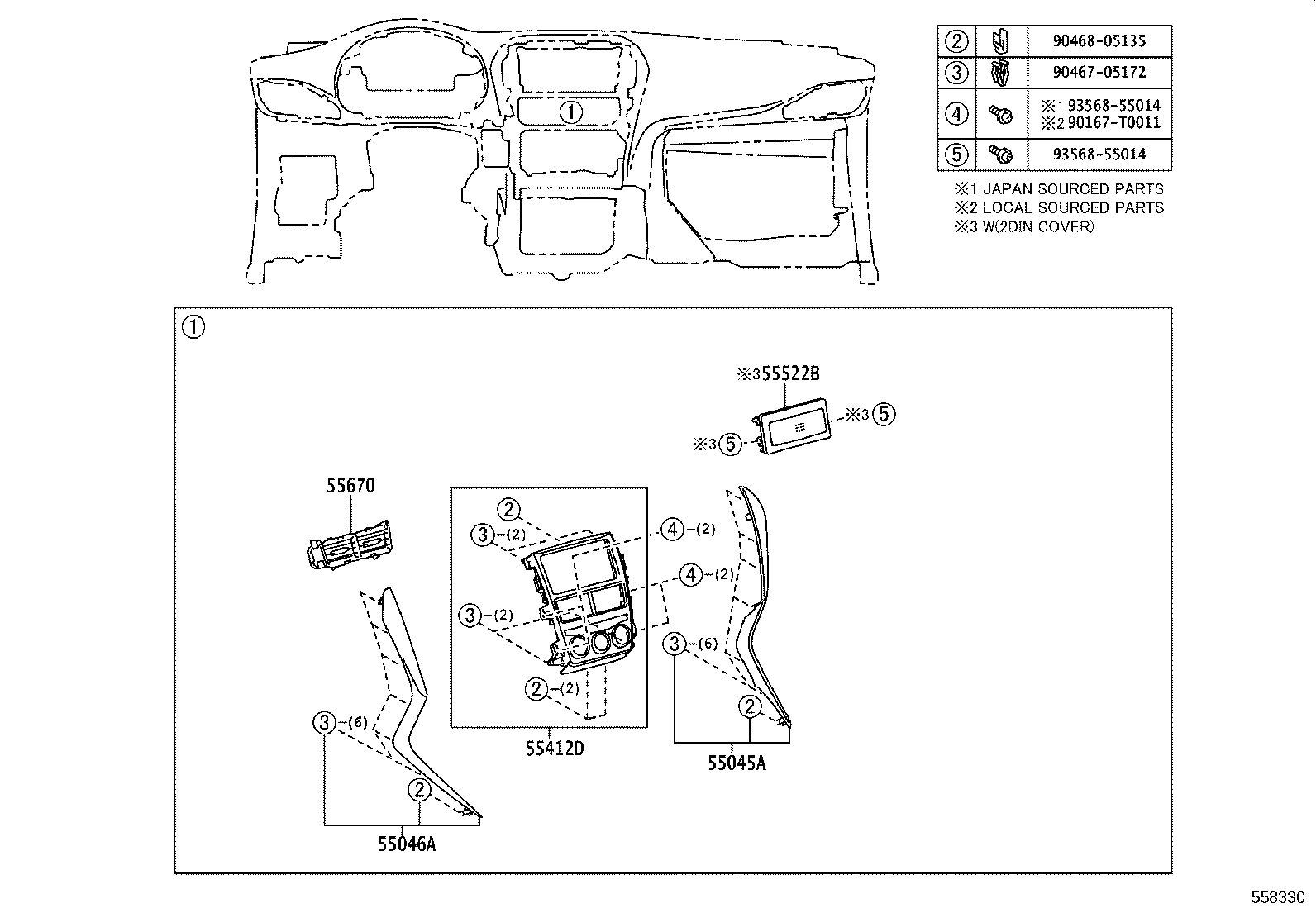

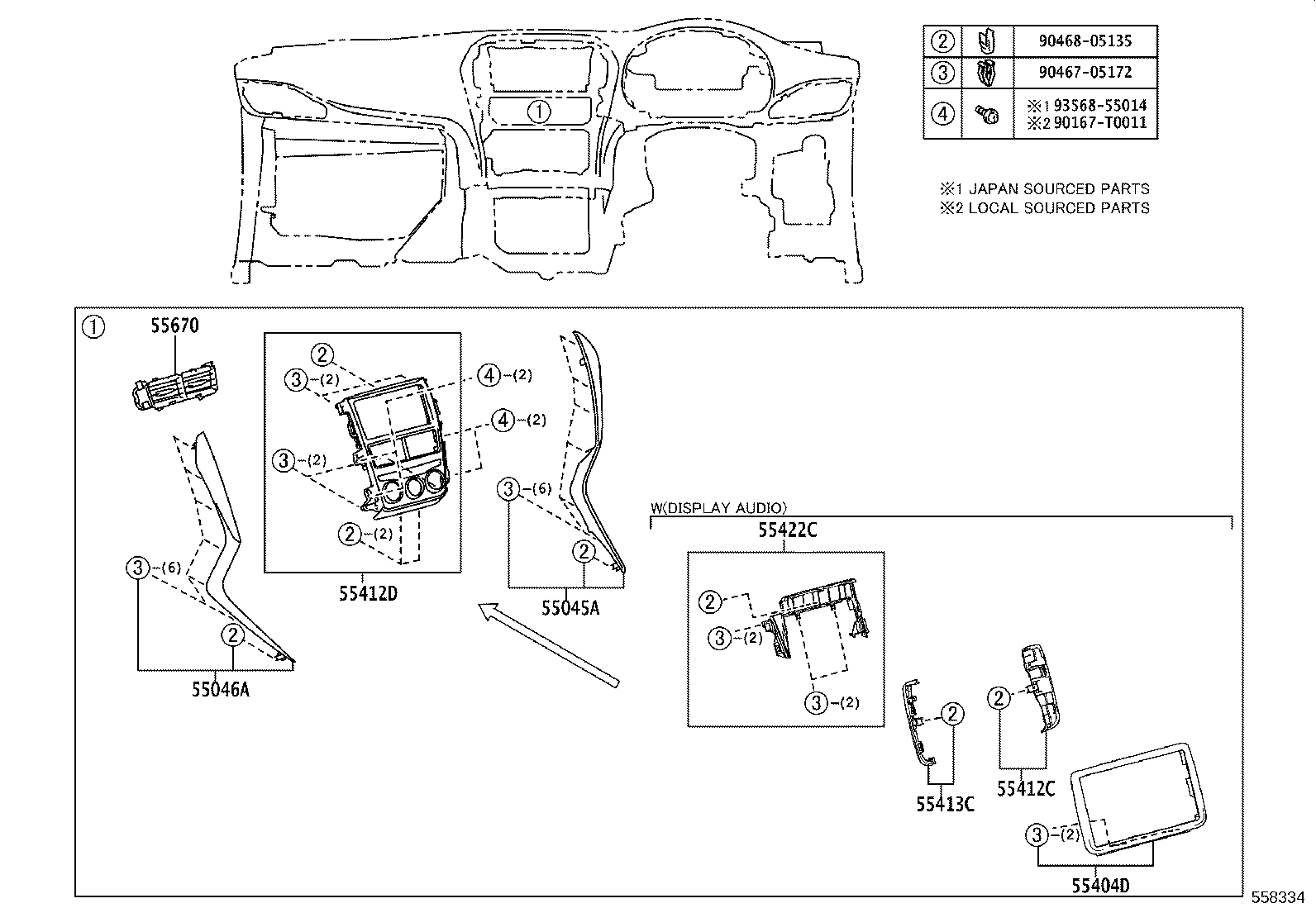

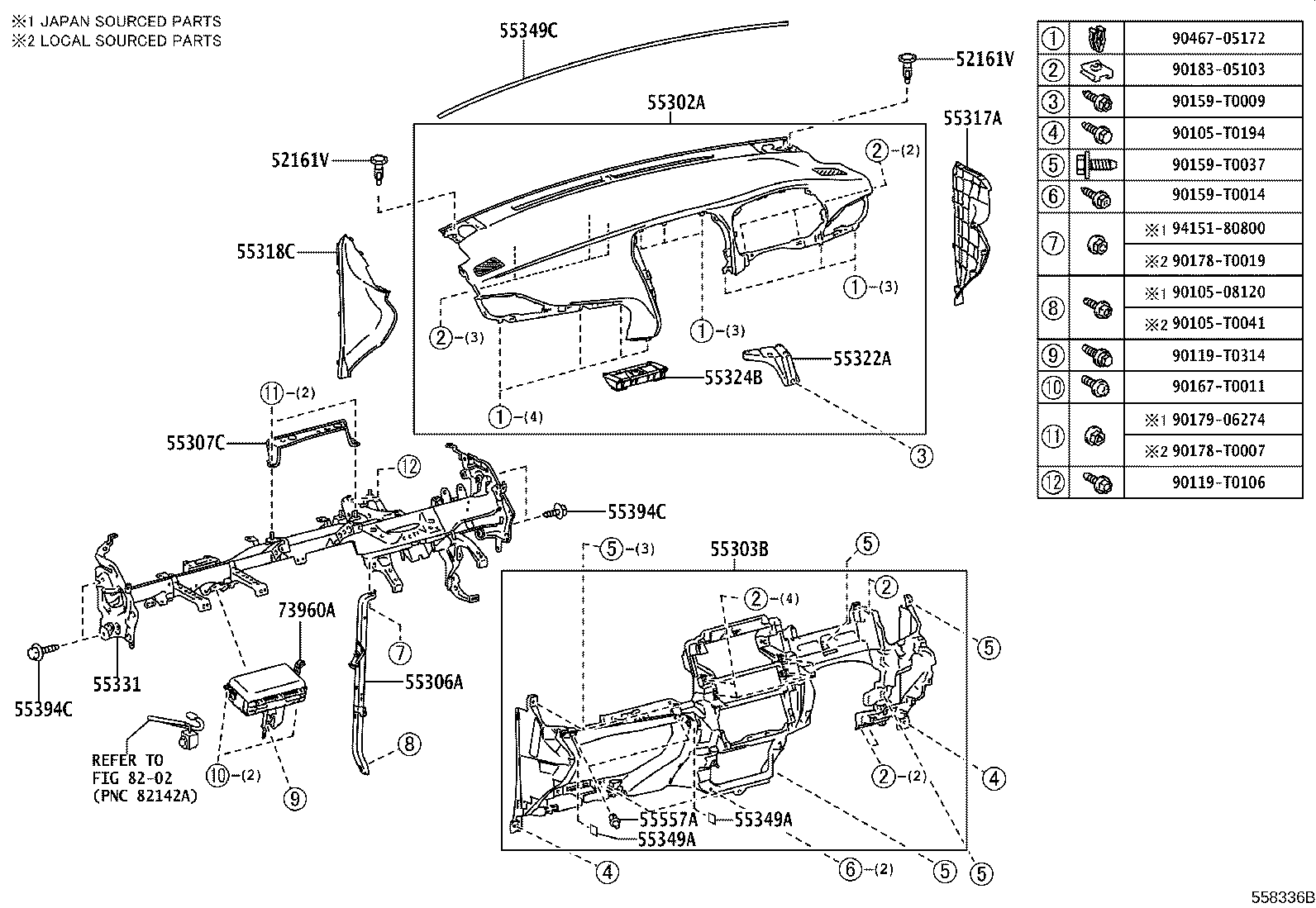

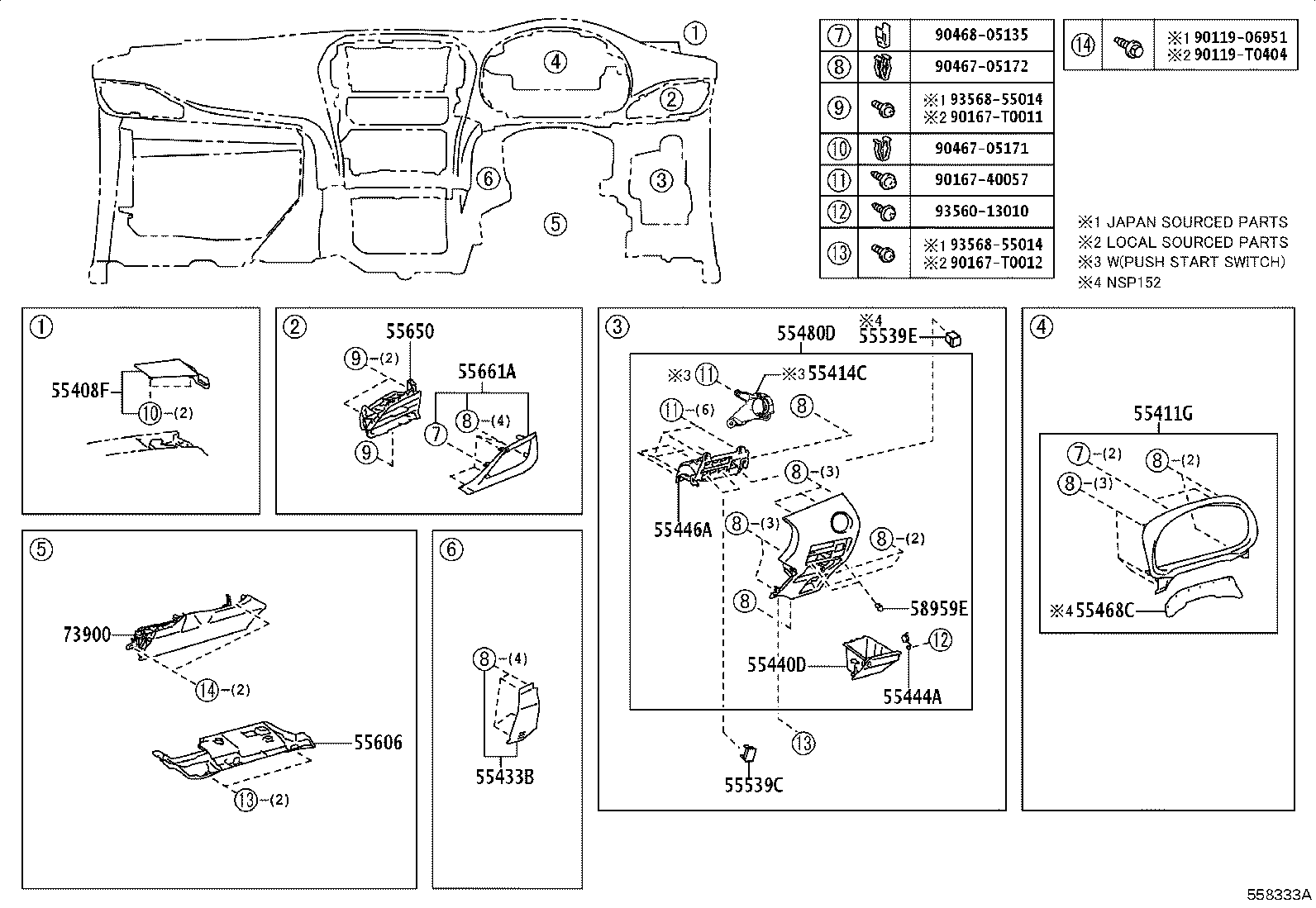

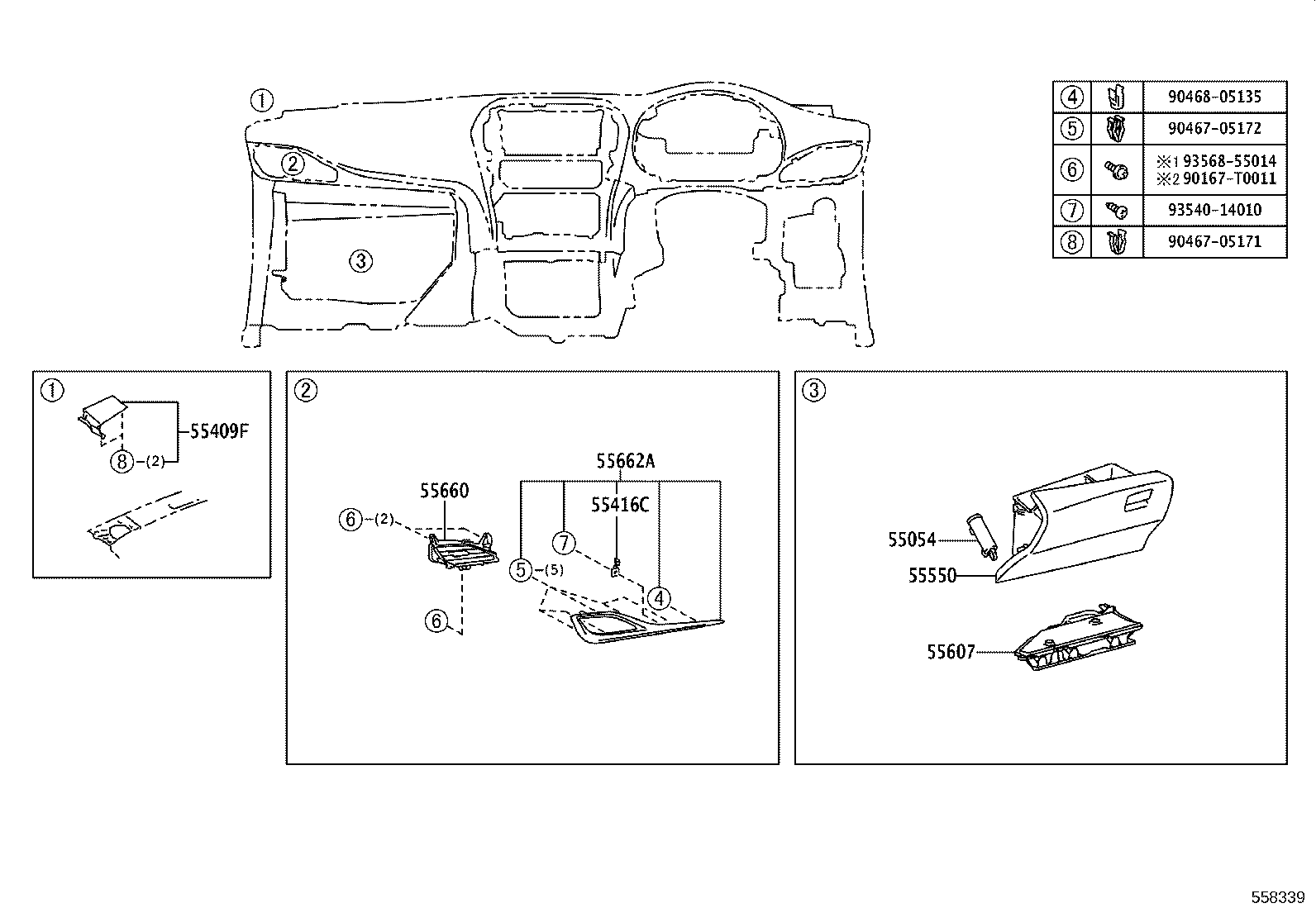

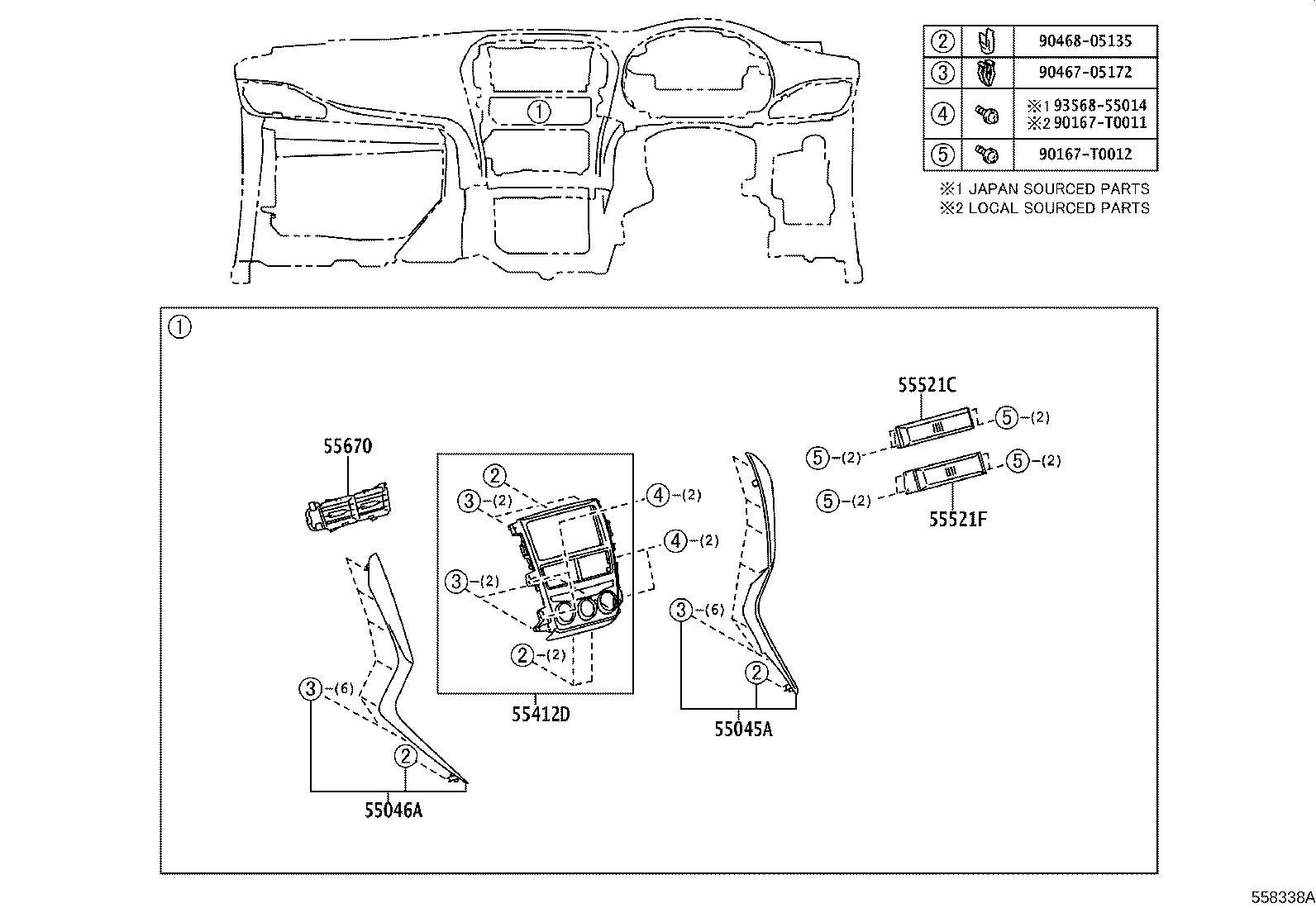

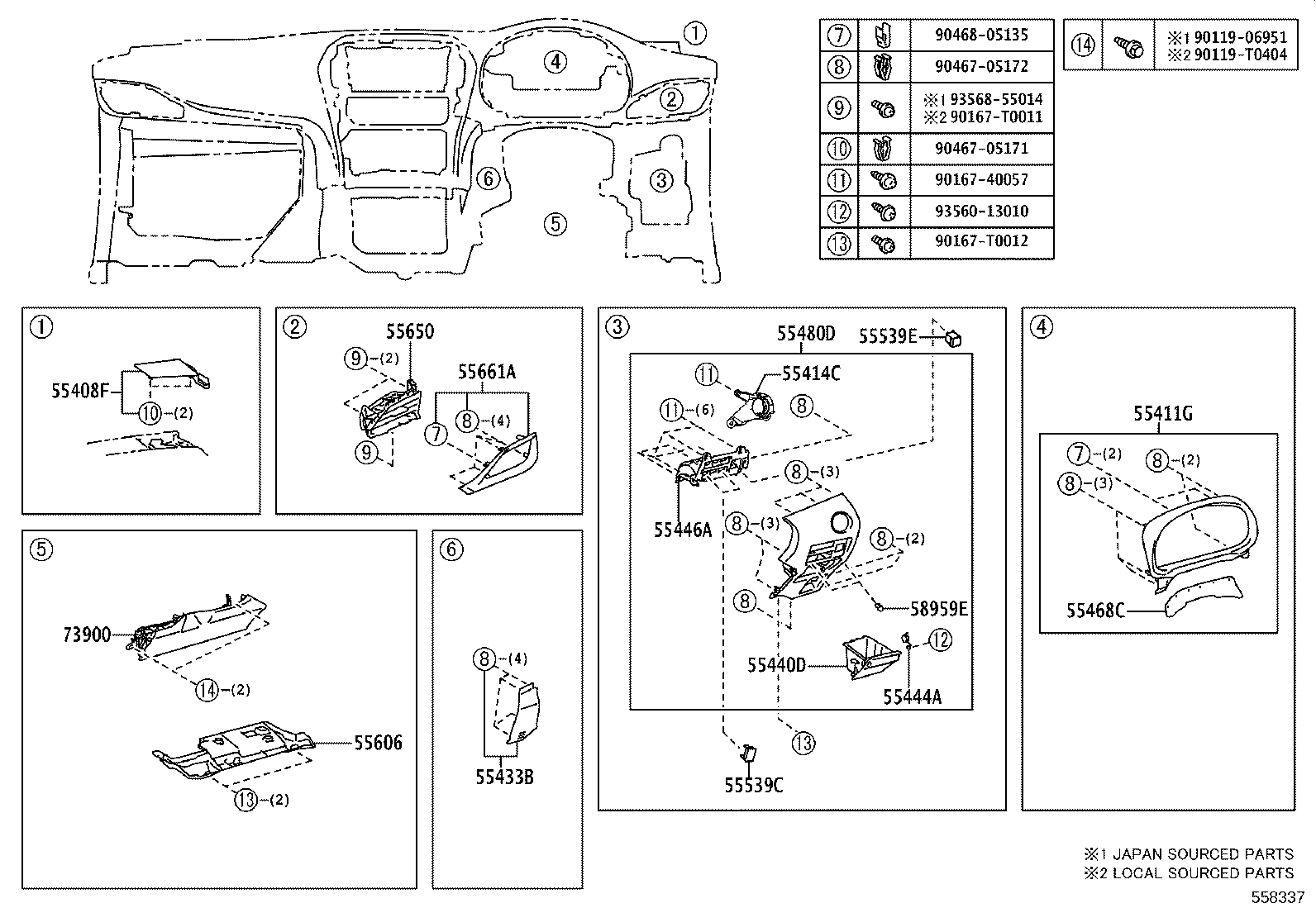

Figure 558324B 558324B 2023-03 → — Figure 558325 558325 2023-03 → — Figure 558326 558326 2023-03 → — Figure 558327 558327 2023-03 → — Figure 558328B 558328B 2023-03 → — Figure 558329A 558329A 2023-03 → — Figure 558330 558330 2023-03 → — Figure 558331 558331 2023-03 → — Figure 558332C 558332C 2023-03 → — Figure 558333A 558333A 2023-03 → — Figure 558334 558334 2023-03 → — Figure 558335A 558335A 2023-03 → — Figure 558336B 558336B 2023-05 → — Figure 558337 558337 2023-05 → — Figure 558338A 558338A 2023-05 → — Figure 558339 558339 2023-05 → —

Part groups

PNCDescription
52161V Piece, Instrument Panel
55045A Panel Sub-assy, Instrument Panel Finish, Lower RH
55046A Panel Sub-assy, Instrument Panel Finish, Lower LH
55054 Stopper Sub-assy, Glove Compartment Door
55302A Panel Sub-assy, Instrument, Upper
55303B Panel Sub-assy, Instrument, Lower
55306A Brace Sub-assy, Instrument Panel, NO.1
55307C Brace Sub-assy, Instrument Panel, NO.2
55317A Panel, Instrument Side, RH
55318C Panel, Instrument Side, LH
55322A Bracket, Instrument Panel, NO.2
55324B Bracket, Instrument Panel, NO.4
55331 Reinforcement, Instrument Panel
55349A Cushion, Instrument Panel
55349C Cushion, Instrument Panel
55394C Bolt, Instrument Panel
55404D Panel Sub-assy, Instrument Cluster Finish
55408F Panel Sub-assy, Instrument Panel Speaker, NO.1
55409F Panel Sub-assy, Instrument Panel Speaker, NO.2
55411G Panel, Instrument Cluster Finish, NO.1
55412C Panel, Instrument Cluster Finish, Center NO.1
55412D Panel, Instrument Cluster Finish, Center
55413C Panel, Instrument Cluster Finish, Center NO.2
55414C Bezel, Starter Switch
55416C Retainer, Instrument Cluster Finish Panel
55422C Panel, Instrument Cluster Finish, Center Upper
55432B Panel, Instrument Panel Finish, Lower
55433B Panel, Instrument Panel Finish, Lower NO.2
55440D Box Assy, Instrument Panel
55444A Spring, Instrument Panel Box
55446A Base, Switch Hole, NO.1
55468C Seal, Instrument Cluster Finish Panel, NO.1
55480D Panel Assy, Instrument Panel Finish, Lwr
55521C Cover, Stereo Opening
55521F Cover, Stereo Opening, NO.2
55522B Cover, Radio Tuner Opening
55539C Cover, Spare Switch Hole
55539E Cover, Spare Switch Hole
55550 Door Assy, Glove Compartment
55557A Cushion, Glove Compartment Door Check
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55661A Bezel, Instrument Panel Register
55662A Bezel, Instrument Panel Resister, NO.2
55670 Register Assy, Instrument Panel, NO.3
58959E Cushion, Console Compartment Door
73900 Airbag Assy, Instrument Panel, Lower NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
