Toyota Vios/Yaris

2023-03 → present · chassis NSP15# · catalogue 149340 · United States

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

57 part groups · 9 illustrations

Illustrations

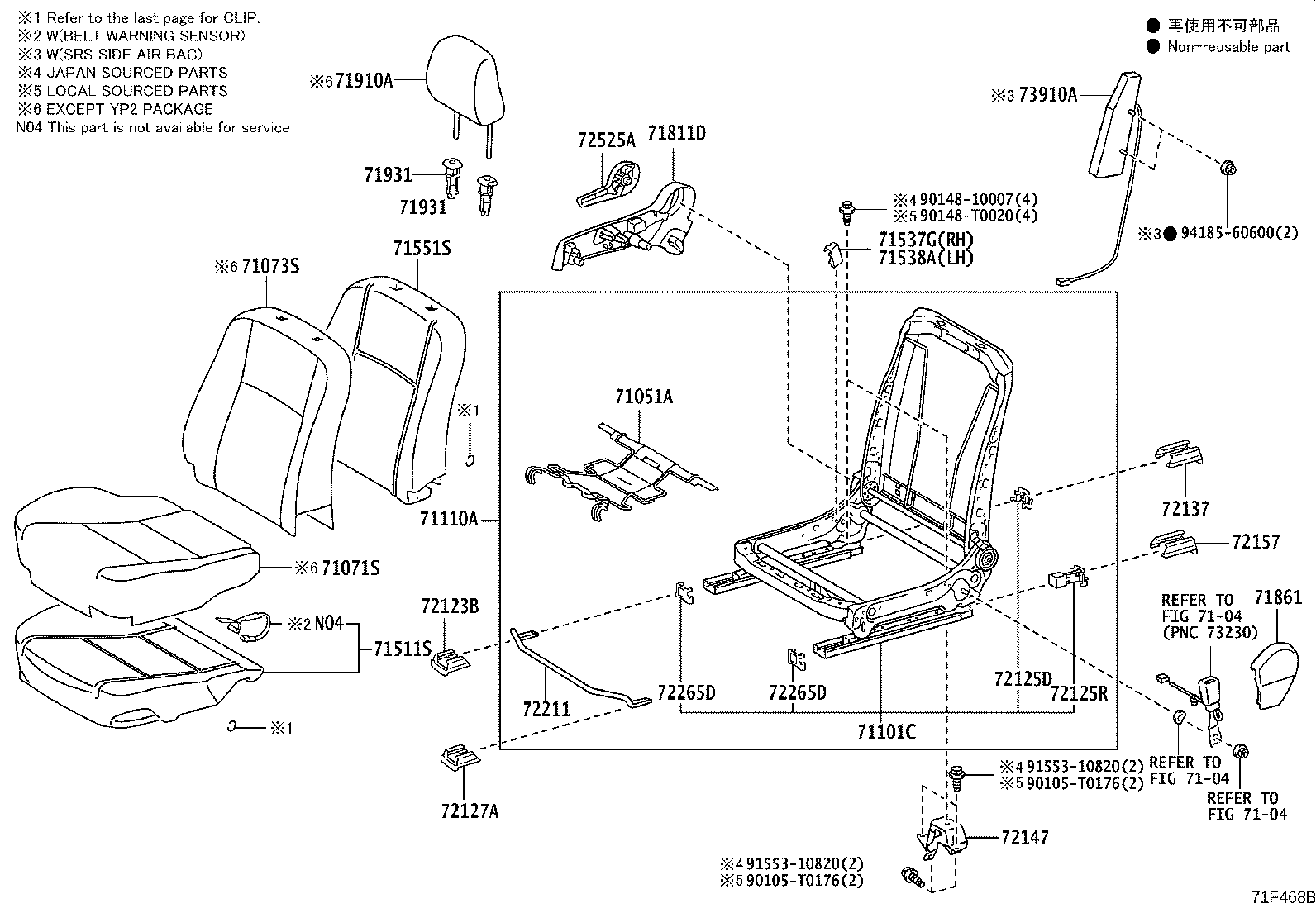

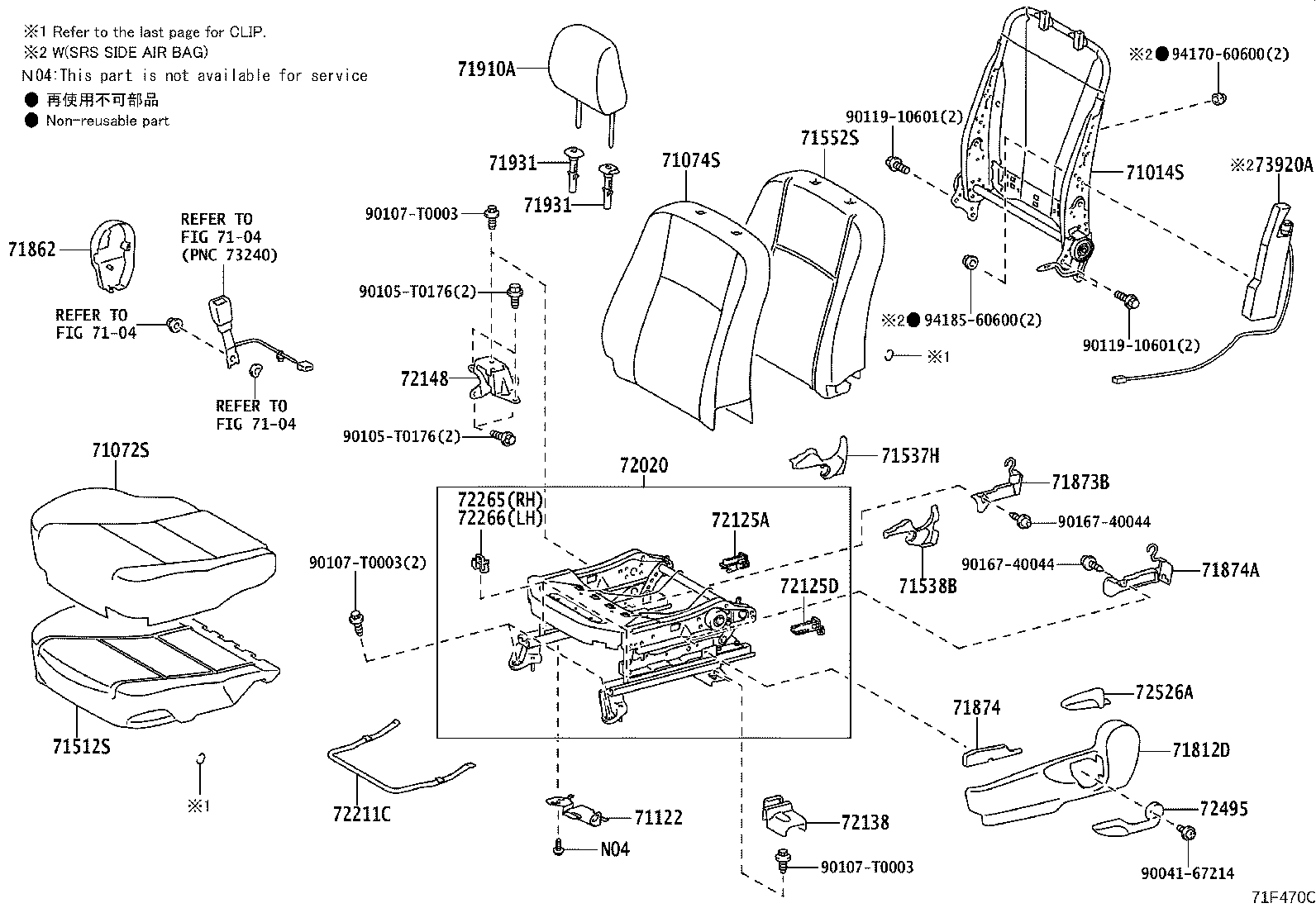

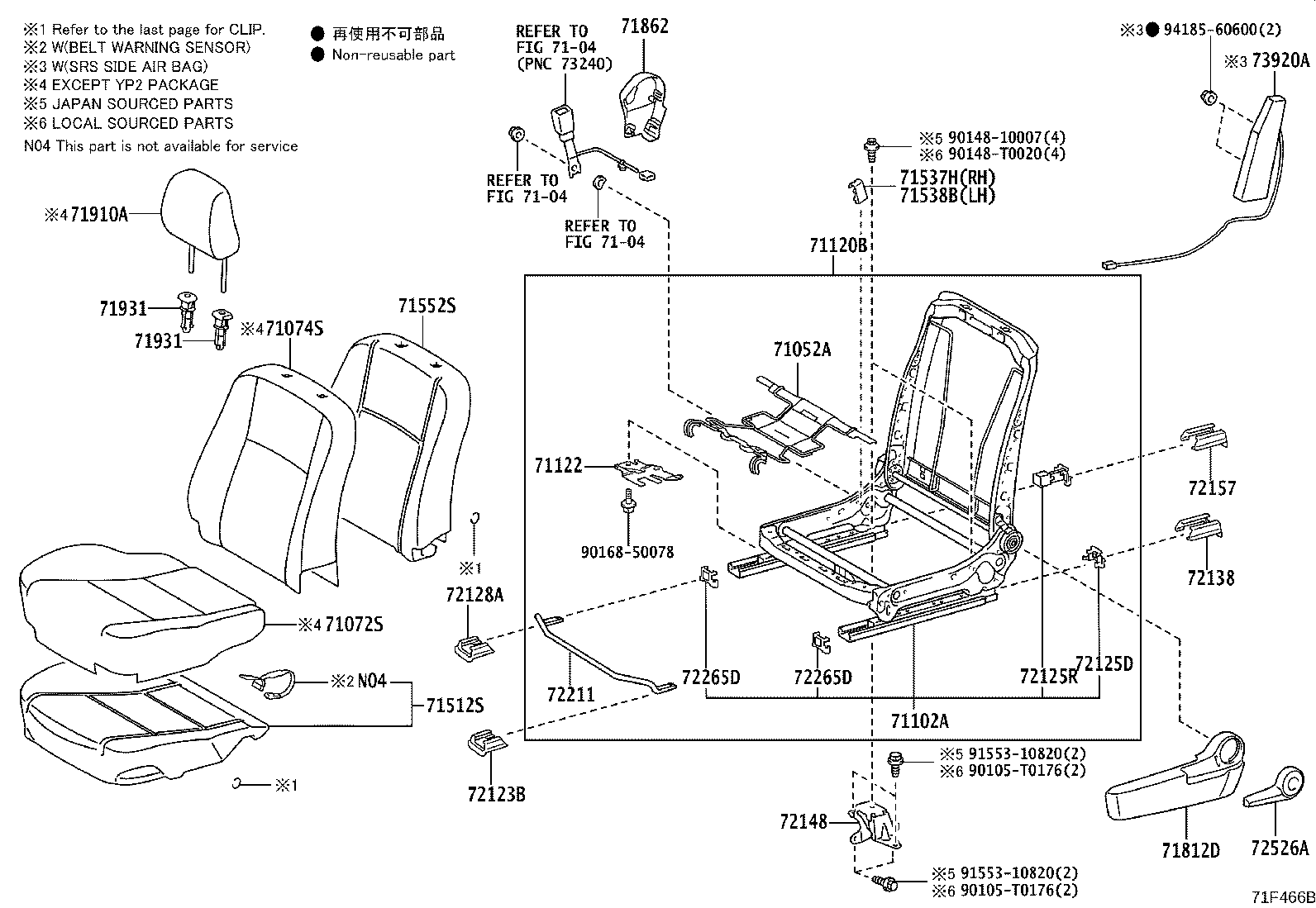

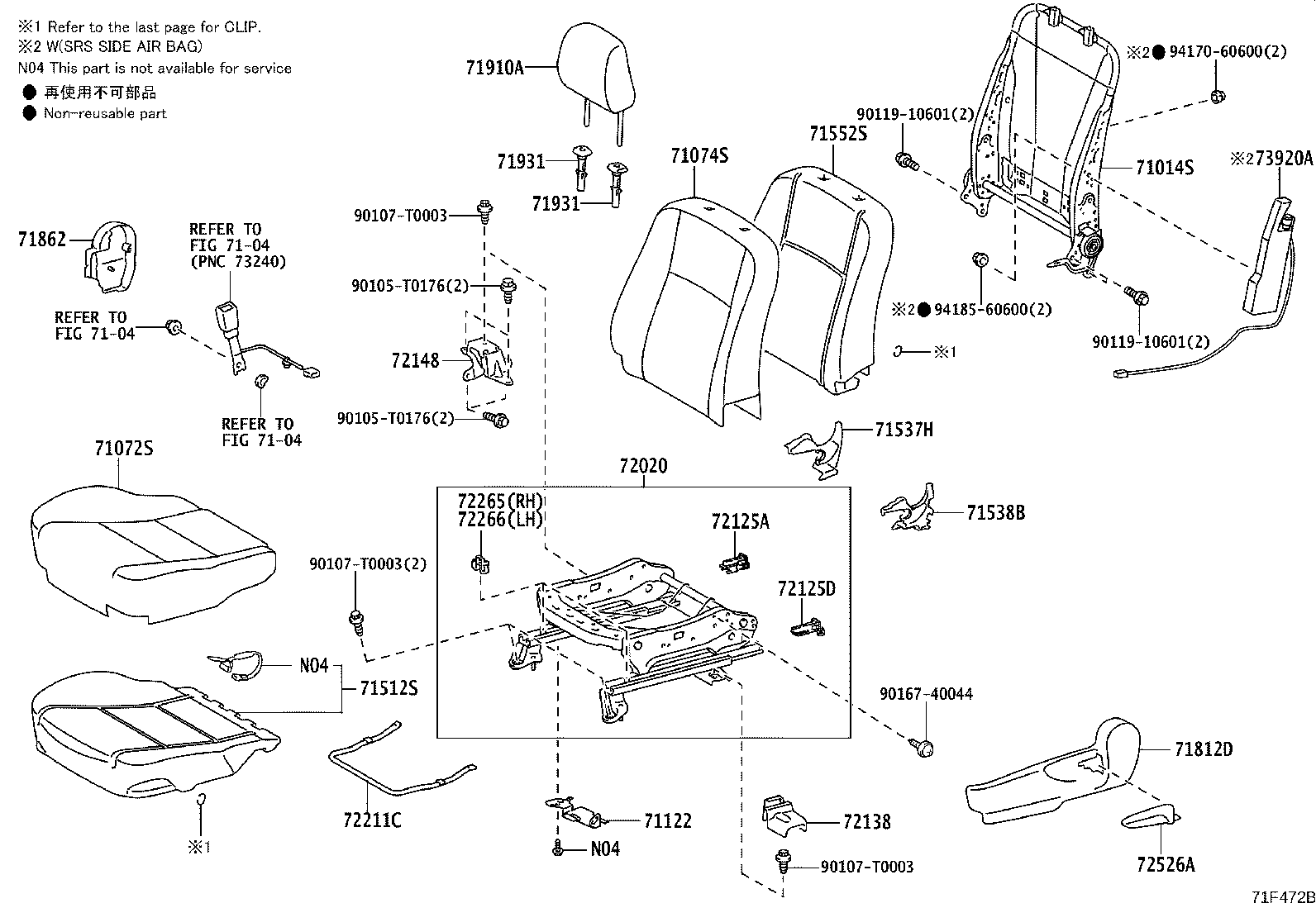

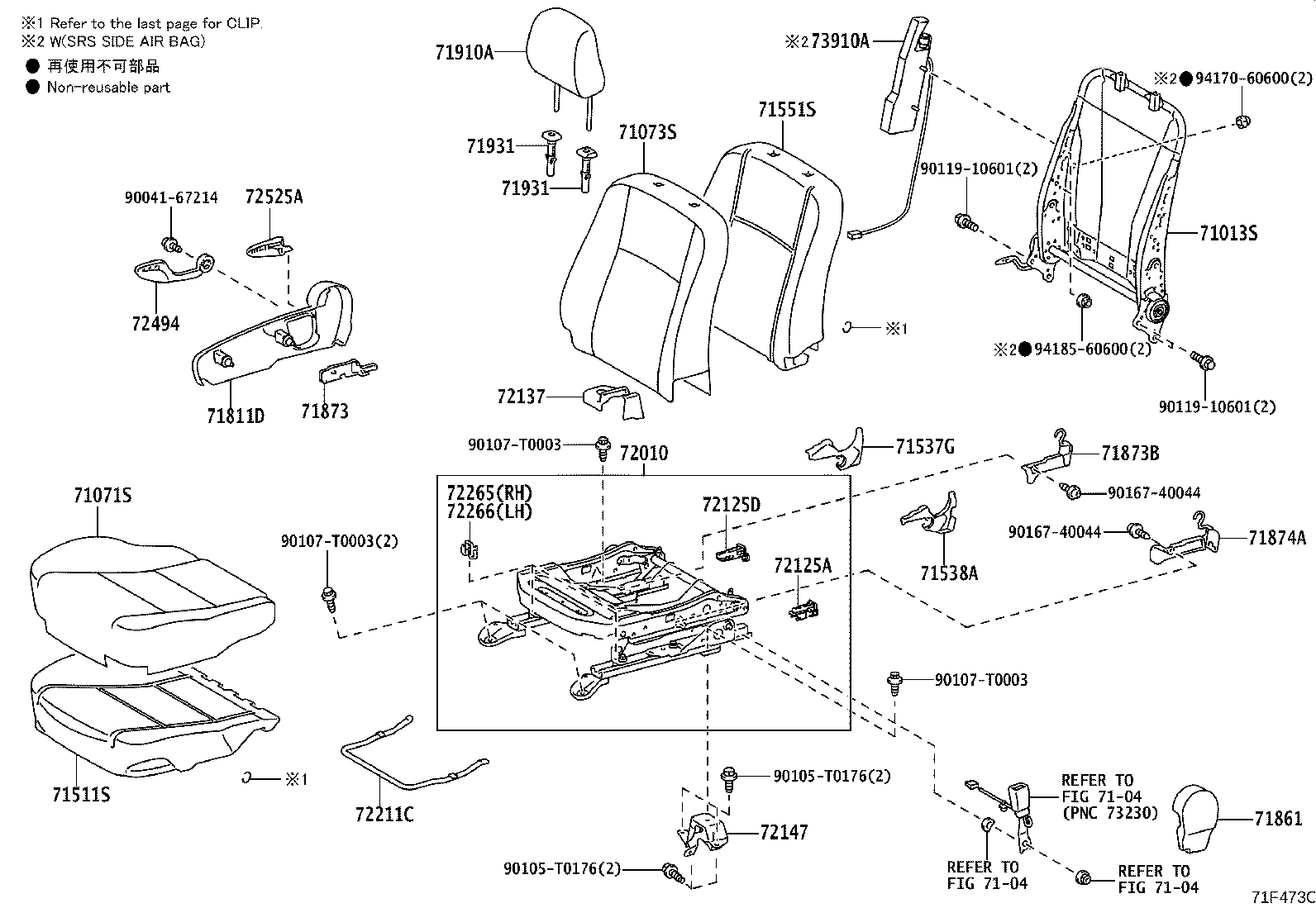

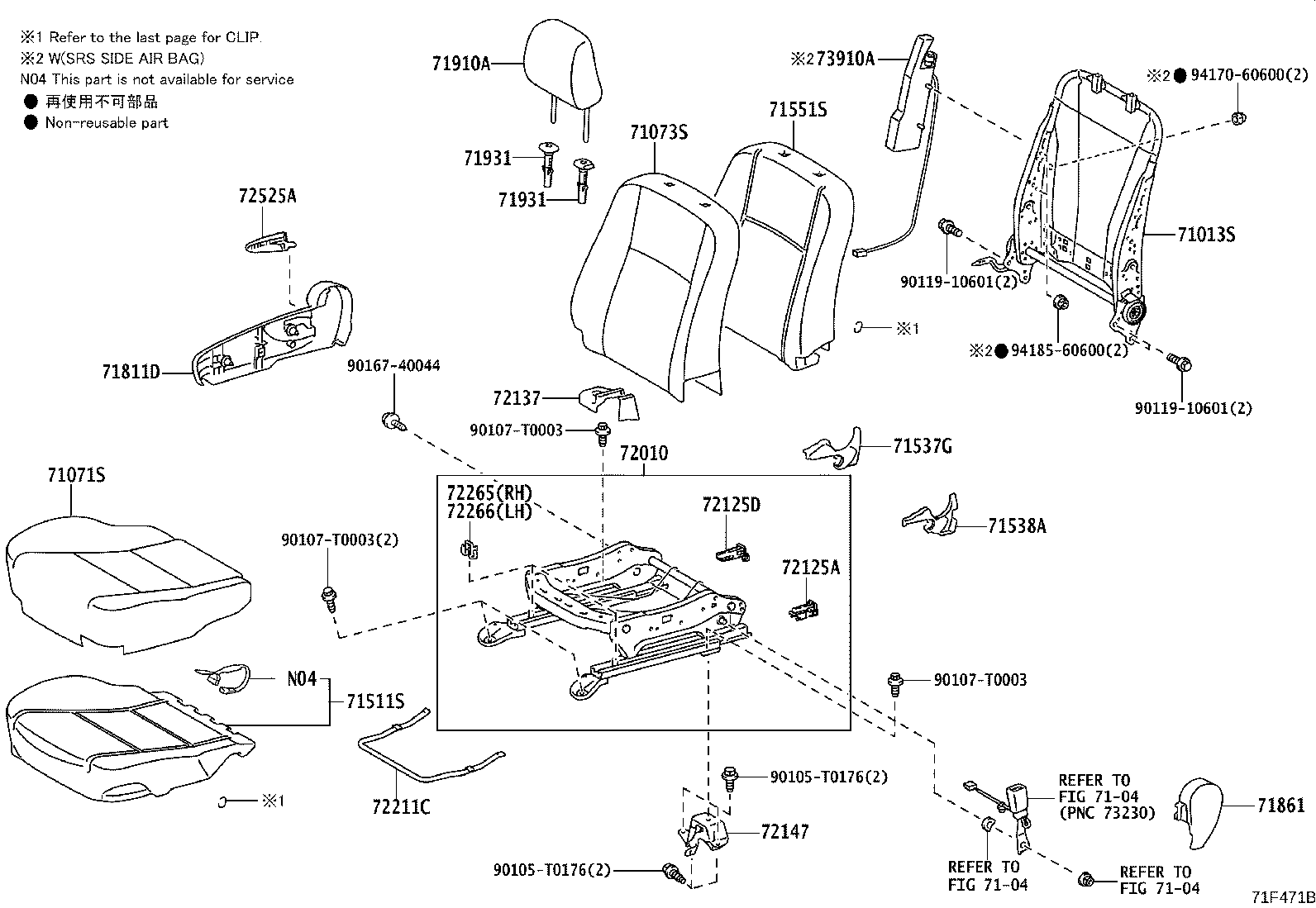

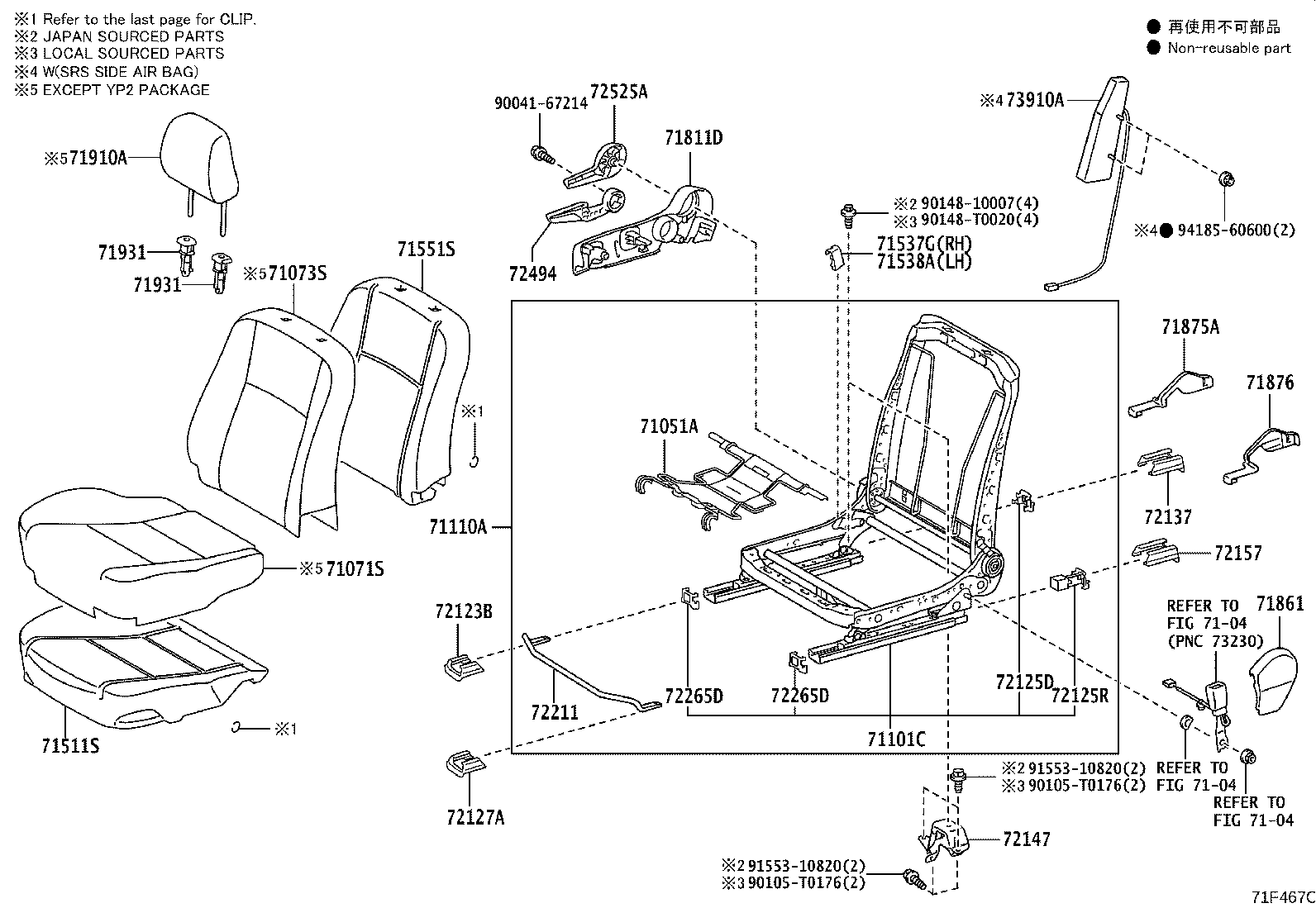

Figure 71F465C 71F465C 2023-03 → — Figure 71F466B 71F466B 2023-03 → — Figure 71F467C 71F467C 2023-03 → — Figure 71F468B 71F468B 2023-03 → — Figure 71F470C 71F470C 2023-04 → — Figure 71F471B 71F471B 2023-04 → — Figure 71F472B 71F472B 2023-05 → — Figure 71F473C 71F473C 2023-05 → — Figure 71F474A 71F474A 2023-03 → —

Part groups

PNCDescription
71013S Frame Sub-assy, Front Seatback, RH
71014S Frame Sub-assy, Front Seatback, LH
71051A Spring Sub-assy, Front Seat Cushion, RH
71052A Spring Sub-assy, Front Seat Cushion, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71101C Seat Sub-assy, Front RH
71102A Seat Sub-assy, Front LH
71110A Frame Assy, Front Seat W/Adjuster, RH
71120B Frame Assy, Front Seat W/Adjuster, LH
71122 Bracket, Front Seat Cushion, LH
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537G Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
71537H Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
71538A Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
71538B Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71873 Shield, Front Seat Cushion, Lower RH
71873B Shield, Front Seat Cushion, Lower RH, NO.1
71874 Shield, Front Seat Cushion, Lower LH
71874A Shield, Front Seat Cushion, Lower LH
71875A Cover, Reclining Adjuster Inside, RH
71876 Cover, Reclining Adjuster Inside, LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
72010 Adjuster Assy, Front Seat, RH
72020 Adjuster Assy, Front Seat, LH
72123B Cover, Seat Track Bracket, Outer Front
72125A Cover, Seat Track, Upper Rear
72125D Cover, Seat Track, Upper Rear NO.2
72125R Cover, Seat Track, Upper Rear NO.1
72127A Cover, Seat Track Bracket, Inner Front RH
72128A Cover, Seat Track Bracket, Inner Front LH
72137 Cover, Seat Track, Outer RH
72138 Cover, Seat Track, Outer LH
72147 Bracket, Front Inner Seat Track, Lower Rear RH
72148 Bracket, Front Inner Seat Track, Lower Rear LH
72157 Cover, Seat Track Bracket, Inner
72211 Handle, Seat Track Adjusting
72211C Handle, Seat Track Adjusting
72265 Cover, Seat Track Upper Rail, RH
72265D Cover, Seat Track Upper Rail
72266 Cover, Seat Track Upper Rail, LH
72494 Handle, Vertical Adjusting, RH
72495 Handle, Vertical Adjusting, LH
72525A Handle, Reclining Adjuster Release, RH
72526A Handle, Reclining Adjuster Release, LH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
