Toyota Vios/Yaris
2023-03 → present · chassis NSP15# · catalogue 149340 · United States
Supported model
Data version 2024-06

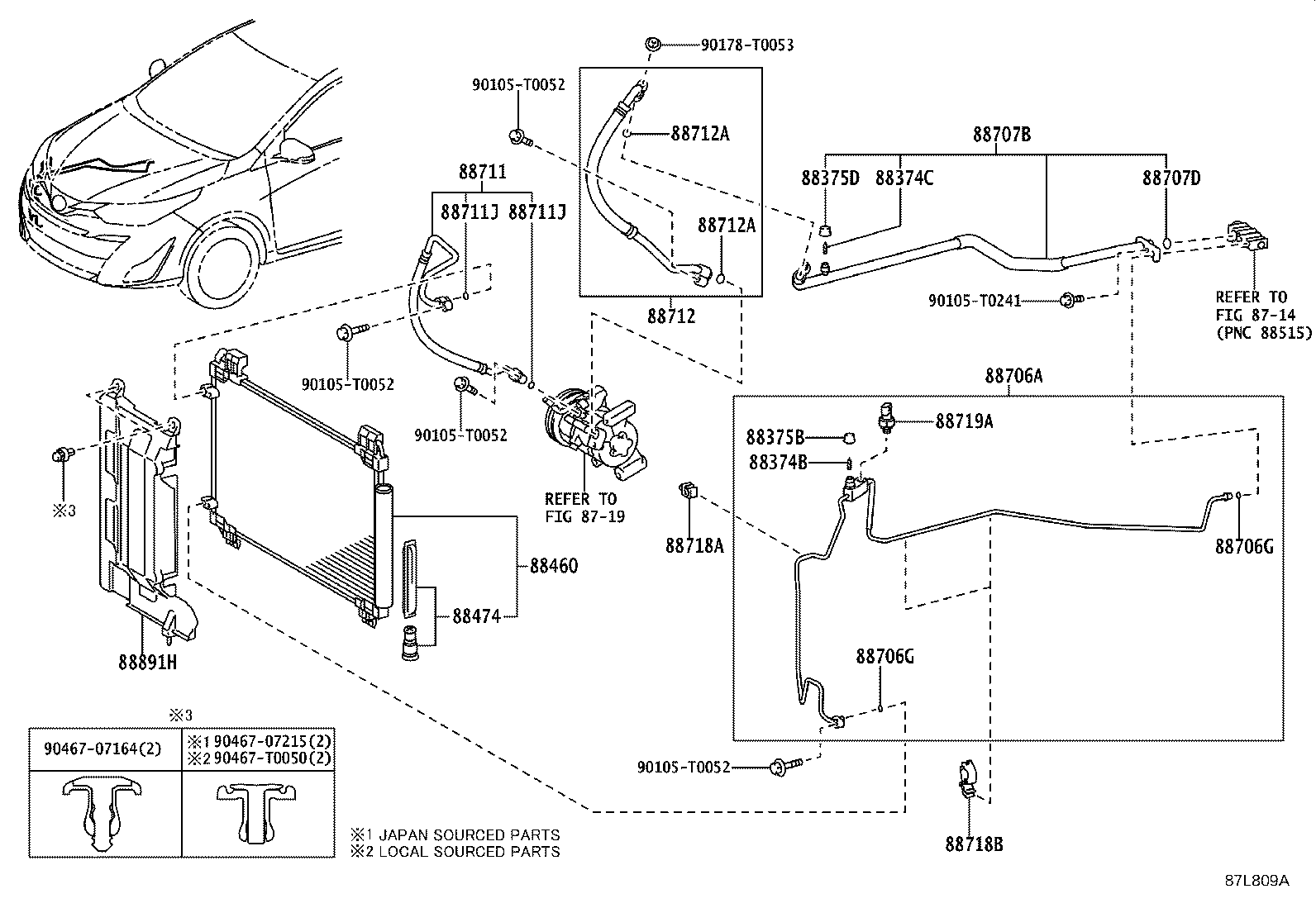

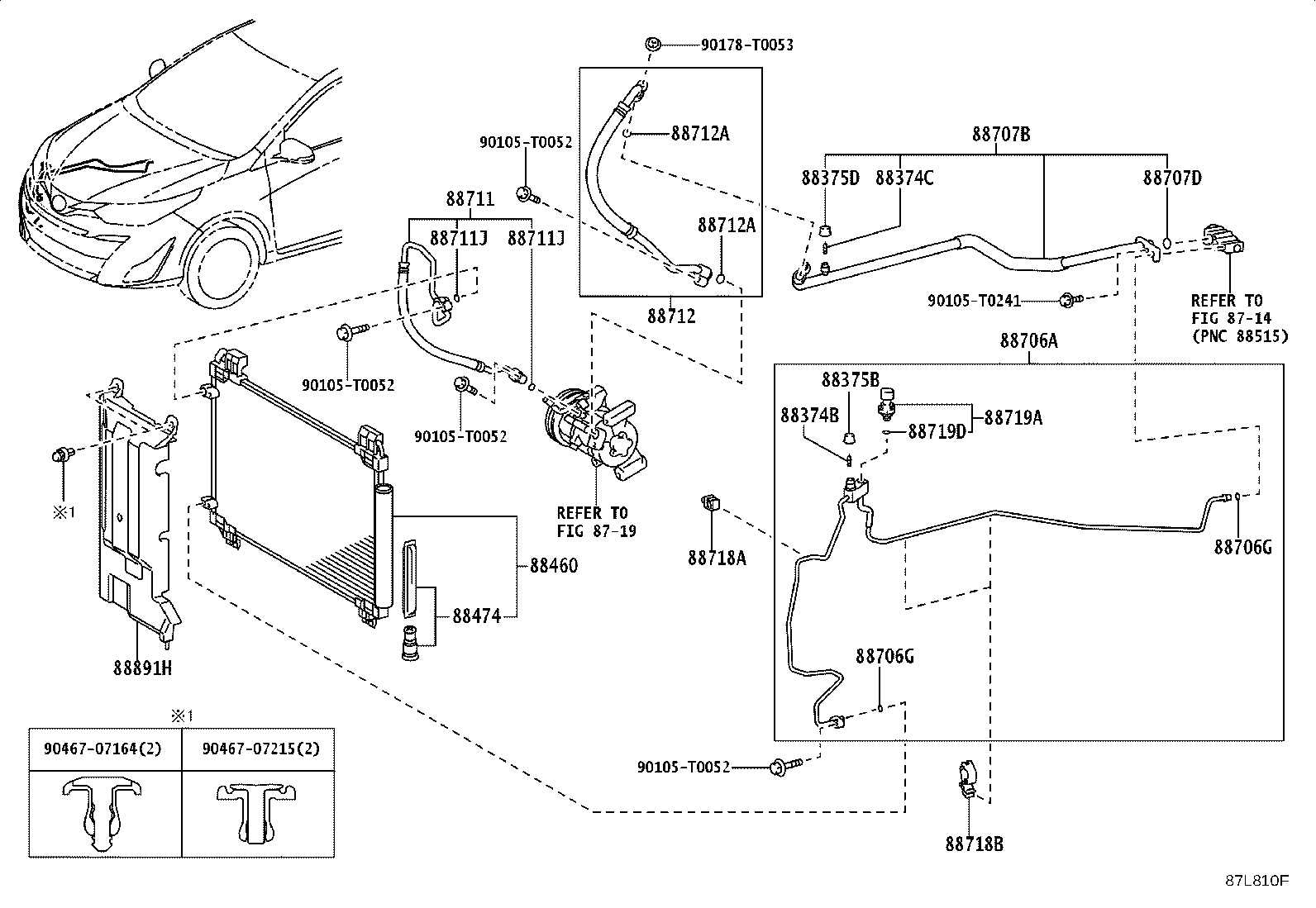

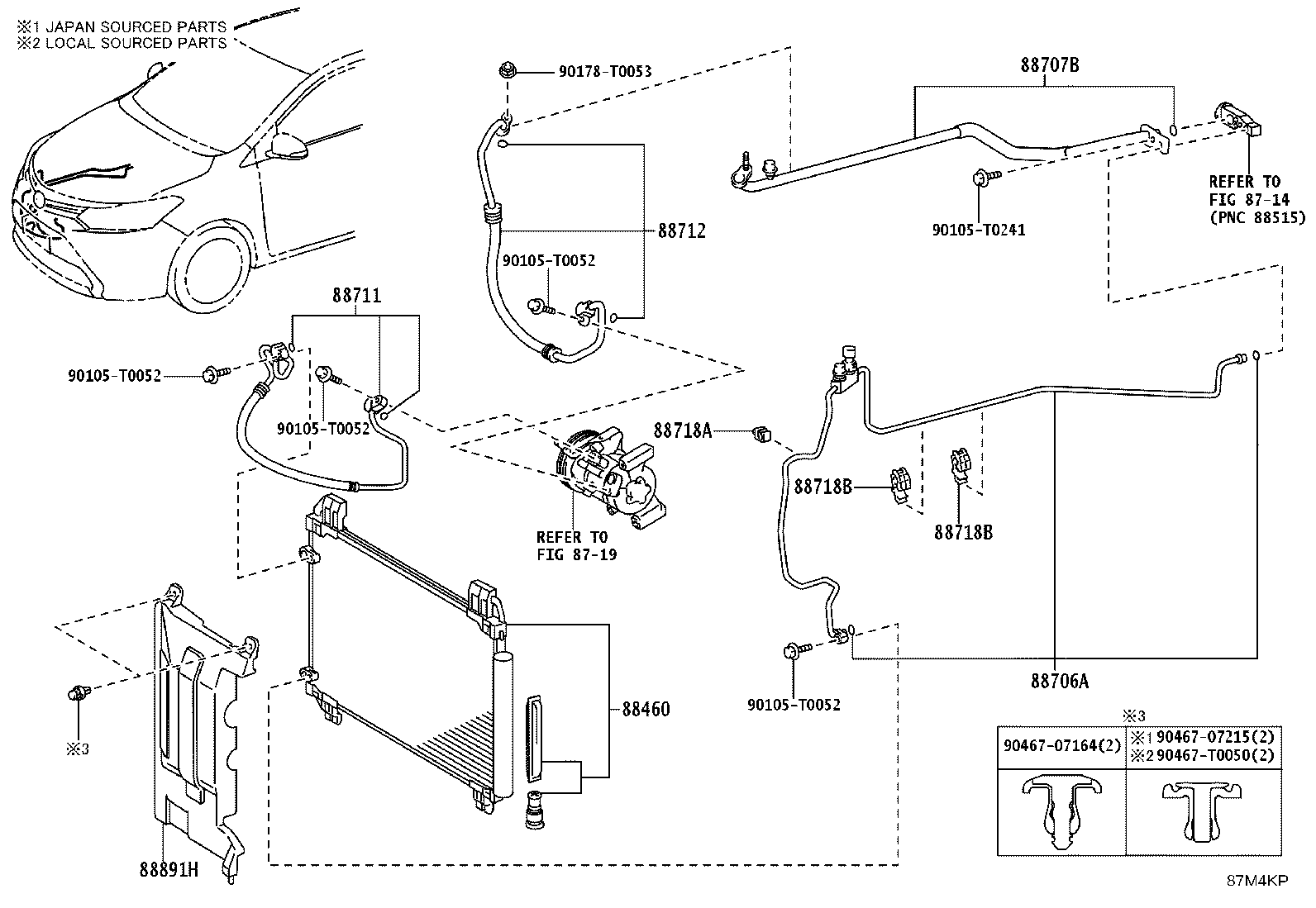

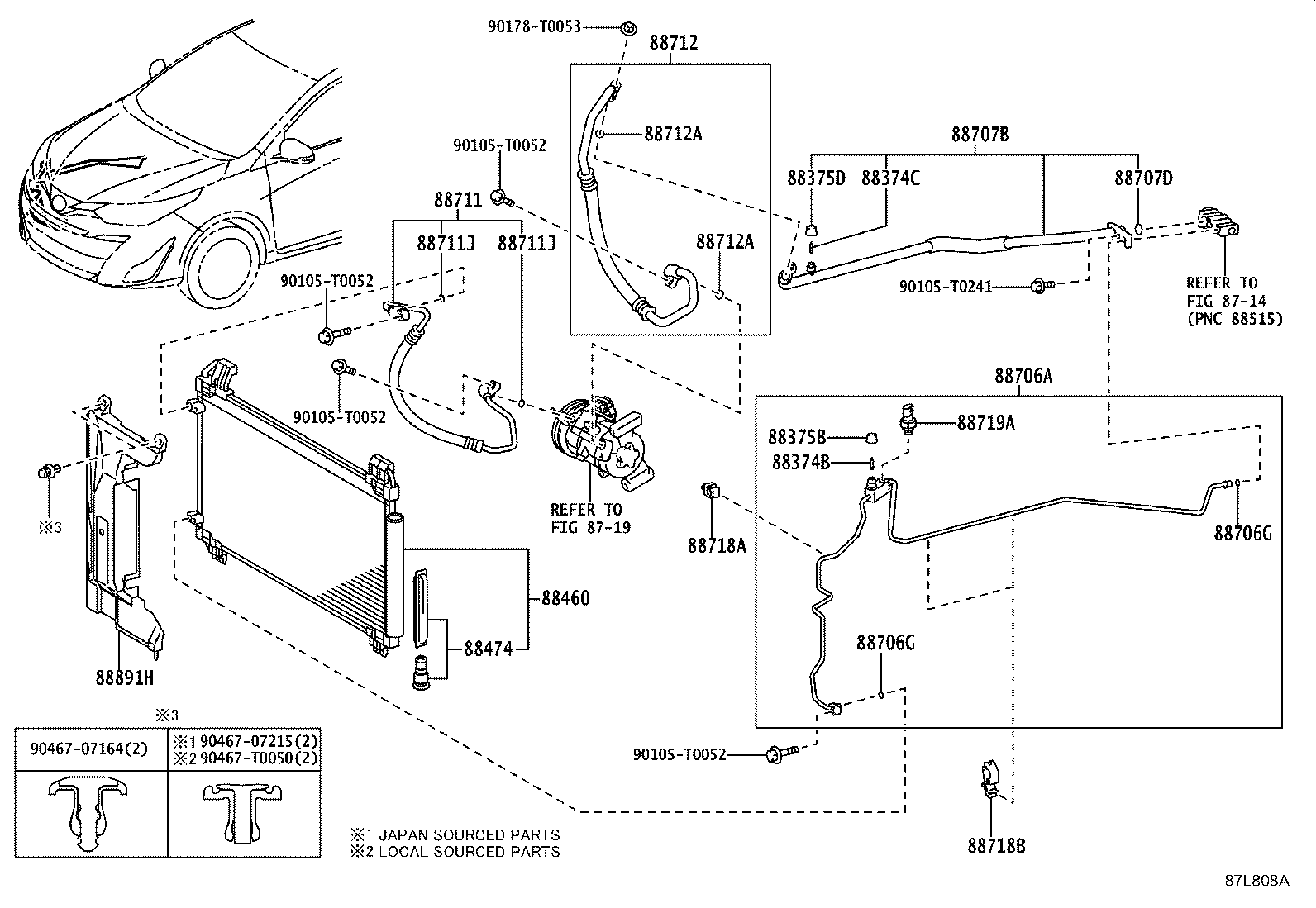

Heating & Air Conditioning - Cooler Piping
19 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 88374B | Valve, Service, NO.1 |
| 88374C | Valve, Service, NO.2 |
| 88375B | Cap, Service Valve, NO.1 |
| 88375D | Cap, Service Valve, NO.2 |
| 88460 | Condenser Assy, Cooler |
| 88474 | Dryer, Cooler |
| 88706A | Tube Sub-assy, Liquid, A |
| 88706G | Ring, O(FOR LIQUID TUBE) |
| 88707B | Tube Sub-assy, Suction, B |
| 88707D | Ring, O(FOR SUCTION TUBE) |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88711J | Ring, O, NO.1(FOR DISCHARGE HOSE) |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88712A | Ring, O(FOR COOLER REFRIGERANT SUCTION HOSE) |
| 88718A | Clamp, NO.1(FOR COOLER REFRIGERANT PIPE) |
| 88718B | Clamp, NO.2(FOR COOLER REFRIGERANT PIPE) |
| 88719A | Sensor, Air Conditioner Pressure |
| 88719D | Ring, O(FOR AIR CONDITIONER PRESSURE SENSOR) |
| 88891H | Cover, Cooler, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
