Toyota Vios/Yaris
2023-03 → present · chassis NSP15# · catalogue 149340 · United States
Supported model
Data version 2024-06
Heating & Air Conditioning - Compressor
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 88301 | Rotor Sub-assy, Magnet Clutch |
| 88302 | Stator Sub-assy, Magnet Clutch |

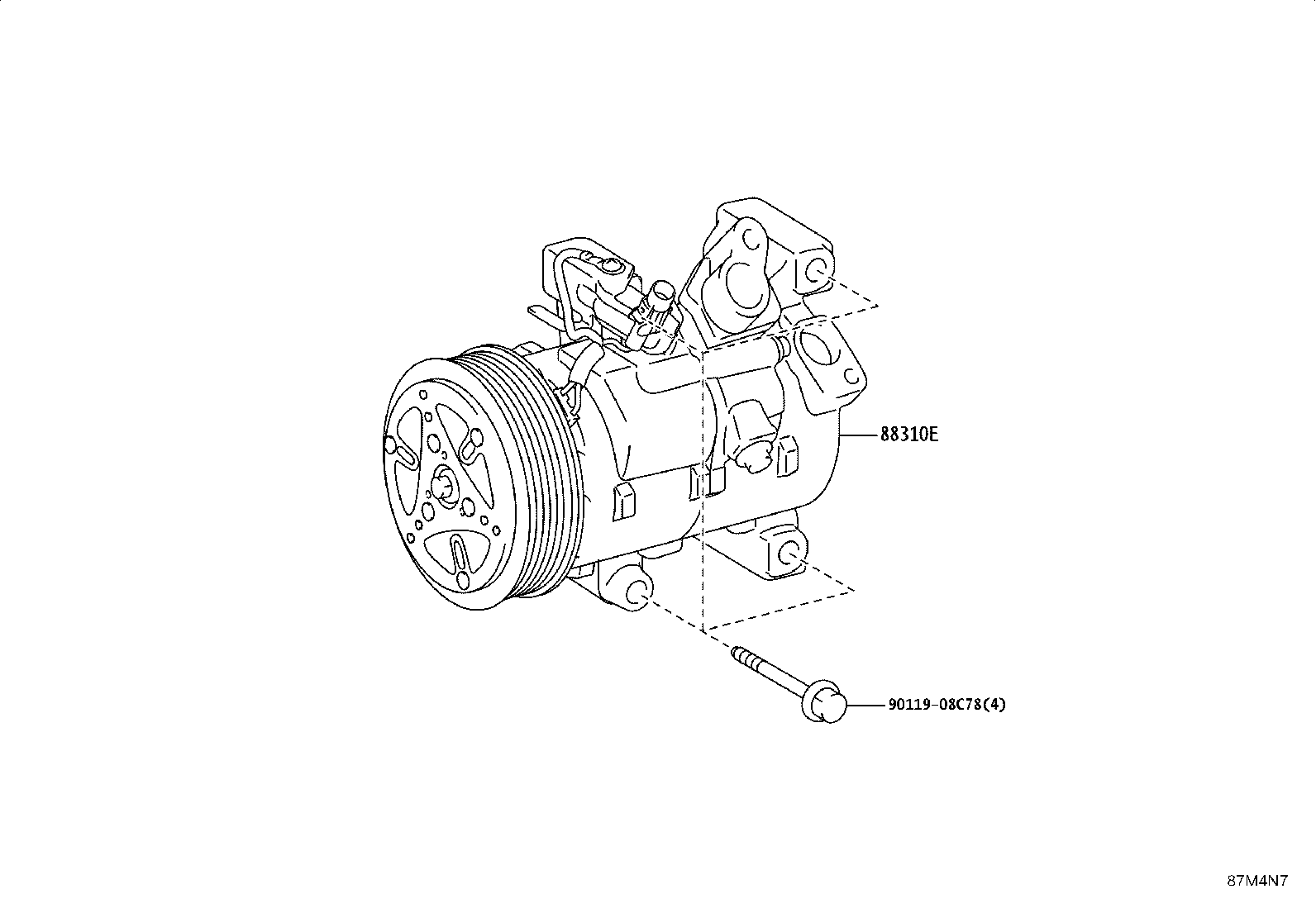

| 88310E | Compressor, W/Magnet Clutch |

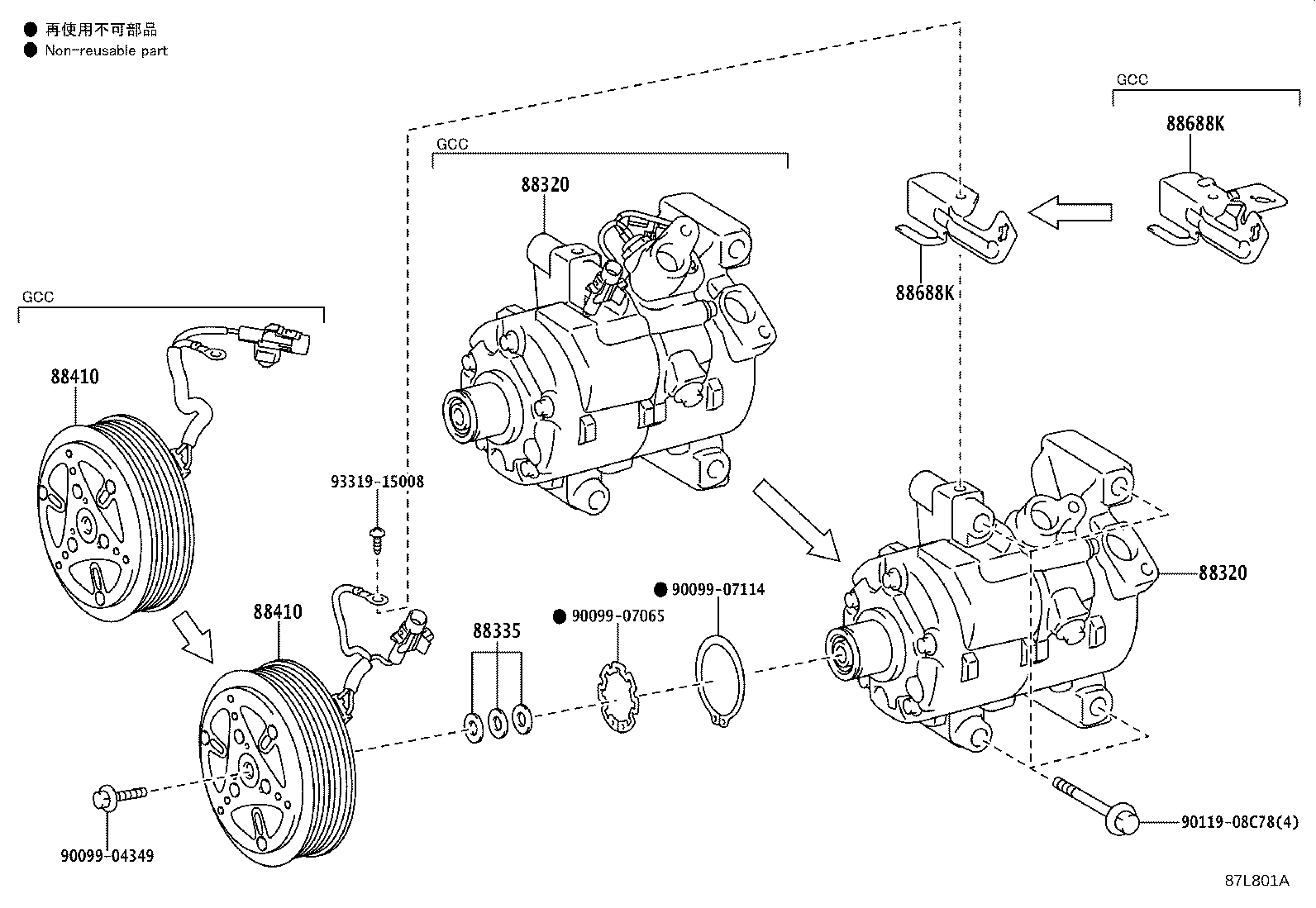

| 88320 | Compressor Assy, Cooler |
| 88335 | Gasket Kit, Overhaul |
| 88403 | Hub Sub-assy, Magnet Clutch |
| 88410 | Clutch Assy, Magnet |
| 88688K | Bracket, Cooler Compressor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
