Toyota Corolla Sed (JPP)

2002-04 → 2007-06 · chassis ZZE130 · catalogue 151450 · United States

Discontinued model Data version 2008-06

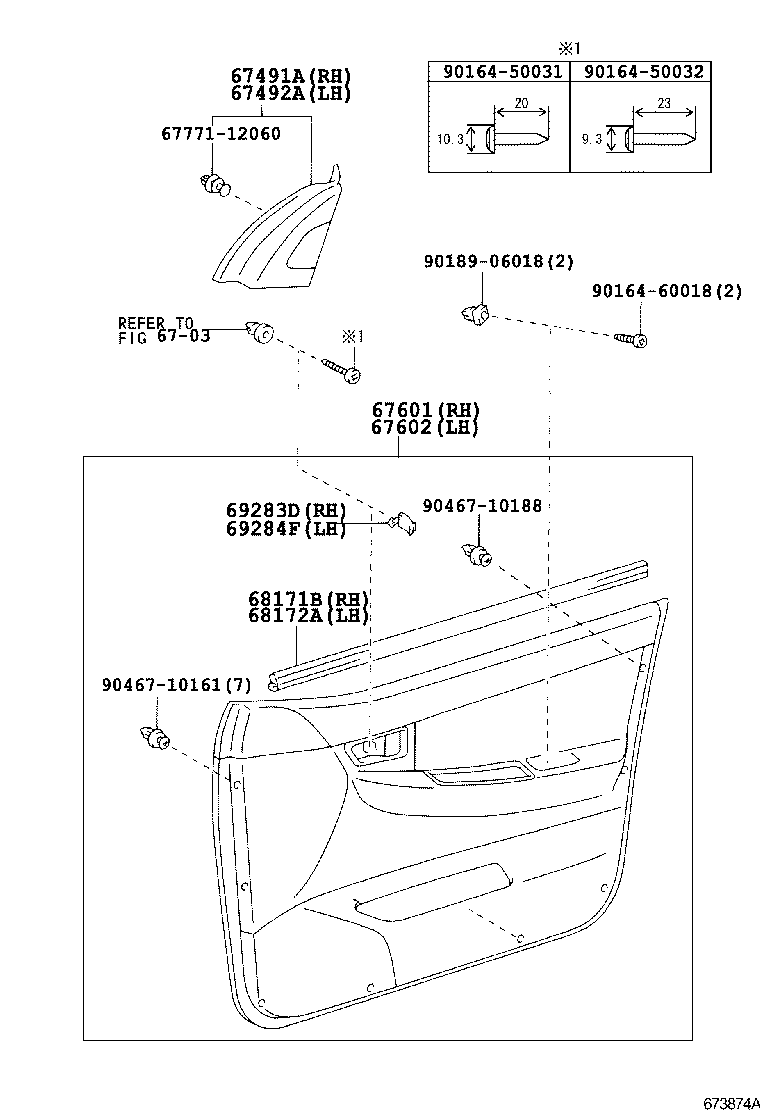

Front Door Panel & Glass

36 part groups · 2 illustrations

PNC	Description
67001	Panel Sub-assy, Front Door, RH
67002	Panel Sub-assy, Front Door, LH
67111	Panel, Front Door, Outer RH
67112	Panel, Front Door, Outer LH
67403F	Frame Sub-assy, Front Door, Rear Lower RH
67404F	Frame Sub-assy, Front Door, Rear Lower LH
67443E	Plate, Front Door Inside Panel, RH
67444C	Plate, Front Door Inside Panel, LH
67491A	Garnish, Front Door Lower Frame Bracket, RH
67492A	Garnish, Front Door Lower Frame Bracket, LH
67495A	Cover, Front Door Front Lower Frame, Upper RH
67496A	Cover, Front Door Front Lower Frame, Upper LH
67601	Board Sub-assy, Front Door Trim, RH
67602	Board Sub-assy, Front Door Trim, LH
67831	Cover, Front Door Service Hole, RH
67832	Cover, Front Door Service Hole, LH
67861	Weatherstrip, Front Door, RH
67862	Weatherstrip, Front Door, LH
67867C	Retainer, Front Door Weatherstrip, RH
67868C	Retainer, Front Door Weatherstrip, LH
67869B	Clip, Front Door Weatherstrip
67923	Cushion, Front Door Stiffener, NO.1
67924	Cushion, Front Door Stiffener, NO.2
68101	Glass Sub-assy, Front Door, RH
68102	Glass Sub-assy, Front Door, LH
68141C	Run, Front Door Glass, RH
68145A	Cushion, Front Door Window
68151C	Run, Front Door Glass, LH
68171B	Weatherstrip, Front Door Glass, Inner RH
68172A	Weatherstrip, Front Door Glass, Inner LH
68610B	Check Assy, Front Door, RH
68620	Check Assy, Front Door, LH
69283D	Plug, Front Door Inside Handle Bezel, RH
69284F	Plug, Front Door Inside Handle Bezel, LH
75921C	Tape, Black Out, NO.1 RH
75922M	Tape, Black Out, NO.1 LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
