Toyota Corolla Sed (JPP)

2002-04 → 2007-06 · chassis ZZE130 · catalogue 151450 · United States

Discontinued model Data version 2008-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

14 part groups · 2 illustrations

Illustrations

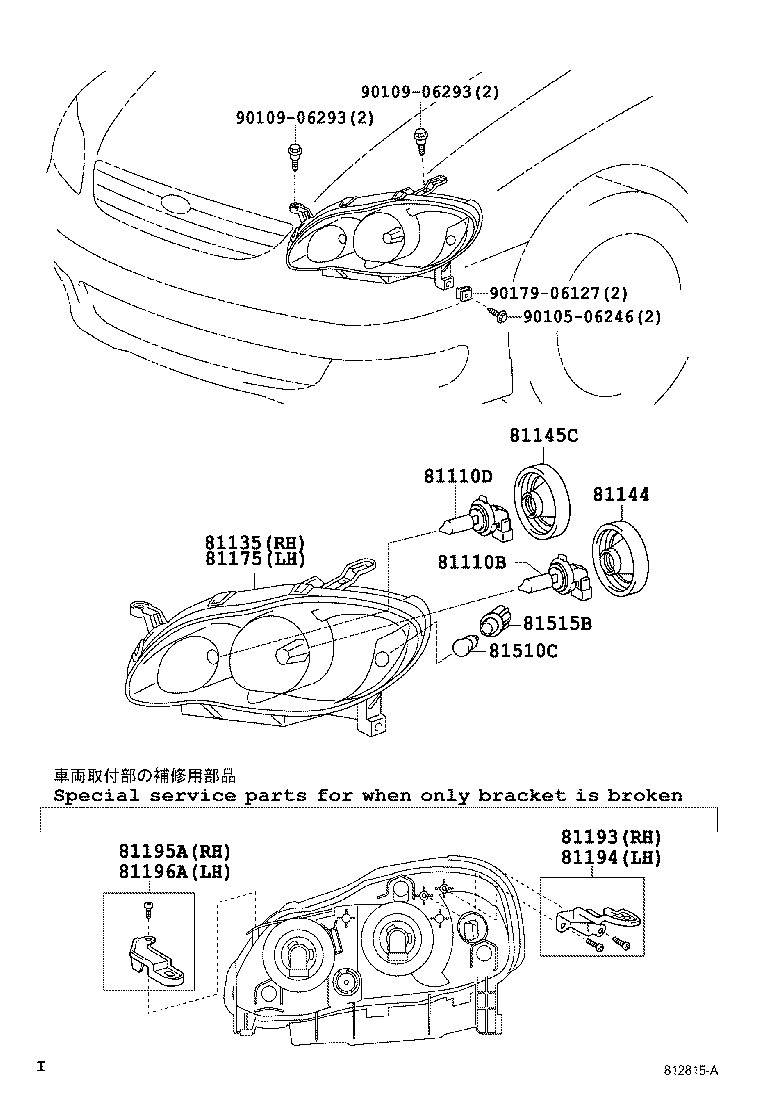

Figure 812119 812119 2002-04 → 2004-05 Figure 812815B 812815B 2004-05 → —

Part groups

PNCDescription
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81135 Unit Assy, Headlamp, RH
81144 Cover, Headlamp, NO.1
81145C Cover, Headlamp Socket, NO.2
81150 Headlamp Assy, LH
81175 Unit Assy, Headlamp, LH
81193 Retainer, Headlamp Protector, Upper RH
81194 Retainer, Headlamp Protector, Upper LH
81195A Retainer, Headlamp Protector, Lower RH
81196A Retainer, Headlamp Protector, Lower LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
