Toyota Corolla Sed (JPP)

2002-04 → 2007-06 · chassis ZZE130 · catalogue 151450 · United States

Discontinued model Data version 2008-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

28 part groups · 7 illustrations

Illustrations

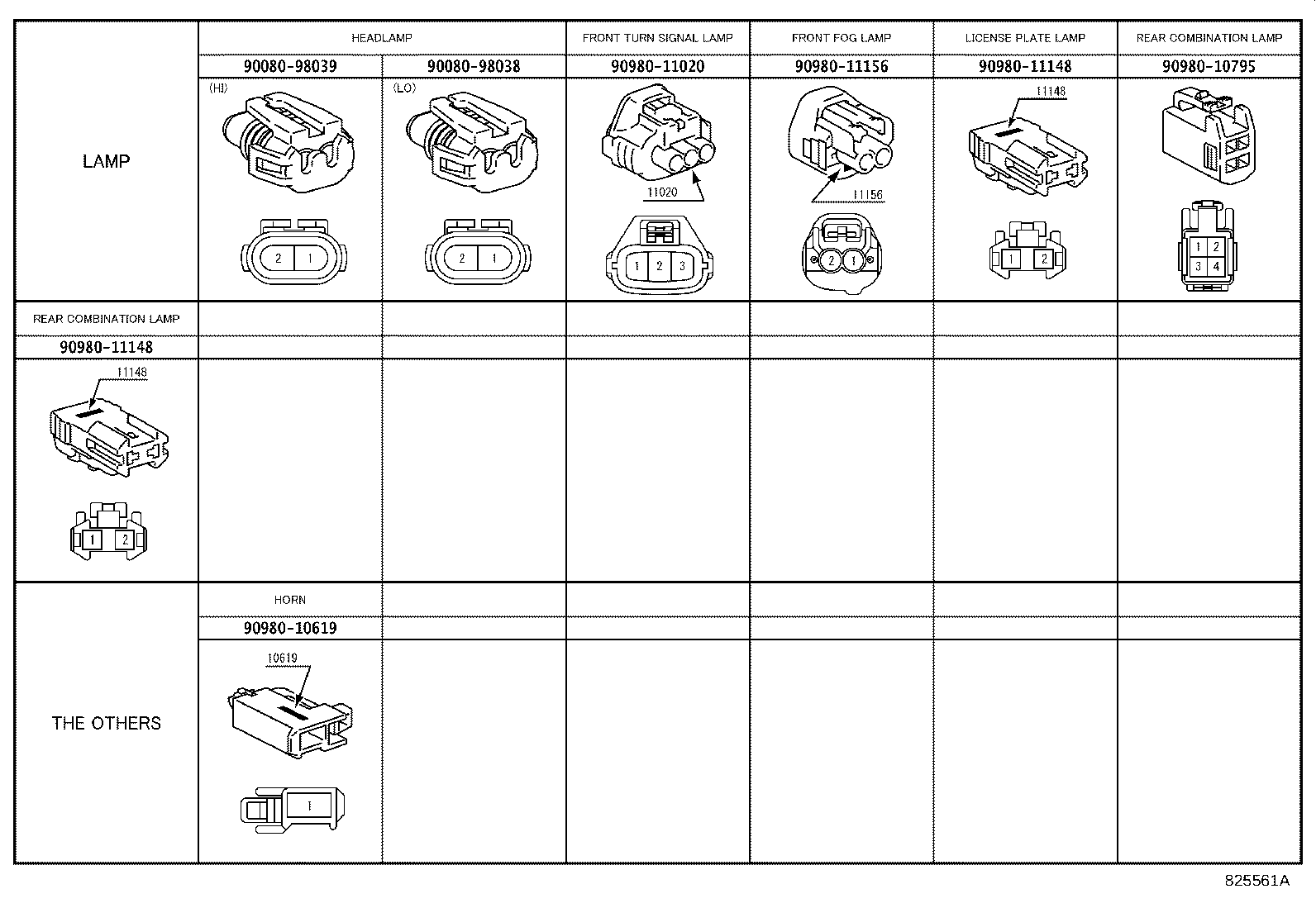

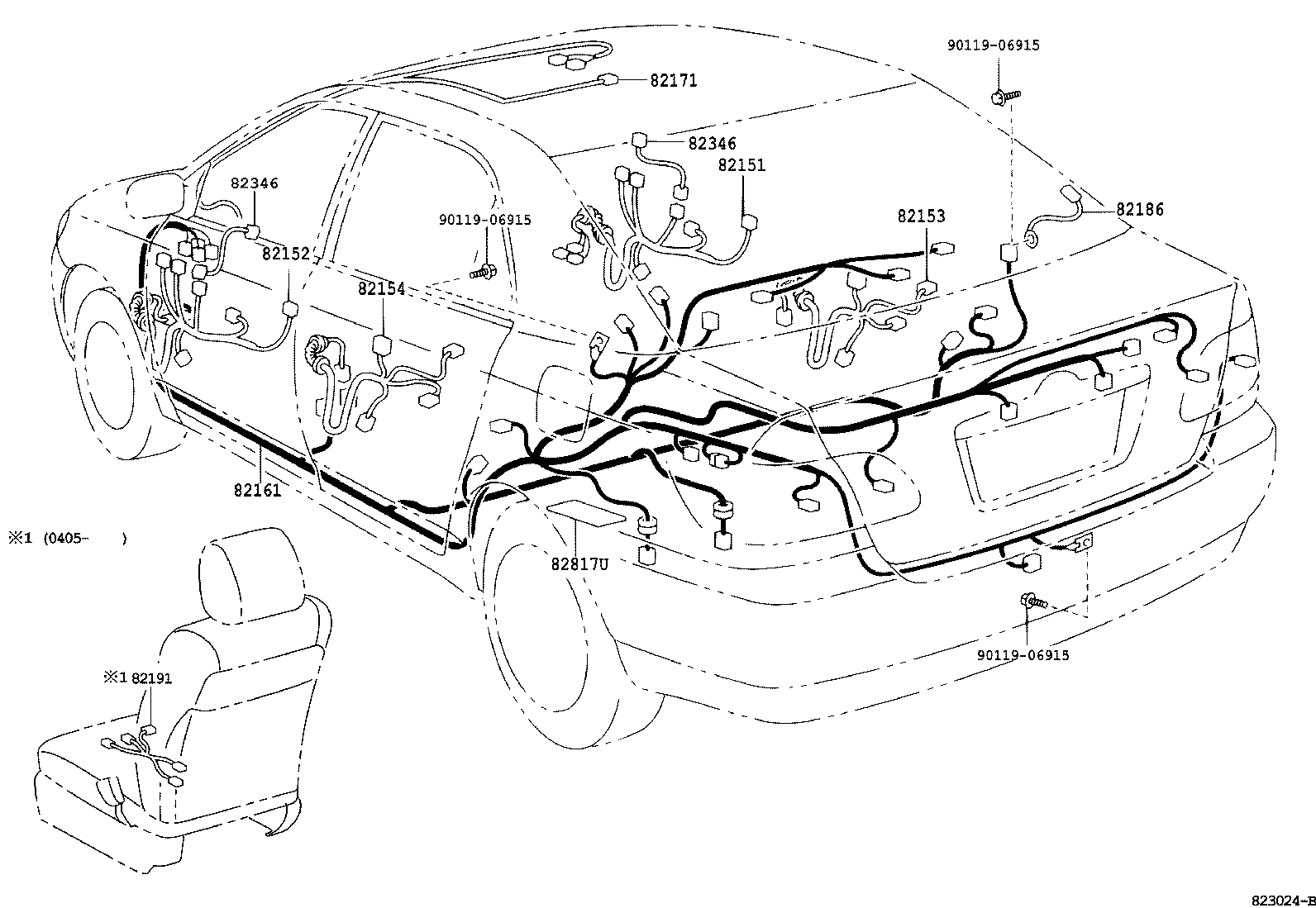

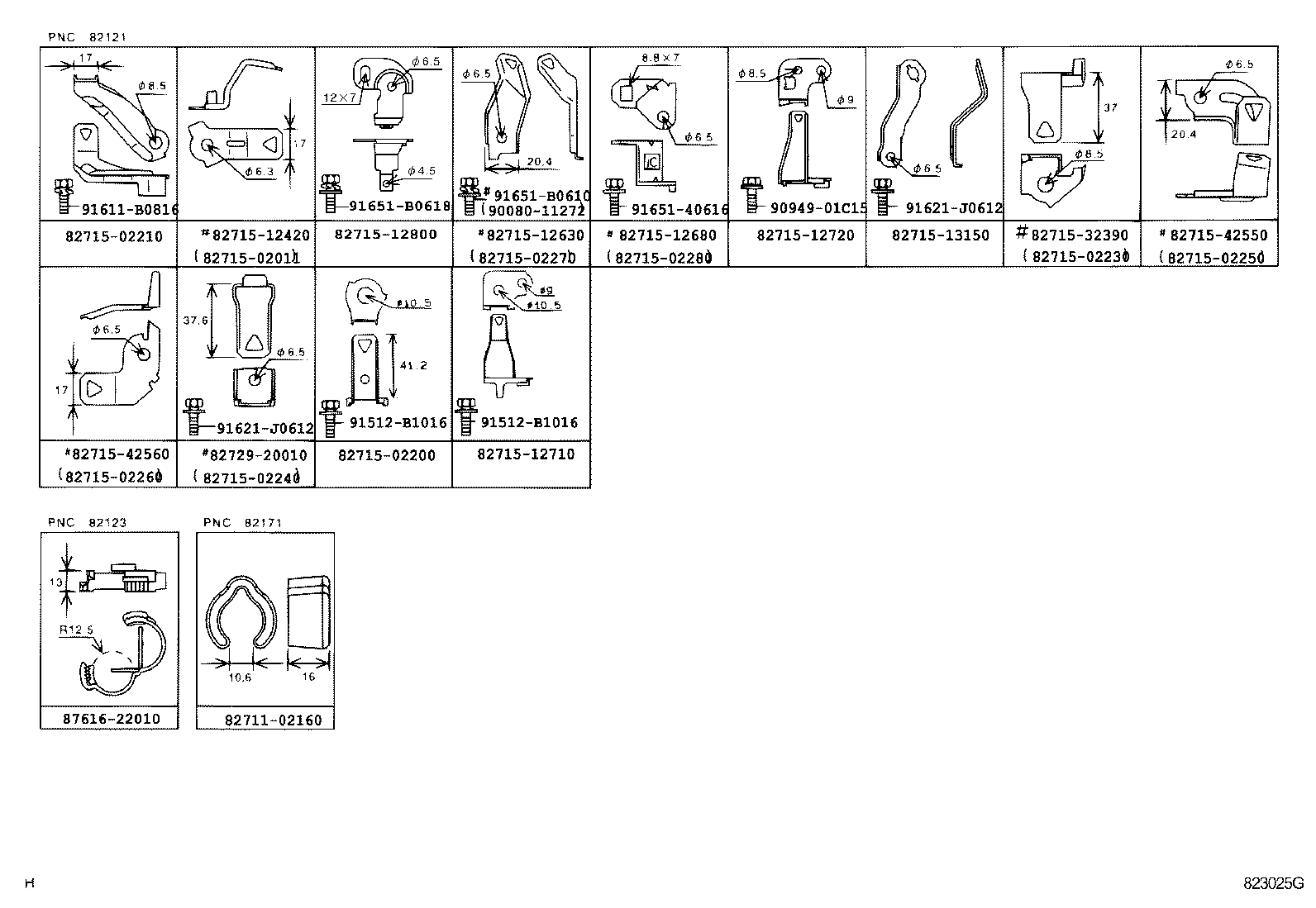

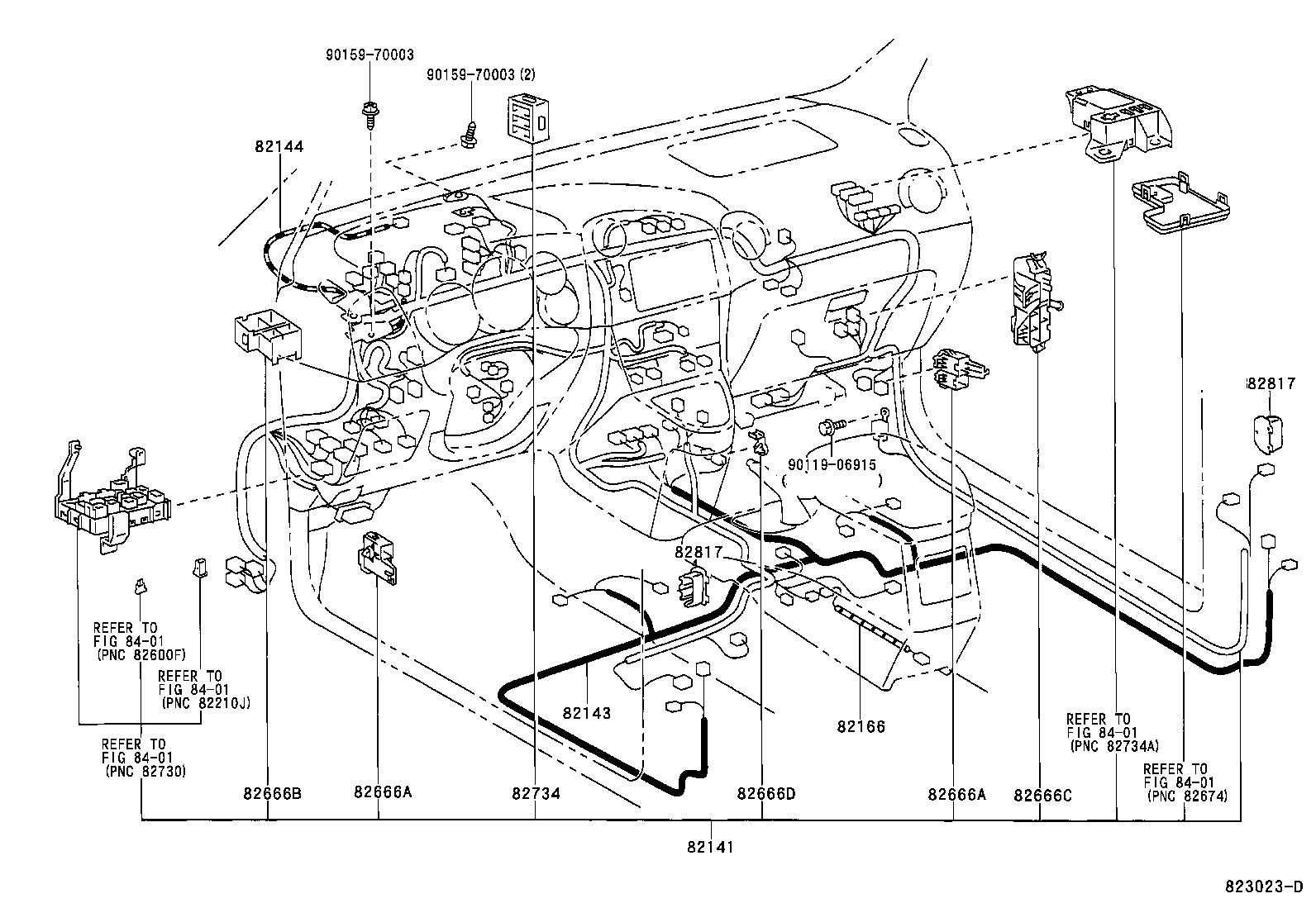

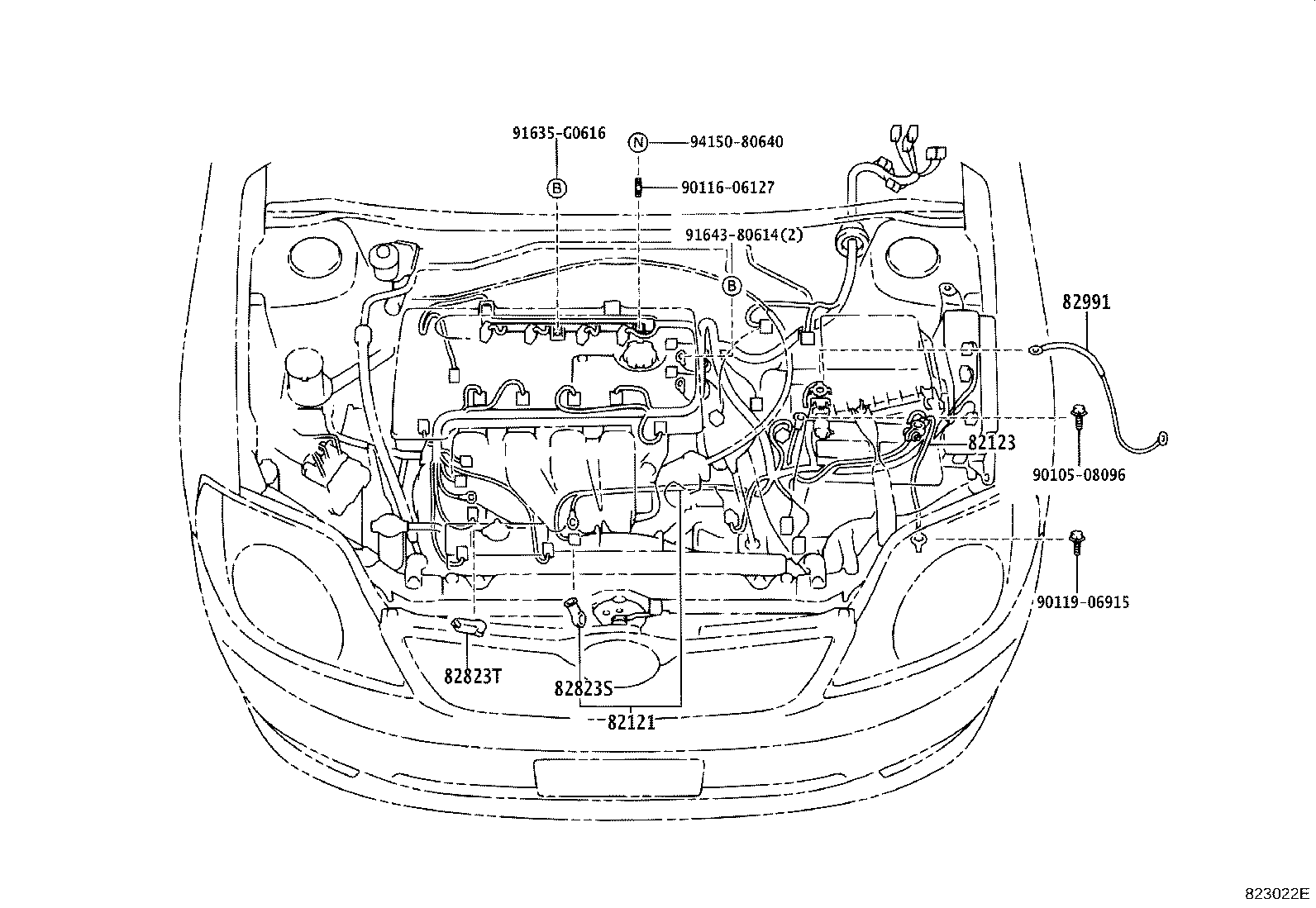

Figure 823021D 823021D 2002-04 → — Figure 823022E 823022E 2002-04 → — Figure 823023D 823023D 2002-04 → — Figure 823024B 823024B 2002-04 → — Figure 823025G 823025G 2002-04 → — Figure 823026C 823026C 2002-04 → — Figure 825561A 825561A 2002-04 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82141 Wire, Instrument Panel
82143 Wire, Instrument Panel, NO.3
82144 Wire, Instrument Panel, NO.4
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82166 Wire, Console Box
82171 Wire, Roof, NO.1
82186 Wire, Rear Window, NO.1
82191 Wire, Front Seat, RH
82346 Wire, Speaker Tweeter
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82734 Block, Center Junction
82817 Protector, Wiring Harness, NO.1
82817U Protector, Wiring Harness, NO.16
82821A Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
