Toyota Corolla Sed (JPP)
2002-04 → 2007-06 · chassis ZZE130 · catalogue 151450 · United States
Discontinued model
Data version 2008-06

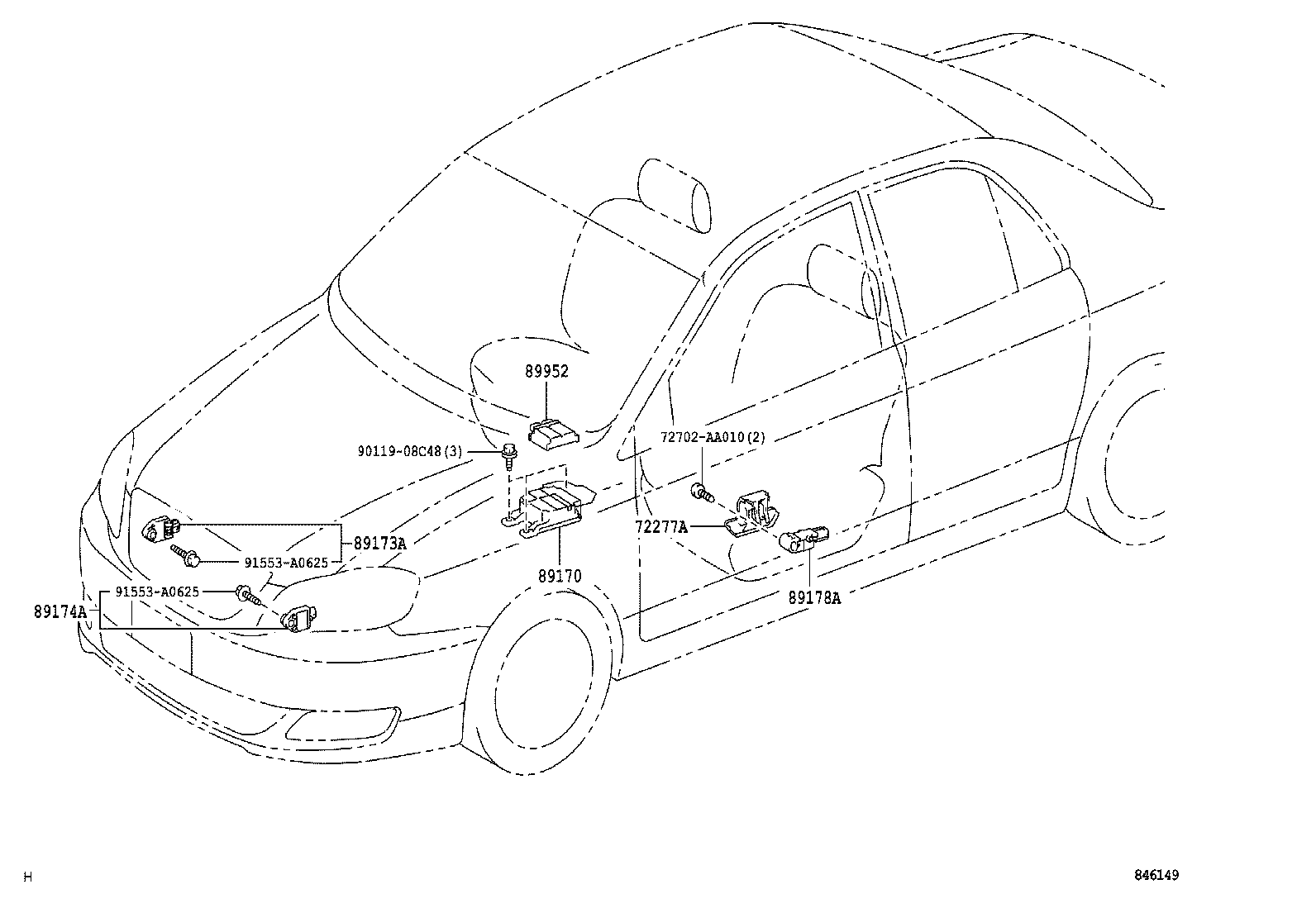

Air Bag
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 72277A | Protector, Seat Slide Position Sensor |
| 89170 | Sensor Assy, Airbag |
| 89173A | Sensor, Airbag, Front RH |
| 89174A | Sensor, Airbag, Front LH |
| 89178A | Sensor, Seat Position Airbag |
| 89860 | Sensor Assy, Side Airbag, RH |
| 89860A | Sensor Assy, Side Airbag, LH |
| 89952 | Computer, Occupant Detection |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
