Toyota Corolla Sed (JPP)

2002-04 → 2007-06 · chassis ZZE130 · catalogue 151450 · United States

Discontinued model Data version 2008-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

7 part groups · 2 illustrations

Illustrations

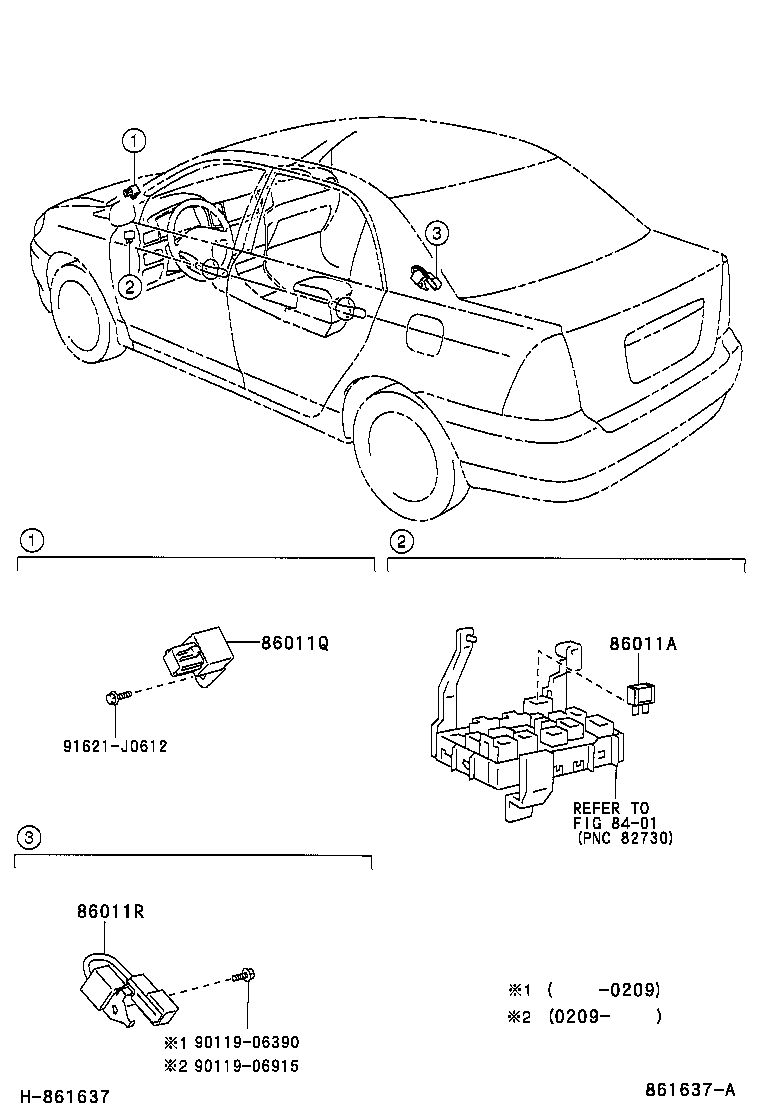

Figure 861589E 861589E 2002-04 → — Figure 861637A 861637A 2002-04 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011Q Condenser, Radio Setting
86011R Condenser, Radio Setting
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
