Toyota Corolla Sed (JPP)

2002-04 → 2007-06 · chassis ZZE130 · catalogue 151450 · United States

Discontinued model Data version 2008-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

17 part groups · 3 illustrations

Illustrations

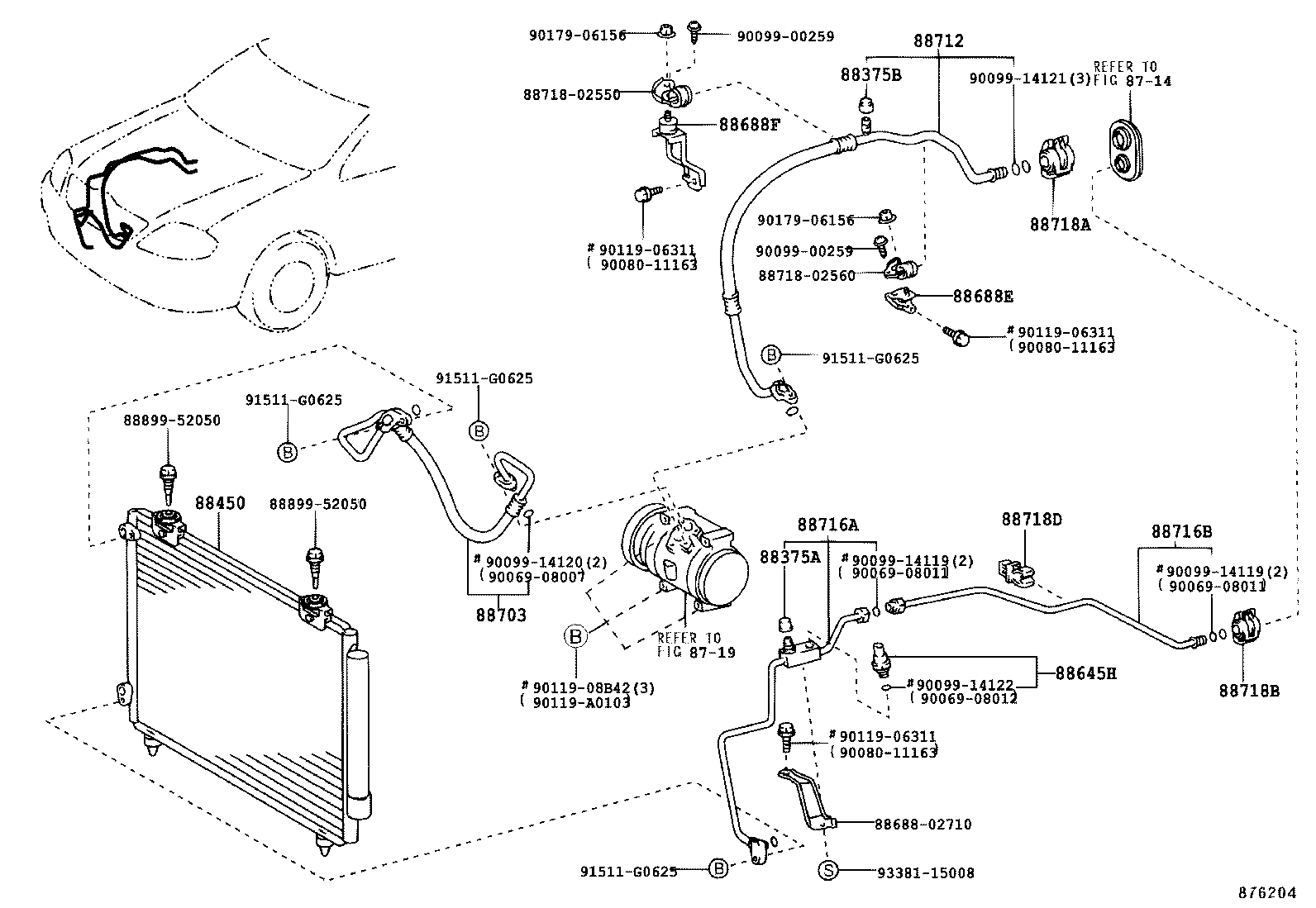

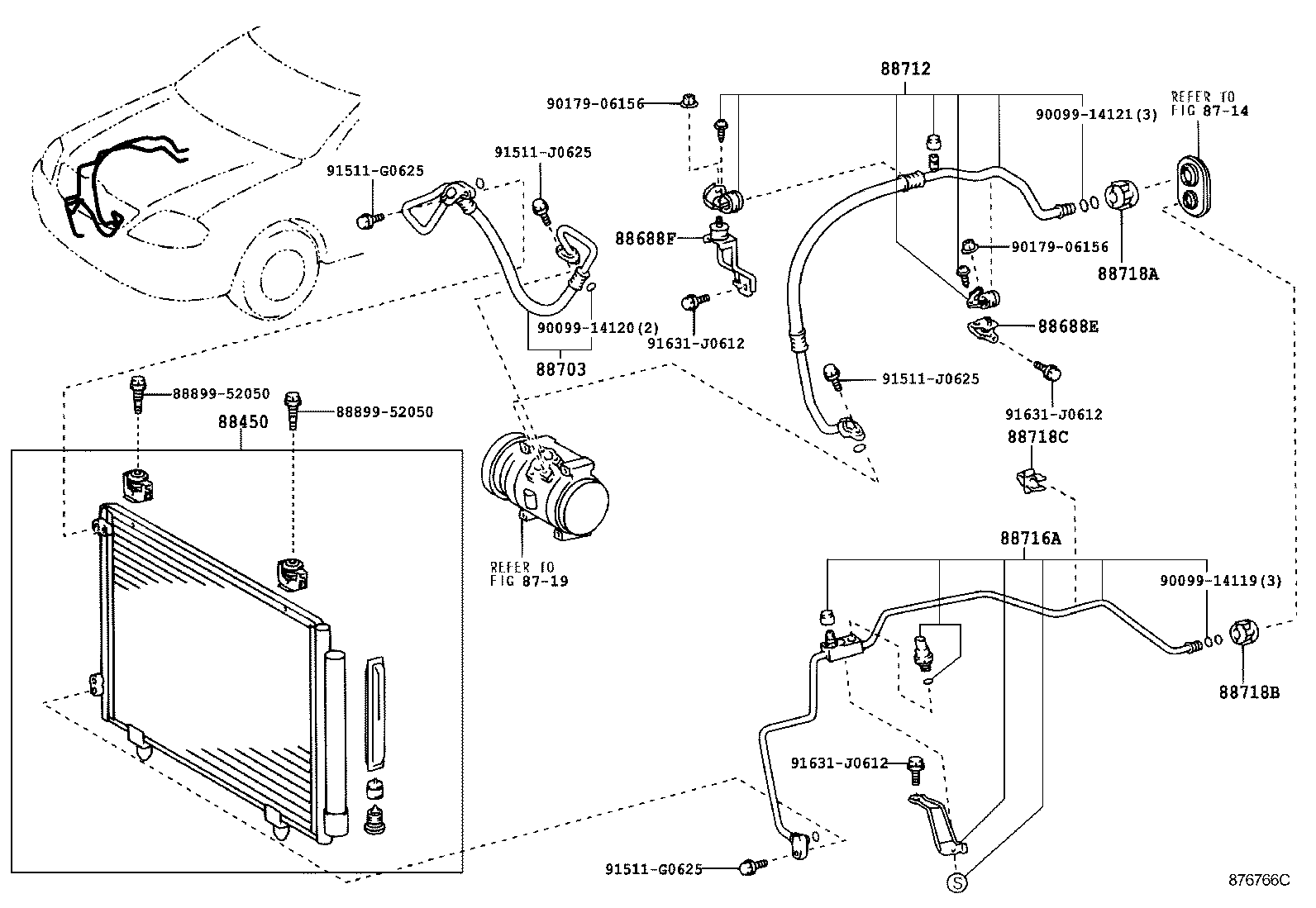

Figure 875471A 875471A 2002-04 → 2004-05 Figure 876204A 876204A 2003-04 → 2004-05 Figure 876766C 876766C 2004-05 → —

Part groups

PNCDescription
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88450 Condenser Assy, W/Receiver
88467 Cushion, Cooler Condenser, NO.1
88469D Collar, Condenser Bracket, NO.1
88474 Dryer, Cooler
88645H Switch, Pressure NO.1
88688E Bracket, Cooler Refrigerant Hose, NO.1
88688F Bracket, Cooler Refrigerant Hose, NO.2
88703 Hose Sub-assy, Discharge
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88718C Clamp, NO.3(FOR COOLER REFRIGERANT PIPE)
88718D Clamp, NO.4(FOR COOLER REFRIGERANT PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
