Toyota Corolla Sed (JPP)
2002-04 → 2007-06 · chassis ZZE130 · catalogue 151450 · United States
Discontinued model
Data version 2008-06
Heating & Air Conditioning - Compressor
19 part groups · 4 illustrations
Part groups

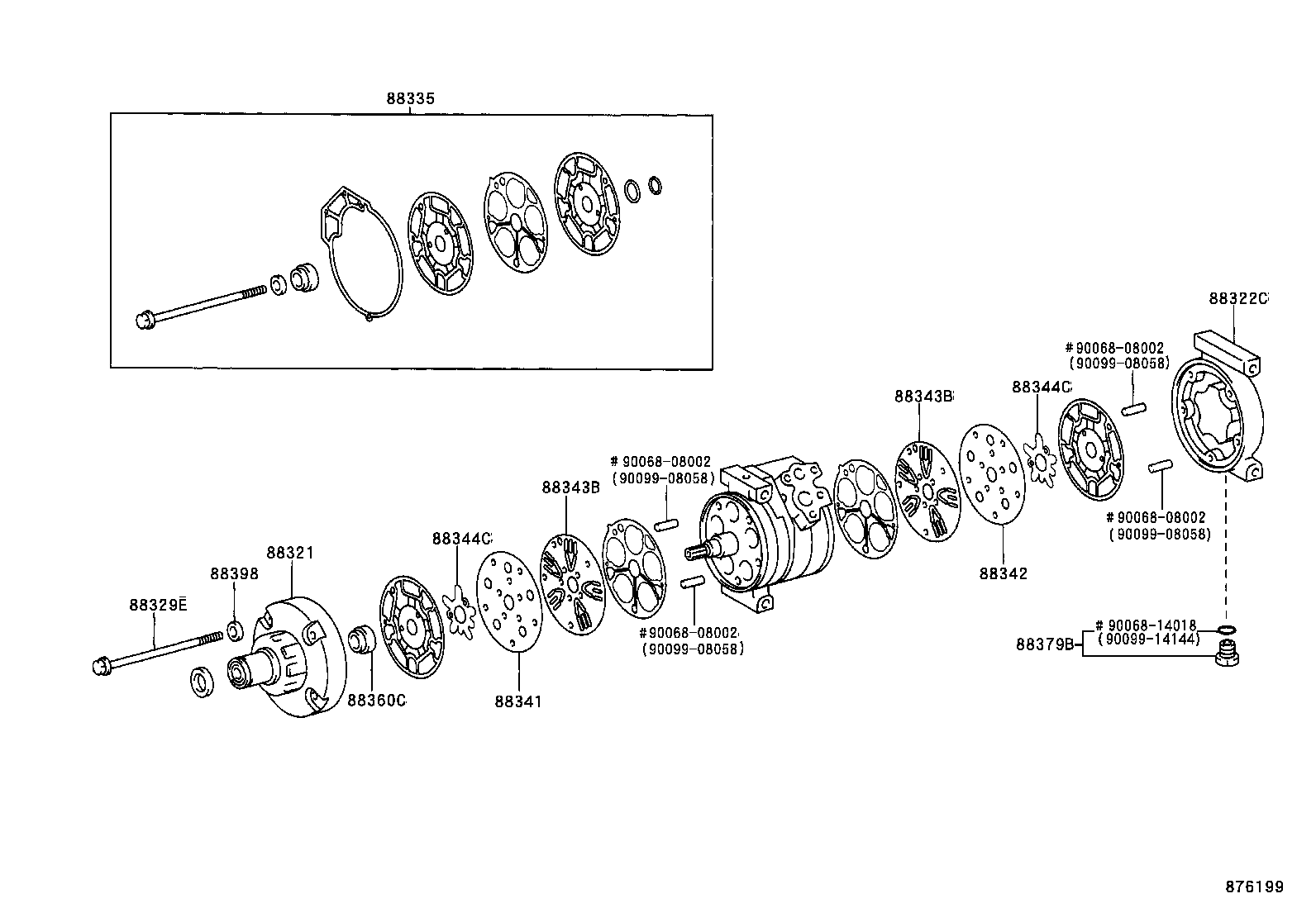

| PNC | Description |
|---|---|
| 88301 | Rotor Sub-assy, Magnet Clutch |
| 88302 | Stator Sub-assy, Magnet Clutch |
| 88320 | Compressor Assy, Cooler |
| 88321 | Head, Cooler Compressor Cylinder |
| 88322C | Head, Cylinder, Rear |
| 88329E | Bolt, Compressor, NO.1 |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88335 | Gasket Kit, Overhaul |
| 88341 | Plate, Front Valve |
| 88342 | Plate, Compressor Valve, RR |
| 88343B | Reed, Suction Valve |
| 88344C | Reed, Discharge Valve |
| 88360C | Seal Assy, Shaft |
| 88376 | Cap, Blind |
| 88379B | Valve, Pressure Relief |
| 88398 | Packing, Compressor |
| 88403 | Hub Sub-assy, Magnet Clutch |
| 88410 | Clutch Assy, Magnet |
| 88605B | Harness Sub-assy, Air Conditioner Wiring |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
