Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

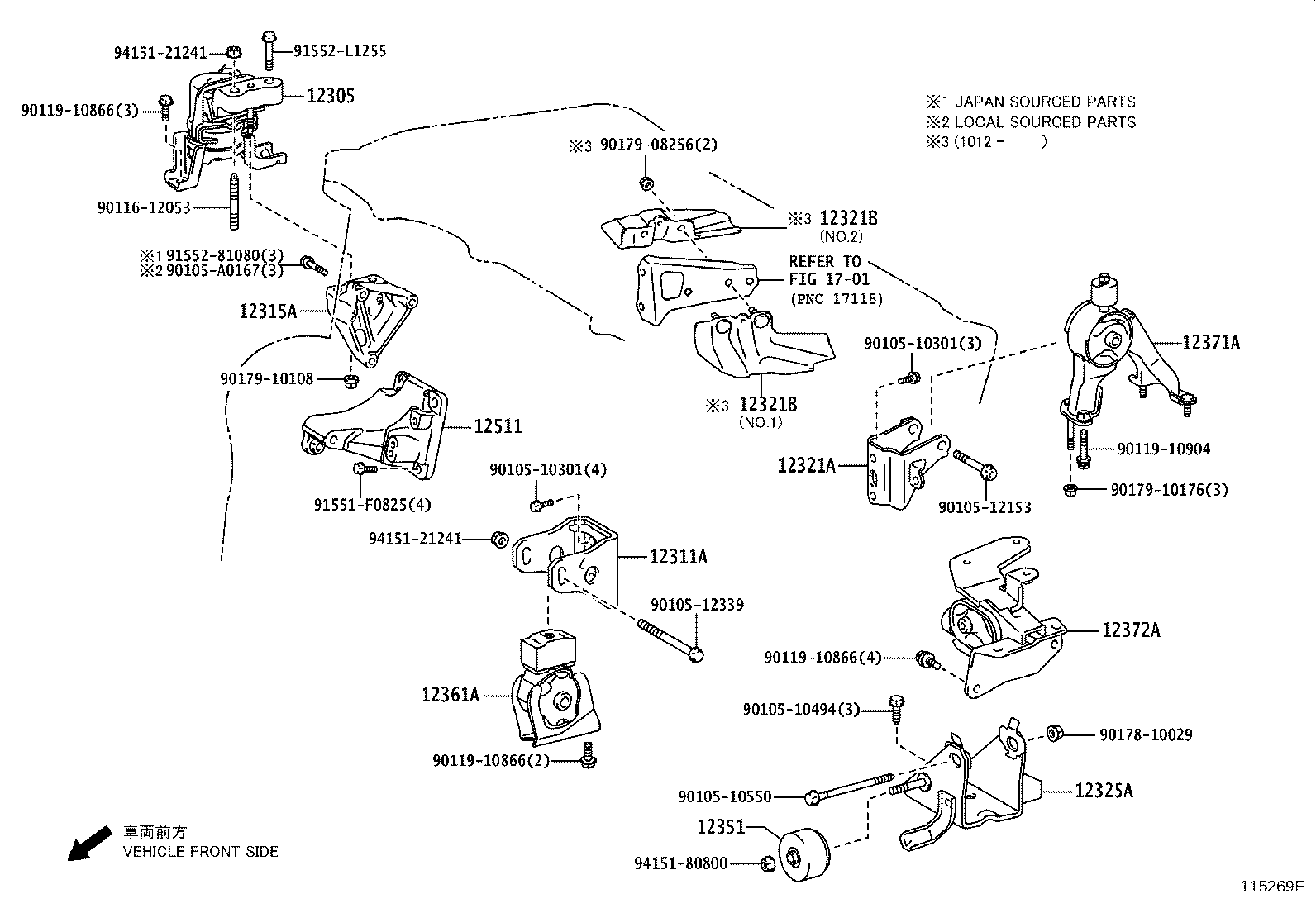

Exploded illustration 115269F 12305 — INSULATOR SUB-ASSY, ENGINE MOUNTING, RH (2 parts) 12311A — BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) (2 parts) 12361A — INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) (2 parts) 12315A — BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) (2 parts) 12321A — BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) (2 parts) 12371A — INSULATOR, ENGINE MOUNTING, REAR (2 parts) 12372A — INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) (2 parts) 12511 — BRACKET, ALTERNATOR, NO.1 (4 parts) 9010512339 — not listed in this catalogue 9011612053 — not listed in this catalogue 9011910866 — not listed in this catalogue 9011910866 — not listed in this catalogue 9011910866 — not listed in this catalogue 9011910904 — not listed in this catalogue 9415121241 — not listed in this catalogue 9017910108 — not listed in this catalogue 9017910176 — not listed in this catalogue 91551F0825 — not listed in this catalogue 9155281080 — not listed in this catalogue 91552L1255 — not listed in this catalogue 9415121241 — not listed in this catalogue 9010510301 — not listed in this catalogue 9010512153 — not listed in this catalogue 9010510301 — not listed in this catalogue 9017810029 — not listed in this catalogue 9415180800 — not listed in this catalogue 12325A — BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) (2 parts) 12351 — DAMPER, ENGINE MOUNTING (3 parts) 9010510494 — not listed in this catalogue 9010510550 — not listed in this catalogue 90105A0167 — not listed in this catalogue 12321B — INSULATOR SUB-ASSY, DRIVE SHAFT HEAT (2 parts) 12321B — INSULATOR SUB-ASSY, DRIVE SHAFT HEAT (2 parts) 1701 — not listed in this catalogue 9017908256 — not listed in this catalogue
115269F · 12 callouts, 23 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
25 parts on this figure
Part number Description Fitment Price
12305 — Insulator Sub-assy, Engine Mounting, RH
12305-37070 Insulator Sub-assy, Engine Mounting, RH
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
12305-37070 Insulator Sub-assy, Engine Mounting, RH
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
12311A — Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12311-37060 Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
12311-37060 Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
12315A — Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12315-37030 Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
12315-37030 Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
12321A — Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12321-22130 Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
12321-22130 Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
12321B — Insulator Sub-assy, Drive Shaft Heat
43409-12060 note Insulator Sub-assy, Drive Shaft Heat
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
43498-12051 note Insulator Sub-assy, Drive Shaft Heat
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
12325A — Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12325-22320 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
12325-22320 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
12351 — Damper, Engine Mounting
12351-27050 Damper, Engine Mounting
2007-12 → 2010-01 ended
2ZRFE ZRE142 JPP —
12351-37120 Damper, Engine Mounting
2010-02 → 2010-12 ended
2ZRFE ZRE142 JPP —
12351-37120 Damper, Engine Mounting
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
12361A — Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12361-37050 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
12361-37050 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
12371A — Insulator, Engine Mounting, Rear
12371-37060 Insulator, Engine Mounting, Rear
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
12371-37060 Insulator, Engine Mounting, Rear
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
12372A — Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12372-22200 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
12372-22200 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
12511 — Bracket, Alternator, NO.1
12511-37010 note Bracket, Alternator, NO.1
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
12511-37010 note Bracket, Alternator, NO.1
2008-07 → 2010-12 ended
2ZRFE ZRE142 JPP —
12511-0T030 note Bracket, Alternator, NO.1
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
12511-37010 note Bracket, Alternator, NO.1
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
