Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

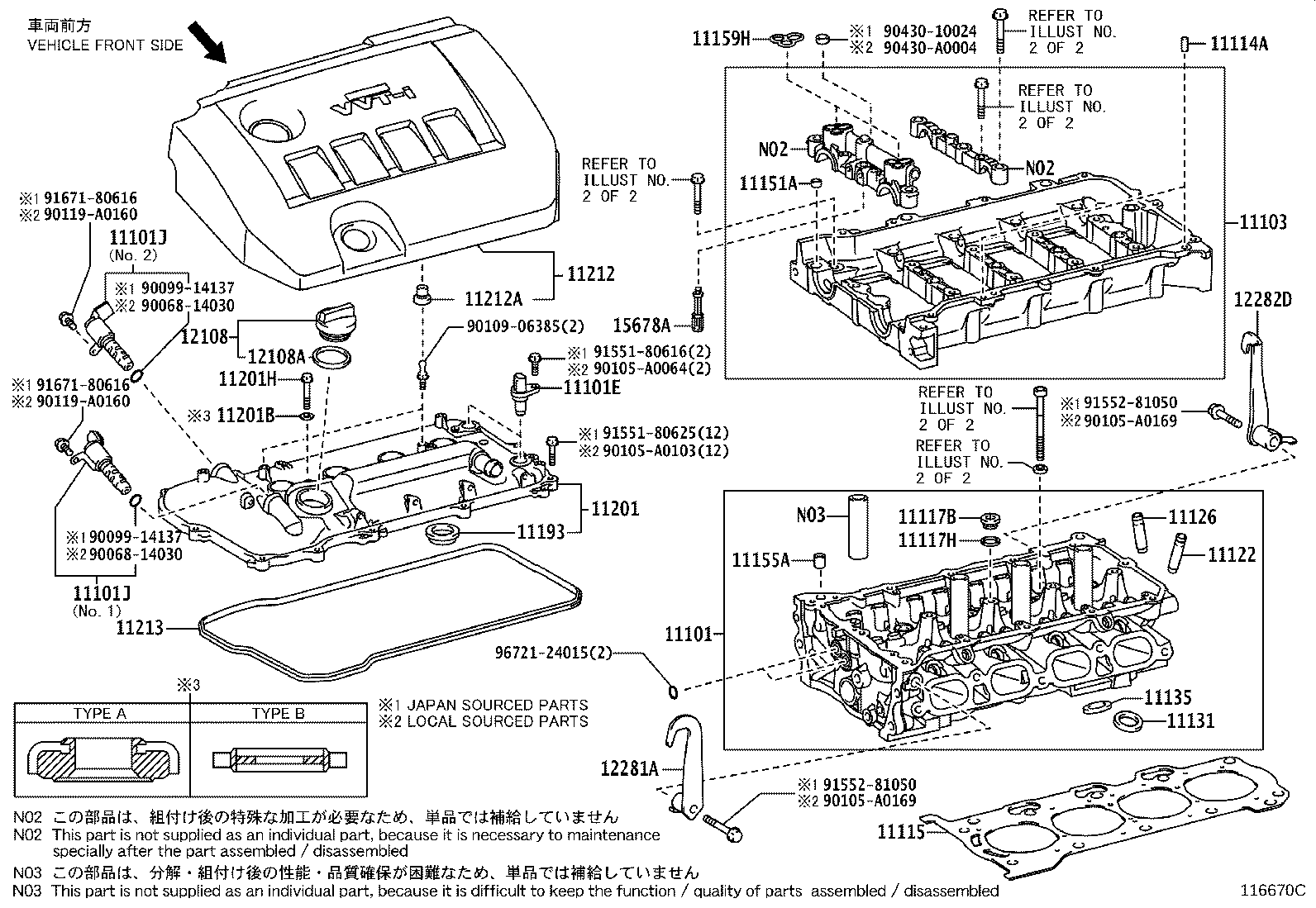

Exploded illustration 116670C 11101J — VALVE ASSY, CAMSHAFT TIMING OIL CONTROL (8 parts) 11101J — VALVE ASSY, CAMSHAFT TIMING OIL CONTROL (8 parts) 11101 — HEAD SUB-ASSY, CYLINDER (3 parts) 11101E — SENSOR, CAM POSITION (2 parts) 11103 — HOUSING SUB-ASSY, CAMSHAFT (8 parts) 11117B — PLUG, W/HEAD TAPER SCREW, NO.2 (2 parts) 11117H — GASKET(FOR WATER HOLE) (2 parts) 11122 — BUSH, INTAKE VALVE GUIDE (6 parts) 11126 — BUSH, EXHAUST VALVE GUIDE (6 parts) 11131 — SEAT, INTAKE VALVE (10 parts) 11135 — SEAT, EXHAUST VALVE (10 parts) 11151A — PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) (2 parts) 11155A — PIN, RING W/HEAD (2 parts) 11159H — GASKET, CAMSHAFT BEARING CAP OIL HOLE (2 parts) 11193 — GASKET, SPARK PLUG TUBE (4 parts) 11201 — COVER SUB-ASSY, CYLINDER HEAD (4 parts) 11201B — WASHER, SEAL(FOR CYLINDER HEAD COVER) (4 parts) 11201H — BOLT(FOR CYLINDER HEAD COVER) (5 parts) 11212 — COVER, CYLINDER HEAD, NO.2 (2 parts) 11213 — GASKET, CYLINDER HEAD COVER (2 parts) 12108 — CAP SUB-ASSY, OIL FILLER (5 parts) 12108A — GASKET(FOR OIL FILLER CAP) (4 parts) 12282D — HANGER, ENGINE, NO.2 (3 parts) 9010906385 — not listed in this catalogue 9043010024 — not listed in this catalogue 9155180616 — not listed in this catalogue 9155180625 — not listed in this catalogue 9155281050 — not listed in this catalogue 9167180616 — not listed in this catalogue 9009914137 — not listed in this catalogue 9009914137 — not listed in this catalogue 9672124015 — not listed in this catalogue 11115 — GASKET, CYLINDER HEAD (5 parts) 12281A — HANGER, ENGINE, NO.1 (3 parts) 9155281050 — not listed in this catalogue 15678A — FILTER, OIL CONTROL VALVE (2 parts) 11114A — PIN, STRAIGHT (2 parts) 9006814030 — not listed in this catalogue 9006814030 — not listed in this catalogue 90105A0169 — not listed in this catalogue 90105A0064 — not listed in this catalogue 90105A0103 — not listed in this catalogue 90105A0169 — not listed in this catalogue 90119A0160 — not listed in this catalogue 9167180616 — not listed in this catalogue 90119A0160 — not listed in this catalogue 11212A — CUSHION, CYLINDER HEAD COVER (2 parts) 90430A0004 — not listed in this catalogue
116670C · 28 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
110 parts on this figure
Part number Description Fitment Price
11101 — Head Sub-assy, Cylinder
11101-39686 Head Sub-assy, Cylinder
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
11101-09310 note Head Sub-assy, Cylinder
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11101-39686 note Head Sub-assy, Cylinder
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11101E — Sensor, Cam Position
90919-05060 Sensor, Cam Position
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
90919-05060 Sensor, Cam Position
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11101J — Valve Assy, Camshaft Timing Oil Control
15330-0T010 note Valve Assy, Camshaft Timing Oil Control
2008-07 → 2010-12 ended
2ZRFE ZRE142 JPP —
15330-0T020 note Valve Assy, Camshaft Timing Oil Control
2008-07 → 2010-12 ended
2ZRFE ZRE142 JPP —
15330-37010 note Valve Assy, Camshaft Timing Oil Control
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
15330-37020 note Valve Assy, Camshaft Timing Oil Control
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
15330-0T010 note Valve Assy, Camshaft Timing Oil Control
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
15330-0T020 note Valve Assy, Camshaft Timing Oil Control
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
15330-37010 note Valve Assy, Camshaft Timing Oil Control
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
15330-37020 note Valve Assy, Camshaft Timing Oil Control
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11103 — Housing Sub-assy, Camshaft
11103-0T040 note Housing Sub-assy, Camshaft
2008-07 → 2010-12 ended
2ZRFE ZRE142 JPP —
11103-37020 note Housing Sub-assy, Camshaft
2007-12 → 2010-07 ended
2ZRFE ZRE142 JPP —
11103-37021 note Housing Sub-assy, Camshaft
2010-07 → 2010-12 ended
2ZRFE ZRE142 JPP —
11103-0T040 note Housing Sub-assy, Camshaft
2010-12 → 2012-01 ended
2ZRFE ZRE142 JPP —
11103-0T041 note Housing Sub-assy, Camshaft
2012-01 → 2013-08 ended
2ZRFE ZRE142 JPP —
11103-37020 note Housing Sub-assy, Camshaft
2010-12 → 2012-01 ended
2ZRFE ZRE142 JPP —
11103-37021 note Housing Sub-assy, Camshaft
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11103-37021 note Housing Sub-assy, Camshaft
2012-01 → 2013-08 ended
2ZRFE ZRE142 JPP —
11114A — Pin, Straight
90250-06001 note Pin, Straight
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
90250-06001 note Pin, Straight
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11115 — Gasket, Cylinder Head
11115-37030 Gasket, Cylinder Head
2007-12 → 2008-06 ended
2ZRFE ZRE142 JPP —
11115-37050 Gasket, Cylinder Head
2008-06 → 2009-02 ended
2ZRFE ZRE142 JPP —
11115-37051 Gasket, Cylinder Head
2009-03 → 2010-12 ended
2ZRFE ZRE142 JPP —
11115-37051 Gasket, Cylinder Head
2010-12 → 2011-10 ended
2ZRFE ZRE142 JPP —
11115-37060 Gasket, Cylinder Head
2011-10 → 2013-08 ended
2ZRFE ZRE142 JPP —
11117B — Plug, W/Head Taper Screw, NO.2
90341-20002 Plug, W/Head Taper Screw, NO.2
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
90341-20002 Plug, W/Head Taper Screw, NO.2
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11117H — Gasket(FOR WATER HOLE)
90430-20004 Gasket(FOR WATER HOLE)
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
90430-20004 Gasket(FOR WATER HOLE)
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11122 — Bush, Intake Valve Guide
11122-31050 note Bush, Intake Valve Guide
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
11123-31050 note Bush, Intake Valve Guide
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
11122-31050 note Bush, Intake Valve Guide
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11122-31090 note Bush, Intake Valve Guide
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11123-31050 note Bush, Intake Valve Guide
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11123-31090 note Bush, Intake Valve Guide
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11126 — Bush, Exhaust Valve Guide
11126-31030 note Bush, Exhaust Valve Guide
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
11127-31030 note Bush, Exhaust Valve Guide
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
11126-31030 note Bush, Exhaust Valve Guide
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11126-31040 note Bush, Exhaust Valve Guide
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11127-31030 note Bush, Exhaust Valve Guide
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11127-31040 note Bush, Exhaust Valve Guide
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11131 — Seat, Intake Valve
11131-0T010 note Seat, Intake Valve
2008-07 → 2010-12 ended
2ZRFE ZRE142 JPP —
11131-37020 note Seat, Intake Valve
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
11132-37020 note Seat, Intake Valve
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
11131-0T010 note Seat, Intake Valve
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11131-37020 note Seat, Intake Valve
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11132-0T010 note Seat, Intake Valve
2010-12 → 2012-11 ended
2ZRFE ZRE142 JPP —
11132-0T010 note Seat, Intake Valve
2012-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11132-37020 note Seat, Intake Valve
2010-12 → 2012-11 ended
2ZRFE ZRE142 JPP —
11132-37020 note Seat, Intake Valve
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11132-37040 note Seat, Intake Valve
2012-11 → 2013-08 ended
2ZRFE ZRE142 JPP —
11135 — Seat, Exhaust Valve
11135-0T010 note Seat, Exhaust Valve
2008-07 → 2010-12 ended
2ZRFE ZRE142 JPP —
11135-37020 note Seat, Exhaust Valve
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
11136-37020 note Seat, Exhaust Valve
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
11135-0T010 note Seat, Exhaust Valve
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11135-37020 note Seat, Exhaust Valve
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11136-0T010 note Seat, Exhaust Valve
2010-12 → 2012-11 ended
2ZRFE ZRE142 JPP —
11136-0T010 note Seat, Exhaust Valve
2012-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11136-37020 note Seat, Exhaust Valve
2010-12 → 2012-11 ended
2ZRFE ZRE142 JPP —
11136-37020 note Seat, Exhaust Valve
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11136-37040 note Seat, Exhaust Valve
2012-11 → 2013-08 ended
2ZRFE ZRE142 JPP —
11151A — Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
90253-13005 note Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
90253-13005 note Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11155A — Pin, Ring W/Head
90253-12002 Pin, Ring W/Head
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
90253-12002 Pin, Ring W/Head
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11159H — Gasket, Camshaft Bearing Cap Oil Hole
11159-37010 Gasket, Camshaft Bearing Cap Oil Hole
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
11159-37010 Gasket, Camshaft Bearing Cap Oil Hole
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11193 — Gasket, Spark Plug Tube
11193-0T020 note Gasket, Spark Plug Tube
2008-07 → 2010-12 ended
2ZRFE ZRE142 JPP —
11193-37020 note Gasket, Spark Plug Tube
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
11193-0T020 note Gasket, Spark Plug Tube
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11193-37020 note Gasket, Spark Plug Tube
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11201 — Cover Sub-assy, Cylinder Head
11201-0T010 note Cover Sub-assy, Cylinder Head
2008-07 → 2010-12 ended
2ZRFE ZRE142 JPP —
11201-37022 note Cover Sub-assy, Cylinder Head
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
11201-0T010 note Cover Sub-assy, Cylinder Head
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11201-37022 note Cover Sub-assy, Cylinder Head
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11201B — Washer, Seal(FOR CYLINDER HEAD COVER)
16258-37010 note Washer, Seal(FOR CYLINDER HEAD COVER)
2010-03 → 2010-12 ended
2ZRFE ZRE142 JPP —
90210-06013 note Washer, Seal(FOR CYLINDER HEAD COVER)
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
16258-37010 note Washer, Seal(FOR CYLINDER HEAD COVER)
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
90210-06013 note Washer, Seal(FOR CYLINDER HEAD COVER)
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11201H — Bolt(FOR CYLINDER HEAD COVER)
90105-A0217 note Bolt(FOR CYLINDER HEAD COVER)
2010-02 → 2010-12 ended
2ZRFE ZRE142 JPP —
91551-80670 note Bolt(FOR CYLINDER HEAD COVER)
2010-02 → 2010-12 ended
2ZRFE ZRE142 JPP —
91551-80670 Bolt(FOR CYLINDER HEAD COVER)
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
90105-A0217 note Bolt(FOR CYLINDER HEAD COVER)
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
91551-80670 note Bolt(FOR CYLINDER HEAD COVER)
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11212 — Cover, Cylinder Head, NO.2
11212-37070 Cover, Cylinder Head, NO.2
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
11212-37071 Cover, Cylinder Head, NO.2
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11212A — Cushion, Cylinder Head Cover
90480-16049 Cushion, Cylinder Head Cover
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
90480-16049 Cushion, Cylinder Head Cover
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
11213 — Gasket, Cylinder Head Cover
11213-37020 Gasket, Cylinder Head Cover
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
11213-37020 Gasket, Cylinder Head Cover
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
12108 — Cap Sub-assy, Oil Filler
12180-0H031 note Cap Sub-assy, Oil Filler
2008-07 → 2010-10 ended
2ZRFE ZRE142 JPP —
12180-0H032 note Cap Sub-assy, Oil Filler
2010-10 → 2010-12 ended
2ZRFE ZRE142 JPP —
12180-38020 note Cap Sub-assy, Oil Filler
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
12180-0P021 note Cap Sub-assy, Oil Filler
2011-01 → 2013-08 ended
2ZRFE ZRE142 JPP —
12180-31010 note Cap Sub-assy, Oil Filler
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
12108A — Gasket(FOR OIL FILLER CAP)
90080-43025 note Gasket(FOR OIL FILLER CAP)
2008-07 → 2010-12 ended
2ZRFE ZRE142 JPP —
90430-35001 note Gasket(FOR OIL FILLER CAP)
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
90080-43025 note Gasket(FOR OIL FILLER CAP)
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
90430-35001 note Gasket(FOR OIL FILLER CAP)
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
12281A — Hanger, Engine, NO.1
12281-37021 Hanger, Engine, NO.1
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
12281-37021 note Hanger, Engine, NO.1
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
12281-37050 note Hanger, Engine, NO.1
2012-03 → 2013-08 ended
2ZRFE ZRE142 JPP —
12282D — Hanger, Engine, NO.2
12282-37011 Hanger, Engine, NO.2
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
12282-37011 note Hanger, Engine, NO.2
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
12282-37040 note Hanger, Engine, NO.2
2012-03 → 2013-08 ended
2ZRFE ZRE142 JPP —
15678A — Filter, Oil Control Valve
15678-37010 Filter, Oil Control Valve
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
15678-37010 Filter, Oil Control Valve
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
