Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

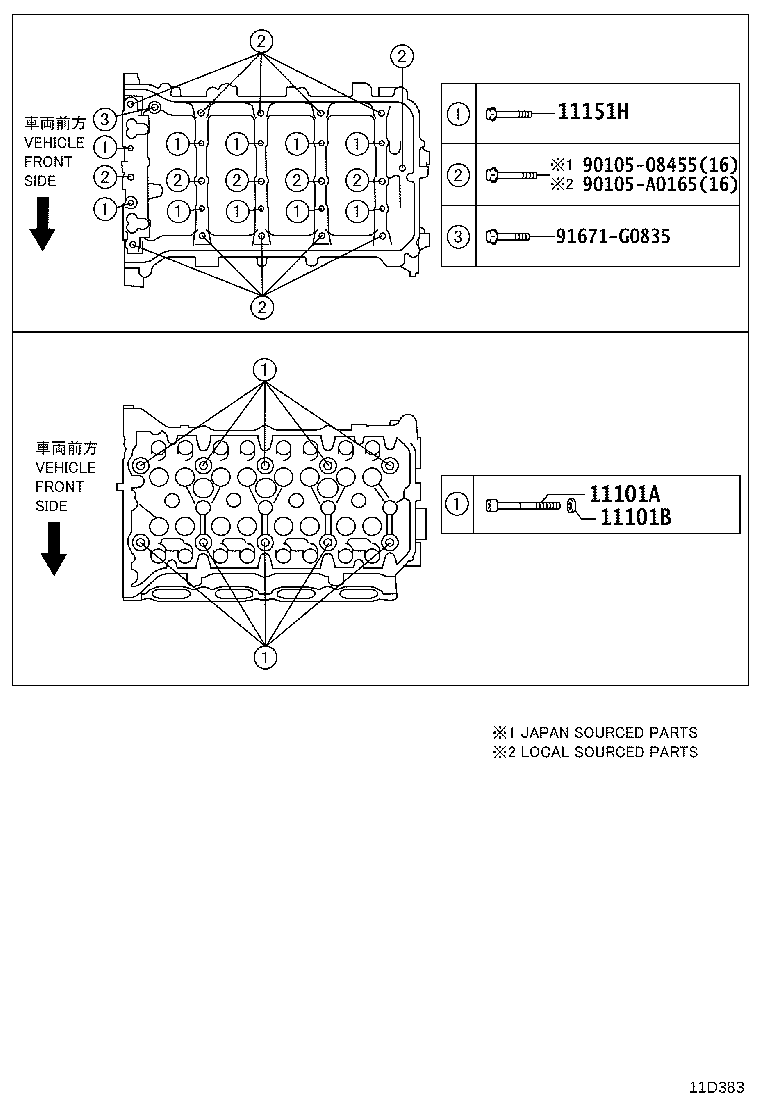

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11101A — Bolt(FOR CYLINDER HEAD SET) | ||||
| 90910-02166 note |
Bolt(FOR CYLINDER HEAD SET)
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 90910-A2011 note |
Bolt(FOR CYLINDER HEAD SET)
2010-03 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 90910-02166 note |
Bolt(FOR CYLINDER HEAD SET)
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 90910-A2011 note |
Bolt(FOR CYLINDER HEAD SET)
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 11101B — Washer, Plate(FOR CYLINDER HEAD SET) | ||||
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 11151H — Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING) | ||||
| 90119-07009 note |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2007-12 → 2010-07
ended
|
2ZRFE ZRE142 JPP | — | |
| 90119-07009 note |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2010-07 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 90119-A0302 note |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2010-07 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 90119-07009 note |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 90119-A0302 note |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
