Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

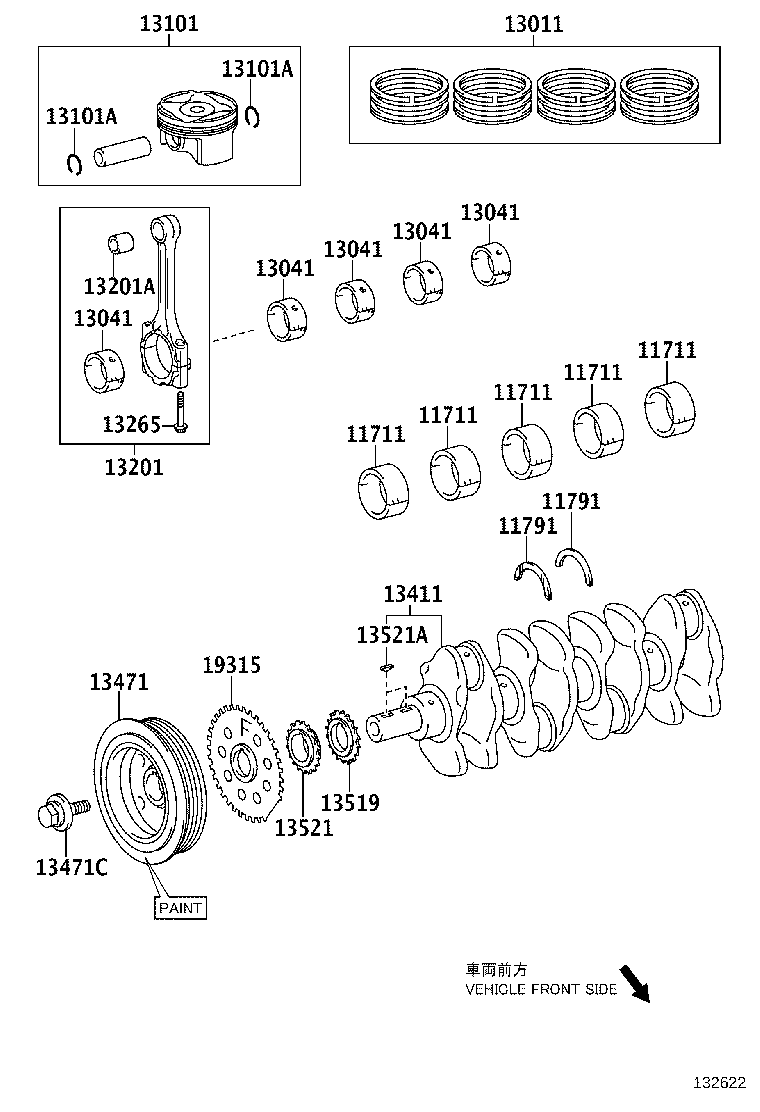

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11711 — Bearing, Crankshaft | ||||
| 11701-0T010-01 note |
Bearing, Crankshaft
2008-07 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 11701-0T010-02 note |
Bearing, Crankshaft
2008-07 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 11701-0T010-03 note |
Bearing, Crankshaft
2008-07 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 11701-0T010-04 note |
Bearing, Crankshaft
2008-07 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 11701-37020-01 note |
Bearing, Crankshaft
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 11701-37020-02 note |
Bearing, Crankshaft
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 11701-37020-03 note |
Bearing, Crankshaft
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 11701-37020-04 note |
Bearing, Crankshaft
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 11701-0T010-01 note |
Bearing, Crankshaft
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 11701-0T010-02 note |
Bearing, Crankshaft
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 11701-0T010-03 note |
Bearing, Crankshaft
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 11701-0T010-04 note |
Bearing, Crankshaft
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 11701-37020-01 note |
Bearing, Crankshaft
2010-12 → 2013-04
ended
|
2ZRFE ZRE142 JPP | — | |
| 11701-37020-02 note |
Bearing, Crankshaft
2010-12 → 2013-04
ended
|
2ZRFE ZRE142 JPP | — | |
| 11701-37020-03 note |
Bearing, Crankshaft
2010-12 → 2013-04
ended
|
2ZRFE ZRE142 JPP | — | |
| 11701-37020-04 note |
Bearing, Crankshaft
2010-12 → 2013-04
ended
|
2ZRFE ZRE142 JPP | — | |
| 11701-37021-01 note |
Bearing, Crankshaft
2013-04 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 11701-37021-02 note |
Bearing, Crankshaft
2013-04 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 11701-37021-03 note |
Bearing, Crankshaft
2013-04 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 11701-37021-04 note |
Bearing, Crankshaft
2013-04 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 11791 — Washer, Crankshaft Thrust, Upper | ||||
| 11791-0T030 note |
Washer, Crankshaft Thrust, Upper
2010-05 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 11791-22020 note |
Washer, Crankshaft Thrust, Upper
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 11791-0T030 note |
Washer, Crankshaft Thrust, Upper
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 11791-22020 note |
Washer, Crankshaft Thrust, Upper
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 13011 — Ring Set, Piston | ||||
| 13011-0T010 note |
Ring Set, Piston
2008-07 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 13011-37090 note |
Ring Set, Piston
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 13011-0T010 note |
Ring Set, Piston
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 13011-37090 note |
Ring Set, Piston
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 13041 — Bearing, Connecting Rod | ||||
| 13041-0T010-01 note |
Bearing, Connecting Rod
2008-07 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 13041-0T010-02 note |
Bearing, Connecting Rod
2008-07 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 13041-0T010-03 note |
Bearing, Connecting Rod
2008-07 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 13041-37010-01 note |
Bearing, Connecting Rod
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 13041-37010-02 note |
Bearing, Connecting Rod
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 13041-37010-03 note |
Bearing, Connecting Rod
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 13041-0T010-01 note |
Bearing, Connecting Rod
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 13041-0T010-02 note |
Bearing, Connecting Rod
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 13041-0T010-03 note |
Bearing, Connecting Rod
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 13041-37010-01 note |
Bearing, Connecting Rod
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 13041-37010-02 note |
Bearing, Connecting Rod
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 13041-37010-03 note |
Bearing, Connecting Rod
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 13101 — Piston Sub-assy, W/Pin | ||||
| 13101-0T010 note |
Piston Sub-assy, W/Pin
2008-07 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 13101-37071 note |
Piston Sub-assy, W/Pin
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 13101-0T010 note |
Piston Sub-assy, W/Pin
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 13101-37071 note |
Piston Sub-assy, W/Pin
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 13101A — Ring, Hole Snap(FOR PISTON PIN) | ||||
| 90520-20064 |
Ring, Hole Snap(FOR PISTON PIN)
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 90520-20064 |
Ring, Hole Snap(FOR PISTON PIN)
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 13201 — Rod Sub-assy, Connecting | ||||
| 13201-09A10 note |
Rod Sub-assy, Connecting
2008-07 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 13201-39185 note |
Rod Sub-assy, Connecting
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 13201-09A10 note |
Rod Sub-assy, Connecting
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 13201-09A30 note |
Rod Sub-assy, Connecting
2011-01 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 13201-39185 note |
Rod Sub-assy, Connecting
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 13201A — Bush(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73151 |
Bush(FOR CONNECTING ROD SMALL END)
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 90999-73151 |
Bush(FOR CONNECTING ROD SMALL END)
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 13265 — Bolt, Connecting Rod | ||||
| 13265-22020 |
Bolt, Connecting Rod
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 13265-22020 |
Bolt, Connecting Rod
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 13411 — Crankshaft | ||||
| 13401-0T030 note |
Crankshaft
2008-07 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 13401-37020 note |
Crankshaft
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 13401-0T030 note |
Crankshaft
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 13401-37020 note |
Crankshaft
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 13471 — Pulley, Crankshaft | ||||
| 13470-37020 note |
Pulley, Crankshaft
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 13470-37020 note |
Pulley, Crankshaft
2008-07 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 13470-37020 note |
Pulley, Crankshaft
2010-12 → 2012-03
ended
|
2ZRFE ZRE142 JPP | — | |
| 13470-37020 note |
Pulley, Crankshaft
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 13470-37050 note |
Pulley, Crankshaft
2011-10 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 13471C — Bolt(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-14106 |
Bolt(FOR CRANKSHAFT PULLEY SET)
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 90119-14106 |
Bolt(FOR CRANKSHAFT PULLEY SET)
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 13519 — Gear, Oil Pump Drive | ||||
| 13519-37010 |
Gear, Oil Pump Drive
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 13519-37010 |
Gear, Oil Pump Drive
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 13521 — Gear OR Sprocket, Crankshaft Timing | ||||
| 13521-0T030 note |
Gear OR Sprocket, Crankshaft Timing
2010-10 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 13521-37010 note |
Gear OR Sprocket, Crankshaft Timing
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 13521-37010 note |
Gear OR Sprocket, Crankshaft Timing
2010-10 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 13521-37010 note |
Gear OR Sprocket, Crankshaft Timing
2008-07 → 2010-10
ended
|
2ZRFE ZRE142 JPP | — | |
| 13521-0T030 note |
Gear OR Sprocket, Crankshaft Timing
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 13521-37010 note |
Gear OR Sprocket, Crankshaft Timing
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 13521A — Key(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-04003 |
Key(FOR CRANKSHAFT TIMING GEAR)
2007-12 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 90280-04003 |
Key(FOR CRANKSHAFT TIMING GEAR)
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 19315 — Plate, Crank Angle Sensor, NO.1 | ||||
| 19315-37010 |
Plate, Crank Angle Sensor, NO.1
2007-12 → 2008-08
ended
|
2ZRFE ZRE142 JPP | — | |
| 19315-37020 |
Plate, Crank Angle Sensor, NO.1
2008-08 → 2010-12
ended
|
2ZRFE ZRE142 JPP | — | |
| 19315-37020 |
Plate, Crank Angle Sensor, NO.1
2010-12 → 2013-08
ended
|
2ZRFE ZRE142 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
