Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

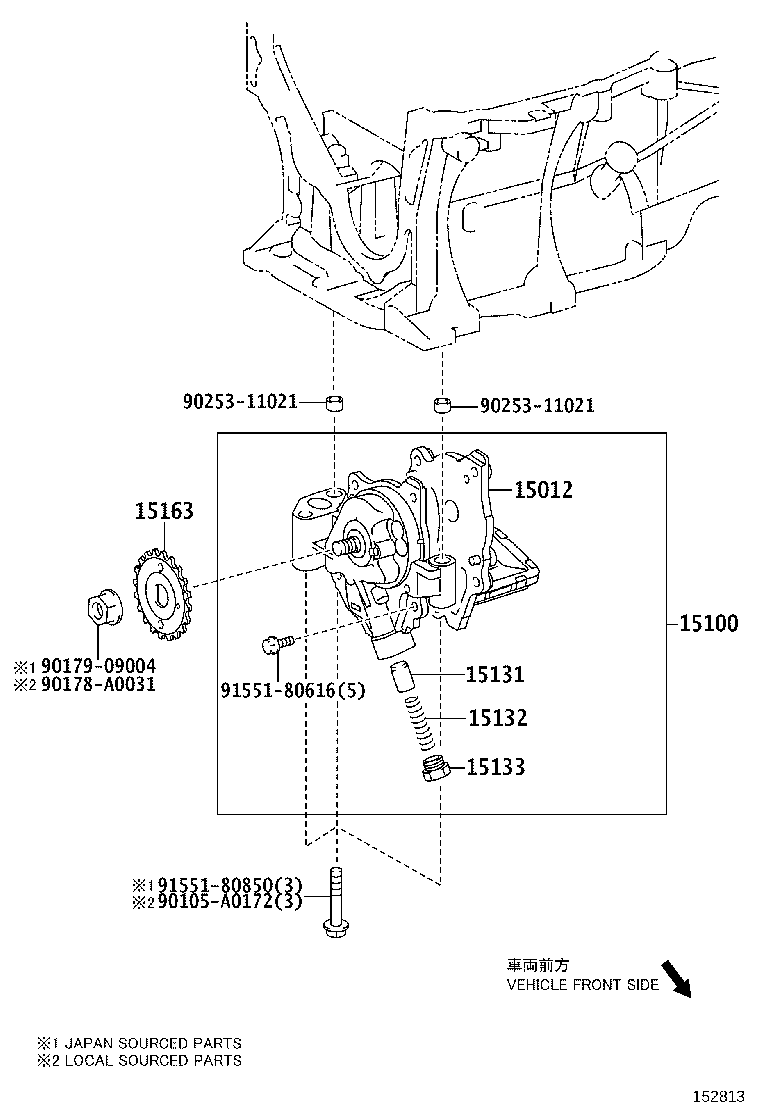

Exploded illustration 152813 15012 — COVER SUB-ASSY, OIL PUMP (4 parts) 15100 — PUMP ASSY, OIL (4 parts) 15131 — VALVE, OIL PUMP RELIEF (2 parts) 15132 — SPRING, OIL PUMP RELIEF VALVE (2 parts) 15133 — PLUG, OIL PUMP RELIEF VALVE (2 parts) 15163 — GEAR, OIL PUMP DRIVE SHAFT (4 parts) 9017909004 — not listed in this catalogue 90178A0031 — not listed in this catalogue 9025311021 — not listed in this catalogue 9025311021 — not listed in this catalogue 9155180616 — not listed in this catalogue 9155180850 — not listed in this catalogue 90105A0172 — not listed in this catalogue
152813 · 6 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
18 parts on this figure
Part number Description Fitment Price
15012 — Cover Sub-assy, Oil Pump
15012-0T010 note Cover Sub-assy, Oil Pump
2008-07 → 2010-12 ended
2ZRFE ZRE142 JPP —
15012-37010 note Cover Sub-assy, Oil Pump
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
15012-0T010 note Cover Sub-assy, Oil Pump
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
15012-37010 note Cover Sub-assy, Oil Pump
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
15100 — Pump Assy, Oil
15100-0T010 note Pump Assy, Oil
2008-07 → 2010-12 ended
2ZRFE ZRE142 JPP —
15100-37030 note Pump Assy, Oil
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
15100-0T010 note Pump Assy, Oil
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
15100-37030 note Pump Assy, Oil
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
15131 — Valve, Oil Pump Relief
15131-0A040 Valve, Oil Pump Relief
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
15131-0A040 Valve, Oil Pump Relief
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
15132 — Spring, Oil Pump Relief Valve
15132-46060 Spring, Oil Pump Relief Valve
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
15132-46060 Spring, Oil Pump Relief Valve
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
15133 — Plug, Oil Pump Relief Valve
15133-28020 Plug, Oil Pump Relief Valve
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
15133-28020 Plug, Oil Pump Relief Valve
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
15163 — Gear, Oil Pump Drive Shaft
15163-0H010 note Gear, Oil Pump Drive Shaft
2008-07 → 2010-12 ended
2ZRFE ZRE142 JPP —
15163-28010 note Gear, Oil Pump Drive Shaft
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
15163-0H010 note Gear, Oil Pump Drive Shaft
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
15163-28010 note Gear, Oil Pump Drive Shaft
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
