Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

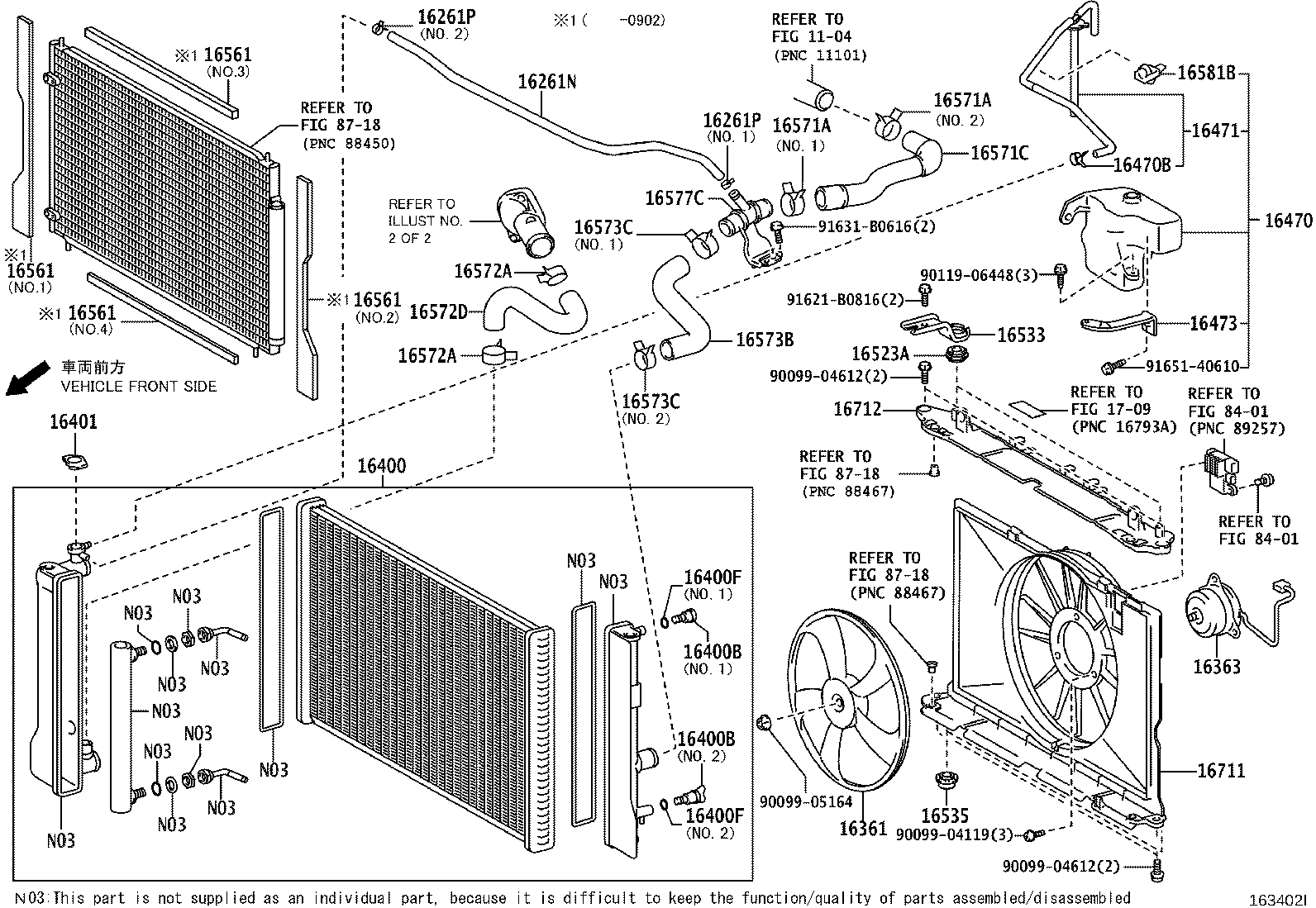

Exploded illustration 163402I 16573C — CLAMP OR CLIP, RADIATOR HOSE, NO.3 (4 parts) 16573C — CLAMP OR CLIP, RADIATOR HOSE, NO.3 (4 parts) 16400F — PACKING(FOR RADIATOR DRAIN COCK) (4 parts) 8401 — not listed in this catalogue 16261N — HOSE, WATER BY-PASS, NO.2 (3 parts) 16363 — MOTOR, COOLING FAN (2 parts) 16571C — HOSE, RADIATOR, NO.1 (2 parts) 16711 — SHROUD, FAN (2 parts) 9165140610 — not listed in this catalogue 16473 — SUPPORT(FOR RADIATOR RESERVE TANK) (2 parts) 16581B — CLAMP, HOSE(FOR RADIATOR HOSE) (2 parts) 9009905164 — not listed in this catalogue 16400 — RADIATOR ASSY (2 parts) 16400F — PACKING(FOR RADIATOR DRAIN COCK) (4 parts) 16400B — PLUG, RADIATOR DRAIN COCK (4 parts) 16400B — PLUG, RADIATOR DRAIN COCK (4 parts) 8718 — not listed in this catalogue 1104 — not listed in this catalogue 8718 — not listed in this catalogue 16577C — PIPE, RADIATOR (3 parts) 16523A — CUSHION, RADIATOR SUPPORT (2 parts) 16712 — SHROUD, FAN, NO.2 (2 parts) 91631B0616 — not listed in this catalogue 91621B0816 — not listed in this catalogue 16361 — FAN (2 parts) 16401 — CAP SUB-ASSY, RADIATOR (3 parts) 16533 — SUPPORT, RADIATOR, UPPER (2 parts) 16573B — HOSE, RADIATOR, NO.3 (2 parts) 8718 — not listed in this catalogue 16561 — SEAL, RADIATOR TO SUPPORT, NO.1 (4 parts) 16561 — SEAL, RADIATOR TO SUPPORT, NO.1 (4 parts) 16561 — SEAL, RADIATOR TO SUPPORT, NO.1 (4 parts) 16561 — SEAL, RADIATOR TO SUPPORT, NO.1 (4 parts) 9009904612 — not listed in this catalogue 9009904612 — not listed in this catalogue 16535 — SUPPORT, RADIATOR, LOWER (3 parts) 16470 — TANK ASSY, RADIATOR RESERVE (2 parts) 16471 — CAP SUB-ASSY, RESERVE TANK (2 parts) 16470B — CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) (2 parts) 16571A — CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) (4 parts) 16571A — CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) (4 parts) 16261P — CLIP(FOR WATER BY-PASS HOSE NO.2) (4 parts) 16261P — CLIP(FOR WATER BY-PASS HOSE NO.2) (4 parts) 16572A — CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) (2 parts) 16572A — CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) (2 parts) 9009904119 — not listed in this catalogue 9011906448 — not listed in this catalogue 16572D — HOSE, RADIATOR, NO.2 (2 parts) 1709 — not listed in this catalogue 8401 — not listed in this catalogue
163402I · 35 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
68 parts on this figure
Part number Description Fitment Price
16261N — Hose, Water By-pass, NO.2
16261-22110 Hose, Water By-pass, NO.2
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
16261-22110 Hose, Water By-pass, NO.2
2010-12 → 2012-07 ended
2ZRFE ZRE142 JPP —
16261-22111 Hose, Water By-pass, NO.2
2012-07 → 2013-08 ended
2ZRFE ZRE142 JPP —
16261P — Clip(FOR WATER BY-PASS HOSE NO.2)
90467-15022 Clip(FOR WATER BY-PASS HOSE NO.2)
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
90467-15022 Clip(FOR WATER BY-PASS HOSE NO.2)
2010-12 → 2012-07 ended
2ZRFE ZRE142 JPP —
90467-15022 note Clip(FOR WATER BY-PASS HOSE NO.2)
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
96136-41901 note Clip(FOR WATER BY-PASS HOSE NO.2)
2012-07 → 2013-08 ended
2ZRFE ZRE142 JPP —
16361 — Fan
16361-21110 Fan
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
16361-21110 Fan
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16363 — Motor, Cooling Fan
16363-22120 Motor, Cooling Fan
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
16363-22120 Motor, Cooling Fan
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16400 — Radiator Assy
16410-22160 Radiator Assy
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
16410-22160 Radiator Assy
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16400B — Plug, Radiator Drain Cock
16417-21280 note Plug, Radiator Drain Cock
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
16417-28530 note Plug, Radiator Drain Cock
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
16417-21280 note Plug, Radiator Drain Cock
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16417-28530 note Plug, Radiator Drain Cock
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16400F — Packing(FOR RADIATOR DRAIN COCK)
16418-20290 note Packing(FOR RADIATOR DRAIN COCK)
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
16492-21050 note Packing(FOR RADIATOR DRAIN COCK)
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
16418-20290 note Packing(FOR RADIATOR DRAIN COCK)
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16492-21050 note Packing(FOR RADIATOR DRAIN COCK)
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16401 — Cap Sub-assy, Radiator
16401-20353 Cap Sub-assy, Radiator
2008-07 → 2010-12 ended
2ZRFE ZRE142 JPP —
16401-72090 Cap Sub-assy, Radiator
2007-12 → 2008-06 ended
2ZRFE ZRE142 JPP —
16401-20353 Cap Sub-assy, Radiator
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16470 — Tank Assy, Radiator Reserve
16470-22091 Tank Assy, Radiator Reserve
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
16470-22091 Tank Assy, Radiator Reserve
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16470B — Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
90466-11003 Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
90466-11003 Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
2010-12 → 2012-07 ended
2ZRFE ZRE142 JPP —
16471 — Cap Sub-assy, Reserve Tank
16405-22060 Cap Sub-assy, Reserve Tank
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
16405-22060 Cap Sub-assy, Reserve Tank
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16473 — Support(FOR RADIATOR RESERVE TANK)
16473-64260 Support(FOR RADIATOR RESERVE TANK)
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
16473-64260 Support(FOR RADIATOR RESERVE TANK)
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16523A — Cushion, Radiator Support
16523-21050 Cushion, Radiator Support
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
16523-21050 Cushion, Radiator Support
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16533 — Support, Radiator, Upper
16533-22070 Support, Radiator, Upper
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
16533-22070 Support, Radiator, Upper
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16535 — Support, Radiator, Lower
16535-21090 Support, Radiator, Lower
2007-12 → 2009-06 ended
2ZRFE ZRE142 JPP —
16535-21091 Support, Radiator, Lower
2009-07 → 2010-12 ended
2ZRFE ZRE142 JPP —
16535-21091 Support, Radiator, Lower
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16561 — Seal, Radiator TO Support, NO.1
16561-22040 note Seal, Radiator TO Support, NO.1
2007-12 → 2009-02 ended
2ZRFE ZRE142 JPP —
16561-22050 note Seal, Radiator TO Support, NO.1
2007-12 → 2009-02 ended
2ZRFE ZRE142 JPP —
16561-22060 note Seal, Radiator TO Support, NO.1
2007-12 → 2009-02 ended
2ZRFE ZRE142 JPP —
16561-22070 note Seal, Radiator TO Support, NO.1
2007-12 → 2009-02 ended
2ZRFE ZRE142 JPP —
16571A — Clamp OR Clip, Hose(FOR RADIATOR INLET)
96136-43901 note Clamp OR Clip, Hose(FOR RADIATOR INLET)
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
96136-44301 note Clamp OR Clip, Hose(FOR RADIATOR INLET)
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
96136-43901 note Clamp OR Clip, Hose(FOR RADIATOR INLET)
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
96136-44301 note Clamp OR Clip, Hose(FOR RADIATOR INLET)
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16571C — Hose, Radiator, NO.1
16571-37100 Hose, Radiator, NO.1
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
16571-37100 Hose, Radiator, NO.1
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16572A — Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
96136-44301 Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
96136-44301 Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16572D — Hose, Radiator, NO.2
16572-37090 Hose, Radiator, NO.2
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
16572-37090 Hose, Radiator, NO.2
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16573B — Hose, Radiator, NO.3
16573-22040 Hose, Radiator, NO.3
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
16573-22040 Hose, Radiator, NO.3
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16573C — Clamp OR Clip, Radiator Hose, NO.3
90466-35001 note Clamp OR Clip, Radiator Hose, NO.3
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
96136-44301 note Clamp OR Clip, Radiator Hose, NO.3
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
90466-35001 note Clamp OR Clip, Radiator Hose, NO.3
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
96136-44301 note Clamp OR Clip, Radiator Hose, NO.3
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16577C — Pipe, Radiator
16577-22030 Pipe, Radiator
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
16577-22030 Pipe, Radiator
2010-12 → 2012-07 ended
2ZRFE ZRE142 JPP —
16577-22031 Pipe, Radiator
2012-07 → 2013-08 ended
2ZRFE ZRE142 JPP —
16581B — Clamp, Hose(FOR RADIATOR HOSE)
16581-22130 Clamp, Hose(FOR RADIATOR HOSE)
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
16581-22130 Clamp, Hose(FOR RADIATOR HOSE)
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16711 — Shroud, Fan
16711-22191 Shroud, Fan
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
16711-22191 Shroud, Fan
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
16712 — Shroud, Fan, NO.2
16712-22050 Shroud, Fan, NO.2
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
16712-22050 Shroud, Fan, NO.2
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
